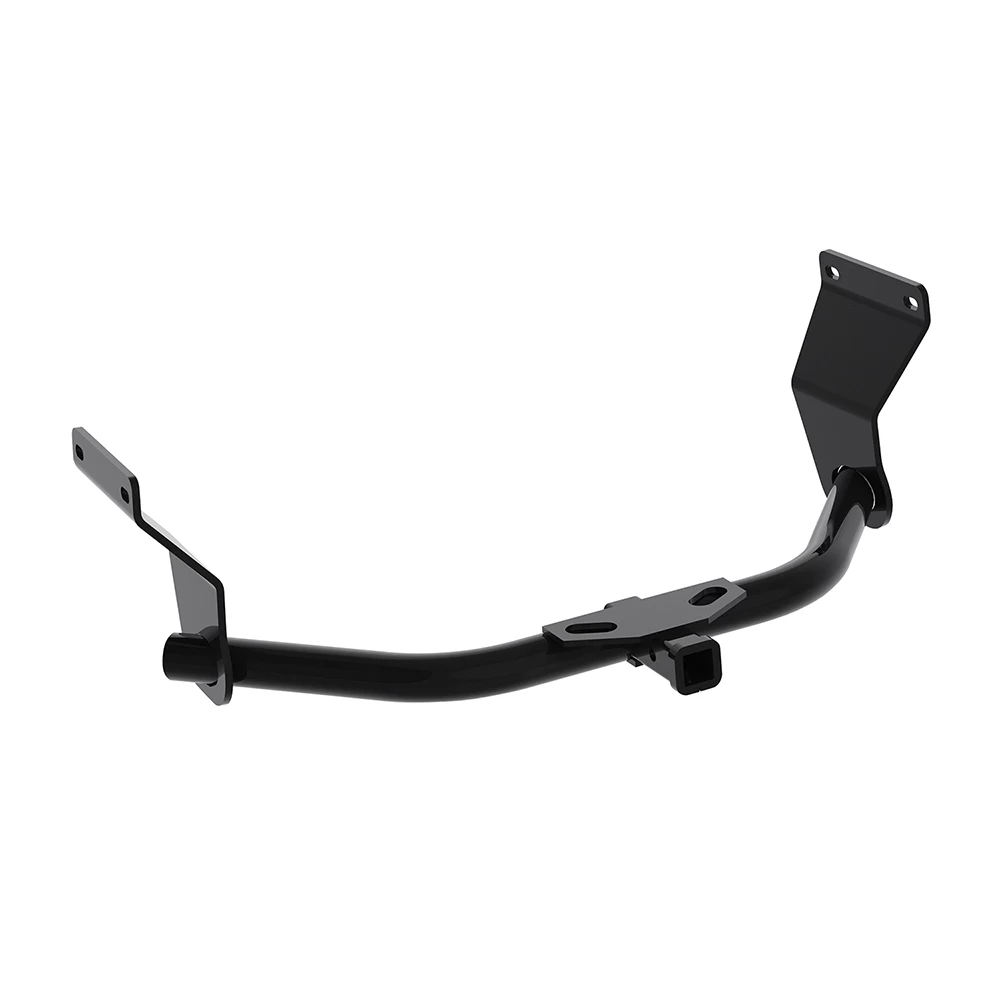

Reese Trailer Tow Hitch For 19‑24 Acura RDX All Styles Class 2 1‑1/4" Towing Receiver
Model: 061932019 - 2024 Acura, RDX, All Styles
Trailer Hitch Specs:
| Part Number | 06193 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$166 91 $243.93 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$243.93 $166 91
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $41.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06193
- UPC: 016118154467
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Description
2019 - 2024 Acura, RDX, All Styles
Trailer Hitch Specs:
| Part Number | 06193 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 19-24 Acura RDX All Styles Class 2 1-1/4" Towing Receiver Install Notes
Installation Instructions for Acura RDX (2019-Current)
Part Numbers:
- 36114
- 06193
- CQT36114
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19mm
- 6" Socket Extension
- Prybar
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Spare Tire:
- Locate the spare tire lowering tools and mechanism (consult the vehicle owner's manual).
- Lower the spare tire and set it aside.
-
Lower Exhaust:
- Use exhaust removal pliers or a prybar to remove the rubber exhaust hangers located in front of and behind the muffler.
- Support the exhaust to prevent damage during this step.
-
Install Hitch:
- Ensure the weldnuts in the frame are free from rust and debris.
- Raise the hitch into position, aligning the attachment holes with the rearmost weldnuts in the side of the frame rails.
- Install the supplied M12 bolts and conical washers (teeth side toward the hitch) into the weldnuts on both sides.
-
Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 42 lb-ft (57 N*m).
-
Reinstall Exhaust and Spare Tire:
- Raise the exhaust back into position and reattach all rubber hangers removed in Step 2.
- Reinstall the spare tire.

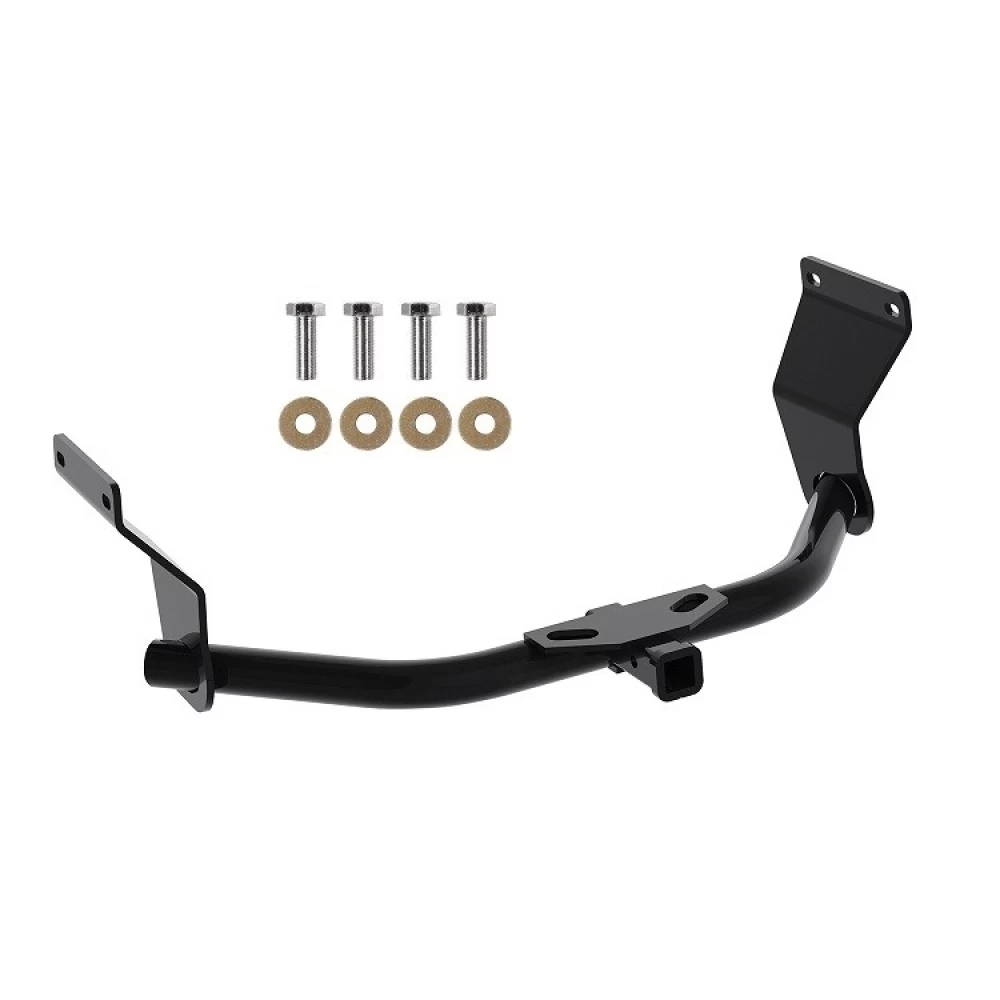

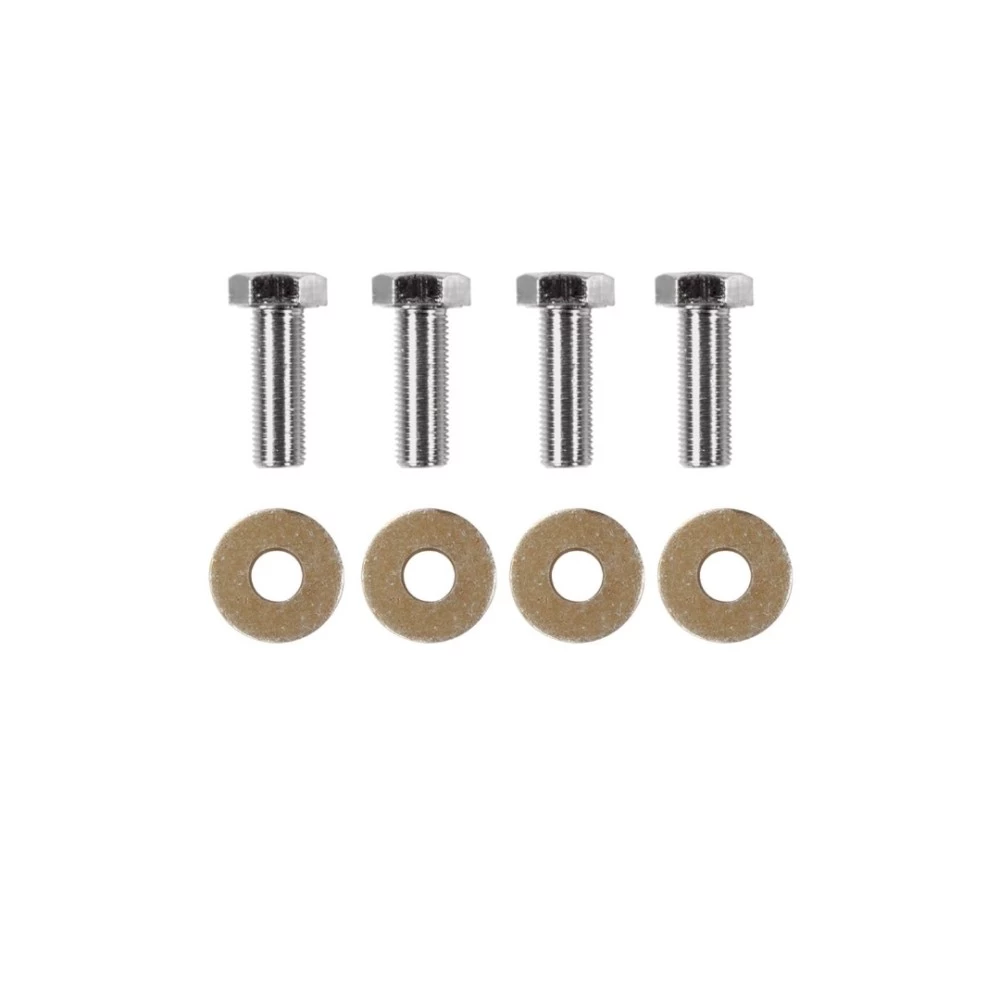

Hardware List:
- (4) Hex Bolt, M12 x 1.25 x 40mm CL10.9
- (4) Conical Washer, 1/2" (Part No. 01292008)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- This product complies with SAE J684 and VESC Regulation V-5 safety specifications.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing: Not Applicable
Installation Instructions for Acura RDX (2019-Current)
Part Numbers:
- 36114
- 06193
- CQT36114
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19mm
- 6" Socket Extension
- Prybar
- Exhaust Removal Pliers
Step-by-Step Instructions:
-
Lower Spare Tire:
- Locate the spare tire lowering tools and mechanism (consult the vehicle owner's manual).
- Lower the spare tire and set it aside.
-
Lower Exhaust:
- Use exhaust removal pliers or a prybar to remove the rubber exhaust hangers located in front of and behind the muffler.
- Support the exhaust to prevent damage during this step.
-
Install Hitch:
- Ensure the weldnuts in the frame are free from rust and debris.
- Raise the hitch into position, aligning the attachment holes with the rearmost weldnuts in the side of the frame rails.
- Install the supplied M12 bolts and conical washers (teeth side toward the hitch) into the weldnuts on both sides.
-
Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 42 lb-ft (57 N*m).
-
Reinstall Exhaust and Spare Tire:
- Raise the exhaust back into position and reattach all rubber hangers removed in Step 2.
- Reinstall the spare tire.
Hardware List:
- (4) Hex Bolt, M12 x 1.25 x 40mm CL10.9
- (4) Conical Washer, 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- This product complies with SAE J684 and VESC Regulation V-5 safety specifications.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing: Not Applicable
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
