Installation Instructions for 2021-Current Volkswagen ID.4

Part Numbers:

• 76521
• 84521
• CQT76521

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: T10, T20, T25, 15 mm
• Plastic Trim Tools
• Marker
• Utility Knife
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Partially Remove Rear Bottom Appearance Panel:

   • Use a T10 Torx bit to remove two plastic screws (with clips) from the front end of the rear bottom appearance panel.
   • Use a T25 Torx bit to remove twelve screws from the panel.

2. Loosen Wheel Well Liner:

   • Use a T25 Torx bit to remove four screws from the driver-side wheel well liner.
   • Repeat the process for the passenger side.

3. Loosen Wheel Well Trim:

   • Using plastic trim tools, partially remove the wheel well trim from the driver side.
   • Gently pull the wheel well liner back.
   • Use a T20 Torx bit to remove two screws from the fascia connection point.
   • Repeat these steps for the passenger side.

4. Remove Taillight Cover:

   • Using plastic trim tools, remove the plastic taillight cover from the driver side.
   • Use a T20 Torx bit to remove one screw below the cover that was removed.
   • Repeat these steps for the passenger side.

5. Remove Fascia:

   • Using a T20 Torx bit, remove two screws from the center of the fascia.
   • Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells, and gently pull the fascia.
   • Disconnect the wiring harness on the passenger side if present.
   • Carefully set the fascia aside for reinstallation.

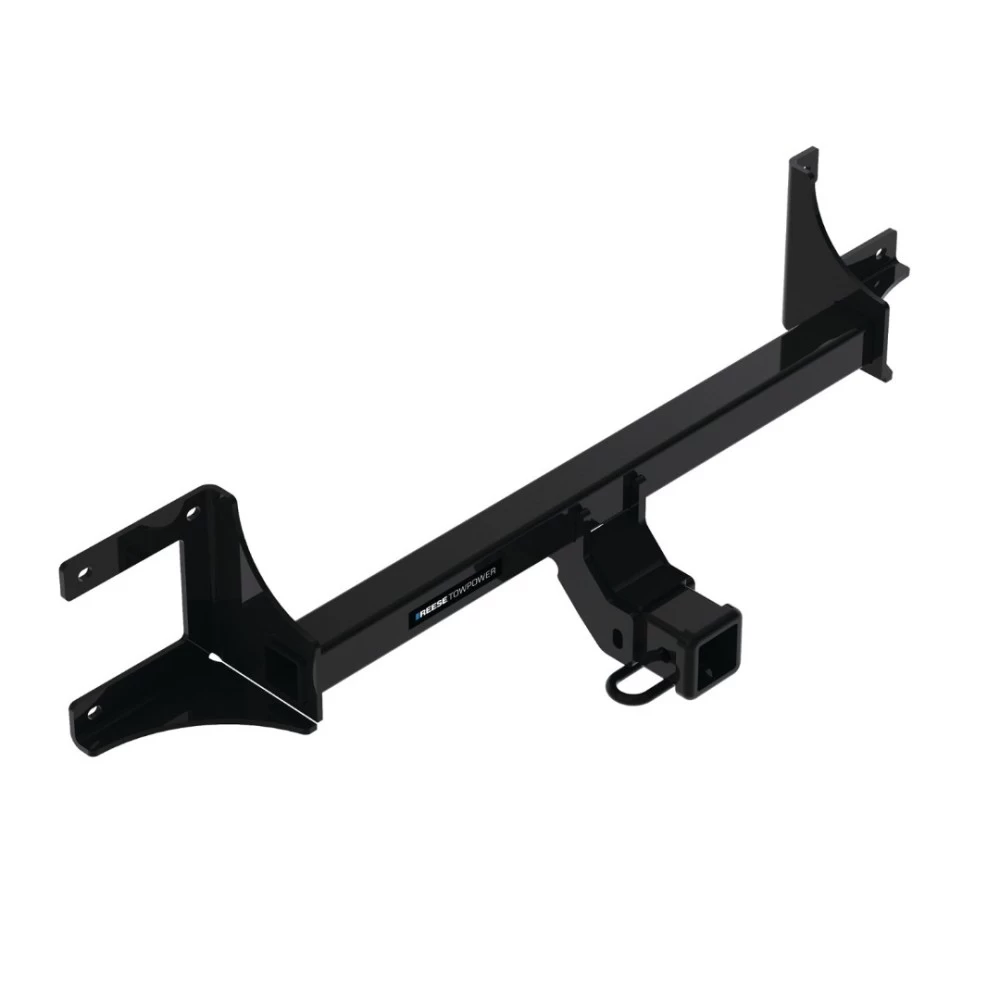

6. Install Hitch:

   • Use a 15 mm socket to remove six M8 bolts from the bumper beam.
   • Do not completely remove the bumper beam.
   • Starting with the driver side, raise the hitch into position, on top of the impact bar structure, and loosely tighten the M8 bolts provided in the fastener kit.
   • Tighten all fasteners to 20 ft-lbs (27 N*m) using a torque wrench.

7. Trim Fascia:

   • Using a tape measure, marker, and utility knife, cut a 1.0” x 6.5” notch in the bottom of the fascia.
   • Ensure the area is clear of all electrical wiring before trimming.
   • Note: Trim begins on the left side of the existing opening in the fascia.

8. Reinstall Components:

   • Reinstall the wiring harness, fascia, fasteners, wheel trims, and bottom appearance panel removed in Steps 1-5.

Hardware List:

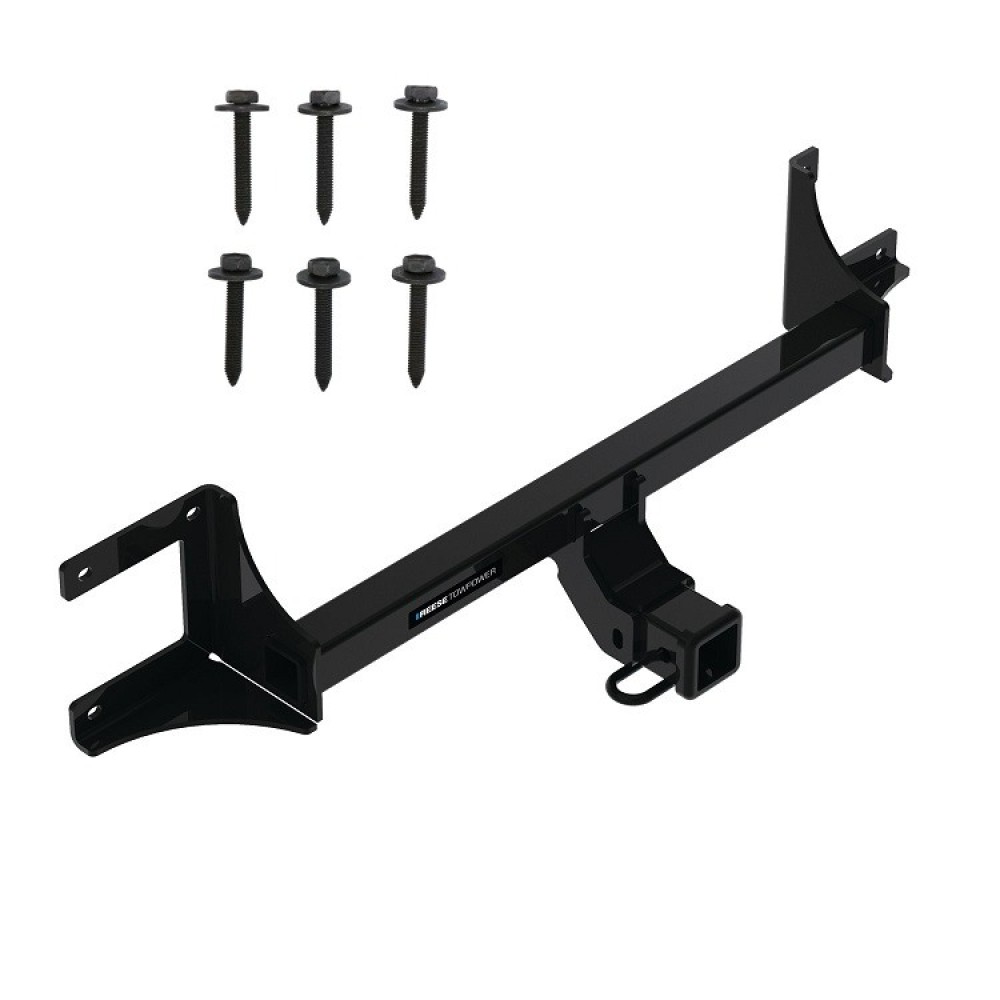

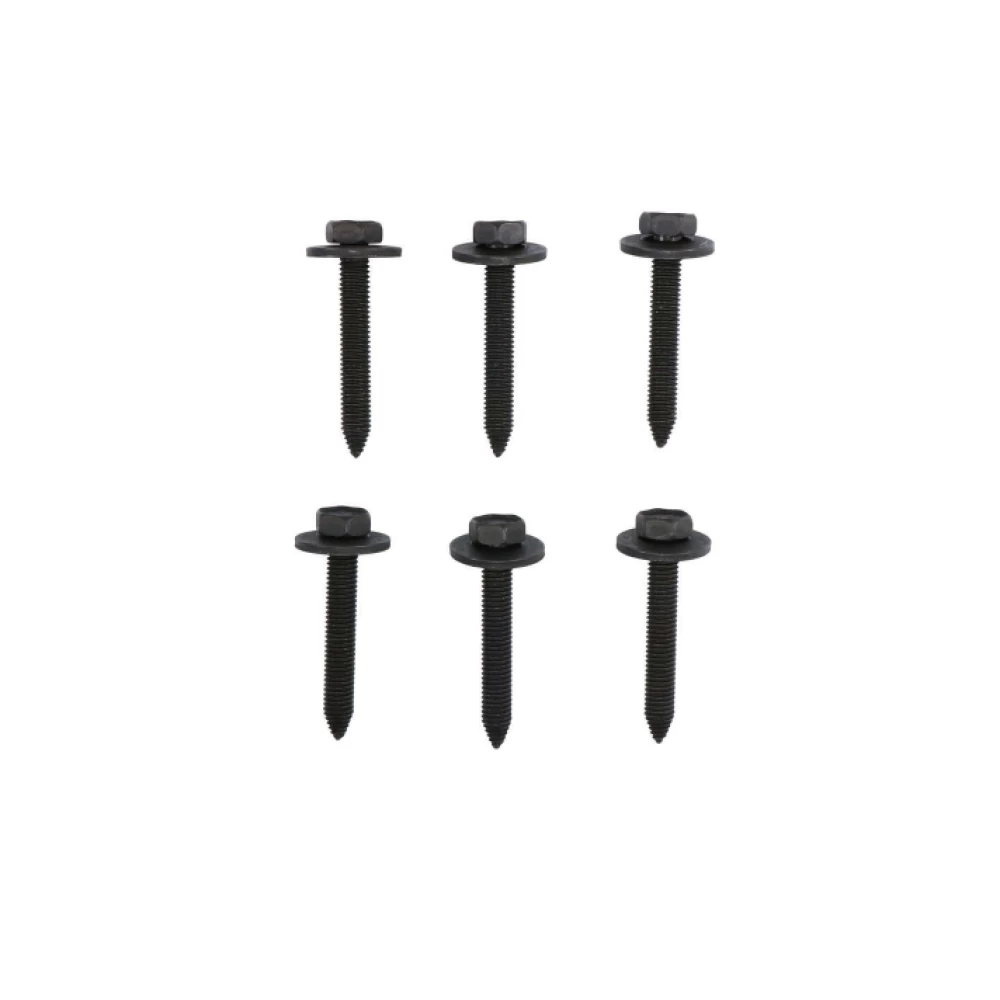

• (6) Hex Bolt M8x1.25 with Washer

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water or exhaust fumes.
• Observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 90 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2021-Current Volkswagen ID.4

Part Numbers:

• 76521
• 84521
• CQT76521

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: T10, T20, T25, 15 mm
• Plastic Trim Tools
• Marker
• Utility Knife
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Partially Remove Rear Bottom Appearance Panel:

• Use a T10 Torx bit to remove two plastic screws (with clips) from the front end of the rear bottom appearance panel.
• Use a T25 Torx bit to remove twelve screws from the panel.

2. Loosen Wheel Well Liner:

• Use a T25 Torx bit to remove four screws from the driver-side wheel well liner.
• Repeat the process for the passenger side.

3. Loosen Wheel Well Trim:

• Using plastic trim tools, partially remove the wheel well trim from the driver side.
• Gently pull the wheel well liner back.
• Use a T20 Torx bit to remove two screws from the fascia connection point.
• Repeat these steps for the passenger side.

4. Remove Taillight Cover:

• Using plastic trim tools, remove the plastic taillight cover from the driver side.
• Use a T20 Torx bit to remove one screw below the cover that was removed.
• Repeat these steps for the passenger side.

5. Remove Fascia:

• Using a T20 Torx bit, remove two screws from the center of the fascia.
• Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells, and gently pull the fascia.
• Disconnect the wiring harness on the passenger side if present.
• Carefully set the fascia aside for reinstallation.

6. Install Hitch:

• Use a 15 mm socket to remove six M8 bolts from the bumper beam.
• Do not completely remove the bumper beam.
• Starting with the driver side, raise the hitch into position, on top of the impact bar structure, and loosely tighten the M8 bolts provided in the fastener kit.
• Tighten all fasteners to 20 ft-lbs (27 N*m) using a torque wrench.

7. Trim Fascia:

• Using a tape measure, marker, and utility knife, cut a 1.0” x 6.5” notch in the bottom of the fascia.
• Ensure the area is clear of all electrical wiring before trimming.
• Note: Trim begins on the left side of the existing opening in the fascia.

8. Reinstall Components:

• Reinstall the wiring harness, fascia, fasteners, wheel trims, and bottom appearance panel removed in Steps 1-5.

Hardware List:

• (6) Hex Bolt M8x1.25 with Washer

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water or exhaust fumes.
• Observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 90 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.
