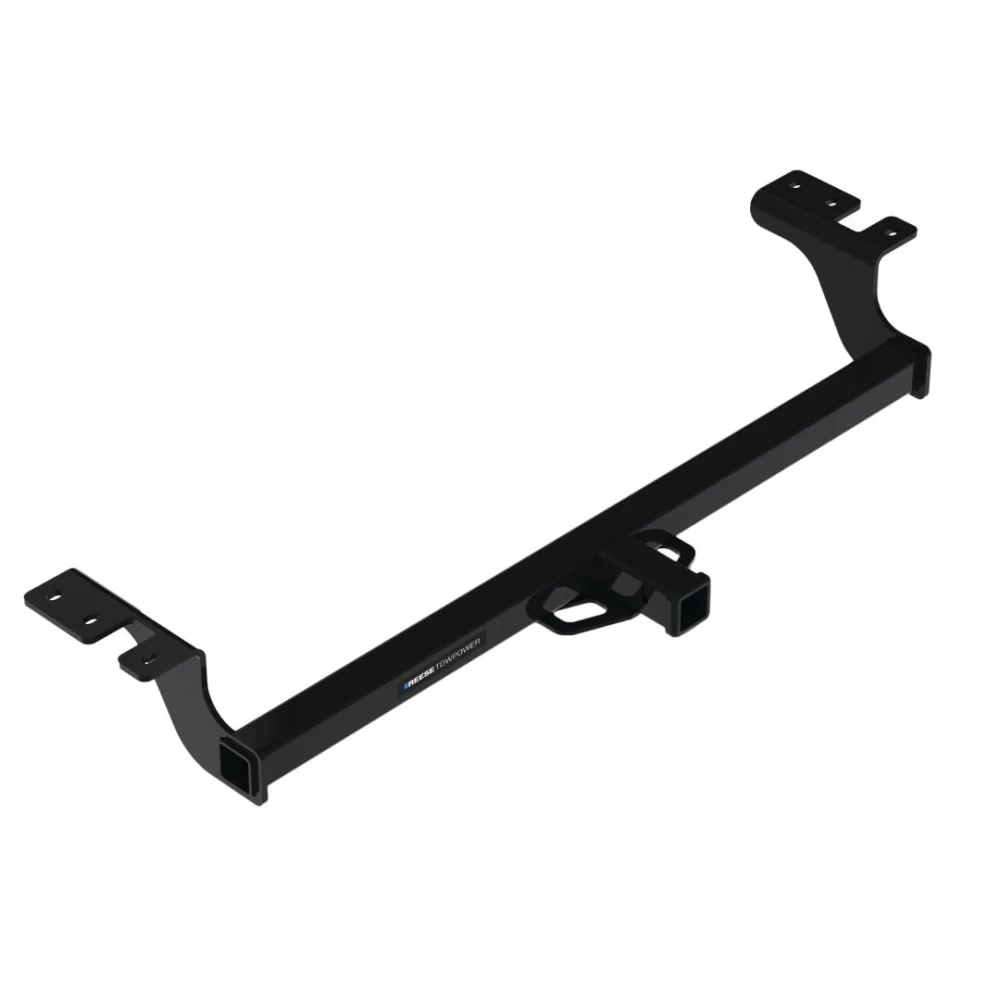

Installation Instructions for 2021-Current Kia Carnival

Part Numbers:

• 76511
• 84511
• CQT76511

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 16 mm
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Utility Knife
• Flat Head Screwdriver

Step-by-Step Instructions:

1. Remove Trim Panel:

   • Using a flat head screwdriver, remove five plastic push rivets from the underside of the driver-side trim panel.
   • Carefully remove the trim panel and return it to the owner.

2. Lower Exhaust:

   • Support the exhaust system to avoid damage.
   • Using exhaust removal pliers, detach two rubber exhaust hangers—one at the rear and one at the base of the exhaust.

3. Trim Caulking:

   • Using a utility knife, partially remove the caulking from the trunk pan on both sides to create a flatter surface.

4. Install Hitch:

   • Raise the hitch into position, aligning the bracket holes with the weldnuts in the vehicle's frame rail.
   • Loosely install the M12 bolts and conical washers (teeth side toward hitch).
   • Use a wire brush to clean the weldnuts if necessary.

5. Tighten Fasteners:

   • Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).

6. Reinstall Exhaust:

   • Raise the exhaust back into position and secure the hangers.

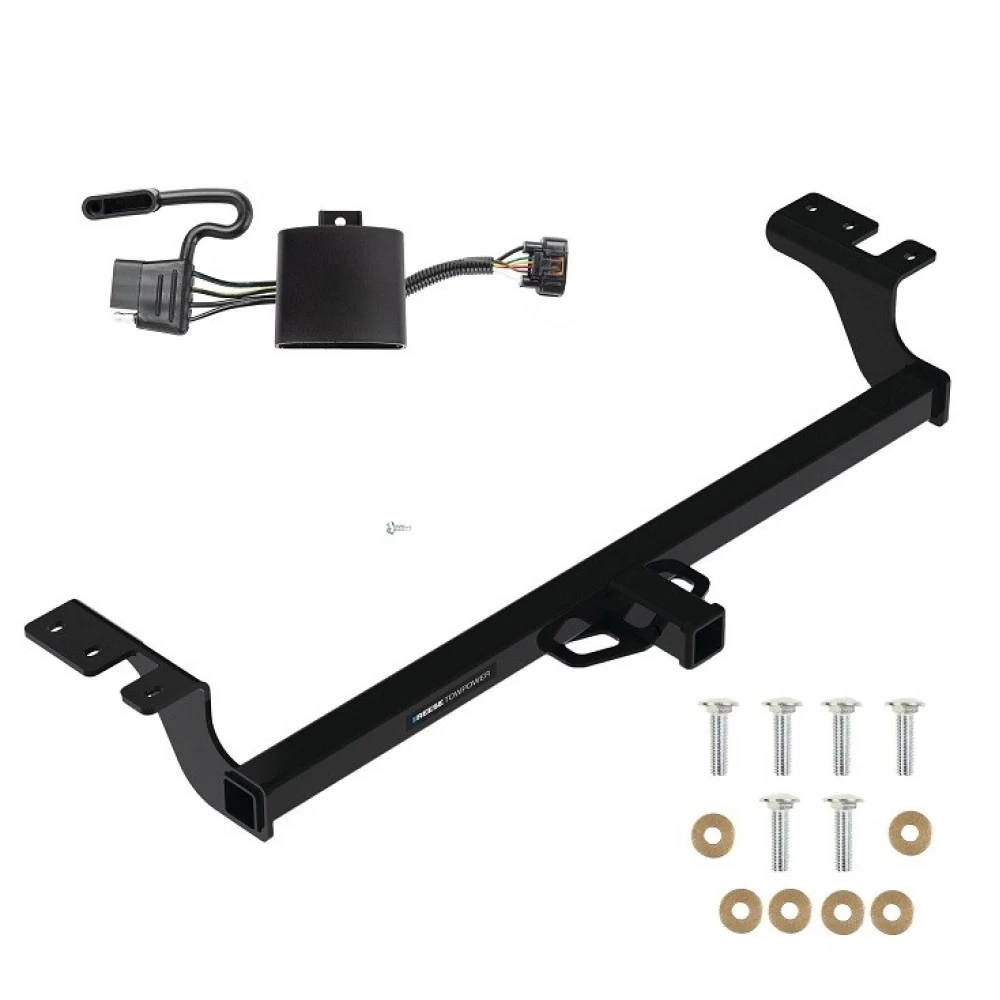

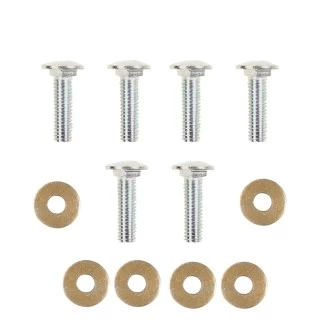

Hardware List:

• (6) Bolt M12 x 1.25 x 35
• (6) Conical Tooth Washer 1/2"

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque to keep the hitch securely mounted to the vehicle.
• Regularly check all fasteners and the hitch for proper tightness.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
• Weight Distributing Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 30 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2021-Current Kia Carnival

Part Numbers:

• 76511
• 84511
• CQT76511

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 16 mm
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Utility Knife
• Flat Head Screwdriver

Step-by-Step Instructions:

1. Remove Trim Panel:

• Using a flat head screwdriver, remove five plastic push rivets from the underside of the driver-side trim panel.
• Carefully remove the trim panel and return it to the owner.

2. Lower Exhaust:

• Support the exhaust system to avoid damage.
• Using exhaust removal pliers, detach two rubber exhaust hangers—one at the rear and one at the base of the exhaust.

3. Trim Caulking:

• Using a utility knife, partially remove the caulking from the trunk pan on both sides to create a flatter surface.

4. Install Hitch:

• Raise the hitch into position, aligning the bracket holes with the weldnuts in the vehicle's frame rail.
• Loosely install the M12 bolts and conical washers (teeth side toward hitch).
• Use a wire brush to clean the weldnuts if necessary.

5. Tighten Fasteners:

• Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).

6. Reinstall Exhaust:

• Raise the exhaust back into position and secure the hangers.

Hardware List:

• (6) Bolt M12 x 1.25 x 35
• (6) Conical Tooth Washer 1/2"

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque to keep the hitch securely mounted to the vehicle.
• Regularly check all fasteners and the hitch for proper tightness.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
• Weight Distributing Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 30 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

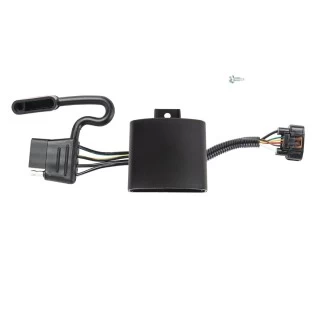

Installation Instructions for T-One® T-Connector for Kia Telluride, Kia Carnival, Kia Sorento, Hyundai Palisade, Hyundai Santa Fe, Hyundai Tucson, and Hyundai Santa Cruz
