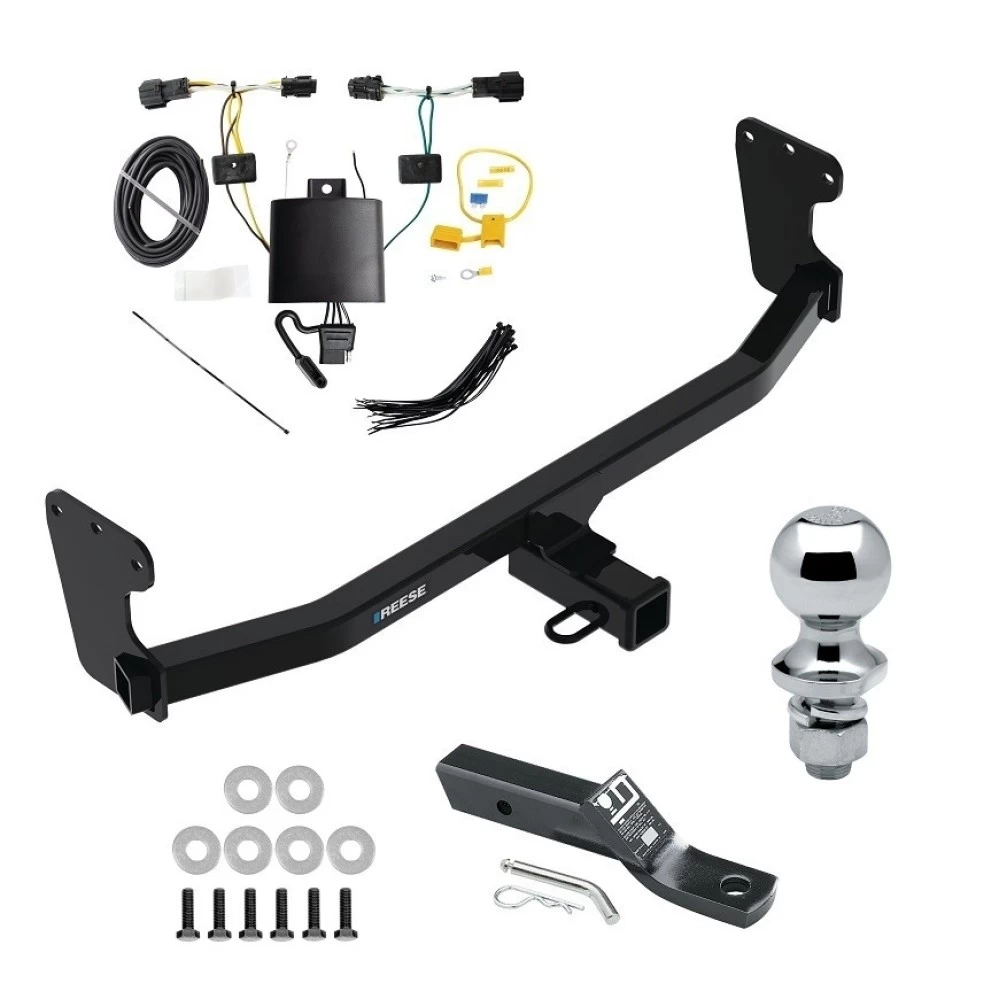

Installation Instructions for 2022-Current Kia EV6

Part Numbers:

• 76592
• 84592
• CQT76592

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 19 mm
• 6-inch Socket Extension
• Wire Brush
• Flat Head Screwdriver
• Die Grinder
• Marker
• Tape

Step-by-Step Instructions:

1. Remove Underbody Panel:

   • Using a flat head screwdriver, remove 6 plastic push rivets from the bottom of the underbody panel.
   • Use a 10 mm socket to remove 3 nuts securing the underbody panel, then set the panel aside.

2. Trim Underbody Panel and Lower Fascia:

   • Locate the center of the underbody panel and mark the area to be trimmed for the receiver. Refer to Figure 2.
   • Mark the center of the lower fascia and trim the area to fit the receiver. Refer to Figure 3.
   • Note: Ensure that no sensor wires are in the trimming area. Move them if necessary.

3. Install Hitch:

   • Remove any stickers covering the weldnut holes on the frame rail.
   • Clean the weldnuts with a wire brush if necessary.
   • Position the spacer plates (attached to the hitch) on the frame rail around the weldnut area.
   • Carefully raise the hitch into position, ensuring no wiring is damaged.
   • Align the attachment holes in the hitch with the spacer and weldnut holes.
   • Insert the supplied M12 bolts and conical washers (teeth side toward the hitch).

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 76 ft-lbs (103 N*m).

5. Reinstall Trimmed Underbody Panel:

   • Reattach the trimmed underbody panel to the vehicle.

Hardware List:

• (6) Bolt M12 x 1.25 x 50 mm CL10.9
• (6) Conical Washer 1/2"

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is required to keep the hitch securely mounted to the vehicle.
• Periodically check the hitch and all fasteners to ensure they are secure.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 3,500 lbs (1,587 kg) trailer weight, 525 lbs (238 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 40 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2022-Current Kia EV6

Part Numbers:

• 76592
• 84592
• CQT76592

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 19 mm
• 6-inch Socket Extension
• Wire Brush
• Flat Head Screwdriver
• Die Grinder
• Marker
• Tape

Step-by-Step Instructions:

1. Remove Underbody Panel:

• Using a flat head screwdriver, remove 6 plastic push rivets from the bottom of the underbody panel.
• Use a 10 mm socket to remove 3 nuts securing the underbody panel, then set the panel aside.

2. Trim Underbody Panel and Lower Fascia:

• Locate the center of the underbody panel and mark the area to be trimmed for the receiver. Refer to Figure 2.
• Mark the center of the lower fascia and trim the area to fit the receiver. Refer to Figure 3.
• Note: Ensure that no sensor wires are in the trimming area. Move them if necessary.

3. Install Hitch:

• Remove any stickers covering the weldnut holes on the frame rail.
• Clean the weldnuts with a wire brush if necessary.
• Position the spacer plates (attached to the hitch) on the frame rail around the weldnut area.
• Carefully raise the hitch into position, ensuring no wiring is damaged.
• Align the attachment holes in the hitch with the spacer and weldnut holes.
• Insert the supplied M12 bolts and conical washers (teeth side toward the hitch).

4. Tighten Fasteners:

• Use a torque wrench to tighten all M12 fasteners to 76 ft-lbs (103 N*m).

5. Reinstall Trimmed Underbody Panel:

• Reattach the trimmed underbody panel to the vehicle.

Hardware List:

• (6) Bolt M12 x 1.25 x 50 mm CL10.9
• (6) Conical Washer 1/2"

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is required to keep the hitch securely mounted to the vehicle.
• Periodically check the hitch and all fasteners to ensure they are secure.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 3,500 lbs (1,587 kg) trailer weight, 525 lbs (238 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.

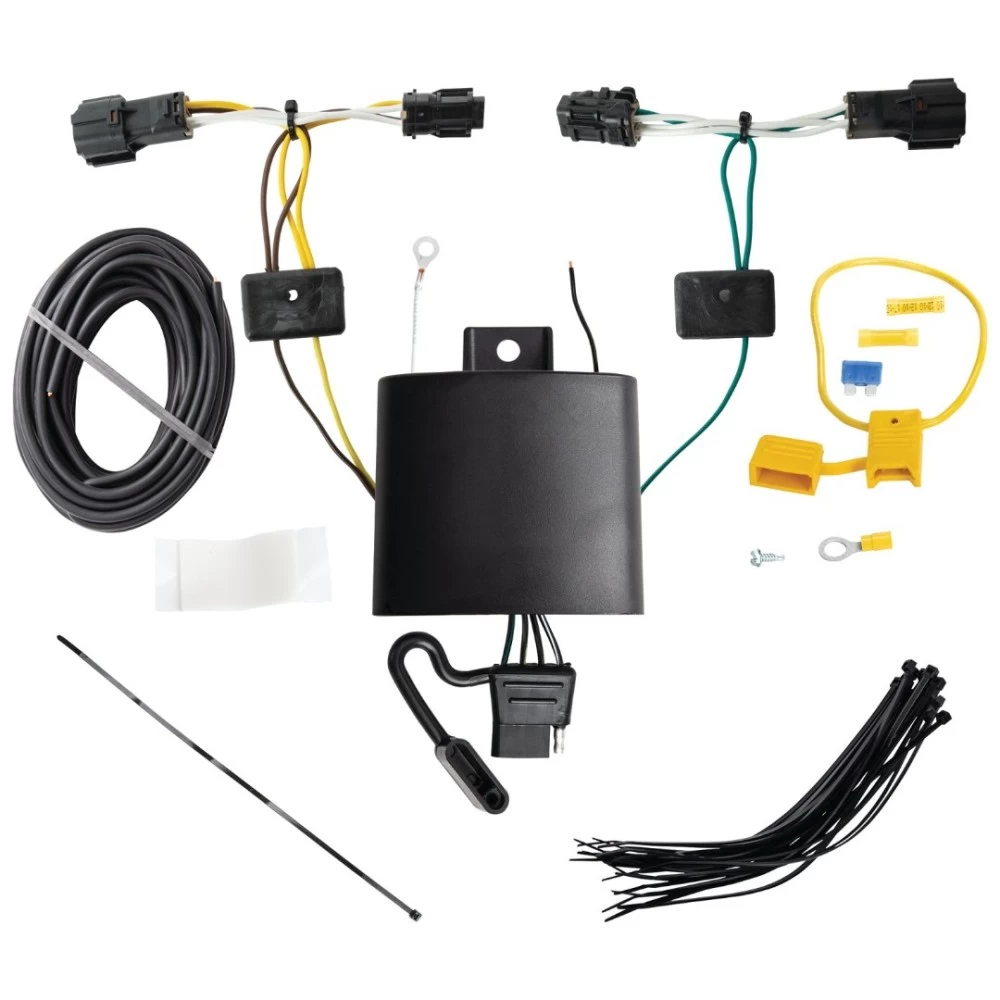

Installation Instructions for T-One® T-Connector for Kia EV6

Part Numbers:

• 118872

Tools Required:

• Trim Panel Remover
• Phillips Head Screwdriver
• 10mm Socket or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Hatch:

   • Fold down both rear seats and remove the floor covering, cargo trays, and threshold. Take care not to damage any locking tabs or pins.

2. Access the Vehicle’s Wiring:

   • Using a 10mm socket, remove the retaining bolts from both the driver’s and passenger’s side trim panels.
   • Remove the retaining screw from behind the rear seat latch release lever on both sides.

3. Expose the Taillight Wiring:

   • Pull back the side trim panels on both the driver’s and passenger’s sides to expose the vehicle’s taillight wiring connectors.

4. Disconnect the Vehicle Wiring Harness:

   • Locate the wiring connectors matching the T-One® Connector harness ends.
   • Disconnect the vehicle wiring harness from the taillight assemblies on both sides, being careful not to damage any locking tabs.

5. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors. Ensure the connectors are fully inserted and securely locked.

6. Mount the Black Box:

   • On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

7. Ground the White Wire:

   • Locate a suitable grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
   • Clean dirt and rustproofing from the area and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury.

8. Route the Passenger-Side T-Connector:

   • Route the green wire connector along the threshold and behind the passenger’s side trim panel to the taillight pocket area.

9. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors. Ensure the connectors are fully inserted and securely locked.

10. Connect the Power Wire:

    • In the cargo area, connect the black 12-gauge wire to the black power wire located on the T-One® Connector black box using the provided yellow butt connector.

11. Route the Power Wire:

    • Starting from the rear cargo area on the driver’s side, route the black 12-gauge wire forward through the interior of the vehicle, behind the trim panels, and up under the driver’s side dashboard.

12. Access the Engine Compartment:

    • Locate an existing grommet in the firewall under the dashboard. Carefully slit the grommet and route the black wire into the engine compartment.

    Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.

13. Connect to the Vehicle Battery:

    • Open the front trunk storage compartment and remove the panel over the battery.
    • Disconnect the Negative (-) battery cable.
    • Attach the ring terminal to the Positive (+) battery cable.
    • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.

14. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer.

15. Reassemble the Vehicle:

    • Replace all plastic trim panels, thresholds, and floor coverings removed during installation.
    • Ensure no wires are pinched or damaged.

16. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use. When in use, pull the connector out carefully to avoid pinching.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.
• Always follow warnings and instructions printed on the tow vehicle’s battery.

Installation Instructions for T-One® T-Connector for Kia EV6

Part Numbers:

• 118872

Tools Required:

• Trim Panel Remover
• Phillips Head Screwdriver
• 10mm Socket or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Hatch:

   • Fold down both rear seats and remove the floor covering, cargo trays, and threshold. Take care not to damage any locking tabs or pins.

2. Access the Vehicle’s Wiring:

   • Using a 10mm socket, remove the retaining bolts from both the driver’s and passenger’s side trim panels.
   • Remove the retaining screw from behind the rear seat latch release lever on both sides.

3. Expose the Taillight Wiring:

   • Pull back the side trim panels on both the driver’s and passenger’s sides to expose the vehicle’s taillight wiring connectors.

4. Disconnect the Vehicle Wiring Harness:

   • Locate the wiring connectors matching the T-One® Connector harness ends.
   • Disconnect the vehicle wiring harness from the taillight assemblies on both sides, being careful not to damage any locking tabs.

5. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors. Ensure the connectors are fully inserted and securely locked.

6. Mount the Black Box:

   • On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

7. Ground the White Wire:

   • Locate a suitable grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
   • Clean dirt and rustproofing from the area and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury.

8. Route the Passenger-Side T-Connector:

   • Route the green wire connector along the threshold and behind the passenger’s side trim panel to the taillight pocket area.

9. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors. Ensure the connectors are fully inserted and securely locked.

10. Connect the Power Wire:

    • In the cargo area, connect the black 12-gauge wire to the black power wire located on the T-One® Connector black box using the provided yellow butt connector.

11. Route the Power Wire:

    • Starting from the rear cargo area on the driver’s side, route the black 12-gauge wire forward through the interior of the vehicle, behind the trim panels, and up under the driver’s side dashboard.

12. Access the Engine Compartment:

    • Locate an existing grommet in the firewall under the dashboard. Carefully slit the grommet and route the black wire into the engine compartment.

    Warning: Avoid routing the wire near hot pipes, heat shields, or the fuel tank.

13. Connect to the Vehicle Battery:

    • Open the front trunk storage compartment and remove the panel over the battery.
    • Disconnect the Negative (-) battery cable.
    • Attach the ring terminal to the Positive (+) battery cable.
    • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.

14. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer.

15. Reassemble the Vehicle:

    • Replace all plastic trim panels, thresholds, and floor coverings removed during installation.
    • Ensure no wires are pinched or damaged.

16. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use. When in use, pull the connector out carefully to avoid pinching.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
