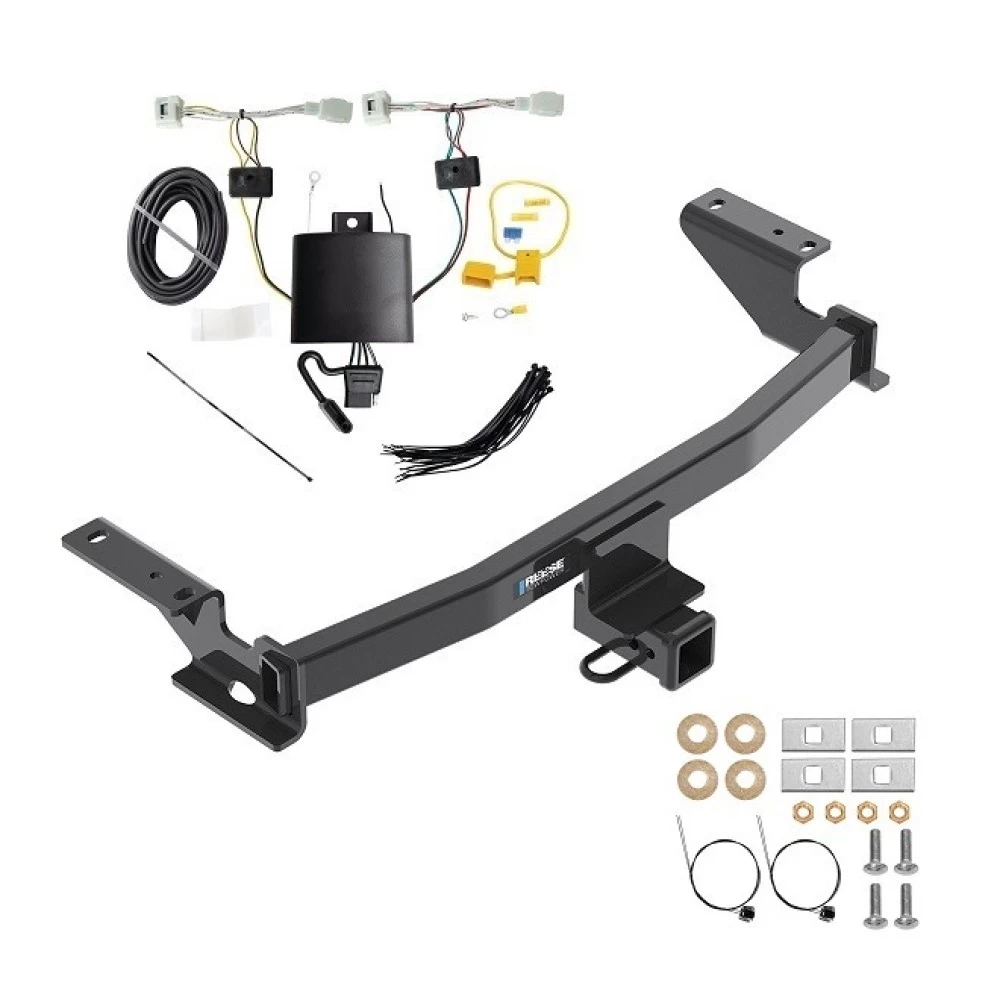

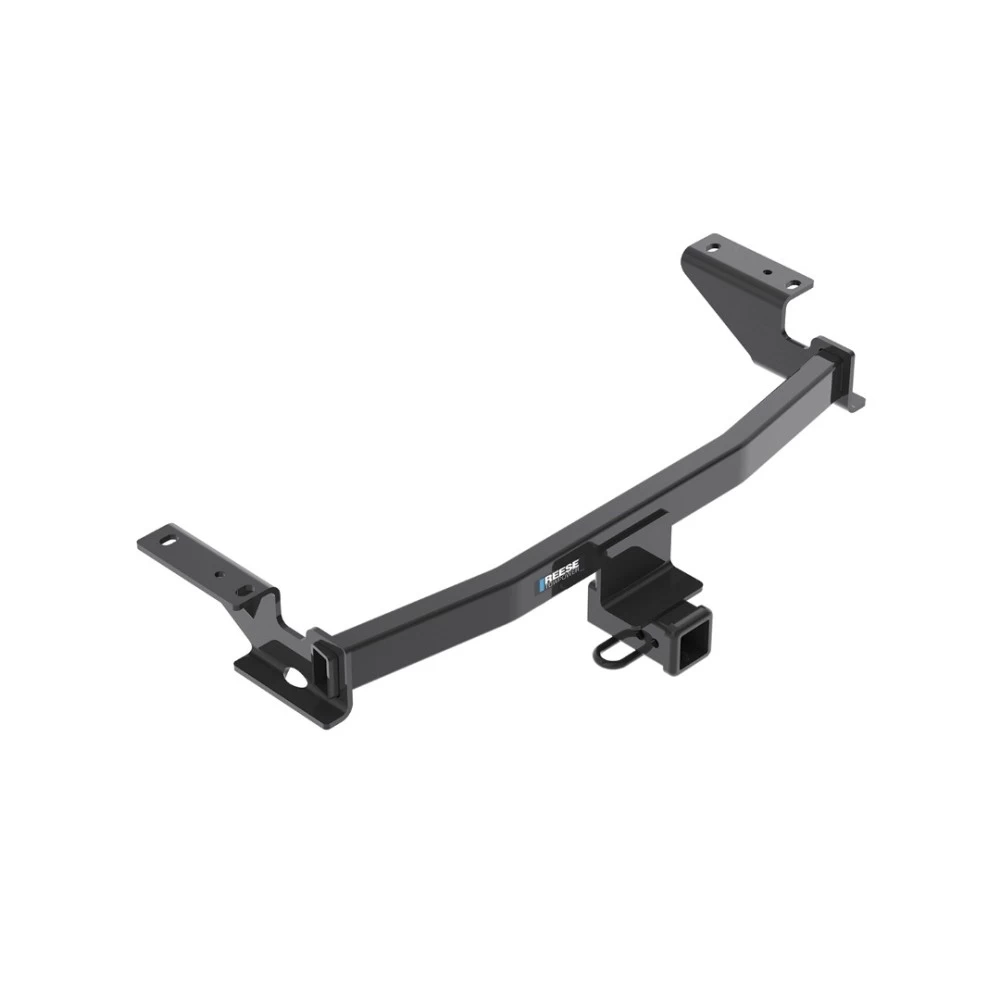

Installation Instructions for Trailer Hitch

Part Numbers:

• 76138
• 84138
• CQT76138

Applications:

• Years: 2013-Current
  • Make and Models: Mazda CX-5

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 3/4"
• 6" Socket Extension
• Small Flat Head Screwdriver (Optional)
• Pry Bar (Optional)
• Lubricant or Soapy Water

Step-by-Step Instructions:

1. Support and Lower Exhaust:

• Lower the exhaust by removing (4) rubber hangers.
• Support the exhaust to prevent it from falling under its own weight.
• Spray lubricant or soapy water on the metal hanger rods and rubber isolators to aid removal.

2. Remove Plastic Rivets:

• If present, remove the plastic rivets fastening the fascia tabs to the vehicle using a small flat head screwdriver.
• Keep the rivets for reinstallation.

3. Install Fasteners:

• Feed the coiled end of the pull wire through the forward attachment hole in the frame and out the access hole.
• Attach the spacer and thread the carriage bolt onto the pull wire. Pull the pull wire with fasteners into position through the hole.
• Leave the pull wire attached. Repeat this process on both frame rails.
• For the reverse pull wire procedure, thread the carriage bolt onto the pull wire and feed it into the access hole on the frame rail. Then feed the spacer onto the pull wire, pull it into position through the spacer, and leave the pull wire attached.

4. Install Hitch:

• Raise the hitch above the exhaust, feeding the pull wires through the attachment points on the hitch brackets.
• Gently pull the fascia rearward as needed to gain access between the fascia and exhaust hanger.

5. Secure Fasteners:

• Feed the conical washer over the pull wire and use it to hold the bolt in place. Remove the pull wires and attach the hex nuts.
• Hand-tighten both sides.

6. Torque Fasteners:

• Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
• Note: A universal joint socket may be needed to tighten the rearward fasteners on both sides.

7. Reinstall Exhaust:

• Raise the exhaust back into position and remove the support.
• Spray lubricant or soapy water on the metal hanger rods and rubber isolators to ease reinstallation.

8. Reinstall Plastic Rivets:

• Reinstall the plastic rivets removed in Step 2.

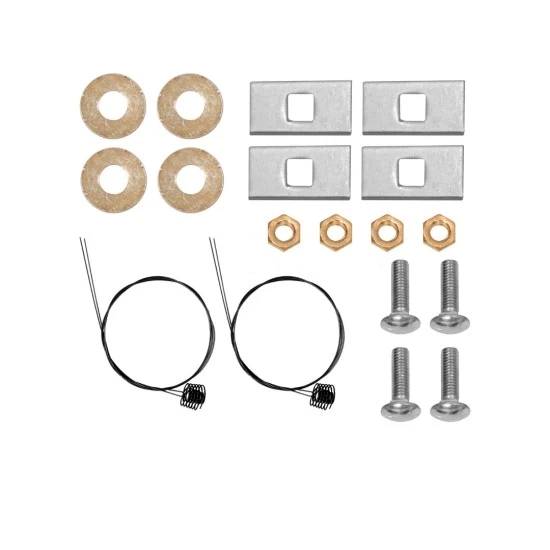

Hardware List:

• 4 × Carriage Bolts (1/2"-13 × 1.25" GR5)
• 4 × Spacers (0.250" × 1.00" × 3.00")
• 4 × Conical Washers (1/2")
• 4 × Hex Nuts (1/2"-13 GR5)
• 4 × Fish Wires (1/2"-13)

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
• Weight Distribution: Not applicable
• Installation Time: Approximately 20 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

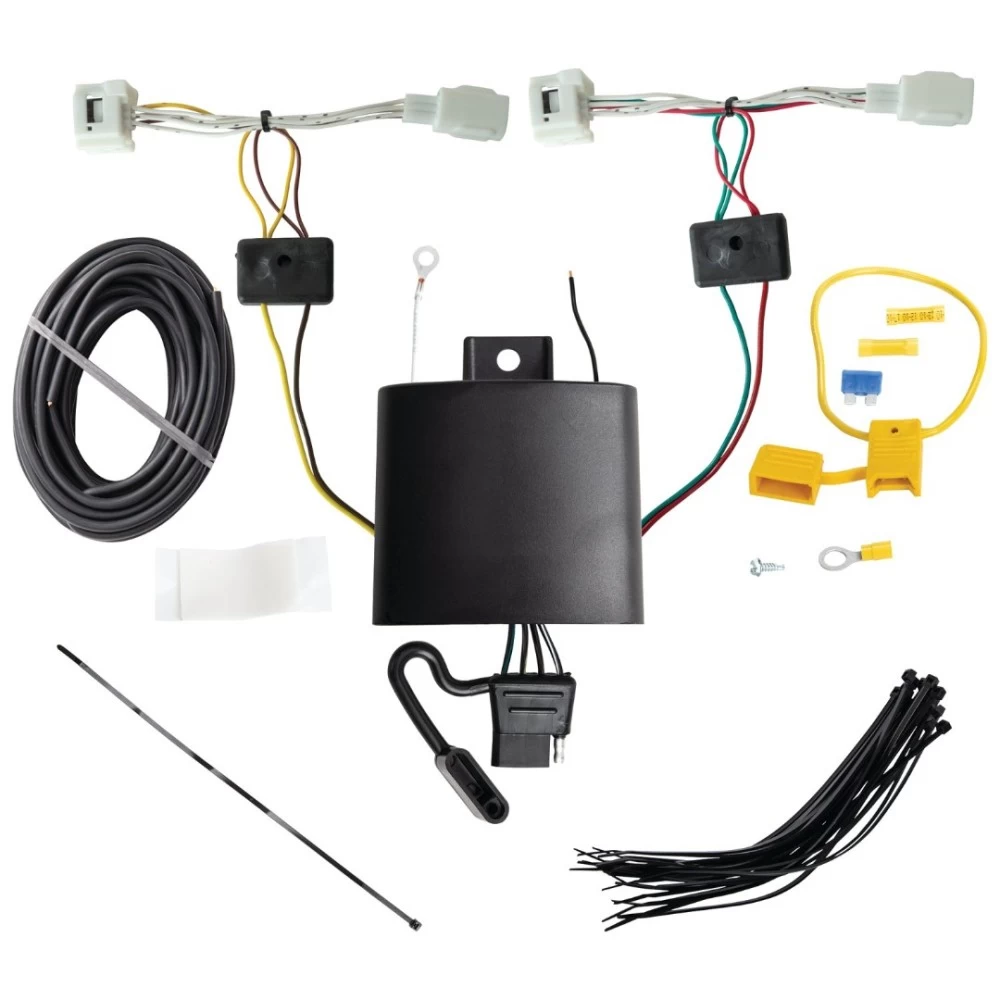

Installation Instructions for T-One® Connector for Mazda CX-5

Part Numbers:

• 118871

Tools Required:

• Trim Panel Remover
• 10mm Socket or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle Interior:

   • Open the rear hatch.
   • Remove the rear threshold plate, privacy screen, storage covers, and floor covering.
   • Open the rear door and fold the rear seat forward.
   • On both sides, partially pull back the felt side panels to expose the wiring connectors.

2. Locate Wiring Connectors:

   • On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness connectors matching the T-One® T-Connector ends.
   • Disconnect the connectors carefully, ensuring not to damage the locking tabs.

3. Install Driver-Side T-One® Connector:

   • Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
   • Ensure all connectors are fully inserted and secure.

4. Mount the Black Box:

   • On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
   • Secure the remaining harness with the provided cable ties to prevent damage or rattling.

5. Ground the White Wire:

   • Locate a grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
   • Clean the area of dirt and rustproofing and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Route Passenger-Side Connector:

   • Route the connector containing the green wire across the threshold and behind the passenger’s side felt panel to the taillight pocket.

7. Install Passenger-Side T-One® Connector:

   • Insert the T-One® T-Connector end with the green wire between the vehicle wiring connectors and lock it into place.
   • Ensure all connectors are fully inserted and secure.

8. Connect Power Wire:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Route Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail.
   • Avoid hot pipes, heat shields, fuel tanks, or areas that may pinch or damage the wire.

   Warning: Use caution when routing wires through grommets and along the exterior to avoid potential hazards.

10. Connect Power Wire to Black Box:

    • Attach the black 12-gauge wire to the black power wire on the T-One® T-Connector’s black box using the provided yellow butt connector.

11. Reconnect Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

12. Reassemble Components:

    • Reinstall trim panels, thresholds, and any other items removed during installation, ensuring wires are not pinched or damaged.
    • Store the 4-Flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Do not exceed the lower of the tow vehicle’s manufacturer ratings or the product’s stated amperage ratings.
• Store these instructions for future reference.

Installation Instructions for T-One® Connector for Mazda CX-5

Part Numbers:

• 118871

Tools Required:

• Trim Panel Remover
• 10mm Socket or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle Interior:

   • Open the rear hatch.
   • Remove the rear threshold plate, privacy screen, storage covers, and floor covering.
   • Open the rear door and fold the rear seat forward.
   • On both sides, partially pull back the felt side panels to expose the wiring connectors.

2. Locate Wiring Connectors:

   • On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness connectors matching the T-One® T-Connector ends.
   • Disconnect the connectors carefully, ensuring not to damage the locking tabs.

3. Install Driver-Side T-One® Connector:

   • Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
   • Ensure all connectors are fully inserted and secure.

4. Mount the Black Box:

   • On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
   • Secure the remaining harness with the provided cable ties to prevent damage or rattling.

5. Ground the White Wire:

   • Locate a grounding point near the black box, such as an existing ground stud, or drill a 3/32” hole.
   • Clean the area of dirt and rustproofing and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Route Passenger-Side Connector:

   • Route the connector containing the green wire across the threshold and behind the passenger’s side felt panel to the taillight pocket.

7. Install Passenger-Side T-One® Connector:

   • Insert the T-One® T-Connector end with the green wire between the vehicle wiring connectors and lock it into place.
   • Ensure all connectors are fully inserted and secure.

8. Connect Power Wire:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Route Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail.
   • Avoid hot pipes, heat shields, fuel tanks, or areas that may pinch or damage the wire.

   Warning: Use caution when routing wires through grommets and along the exterior to avoid potential hazards.

10. Connect Power Wire to Black Box:

    • Attach the black 12-gauge wire to the black power wire on the T-One® T-Connector’s black box using the provided yellow butt connector.

11. Reconnect Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

12. Reassemble Components:

    • Reinstall trim panels, thresholds, and any other items removed during installation, ensuring wires are not pinched or damaged.
    • Store the 4-Flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
