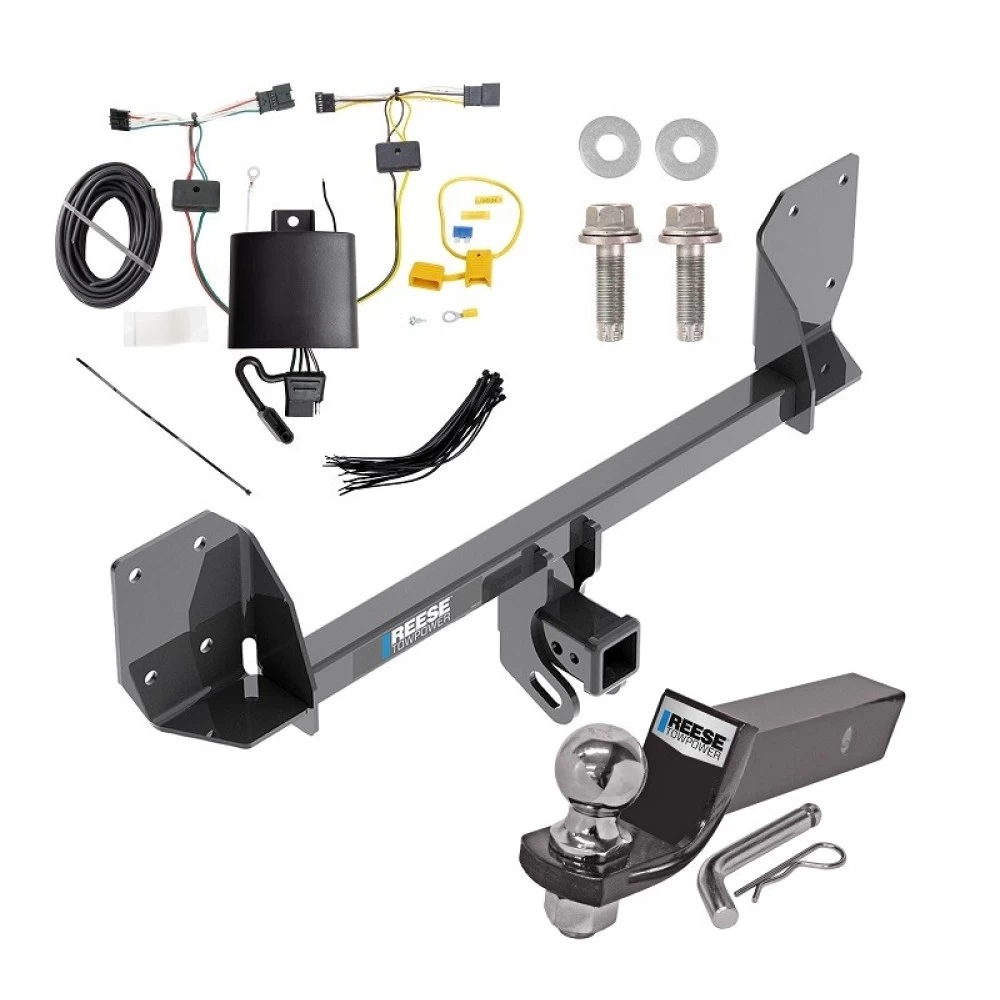

Tow Package For 18‑24 Volvo XC60 Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver Reese
Model: 84194 118773 21536Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Volvo, XC60, All Styles

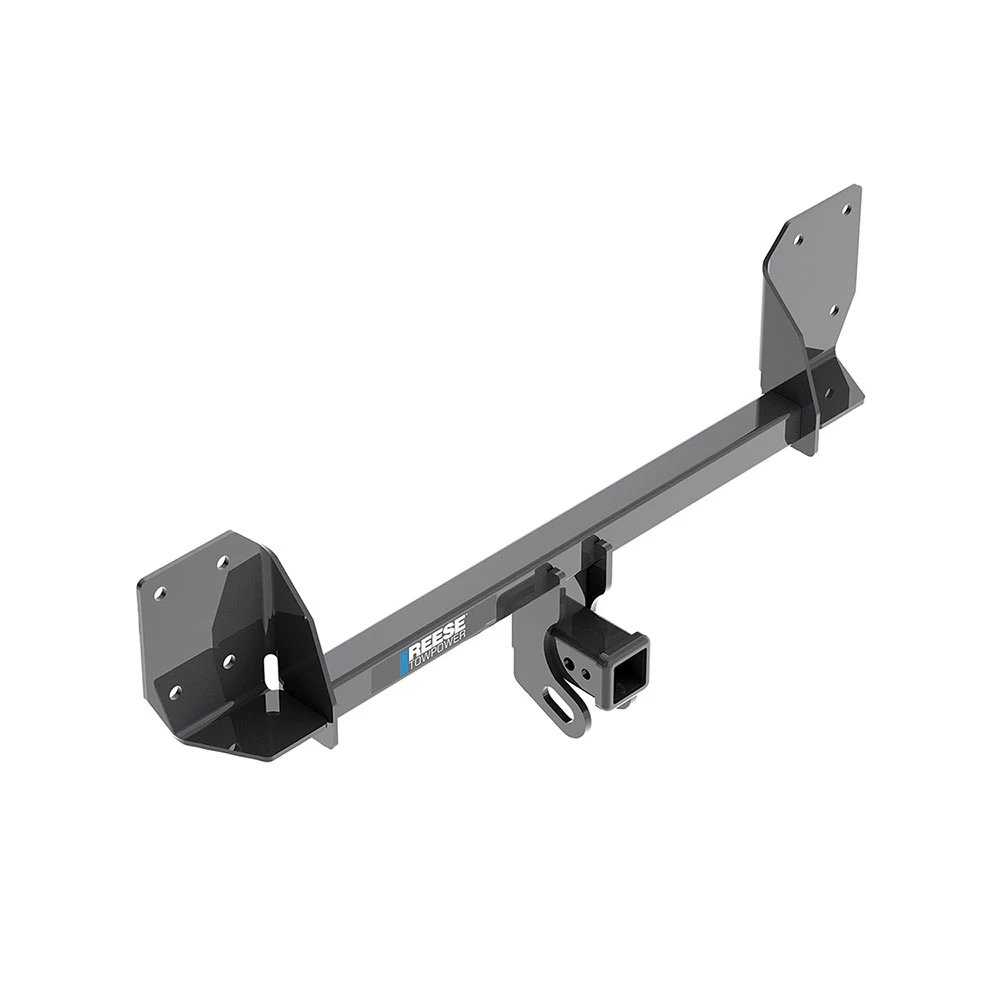

Trailer Hitch Specs:

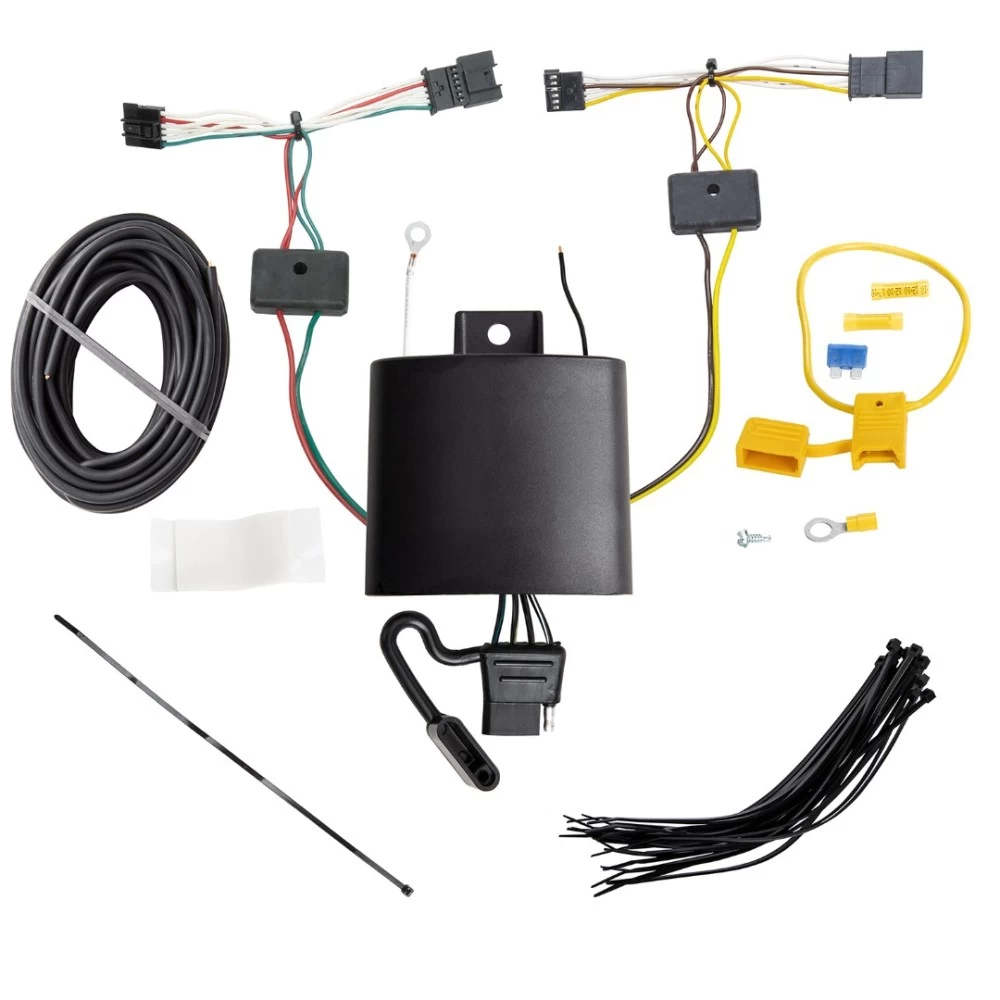

Wiring Kit Specs:
Part Number | 118773 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$347 78 $494.14 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$494.14 $347 78
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84194 118773 21536
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 6,000 lbs. |
Hitch Class | IV |
Material | Steel |
Maximum Tongue Weight | 900 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 - 2024 Volvo, XC60, All Styles
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118773 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Tow Package For 18-24 Volvo XC60 Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver Reese Install Notes
Installation Instructions for Trailer Hitch #76194, #84194, and #CQT76194
Part Numbers:
- 76194
- 84194
- CQT76194
Applications:
- Years: 2016–Current (Volvo XC90), 2018–Current (Volvo XC60)
For the most up-to-date application years and trim levels, consult the manufacturer’s website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 15 mm
- 6" Socket Extension
- T20 Star Driver
- Tin Snips
- Marker
- Tape Measure
- Exhaust Removal Pliers
- Utility Knife
Step-by-Step Instructions:
1. Fascia and Bumper Beam Removal:
- Use a T20 star driver to remove (4) screws from the bottom fascia.
- Remove screws from the wheel wells:
- XC90: Remove (5) screws on each side.
- XC60: Remove (7) screws on each side.
- Open the trunk (for XC60, remove bump stops), gently remove the fascia, and unplug any wiring:
- XC90: Disconnect 2 wirings.
- XC60: Disconnect 1 wiring.
- Set the fascia aside carefully.
- Use a 15 mm socket to remove (3) flange nuts from the bumper beam on each side, then remove the bumper beam and fasteners.
- Some models may have (4) flange nuts.
2. Heat Shield Trimming:
- Trim the heat shield as specified in the instructions (refer to Figure 3).
3. Bend Fascia Mounting Tabs:
- XC90 Models: Skip this step.
- XC60 Models: Gently bend the fascia mounting tabs as shown in Figure 4 to allow clearance for the hitch.
4. Hitch Installation:
- Raise the hitch into position, aligning the bracket holes with the studs on the end panel.
- Raise the bumper beam to sandwich the hitch and reuse the flange nuts (refer to Figure 1).
- If the fourth hole in the bumper is open, use the additional hardware (refer to Figure 5).
- XC60 Models: Before reattaching the fascia and heat shield, gently bend the fascia mounting tabs as needed.
5. Tighten Fasteners:
- Torque all M10 fasteners to 53 lb-ft (72 N·m).
6. Fascia Trimming and Reinstallation:
- Mark the centerline on the fascia and trim the area as shown in Figure 6.
- Reinstall all fasteners, wiring, exhaust hanger, and fascia removed in Steps 1 and 2.
- After reinstalling the fascia, gently bend the fascia mounting tabs as needed to align them properly.
Hardware List:
- 2 × Conical Washers (7/16")
- 2 × M10 × 1.5 × 45 mm Bolts (CL10.9)
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
- Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering the vehicle.
- Replace any damaged hitch or hitch ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 6,000 lbs (2,724 kg)
- Max Tongue Weight (Weight Carrying): 900 lbs (409 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 65 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Volvo XC60
Part Numbers:
- 118773
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
1. Remove Interior Panels:
- Open the tailgate and remove the cargo door on the floor.
- Carefully remove the floor trim panels and access panels on each side of the vehicle.
- Set aside all items removed, being careful not to damage parts.
2. Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness inside the access panel area.
- The taillight wiring harness has a connection point matching the ends of the T-One® T-Connector.
- Disconnect the harness carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
3. Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
- Lock the connectors into place, ensuring they are fully inserted and secure.
4. Route the Passenger-Side T-Connector:
- Route the connector containing the green wire down the threshold to the passenger side of the vehicle.
- Insert the T-One® Connector end with the green wire between the passenger-side taillight wiring connectors.
5. Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
6. Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® Connector box.
- Attach the provided black wire and route it along the vehicle’s exterior frame or follow existing wiring into the engine compartment up to the battery.
Warning: Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
7. Connect to the Vehicle Battery:
- Disconnect the Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
8. Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
9. Mount the Black Box Module:
- Locate a flat surface in an out-of-the-way place and mount the T-One® Connector’s black box module to prevent damage or rattling.
10. Secure the Wiring Harness:
- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.
11. Reassemble the Vehicle:
- Replace both access panels, spare tire cover, cargo floor hatch, and cargo nets removed during installation.
12. Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Warranty Information:
- Warranty Duration: This product is covered by a limited lifetime warranty.
- Coverage: The warranty covers defects in materials and workmanship under normal use.
- Warranty Instructions: For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
