Trailer Hitch w/ 4 Bike Rack For 19‑24 Honda Passport All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

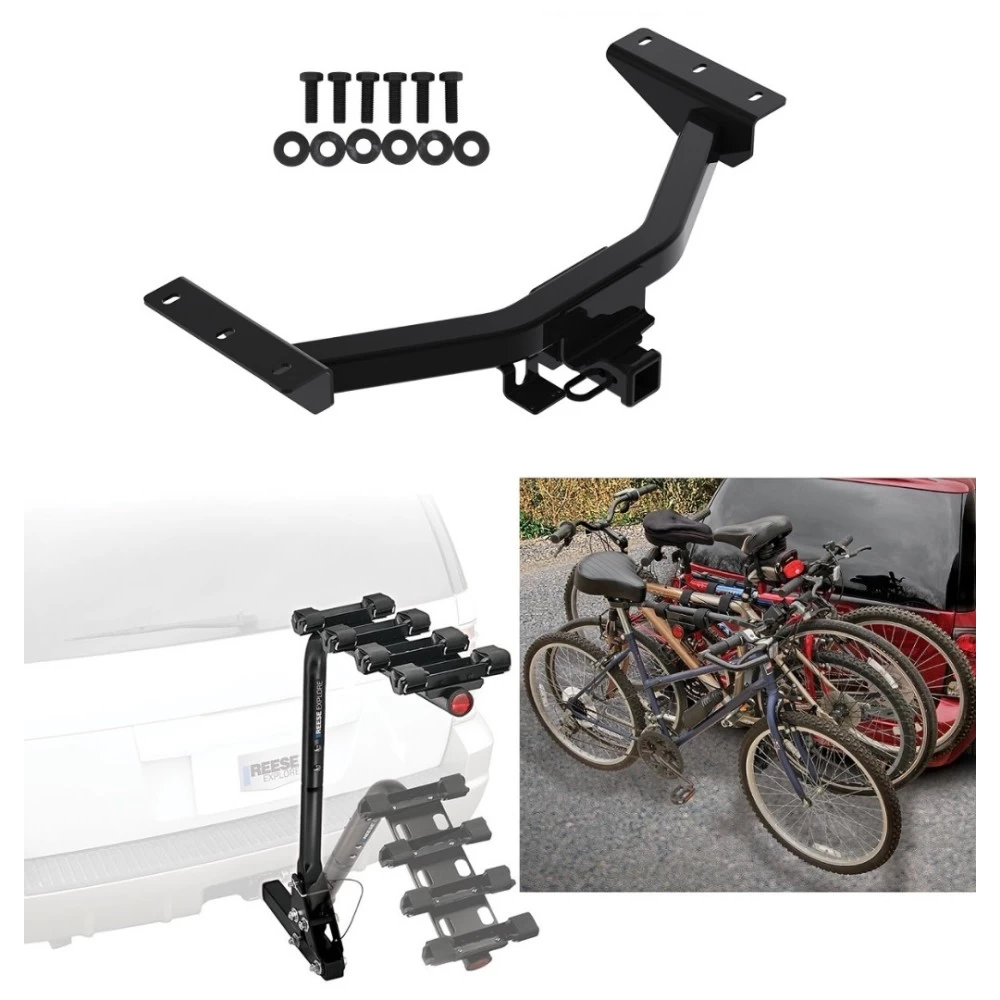

Model: 84290 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Honda, Passport, All Styles

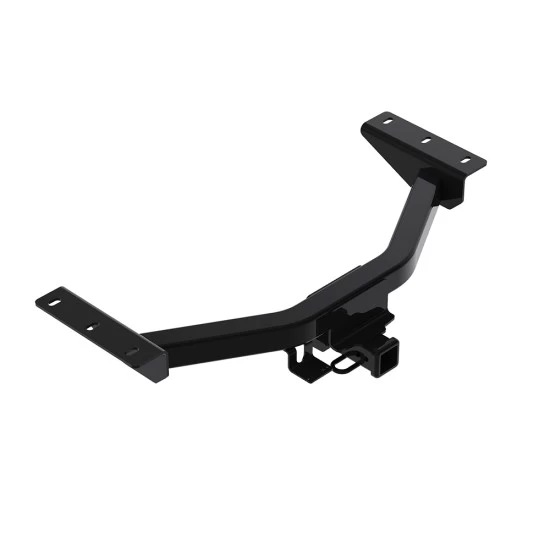

Trailer Hitch Specs:
| Part Number | 84290 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$360 58 $693.89 48% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$693.89 $360 58
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $90.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84290 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Honda, Passport, All Styles
Trailer Hitch Specs:
| Part Number | 84290 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 19-24 Honda Passport All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2019-Current Honda Passport
Part Numbers:
- 76290
- 84290
- CQT76290
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 6-inch Socket Extension
- M14x1.5 Tap
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove any stickers or plugs covering the weldnuts on the frame rails (both sides).
- Ensure weldnuts are free of rust and debris. Use an M14x1.5 tap if necessary.
-
Install Hitch:
- Raise the hitch into position and align the holes in the hitch bracket with the frame rail weldnuts.
- Loosely install the supplied M14 bolts and conical washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 89 ft-lbs (121 Nm).

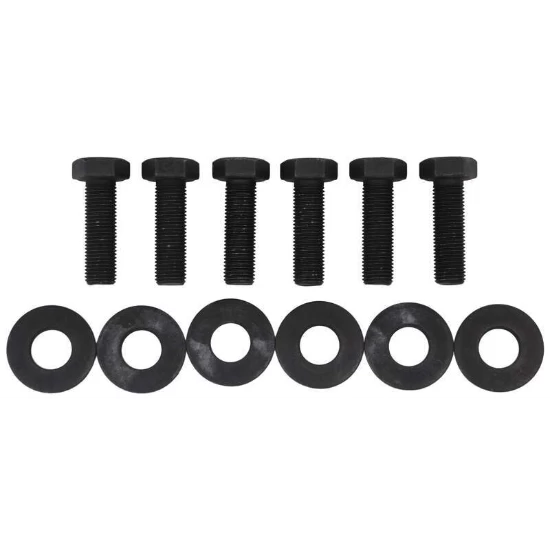

Hardware List:
- (6) Bolt M14x1.5x45 CL10.9
- (6) Conical Washer 5/8"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted.
- Check hitch and fasteners regularly for proper tightness.
- Damaged hitch or ball should be removed and replaced.
- Never cut attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,632 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for Vehicle Models (2019-Present)
Part Numbers:
- 76290
- 84290
- CQT76290
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 6-inch Socket Extension
- M14x1.5 Tap
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove any stickers or plugs covering the weldnuts on the frame rails (both sides).
- Ensure weldnuts are free of rust and debris. Use an M14x1.5 tap if necessary.
-
Install Hitch:
- Raise the hitch into position and align the holes in the hitch bracket with the frame rail weldnuts.
- Loosely install the supplied M14 bolts and conical washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 89 ft-lbs (121 Nm).
Hardware List:
- (6) Bolt M14x1.5x45 CL10.9
- (6) Conical Washer 5/8"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted.
- Check hitch and fasteners regularly for proper tightness.
- Damaged hitch or ball should be removed and replaced.
- Never cut attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,632 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
