Trailer Hitch w/ 4 Bike Rack For 20‑25 Jeep Gladiator Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

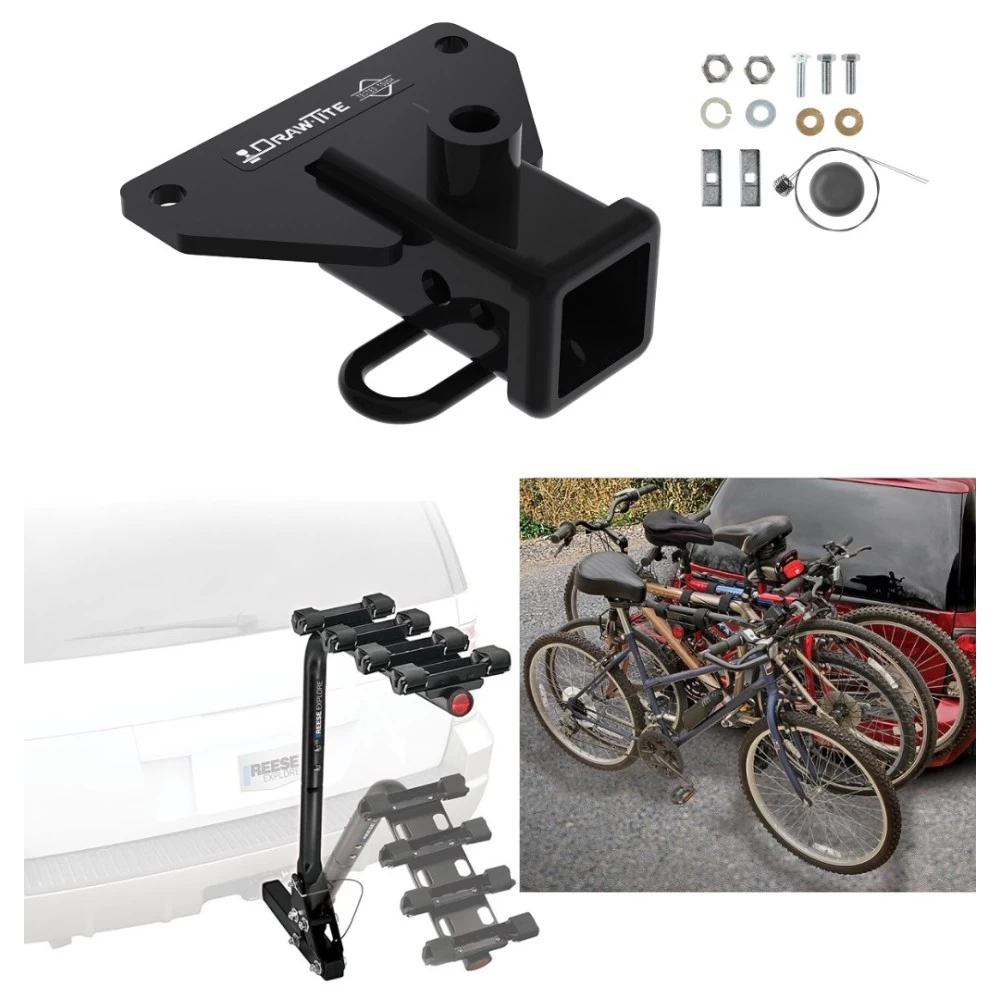

Model: 76384 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

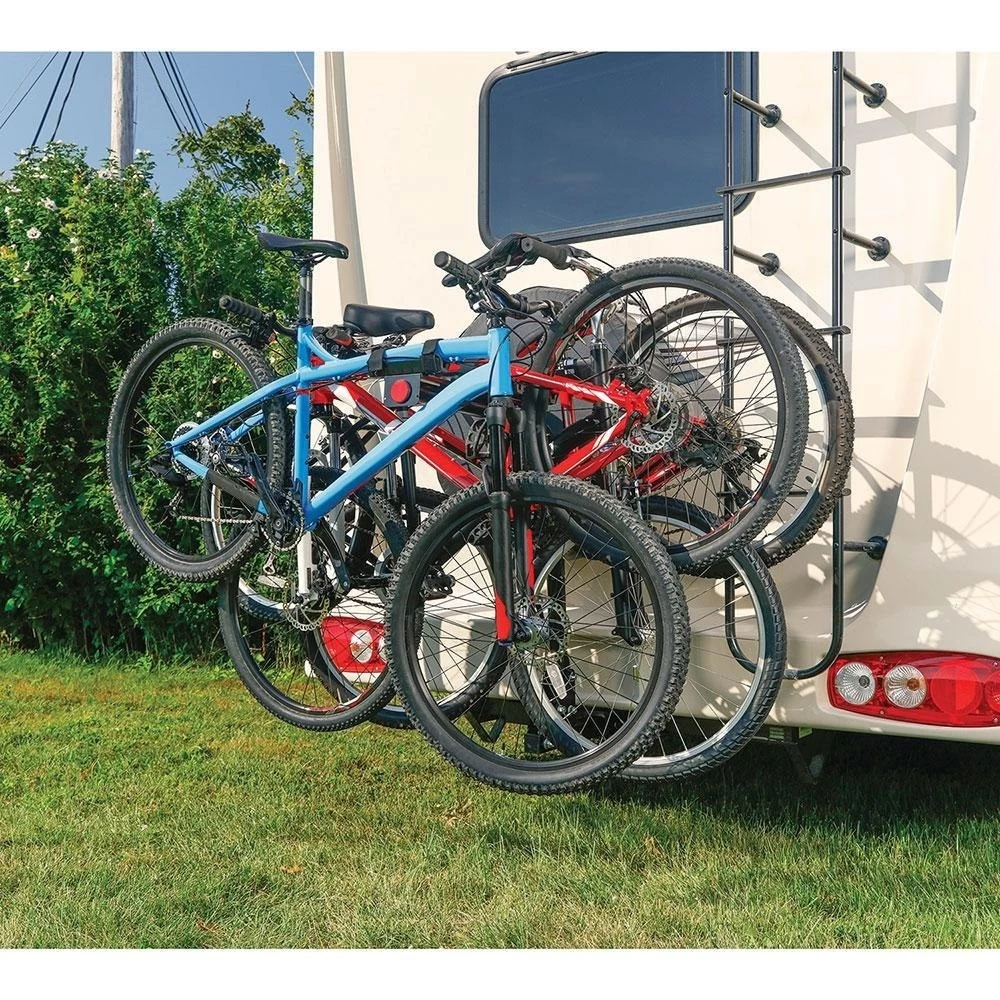

Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2020 - 2025 Jeep, Gladiator, All Styles
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 25 2020 2021 2022 2023 2024 2025
$267 15 $499.59 47% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$499.59 $267 15
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $66.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76384 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 450 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2020 - 2025 Jeep, Gladiator, All Styles
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 25 2020 2021 2022 2023 2024 2025
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 20-25 Jeep Gladiator Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2021-Current Jeep Gladiator
Part Numbers:
- 76384
- 84384
- CQT76384
Tools Required:
- Safety Glasses
- Ratchet
- Sockets: 1-1/8”, 3/4”
- Torque Wrench
- Drill
- 2-1/2” Hole Saw
- Silicone Sealant
Step-by-Step Instructions:
-
Drill Hole in Rear Bumper Cover:
- Using a 2.5” hole saw, drill through the predefined dimple in the center of the rear bumper cover.
- Insert the following through the drilled hole:
- (1) 3/4” flat washer
- (1) 3/4” lock washer
- (1) 3/4” bolt.
-
Feed Bolts and Spacers:
- Using pull wires, feed (2) 1/2”-13x1.5” carriage bolts and (2) .250x1.00x3.00 spacers through the access holes on both ends of the bumper beam cross member.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position.
- Loosely install:
- (1) 3/4” bolt
- (2) 1/2” conical washers
- (2) 1/2” hex nuts.
-
Tighten Fasteners:
- Tighten 1/2”-13x1.5” GR5 fasteners to 75 ft-lbs (102 Nm).
- Tighten the 3/4”-10x2 GR8 fastener to 250 ft-lbs (339 Nm).
-
Install Bolt Cap:
- Apply silicone sealant to the head of the 3/4” bolt.
- Install (1) bolt cap on the head of the bolt.
Hardware List:
- (1) Washer, Flat 3/4"
- (1) Lock Washer 3/4" Plated
- (1) Bolt, Hex 3/4"-10x2 GR8
- (1) Cap, Bolt (Black Rubber)
- (2) Bolt, Carriage 1/2"-13x1.5
- (2) Spacer .250x1.00x3.00
- (2) Washer, Conical 1/2"
- (2) Nut, Hex 1/2"-13 GR5
- (2) Pull Wire 1/2”-13
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque is applied to all fasteners to secure the hitch.
- Check the hitch frequently to confirm fasteners and ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,268 kg) trailer weight, 500 lbs (227 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for Vehicle Models (2021-Present)
Part Numbers:
- 76384
- 84384
- CQT76384
Tools Required:
- Safety Glasses
- Ratchet
- Sockets: 1-1/8”, 3/4”
- Torque Wrench
- Drill
- 2-1/2” Hole Saw
- Silicone Sealant
Step-by-Step Instructions:
-
Drill Hole in Rear Bumper Cover:
- Using a 2.5” hole saw, drill through the predefined dimple in the center of the rear bumper cover.
- Insert the following through the drilled hole:
- (1) 3/4” flat washer
- (1) 3/4” lock washer
- (1) 3/4” bolt.
-
Feed Bolts and Spacers:
- Using pull wires, feed (2) 1/2”-13x1.5” carriage bolts and (2) .250x1.00x3.00 spacers through the access holes on both ends of the bumper beam cross member.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position.
- Loosely install:
- (1) 3/4” bolt
- (2) 1/2” conical washers
- (2) 1/2” hex nuts.
-
Tighten Fasteners:
- Tighten 1/2”-13x1.5” GR5 fasteners to 75 ft-lbs (102 Nm).
- Tighten the 3/4”-10x2 GR8 fastener to 250 ft-lbs (339 Nm).
-
Install Bolt Cap:
- Apply silicone sealant to the head of the 3/4” bolt.
- Install (1) bolt cap on the head of the bolt.
Hardware List:
- (1) Washer, Flat 3/4"
- (1) Lock Washer 3/4" Plated
- (1) Bolt, Hex 3/4"-10x2 GR8
- (1) Cap, Bolt (Black Rubber)
- (2) Bolt, Carriage 1/2"-13x1.5
- (2) Spacer .250x1.00x3.00
- (2) Washer, Conical 1/2"
- (2) Nut, Hex 1/2"-13 GR5
- (2) Pull Wire 1/2”-13
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque is applied to all fasteners to secure the hitch.
- Check the hitch frequently to confirm fasteners and ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,268 kg) trailer weight, 500 lbs (227 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
