Trailer Hitch w/ 4 Bike Rack For 20‑22 Subaru Legacy Sedan 20‑24 Outback Wagon Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

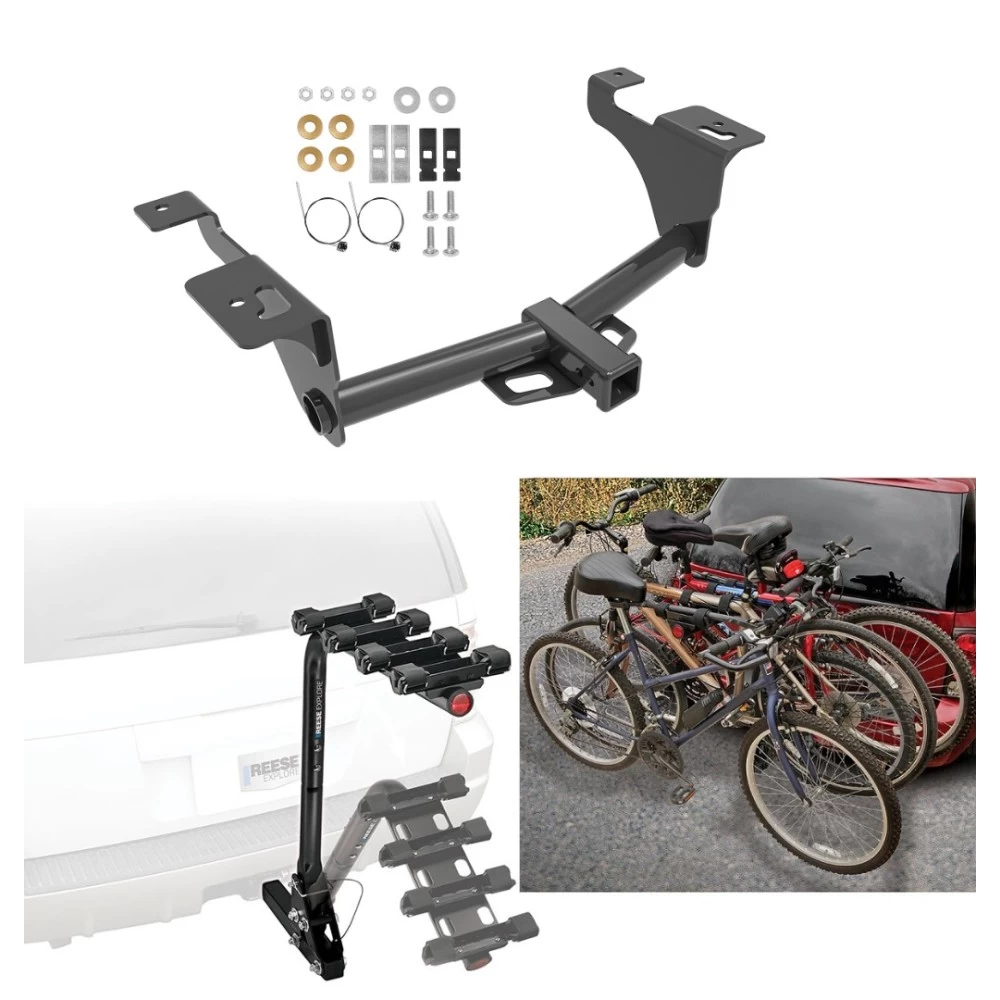

Model: 76332 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 25 2020 2021 2022 2023 2024 2025
$345 96 $624.23 45% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$624.23 $345 96
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76332 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 4,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 675 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 25 2020 2021 2022 2023 2024 2025
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 20-22 Subaru Legacy Sedan 20-24 Outback Wagon Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2020-Current Subaru Outback Wagon and Legacy Sedan
Part Numbers:
- 76332
- 84332
- CQT76332
Installation Time:
- Approximately 40 minutes for professional installers.
Tools Required:
- Ratchet Torque Wrench
- Safety Glasses
- Sockets: 11/16”, 10 mm
- Socket Extension
- Exhaust Removal Pliers
- Tin Snips
- Tape Measure
- Marker
- Flat Head Screwdriver
- Ratchet Strap or Bungee Cord
- Soapy Water
Step-by-Step Instructions:
-
Lower Muffler:
- Use an exhaust hanger removal tool to lower the muffler by removing two (2) rubber hangers from the muffler and one (1) rubber hanger near the rear differential.
- Spray lubricant to ease removal.
- For dual exhaust systems, repeat on both sides.
- Support the exhaust system using a ratchet strap or bungee cord.
-
Remove Heat Shield:
- Use a 10 mm socket to remove four (4) bolts holding the heat shield to the vehicle.
- Retain bolts for reinstallation.
- For dual exhaust systems, repeat on both sides.
-
Remove Rubber Plugs:
- Use a flat-head screwdriver to remove three (3) rubber plugs from the forward holes in the frame.
-
Trim Heat Shield:
- Use tin snips or a hole saw to trim the heat shield to clear the rear carriage bolt and washer attachment area.
-
Install Fasteners:
- Feed the coiled end of a pull wire through the first attachment hole and out the forward-most access hole in the frame.
- Attach a 7/16” carriage bolt and special washer (item 3) to the pull wire and pull the fasteners into position. Repeat for both sides.
- Using the same process, install a 7/16” carriage bolt and a 1/4” x 7/8” x 3” spacer block (item 2) through the access hole into the forward attachment hole.
-
Install Flat Washers:
- Tape two (2) 1/2” flat washers (item 6) around the rearmost carriage bolts on the frame's bottom (one per side).
-
Install Hitch:
- Raise the hitch into position, ensuring fasteners are not pushed back into the frame.
- Loosely install 7/16” conical toothed washers (teeth side against hitch) and 7/16”-14 hex nuts onto the carriage bolts (four places).
- Ensure the flat washers sit flush against the frame bottom.
-
Tighten Fasteners:
- Tighten all 7/16-14 Gr5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
-
Reinstall Heat Shield:
- Use the retained bolts to reinstall the heat shield(s).
-
Reattach Muffler:
- Raise the muffler back into position and reattach all removed rubber hangers.
Hardware List:
- (4) Carriage Bolts: 7/16-14 x 1.50 Gr5
- (2) Spacer Blocks: 1/4” x 7/8” x 3” (Part No. HE-2370-000)
- (2) Special Washers: .109” x 0.88” x 2.00” (Part No. 1204)
- (4) Conical Washers: 7/16” (Part No. 01292007)
- (4) Hex Nuts: 7/16-14 Gr2
- (2) Flat Washers: 1/2”
- (4) Pull Wires: 7/16 (Part No. 5481)
Safety Notes:
- Regularly check fasteners and hitch components to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering the vehicle.
- Replace any damaged hitch or ball.
- Always wear s
Installation Instructions for Vehicle Models (2020-Present)
Part Numbers:
- 76332
- 84332
- CQT76332
Installation Time:
- Approximately 40 minutes for professional installers.
Tools Required:
- Ratchet Torque Wrench
- Safety Glasses
- Sockets: 11/16”, 10 mm
- Socket Extension
- Exhaust Removal Pliers
- Tin Snips
- Tape Measure
- Marker
- Flat Head Screwdriver
- Ratchet Strap or Bungee Cord
- Soapy Water
Step-by-Step Instructions:
-
Lower Muffler:
- Use an exhaust hanger removal tool to lower the muffler by removing two (2) rubber hangers from the muffler and one (1) rubber hanger near the rear differential.
- Spray lubricant to ease removal.
- For dual exhaust systems, repeat on both sides.
- Support the exhaust system using a ratchet strap or bungee cord.
-
Remove Heat Shield:
- Use a 10 mm socket to remove four (4) bolts holding the heat shield to the vehicle.
- Retain bolts for reinstallation.
- For dual exhaust systems, repeat on both sides.
-
Remove Rubber Plugs:
- Use a flat-head screwdriver to remove three (3) rubber plugs from the forward holes in the frame.
-
Trim Heat Shield:
- Use tin snips or a hole saw to trim the heat shield to clear the rear carriage bolt and washer attachment area.
-
Install Fasteners:
- Feed the coiled end of a pull wire through the first attachment hole and out the forward-most access hole in the frame.
- Attach a 7/16” carriage bolt and special washer (item 3) to the pull wire and pull the fasteners into position. Repeat for both sides.
- Using the same process, install a 7/16” carriage bolt and a 1/4” x 7/8” x 3” spacer block (item 2) through the access hole into the forward attachment hole.
-
Install Flat Washers:
- Tape two (2) 1/2” flat washers (item 6) around the rearmost carriage bolts on the frame's bottom (one per side).
-
Install Hitch:
- Raise the hitch into position, ensuring fasteners are not pushed back into the frame.
- Loosely install 7/16” conical toothed washers (teeth side against hitch) and 7/16”-14 hex nuts onto the carriage bolts (four places).
- Ensure the flat washers sit flush against the frame bottom.
-
Tighten Fasteners:
- Tighten all 7/16-14 Gr5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
-
Reinstall Heat Shield:
- Use the retained bolts to reinstall the heat shield(s).
-
Reattach Muffler:
- Raise the muffler back into position and reattach all removed rubber hangers.
Hardware List:
- (4) Carriage Bolts: 7/16-14 x 1.50 Gr5
- (2) Spacer Blocks: 1/4” x 7/8” x 3” (Part No. HE-2370-000)
- (2) Special Washers: .109” x 0.88” x 2.00” (Part No. 1204)
- (4) Conical Washers: 7/16” (Part No. 01292007)
- (4) Hex Nuts: 7/16-14 Gr2
- (2) Flat Washers: 1/2”
- (4) Pull Wires: 7/16 (Part No. 5481)
Safety Notes:
- Regularly check fasteners and hitch components to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering the vehicle.
- Replace any damaged hitch or ball.
- Always wear safety glasses and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
