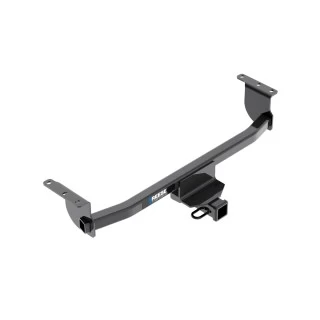

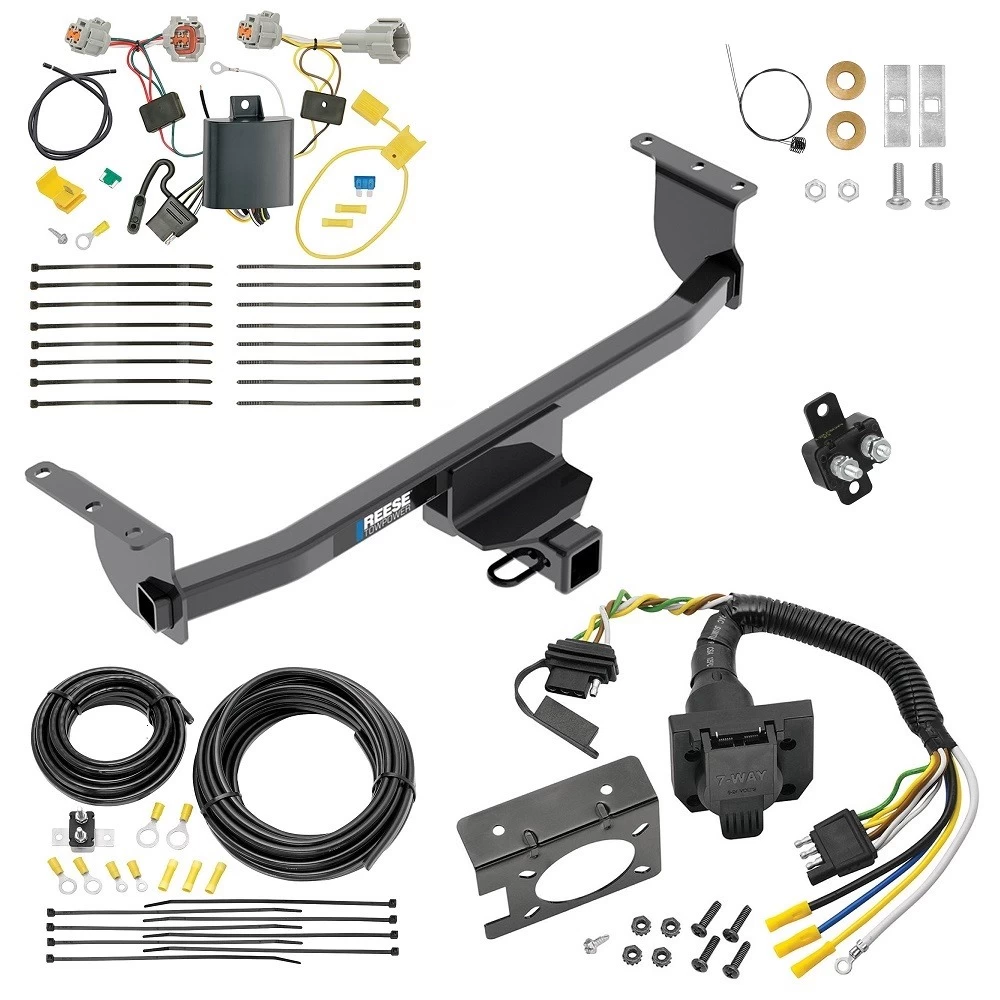

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76177, #84177, and #CQT76177

Part Numbers:

• 76177
• 84177
• CQT76177

Applications:

• Years: 2017–Current
• Make and Models: Nissan Rogue Sport

Visit the manufacturer’s website for the most up-to-date application years and trim levels.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 18 mm, 3/4"
• Die Grinder
• 6" Socket Extension
• Exhaust Removal Pliers
• Flat Head Screwdriver
• Lubricant or Soapy Water

Step-by-Step Instructions:

1. Remove Plastic Fascia Stabilizer:

1. Use a flat head screwdriver to remove (2) plastic push rivets securing the stabilizer.
2. Detach the (2) plastic tabs holding the stabilizer by pinching or rotating it.

2. Lower the Muffler:

1. Using exhaust removal pliers, detach the (4) rear rubber isolators supporting the muffler.
2. Spray lubricant or soapy water to help remove the isolators from the metal pins.
3. Ensure the exhaust is properly supported before removing the rubber hangers.

3. Remove Rear Tow Hook:

1. Remove (6) M12 bolts using an 18 mm socket and extension.
2. Set aside the bolts for reinstallation.
3. Move the black plastic module near the bolts by pulling it toward the passenger side to detach it from its clip for easier access.

4. Enlarge Frame Hole:

1. Locate the hole between the middle and forward-most holes on the driver side.
2. Use a die grinder to widen the hole enough to fit one of the spacer blocks into the frame.

5. Install Blocks and Carriage Bolts:

1. Use the provided pull wire to fish (2) carriage bolts and spacer blocks into the frame through the widened hole.
2. Pull the pull wire out, ensuring the bolts are properly seated in the blocks.

6. Raise Hitch into Position:

1. Lift the hitch over the tailpipes and align the holes in the hitch bracket with the weldnuts on the frame rail.

7. Install Fasteners:

1. Install (4) M12 bolts and (2) hex nuts with conical toothed washers, ensuring the teeth face the hitch.

8. Tighten Fasteners:

1. Torque all M12 CL10.9 fasteners to 105 lb-ft (142 N·m).
2. Torque all hex nuts to 75 lb-ft (102 N·m).

9. Replace Plastic Module:

1. Reattach the module removed in Step 3.

10. Raise Muffler:

1. Reinstall the muffler by attaching the (4) rubber hangers removed in Step 2.

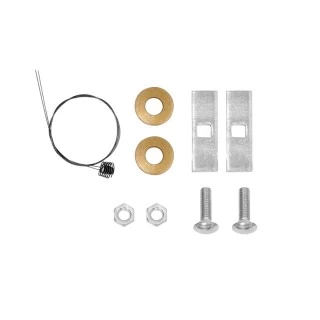

Hardware List:

• 4 × M12 × 1.25 × 35 mm Bolts (CL10.9)
• 2 × Conical Toothed Washers (1/2")
• 2 × Hex Nuts (1/2"-13)
• 2 × Spacer Blocks (1" × 2")
• 2 × Carriage Bolts (1/2"-13 × 1.25")
• 2 × Pull Wires (7/16", Part #5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
• Max Tongue Weight (Weight Carrying): 525 lbs (238 kg)
• Weight Distribution: Not applicable
• Installation Time: Approximately 45 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For assistance, visit www.trailerjacks.com or call 877-869-6690.

Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.

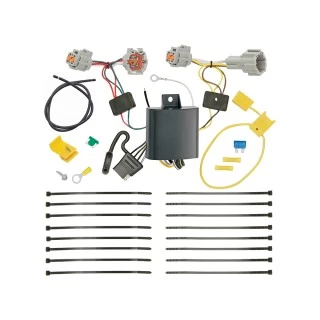

Installation Instructions for T-One® T-Connector for Nissan Rogue Sport

Part Numbers:

• 118757

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle Wiring:

   • Open the hatch and locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side panels, and cargo trays.

2. Remove the Taillights:

   • Using a 10mm socket or wrench, remove both the driver and passenger taillights.
   • Disconnect the taillight wiring harness at the connection point on both sides, ensuring not to break locking tabs. Clean all surfaces to be dirt-free.

3. Prepare the Grommets:

   • On both the driver and passenger sides, slit the grommet to allow the T-Connector’s wiring to pass through.

4. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted with locking tabs secure.

5. Mount the T-Connector Black Box:

   • Mount the black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw, ensuring the area is clean and free of rustproofing.

   Caution: Verify what is behind the surface before drilling to prevent damage or injury. Do not drill into exposed surfaces.

7. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire across the threshold to the passenger side of the vehicle.
   • Repeat Step 4 for the passenger side using the green wire end.

8. Disconnect the Negative Battery Cable:

   • Disconnect the vehicle’s Negative (-) battery cable before proceeding with electrical connections.

9. Connect the Power Wire:

   • Locate the white 2-pin connector on the driver’s side behind the side panel.
   • Route the black 12-gauge wire and connect it to the mating connector. Ensure locking tabs are secure.

10. Install the 30-Amp Fuse:

    • Under the vehicle hood, remove the covering on the top of the battery to access the fuse box.
    • Insert the 30-amp fuse into the slot labeled "Trailer, 30A."

11. Secure the Wiring Harness:

    • Use the provided cable ties to secure the remaining T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.

12. Reconnect the Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

13. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other removed items. Ensure no wires are pinched or damaged.

14. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Nissan Rogue Sport

Part Numbers:

• 118757

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle Wiring:

   • Open the hatch and locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side panels, and cargo trays.

2. Remove the Taillights:

   • Using a 10mm socket or wrench, remove both the driver and passenger taillights.
   • Disconnect the taillight wiring harness at the connection point on both sides, ensuring not to break locking tabs. Clean all surfaces to be dirt-free.

3. Prepare the Grommets:

   • On both the driver and passenger sides, slit the grommet to allow the T-Connector’s wiring to pass through.

4. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place. Ensure connectors are fully inserted with locking tabs secure.

5. Mount the T-Connector Black Box:

   • Mount the black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw, ensuring the area is clean and free of rustproofing.

   Caution: Verify what is behind the surface before drilling to prevent damage or injury. Do not drill into exposed surfaces.

7. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire across the threshold to the passenger side of the vehicle.
   • Repeat Step 4 for the passenger side using the green wire end.

8. Disconnect the Negative Battery Cable:

   • Disconnect the vehicle’s Negative (-) battery cable before proceeding with electrical connections.

9. Connect the Power Wire:

   • Locate the white 2-pin connector on the driver’s side behind the side panel.
   • Route the black 12-gauge wire and connect it to the mating connector. Ensure locking tabs are secure.

10. Install the 30-Amp Fuse:

    • Under the vehicle hood, remove the covering on the top of the battery to access the fuse box.
    • Insert the 30-amp fuse into the slot labeled "Trailer, 30A."

11. Secure the Wiring Harness:

    • Use the provided cable ties to secure the remaining T-Connector harness, avoiding areas that could pinch, cut, or melt the wire.

12. Reconnect the Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

13. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor coverings, and other removed items. Ensure no wires are pinched or damaged.

14. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:
For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
