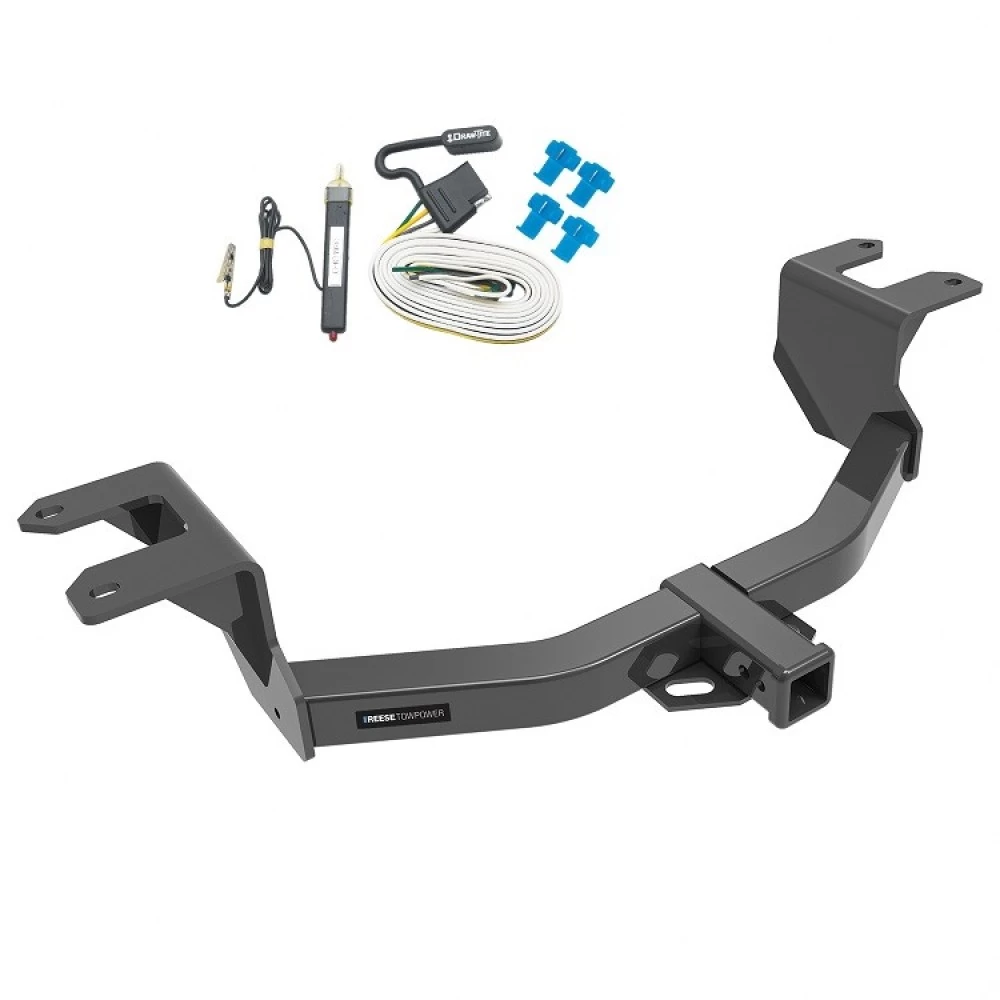

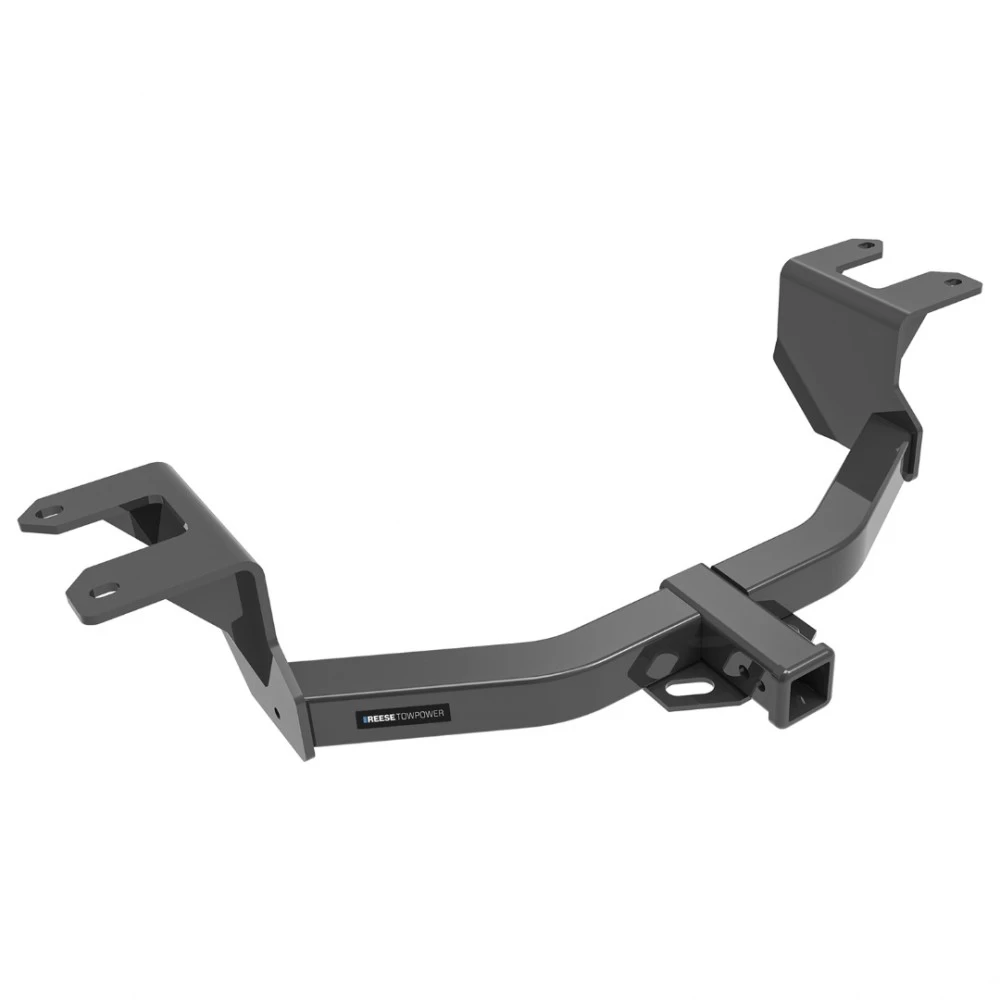

Installation Instructions for Chevrolet Silverado 1500 (2019-Present) and GMC Sierra 1500 (2019-Present)

Part Numbers:

• 76326
• 84326
• CQT76326

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 10mm, 15mm, 21mm
• 6" Socket Extension
• Adjustable Wrench

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
  • Max Tongue Weight: 900 lbs (409 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
  • Max Tongue Weight: 1,000 lbs (454 kg)

Installation Time:

• Estimated: 60 minutes (Professional installation recommended)

Step-by-Step Instructions:

1. Remove Factory Bolts:

• Use a 21mm socket to remove the (2) existing factory M14 bolts from the frame on both sides of the vehicle.
• Set the fasteners aside for reinstallation.

2. Install Hitch:

• Raise the hitch into position and loosely secure it to the vehicle frame using the factory bolts.

3. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

For Vehicles with Dual Exhaust Systems:

1. Remove the exhaust hanger bracket:

   • Use a 15mm socket to remove the bracket on the driver side.
   • Remove the hardware from the passenger side exhaust hanger bracket but leave the bracket on the exhaust hanger.

2. Remove the driver-side exhaust bezel:

   • Use a 10mm socket to remove (3) hex bolts securing the driver-side exhaust bezel.
   • Set the bezel aside for reinstallation.

3. Remove factory bolts:

   • Follow the same process as Step 1 to remove the (2) factory M14 bolts from both sides.

4. Install the hitch:

   • Follow the same process as Step 2, moving the exhaust out of the way if necessary.

5. Tighten all M14 fasteners:

   • Use a torque wrench to tighten all bolts to 115 lb-ft (156 N·m).

6. Reinstall Exhaust and Bezel:

   • Reattach the exhaust hanger brackets and the bezel removed earlier.

Safety Notes:

• Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and follow all safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the lower of the vehicle manufacturer's towing capacity or the hitch's rated capacity.

Installation Instructions for Vehicle Models (2019-Present)

Part Numbers:

• 76326
• 84326
• CQT76326

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 10mm, 15mm, 21mm
• 6" Socket Extension
• Adjustable Wrench

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
  • Max Tongue Weight: 900 lbs (409 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
  • Max Tongue Weight: 1,000 lbs (454 kg)

Installation Time:

• Estimated: 60 minutes (Professional installation recommended)

Step-by-Step Instructions:

1. Remove Factory Bolts:

• Use a 21mm socket to remove the (2) existing factory M14 bolts from the frame on both sides of the vehicle.
• Set the fasteners aside for reinstallation.

2. Install Hitch:

• Raise the hitch into position and loosely secure it to the vehicle frame using the factory bolts.

3. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

For Vehicles with Dual Exhaust Systems:

1. Remove the exhaust hanger bracket:

   • Use a 15mm socket to remove the bracket on the driver side.
   • Remove the hardware from the passenger side exhaust hanger bracket but leave the bracket on the exhaust hanger.

2. Remove the driver-side exhaust bezel:

   • Use a 10mm socket to remove (3) hex bolts securing the driver-side exhaust bezel.
   • Set the bezel aside for reinstallation.

3. Remove factory bolts:

   • Follow the same process as Step 1 to remove the (2) factory M14 bolts from both sides.

4. Install the hitch:

   • Follow the same process as Step 2, moving the exhaust out of the way if necessary.

5. Tighten all M14 fasteners:

   • Use a torque wrench to tighten all bolts to 115 lb-ft (156 N·m).

6. Reinstall Exhaust and Bezel:

   • Reattach the exhaust hanger brackets and the bezel removed earlier.

Safety Notes:

• Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and follow all safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

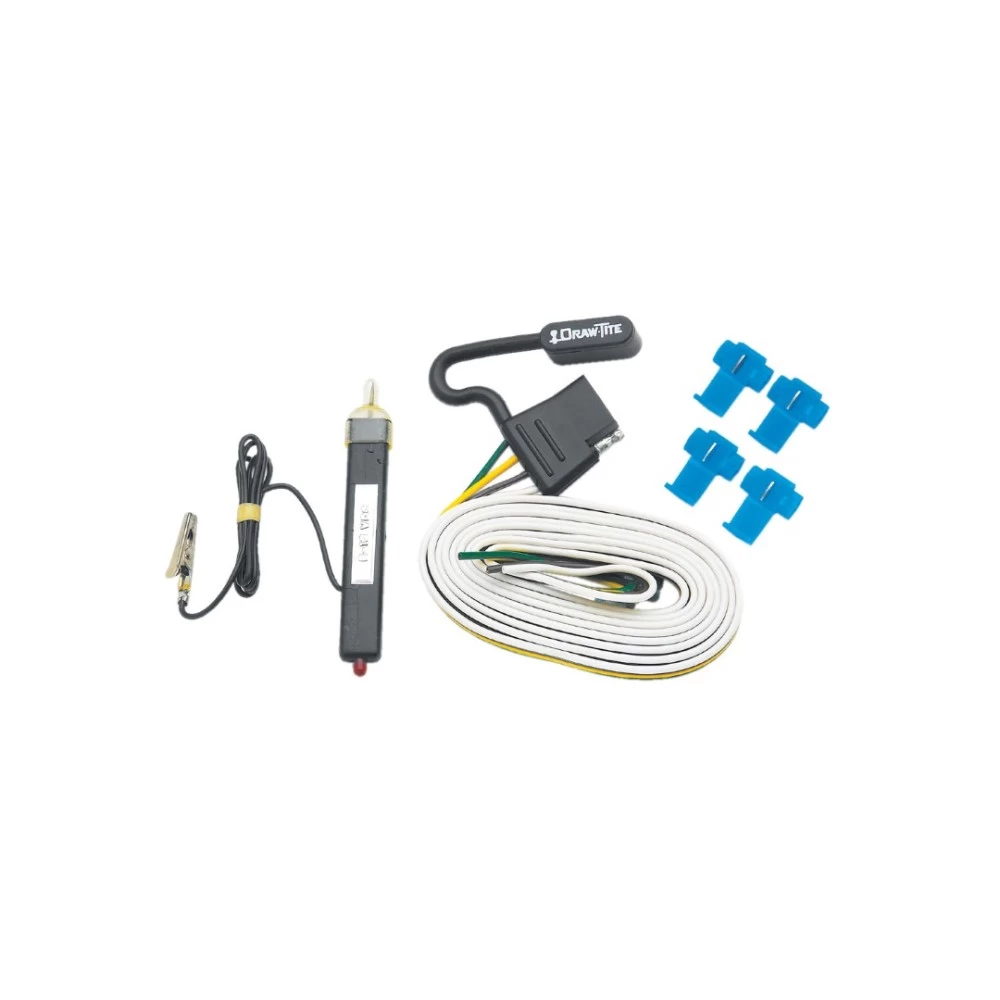

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

20252 Rev. A 2-6-07
