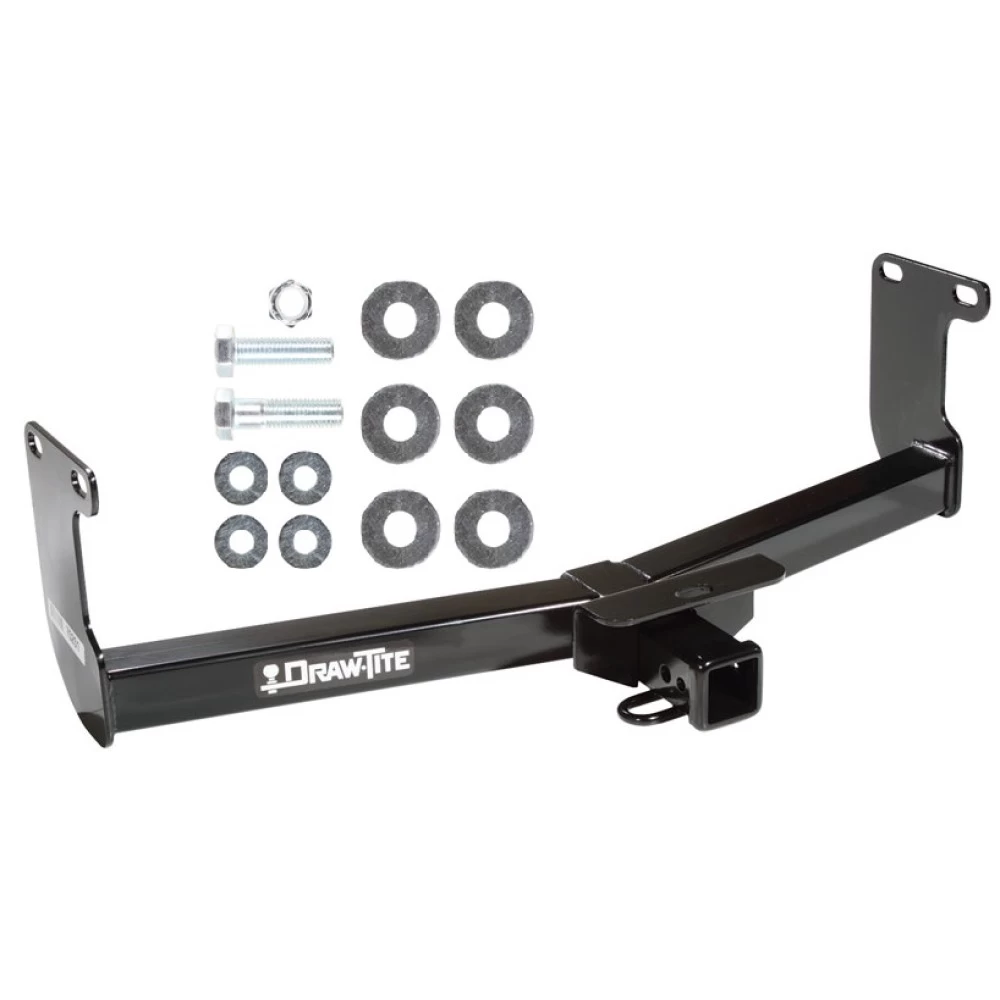

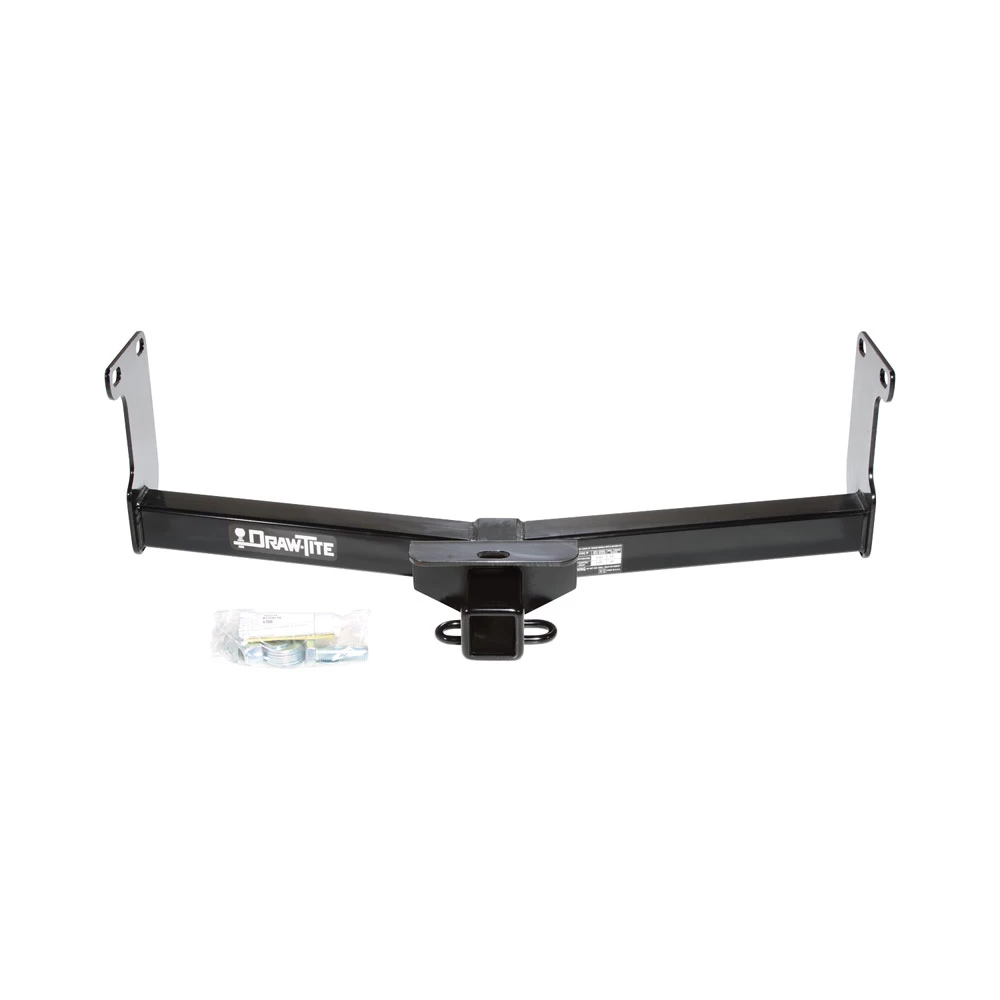

Trailer Tow Hitch For 05‑11 Dodge Dakota 06‑09 Mitsubishi Raider 10‑11 RAM Dakota
Model: 75251
2005 - 2011 Dodge, Dakota, All Styles
2006 - 2009 Mitsubishi, Raider, All Styles
2010 - 2011 RAM, Dakota, All Styles
Trailer Hitch Specs:
| Part Number | 75251 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999d
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 2005 2006 2007 2008 2009 2010 2011
$196 60 $307.00 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$307.00 $196 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75251
- UPC: 742512752519
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2005 - 2011 Dodge, Dakota, All Styles
2006 - 2009 Mitsubishi, Raider, All Styles
2010 - 2011 RAM, Dakota, All Styles
Trailer Hitch Specs:
| Part Number | 75251 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999d
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 2005 2006 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch For 05-11 Dodge Dakota 06-09 Mitsubishi Raider 10-11 RAM Dakota Install Notes
Installation Instructions for Dodge Dakota
Part Numbers:
- 75251
- 87753
- 44747
Applications:
- Dodge Dakota
Tools Required:
- Tape
- Wrenches: 1-1/8”, 22mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the lower bolts from the frame mounting brackets, (2) per side.
- Retain these bolts for hitch installation.
-
Attach Flat Washers:
- Use tape to attach flat washers to the underside of the bumper (see Figure 2).
-
Insert Bumper Bracket:
- Insert the bumper bracket mounting structure between the flat washers installed in Step 2 and the bumper.
-
Position the Hitch:
- Swivel the hitch into position.
- Loosely reinstall the fasteners removed in Step 1 along with additional flat washers.
-
Secure Fasteners:
- Install the fasteners for the bumper bracket mounting structure as shown in the diagram.
-
Tighten Fasteners:
- Torque all 3/4-10 GR5 fasteners to 260 lb-ft (353 N·m).
- Torque all M14 CL8.8 fasteners to 89 lb-ft (121 N·m).

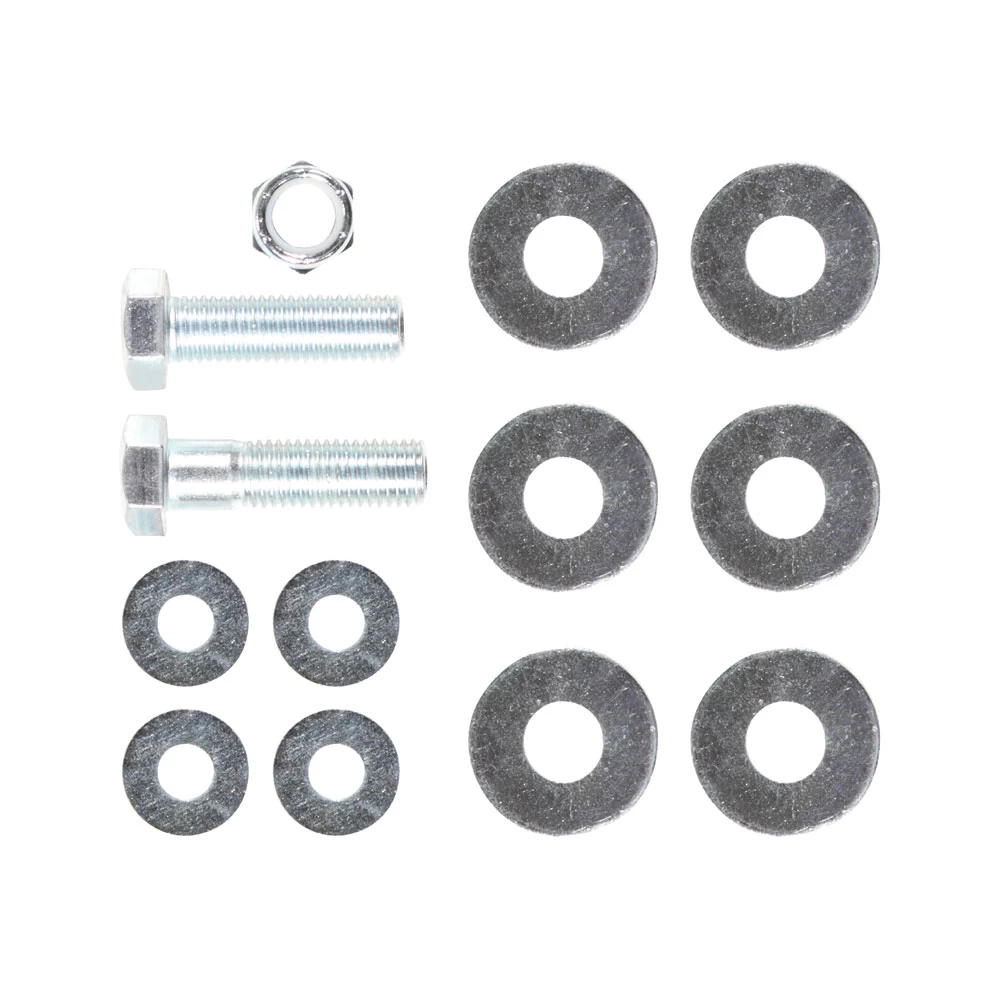

Hardware List:
- (1) 3/4-10 x 2.75 GR5 Hex Bolt
- (1) 3/4-10 Lock Nut (with Nylon Insert)
- (6) 3/4” Flat Washers
- (8) 1/2” Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Dodge Dakota
Part Numbers:
- 75251
- 87753
- 44747
Applications:
- Dodge Dakota
Tools Required:
- Tape
- Wrenches: 1-1/8”, 22mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the lower bolts from the frame mounting brackets, (2) per side.
- Retain these bolts for hitch installation.
-
Attach Flat Washers:
- Use tape to attach flat washers to the underside of the bumper (see Figure 2).
-
Insert Bumper Bracket:
- Insert the bumper bracket mounting structure between the flat washers installed in Step 2 and the bumper.
-
Position the Hitch:
- Swivel the hitch into position.
- Loosely reinstall the fasteners removed in Step 1 along with additional flat washers.
-
Secure Fasteners:
- Install the fasteners for the bumper bracket mounting structure as shown in the diagram.
-
Tighten Fasteners:
- Torque all 3/4-10 GR5 fasteners to 260 lb-ft (353 N·m).
- Torque all M14 CL8.8 fasteners to 89 lb-ft (121 N·m).
Hardware List:
- (1) 3/4-10 x 2.75 GR5 Hex Bolt
- (1) 3/4-10 Lock Nut (with Nylon Insert)
- (6) 3/4” Flat Washers
- (8) 1/2” Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
