Installation Instructions for Toyota Camry, Toyota Camry Hybrid, and Lexus ES350

Part Numbers:

• 90152
• 36416
• 06397

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 10mm, 12mm, 14mm, 17mm
• Drill with 1/2" Drill Bit
• Pull Wire (provided)

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Take out the spare tire from the inside of the trunk.

2. Lower Exhaust:

   • Remove the rubber exhaust hangers to lower the exhaust.

3. Remove Fascia Rivets:

   • Detach the rivets from the fascia tabs between the trunk pan and rear fascia.
   • Remove any plastic under-covering beneath the trunk pan if present.

4. Remove Existing Bracket:

   • Remove the existing bracket from the driver-side frame rail and rear end panel. Return it to the vehicle owner.

5. Install Hitch:

   • Raise the hitch into position.
   • Secure it with M10 hex bolts and 3/8" conical toothed washers into the existing weldnuts.
   • If weldnuts are absent on the passenger side, use the provided nuts and washers.

6. Drill Holes:

   • Using the hitch as a template, drill two 1/2" holes through the trunk pan.

7. Prepare Trunk Pan:

   • From inside the trunk, scrape away the foam rubber material around the drilled holes.

8. Install Additional Fasteners:

   • Insert the 1/2" hex bolts, blocks, lock washers, and nuts through the drilled holes and secure.

9. Reinstall Spare Tire:

   • Replace the spare tire inside the trunk.

10. Reattach Components:

    • Reattach the rubber exhaust hangers.
    • Insert the fascia rivets back into the fascia tabs.

Torque Specifications:

• Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
• Tighten all M10 CL8.8 fasteners to 42 ft-lb (57 N*m).

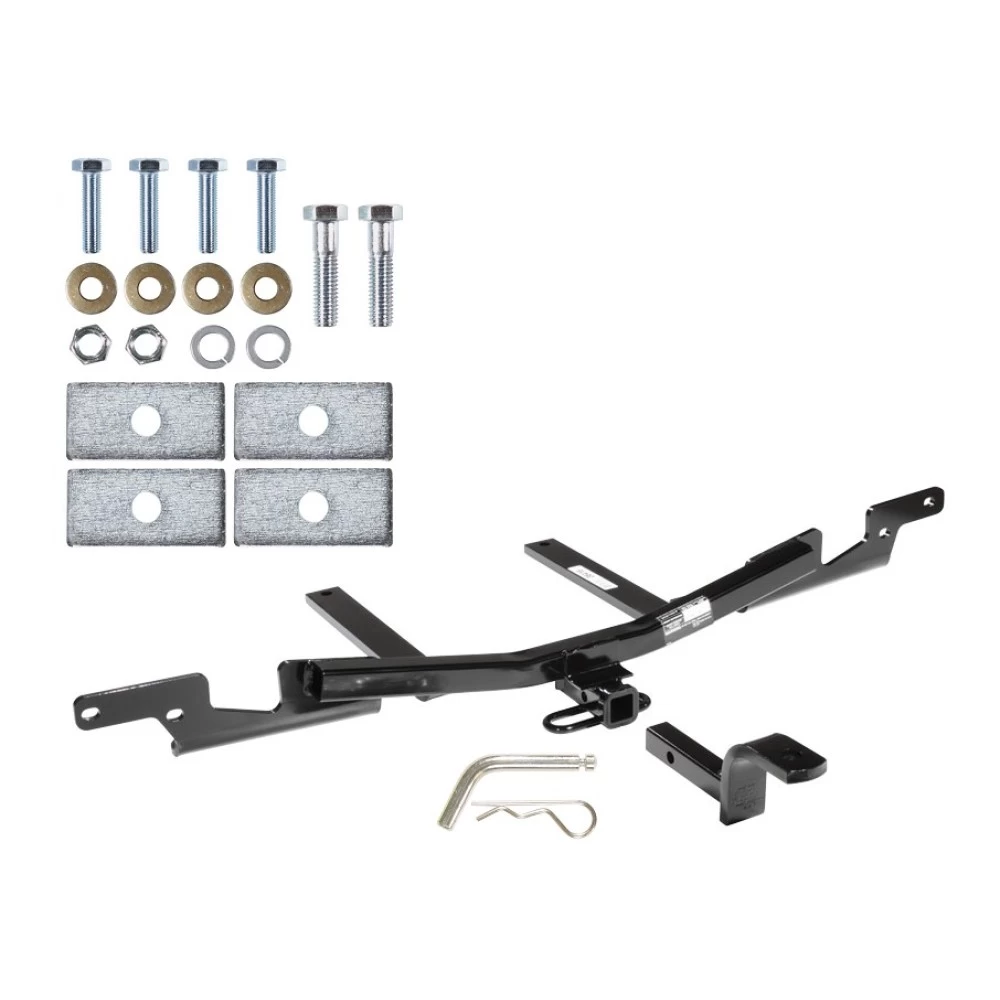

Hardware List:

• (4) M10 x 1.25 x 40mm Hex Bolts (CL8.8)
• (4) 3/8" Conical Toothed Washers
• (2) 1/2"-13 x 2" GR5 Hex Bolts
• (2) 1/2" Lock Washers
• (2) 1/2"-13 Hex Nuts
• (4) Blocks, 1/4" x 1.5" x 3.0"
• (2) 7/16" Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36071 (sold separately)
• Fastener Kit: 36416F
• Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Toyota Camry, Toyota Camry Hybrid, and Lexus ES350

Part Numbers:

• 90152
• 36416
• 06397

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 10mm, 12mm, 14mm, 17mm
• Drill with 1/2" Drill Bit
• Pull Wire (provided)

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Take out the spare tire from the inside of the trunk.

2. Lower Exhaust:

   • Remove the rubber exhaust hangers to lower the exhaust.

3. Remove Fascia Rivets:

   • Detach the rivets from the fascia tabs between the trunk pan and rear fascia.
   • Remove any plastic under-covering beneath the trunk pan if present.

4. Remove Existing Bracket:

   • Remove the existing bracket from the driver-side frame rail and rear end panel. Return it to the vehicle owner.

5. Install Hitch:

   • Raise the hitch into position.
   • Secure it with M10 hex bolts and 3/8" conical toothed washers into the existing weldnuts.
   • If weldnuts are absent on the passenger side, use the provided nuts and washers.

6. Drill Holes:

   • Using the hitch as a template, drill two 1/2" holes through the trunk pan.

7. Prepare Trunk Pan:

   • From inside the trunk, scrape away the foam rubber material around the drilled holes.

8. Install Additional Fasteners:

   • Insert the 1/2" hex bolts, blocks, lock washers, and nuts through the drilled holes and secure.

9. Reinstall Spare Tire:

   • Replace the spare tire inside the trunk.

10. Reattach Components:

    • Reattach the rubber exhaust hangers.
    • Insert the fascia rivets back into the fascia tabs.

Torque Specifications:

• Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
• Tighten all M10 CL8.8 fasteners to 42 ft-lb (57 N*m).

Hardware List:

• (4) M10 x 1.25 x 40mm Hex Bolts (CL8.8)
• (4) 3/8" Conical Toothed Washers
• (2) 1/2"-13 x 2" GR5 Hex Bolts
• (2) 1/2" Lock Washers
• (2) 1/2"-13 Hex Nuts
• (4) Blocks, 1/4" x 1.5" x 3.0"
• (2) 7/16" Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36071 (sold separately)
• Fastener Kit: 36416F
• Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
