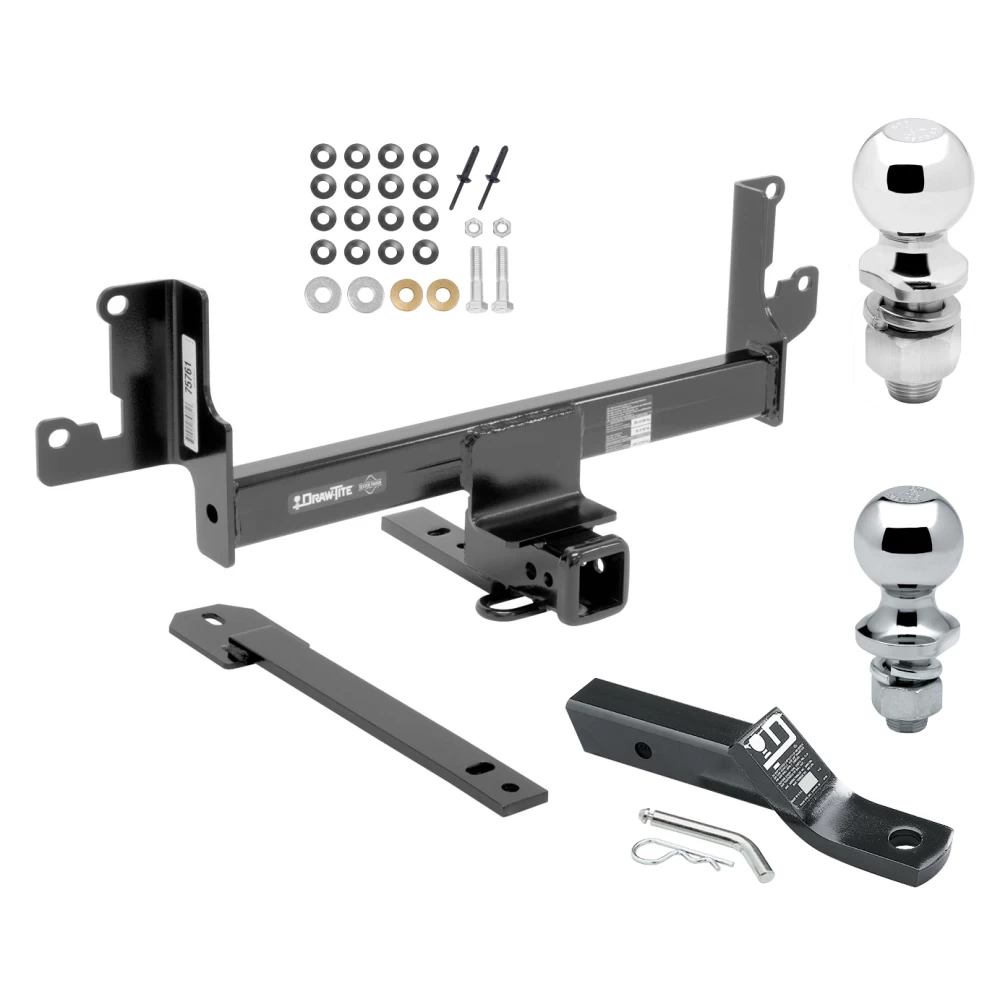

Installation Instructions for BMW X1
(Only fits vehicles with Panoramic Moonroof)

Part Numbers:

• 75761
• 87630
• 44684
• 75366 U-HAUL

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Rivet Gun
• Screwdriver or Trim Tool
• Small Punch
• Wrenches: 8mm, 10mm, 18mm, (2) 3/4"
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Lower Fascia Trim:

   • Detach the (5) fasteners and (2) plastic rivets securing the bottom fascia to the vehicle.
   • Punch out the rivet center with a small punch or blunt nail. Use a screwdriver or trim tool to loosen and remove the rivet heads.
   • Gradually pull up the fascia trim from the outer edges.

2. Loosen Appearance Panels:

   • If needed, loosen or remove the (2) rear underbody panels for additional clearance.

3. Remove Muffler Hanger:

   • Use a 10mm socket to detach the inside muffler hanger.

4. Detach Bumper Flange Nuts:

   • Remove the (4) flange nuts from the bumper (see Figure 2).

5. Prepare Hitch Installation:

   • Place (4) flat washers onto each bumper stud as shown in Figure 3.

6. Position Hitch:

   • Lift the hitch into place, first on the driver’s side, moving over the exhaust while avoiding the ECV valve (if present).
   • Swing the hitch into position and reinstall the existing M12 flange nuts.

7. Attach Center Mounting Strap:

   • Remove the bolt from the suspension support frame. Slide the center mounting strap between the frame and the existing plate.
   • Reinstall the M12 bolt (refer to Figure 4).

8. Secure Center Support Bar:

   • Attach the center support bar to the hitch as shown in Figure 4.

9. Reattach Muffler Hanger:

   • Reinstall the exhaust hanger bolt.

10. Reinstall Appearance Panels:

    • Replace the underbody panels and tighten all fasteners to the specified torque.

11. Reattach Fascia Trim:

    • Secure the lower fascia trim using the provided plastic rivets.

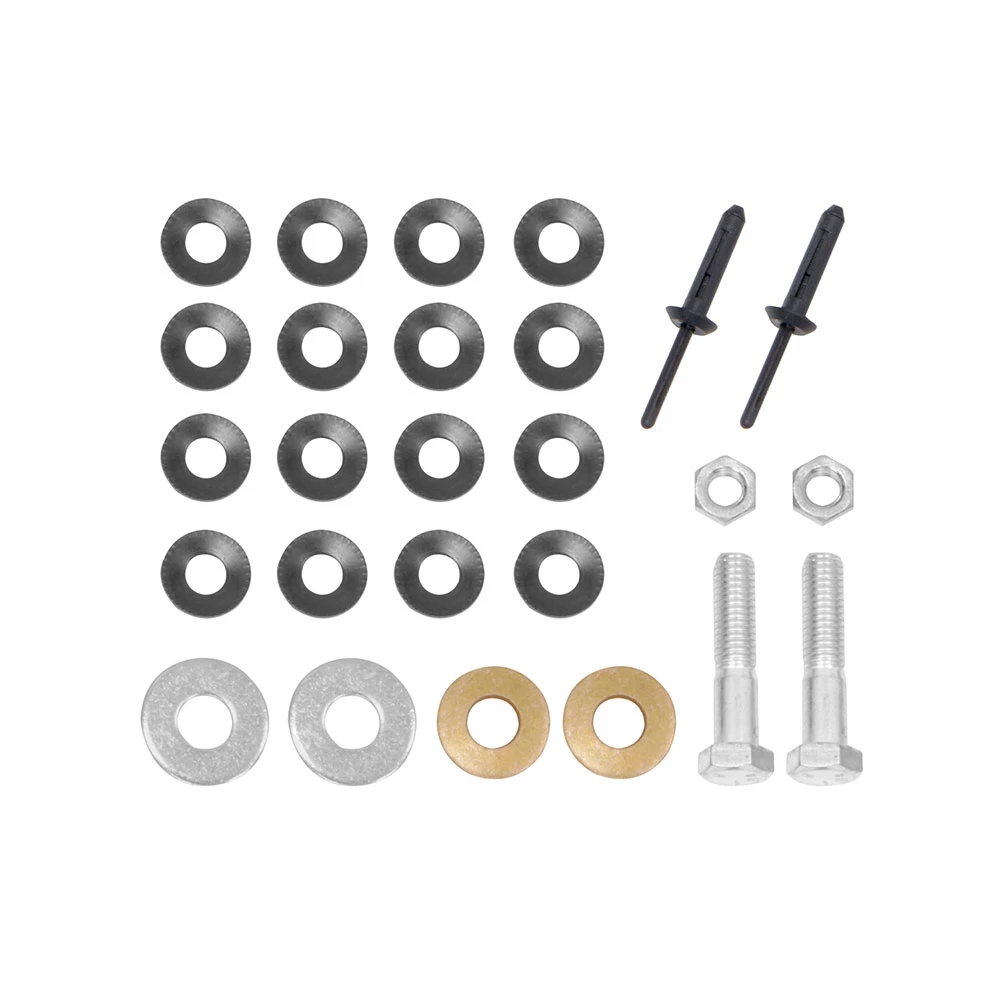

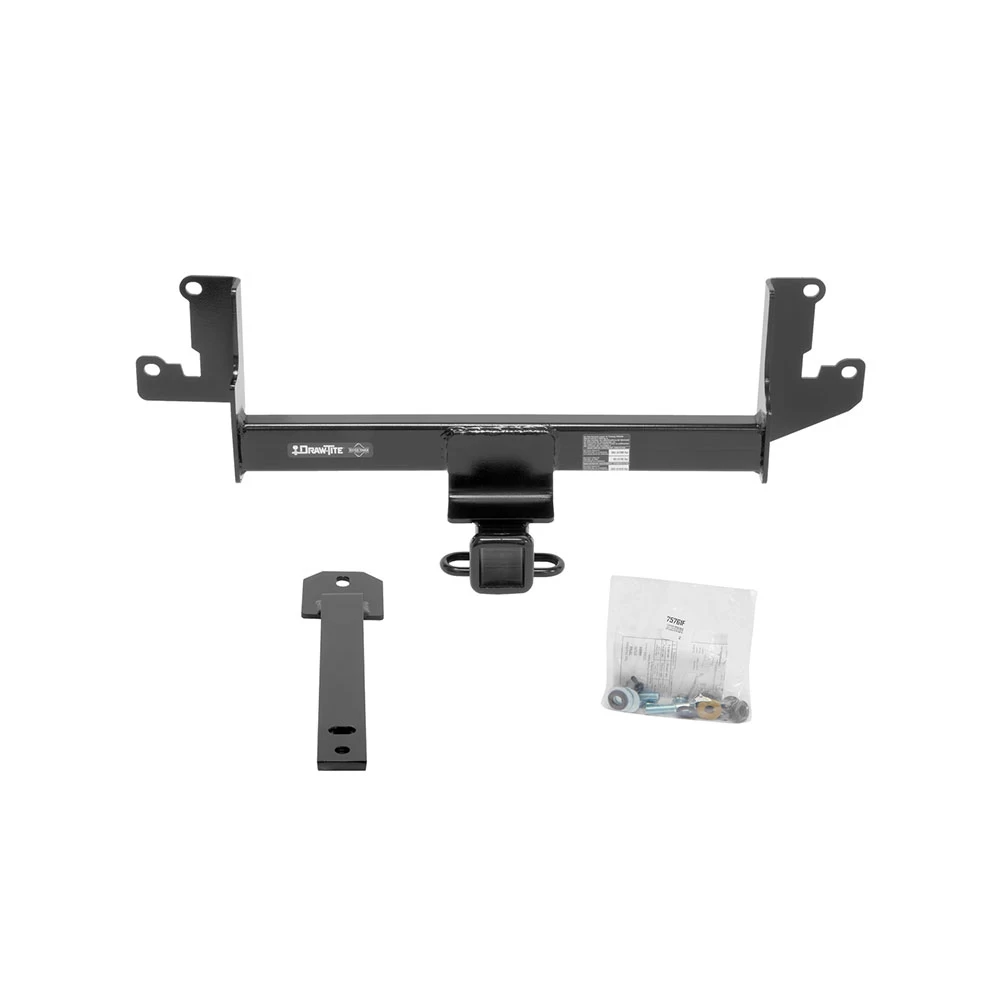

Hardware List:

• Qty (16): Flat Washer – 1/2"
• Qty (2): Bolt – 1/2-13 x 2.25 GR5
• Qty (2): Conical Washer – 1/2"
• Qty (2): Hex Nut – 1/2-13
• Qty (2): Plastic Rivets

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 400 lbs (182 kg)

Manufacturer Notes:

• Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N*m).
• Tighten all M12 fasteners to 68 lb-ft (92 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

(Only fits vehicles with Panoramic Moonroof)

Part Numbers:

• 75761
• 87630
• 44684
• 75366 U-HAUL

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Rivet Gun
• Screwdriver or Trim Tool
• Small Punch
• Wrenches: 8mm, 10mm, 18mm, (2) 3/4"
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Lower Fascia Trim:

   • Detach the (5) fasteners and (2) plastic rivets securing the bottom fascia to the vehicle.
   • Punch out the rivet center with a small punch or blunt nail. Use a screwdriver or trim tool to loosen and remove the rivet heads.
   • Gradually pull up the fascia trim from the outer edges.

2. Loosen Appearance Panels:

   • If needed, loosen or remove the (2) rear underbody panels for additional clearance.

3. Remove Muffler Hanger:

   • Use a 10mm socket to detach the inside muffler hanger.

4. Detach Bumper Flange Nuts:

   • Remove the (4) flange nuts from the bumper (see Figure 2).

5. Prepare Hitch Installation:

   • Place (4) flat washers onto each bumper stud as shown in Figure 3.

6. Position Hitch:

   • Lift the hitch into place, first on the driver’s side, moving over the exhaust while avoiding the ECV valve (if present).
   • Swing the hitch into position and reinstall the existing M12 flange nuts.

7. Attach Center Mounting Strap:

   • Remove the bolt from the suspension support frame. Slide the center mounting strap between the frame and the existing plate.
   • Reinstall the M12 bolt (refer to Figure 4).

8. Secure Center Support Bar:

   • Attach the center support bar to the hitch as shown in Figure 4.

9. Reattach Muffler Hanger:

   • Reinstall the exhaust hanger bolt.

10. Reinstall Appearance Panels:

    • Replace the underbody panels and tighten all fasteners to the specified torque.

11. Reattach Fascia Trim:

    • Secure the lower fascia trim using the provided plastic rivets.

Hardware List:

• Qty (16): Flat Washer – 1/2"
• Qty (2): Bolt – 1/2-13 x 2.25 GR5
• Qty (2): Conical Washer – 1/2"
• Qty (2): Hex Nut – 1/2-13
• Qty (2): Plastic Rivets

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 400 lbs (182 kg)

Manufacturer Notes:

• Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
• Tighten all M12 fasteners to 68 lb-ft (92 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
