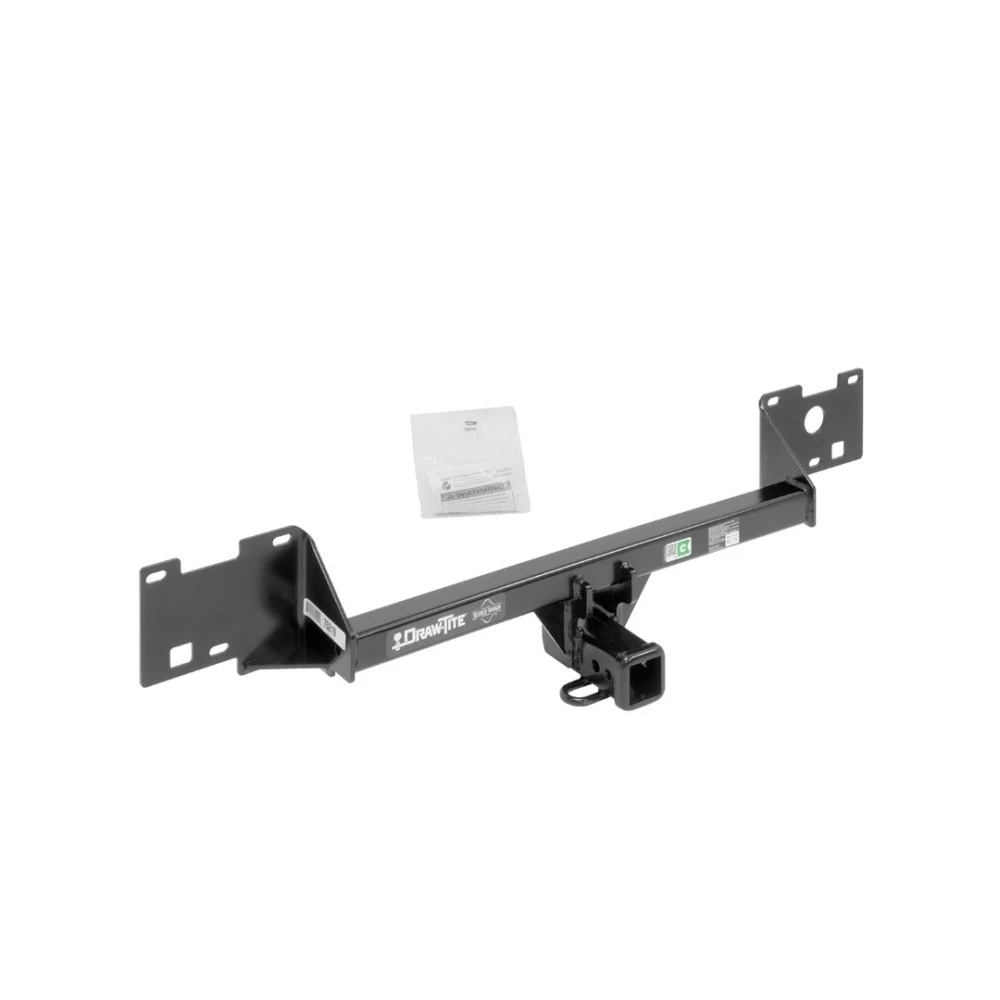

Trailer Tow Hitch For 15‑23 RAM ProMaster City All Styles 2" Receiver
Model: 75219Trailer Hitch Specs:
| Part Number | 75219 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 2015 2016 2017 2018 2019 2020 2021 2022 2023
$237 89 $371.51 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$371.51 $237 89
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75219
- UPC: 742512752199
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Trailer Hitch Specs:
| Part Number | 75219 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 15-23 RAM ProMaster City All Styles 2" Receiver Install Notes
Installation Instructions for Ram ProMaster City (2015-Present)
Part Numbers:
- 75219
- 87688
- 44770
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 15mm
- T27 Torx Bit
- Phillips Screwdriver
- 12” Socket Extension
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Bumper Cover Fasteners:
- Bottom Fasteners: Use a T27 Torx bit to remove (3) bottom bumper cover fasteners.
- Wheel Wells: Use a Phillips screwdriver to remove (10) wheel well fasteners (5 per side).
- Hidden Fasteners: Remove (2) fasteners located at the top of the bumper cover behind the wheel well liners using a T27 Torx bit.
- Top Cover: Remove (4) top bumper cover fasteners and (6) taillight fasteners using a Phillips screwdriver.
- Final Fasteners: Remove (2) fasteners below each taillight with a T27 Torx bit.
2. Detach Bumper Cover:
- Gently pull away the sides of the bumper cover until it detaches from the vehicle.
- Disconnect the wiring harness at the bumper and set the bumper cover aside.
3. Remove Bumper:
- Use a 15mm socket to remove (6) bolts securing the bumper.
- Remove the bumper and set it aside.
4. Install Hitch:
- Raise the hitch into position, sandwiching it between the frame and the bumper.
- Loosely reinstall the factory bolts.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 42 lb-ft (57 N·m).
6. Reinstall Components:
- Reinstall the bumper cover, wiring harness, and taillights in reverse order of removal.
Safety Notes:
- Regularly check the hitch and all fasteners to ensure they are secure.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class II
- Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Ram ProMaster City (2015-Present)
Part Numbers:
- 75219
- 87688
- 44770
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 15mm
- T27 Torx Bit
- Phillips Screwdriver
- 12” Socket Extension
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Bumper Cover Fasteners:
- Bottom Fasteners: Use a T27 Torx bit to remove (3) bottom bumper cover fasteners.
- Wheel Wells: Use a Phillips screwdriver to remove (10) wheel well fasteners (5 per side).
- Hidden Fasteners: Remove (2) fasteners located at the top of the bumper cover behind the wheel well liners using a T27 Torx bit.
- Top Cover: Remove (4) top bumper cover fasteners and (6) taillight fasteners using a Phillips screwdriver.
- Final Fasteners: Remove (2) fasteners below each taillight with a T27 Torx bit.
2. Detach Bumper Cover:
- Gently pull away the sides of the bumper cover until it detaches from the vehicle.
- Disconnect the wiring harness at the bumper and set the bumper cover aside.
3. Remove Bumper:
- Use a 15mm socket to remove (6) bolts securing the bumper.
- Remove the bumper and set it aside.
4. Install Hitch:
- Raise the hitch into position, sandwiching it between the frame and the bumper.
- Loosely reinstall the factory bolts.
5. Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 42 lb-ft (57 N·m).
6. Reinstall Components:
- Reinstall the bumper cover, wiring harness, and taillights in reverse order of removal.
Safety Notes:
- Regularly check the hitch and all fasteners to ensure they are secure.
- If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class II
- Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
