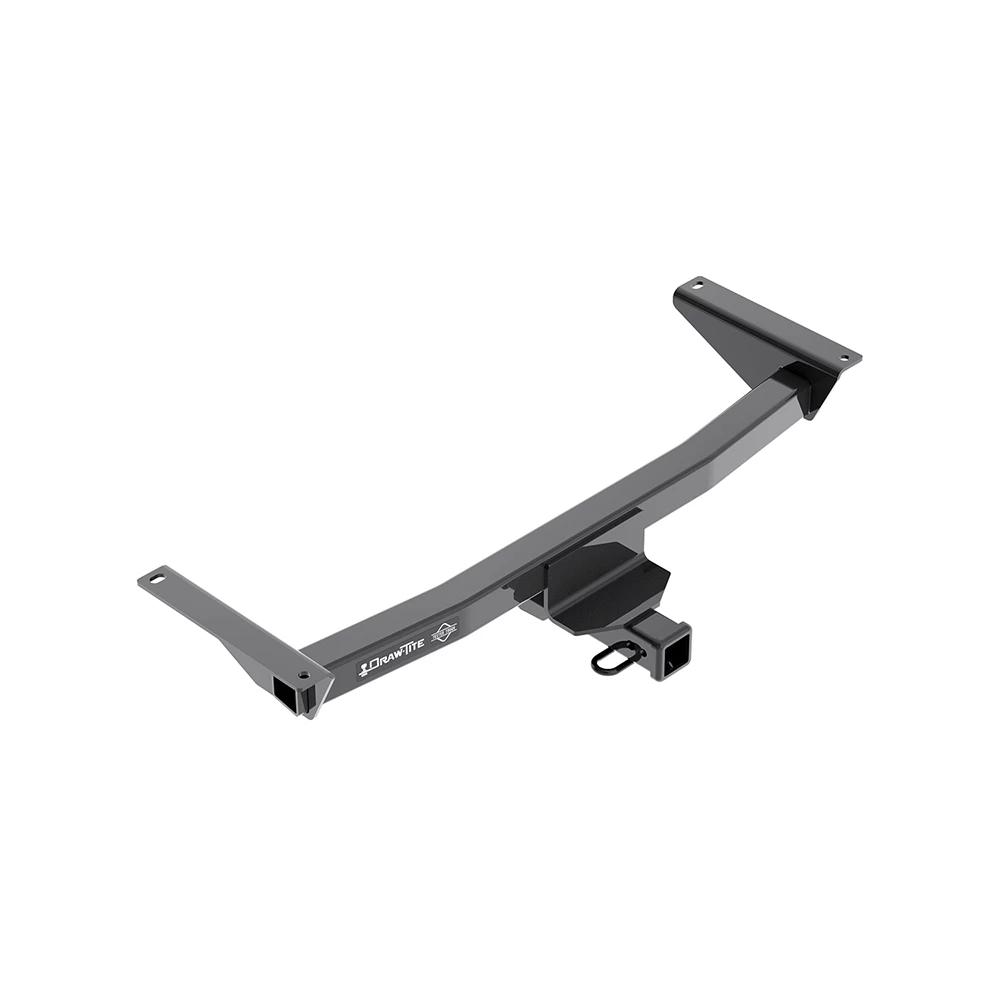

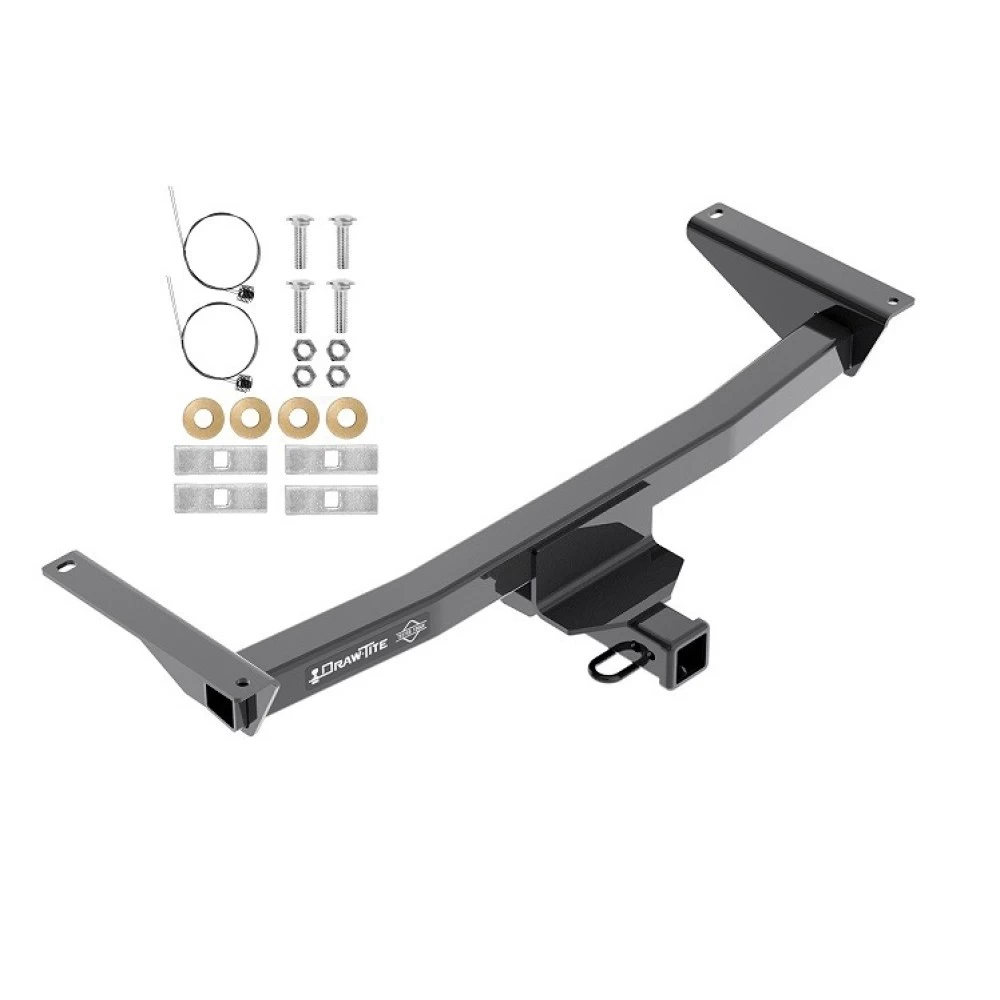

Trailer Tow Hitch For 18‑24 VW Volkswagen Atlas 2" Receiver Class 3
Model: 761762018 - 2019 Volkswagen, Atlas, All Styles
2020 - 2024 Volkswagen, Atlas, Except Cross Sport
Trailer Hitch Specs:
| Part Number | 76176 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$242 04 $377.98 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$377.98 $242 04
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76176
- UPC: 016118105230
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
2018 - 2019 Volkswagen, Atlas, All Styles
2020 - 2024 Volkswagen, Atlas, Except Cross Sport
Trailer Hitch Specs:
| Part Number | 76176 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 18-24 VW Volkswagen Atlas 2" Receiver Class 3 Install Notes
Installation Instructions for Draw-Tite and Reese Trailer Hitch #76176, #84176, and #CQT76176
Part Numbers:
- 76176
- 84176
- CQT76176
Applications:
- Years: 2018-Current
- Make and Models: Volkswagen Atlas
Visit the manufacturer’s website for the most up-to-date application years and trim levels.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4", T15 Torx Bit
- 6" Socket Extension
- Die Grinder
- Scraper
- Tape Measure
- Marker
- Utility Knife
Step-by-Step Instructions:
1. Remove Excess Caulk:
- Scrape away any excess caulk from the frame rails in the hitch installation area.
2. Enlarge Access Hole:
- Use a die grinder or a suitable tool to enlarge the access hole in the frame enough for the carriage bolt head to fit through (refer to Figure 2).
3. Install Hardware:
- Using the fish wire, install carriage bolts and spacers into the frame through the access hole as shown in Figure 1. Repeat on both sides.
- Note: Leave the fish wire attached to the hardware.
4. Remove Screws:
- For 2021-Current models, remove (4) screws from the bottom of the fascia using a T15 Torx bit.
5. Trim Lower Fascia:
- For 2021-Current models, use a tape measure, marker, and utility knife to measure and trim the lower fascia as shown in Figure 3.
- Note: Relocate the wiring harness if present in the area of trimming.
6. Install Hitch:
- Raise the hitch into position and feed the end of the fish wires through the attachment holes in the hitch.
- Loosely install conical washers (teeth side against hitch) and hex nuts to hold the hitch in place.
- For 2021-Current models, gently pull the fascia to raise the hitch into position.
7. Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
- Note: The hitch is designed to be close to the fascia at the center. If necessary, trim the fascia at the center lower edge for clearance.

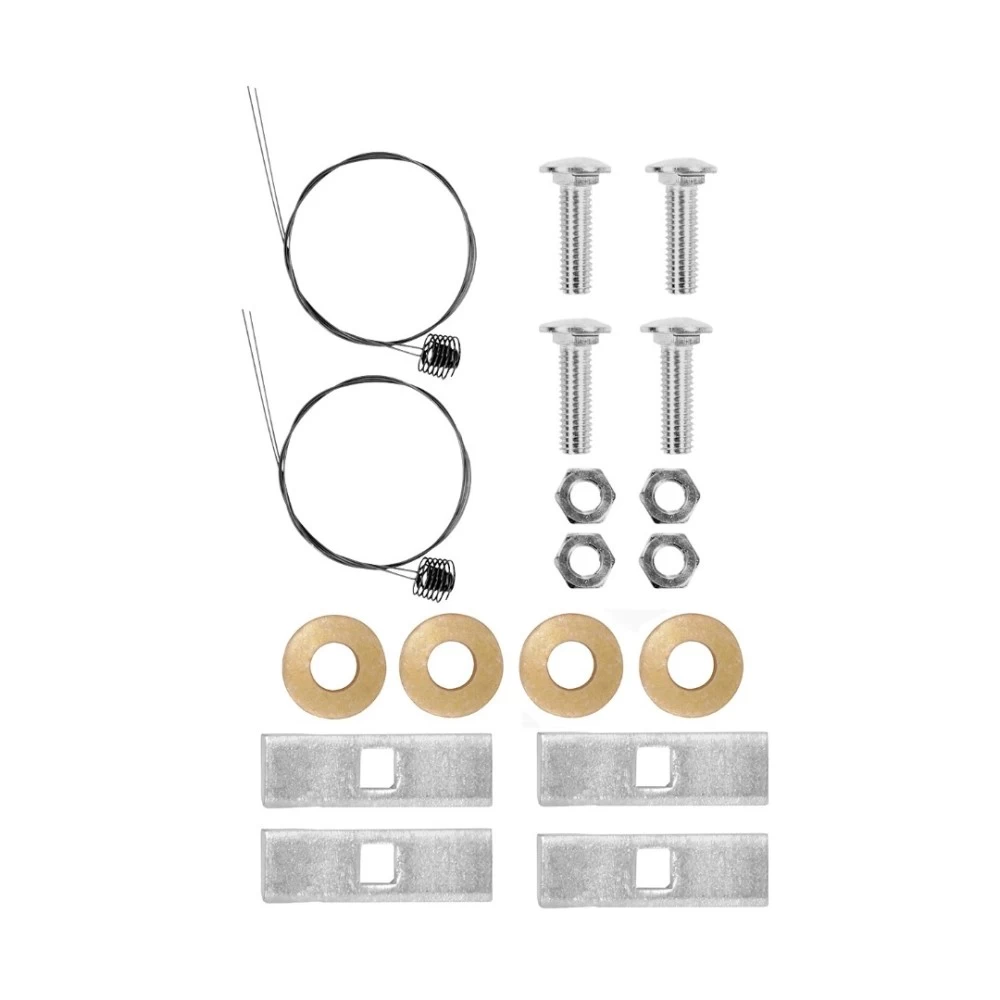

Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 1.75", GR5)
- 4 × Spacers (1/4" × 1" × 3")
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13, GR5)
- 4 × Fish Wires (1/2")
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 6,000 lbs (2,724 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 900 lbs (409 kg)
- Installation Time: Approximately 25 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For further assistance, contact Horizon Global Technical Support at 1-800-632-3290 or visit their website.
