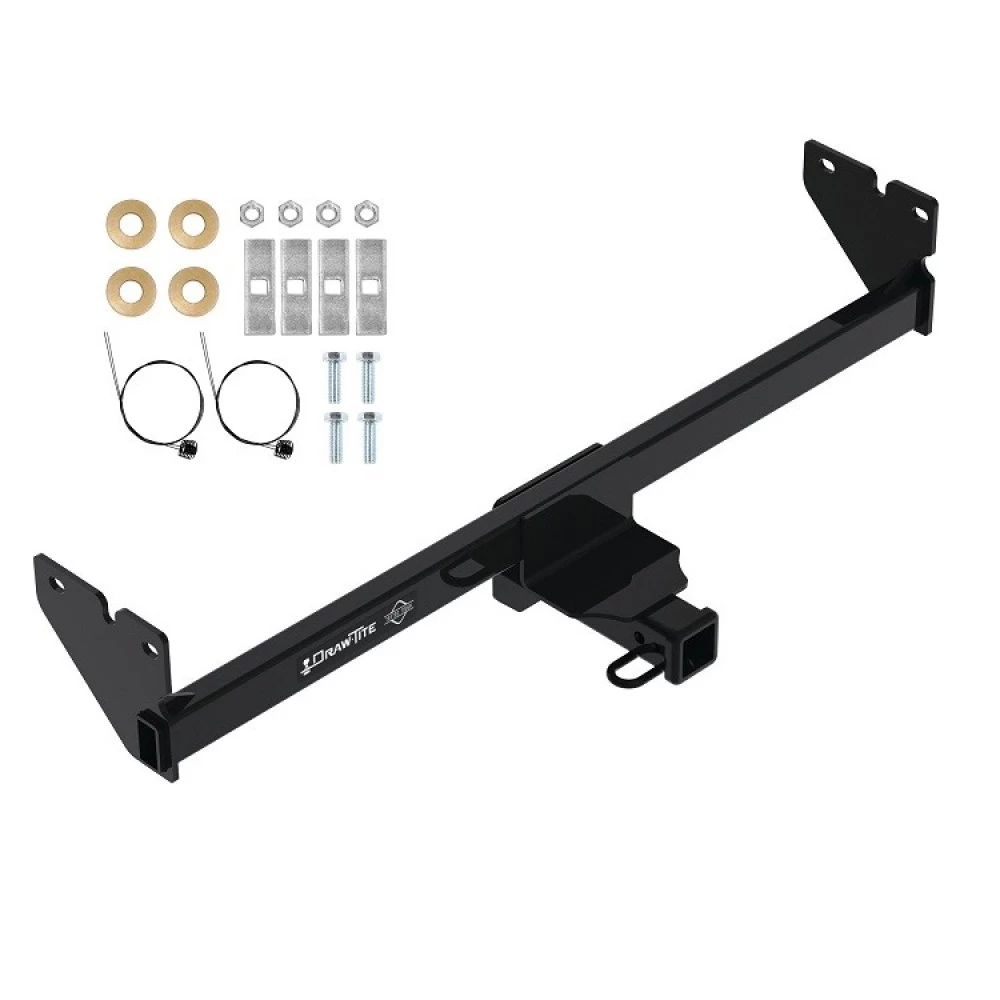

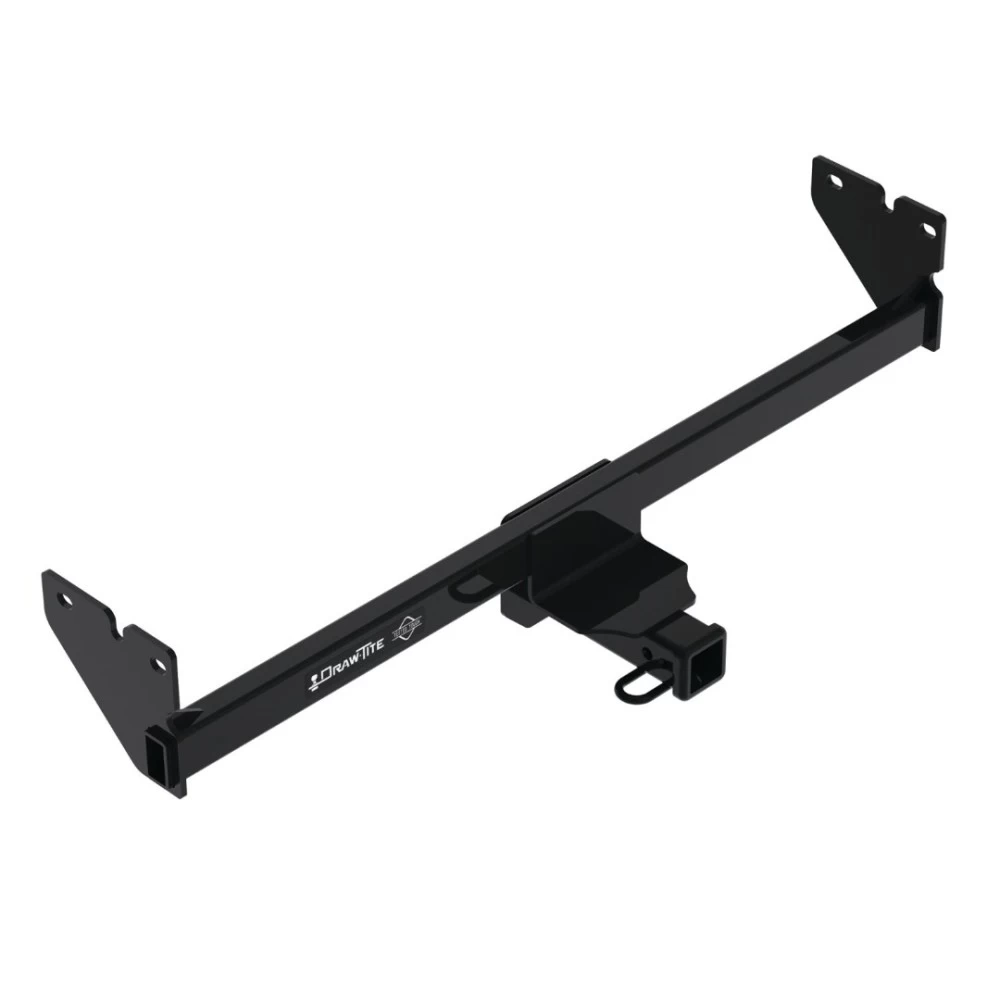

Trailer Tow Hitch For 20‑24 Volkswagen Atlas Cross Sport Class 3 2" Receiver Draw‑Tite
Model: 763862020 - 2024 Volkswagen, Atlas Cross Sport, All Styles
Trailer Hitch Specs:
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$338 48 $528.58 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$528.58 $338 48
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $84.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76386
- UPC: 016118159622
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 750 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
2020 - 2024 Volkswagen, Atlas Cross Sport, All Styles
Trailer Hitch Specs:
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive.
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 20-24 Volkswagen Atlas Cross Sport Class 3 2" Receiver Draw-Tite Install Notes
Installation Instructions for 2020-Current Volkswagen Atlas Cross Sport
Part Numbers:
- 76386
- 84386
- CQT76386
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Socket: 3/4”
- T15 Torx Bit Socket
- Tape Measure
- Marker
- Utility Knife
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Loosen Lower Fascia:
- Using a T15 Torx bit, remove three screws from the bottom of the lower fascia.
- Return one screw to the vehicle owner.
-
Feed Fasteners:
- (a) Use a flat head screwdriver to remove two clips securing the wiring cable on both frame rails.
- (b) Remove excess caulking in the specified area using a utility knife (see Figure 3 in the manual).
- (c) Feed the carriage bolts and washers through the access holes on both frame rails using the provided pull wires. Leave pull wires attached.
-
Trim Lower Fascia:
- Use a tape measure, marker, and utility knife to measure, mark, and trim the lower fascia as needed (see Figure 4 in the manual).
-
Install Hitch:
- Pull the lower fascia outward gently and raise the hitch into position, sliding it behind the fascia.
- Feed the pull wires through the bracket slots, then remove them.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16-14x1.75 GR5 fasteners to 50 ft-lbs (68 Nm).
-
Reinstall Screws:
- Reinstall the two screws on the sides of the lower fascia.

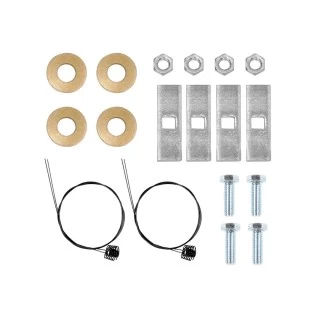

Hardware List:
- (4) Carriage Bolts 7/16"-14x1.75 GR5
- (4) Washers 0.88 x 2.00 x 0.109
- (4) Conical Washers 7/16"
- (4) Hex Nuts 7/16"-14 GR2
- (4) Pull Wires 7/16-14
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Check the hitch periodically to ensure it remains securely attached.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,268 kg) trailer weight, 750 lbs (340 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for Vehicle Models (2020-Present)
Part Numbers:
- 76386
- 84386
- CQT76386
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Socket: 3/4”
- T15 Torx Bit Socket
- Tape Measure
- Marker
- Utility Knife
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Loosen Lower Fascia:
- Using a T15 Torx bit, remove three screws from the bottom of the lower fascia.
- Return one screw to the vehicle owner.
-
Feed Fasteners:
- (a) Use a flat head screwdriver to remove two clips securing the wiring cable on both frame rails.
- (b) Remove excess caulking in the specified area using a utility knife (see Figure 3 in the manual).
- (c) Feed the carriage bolts and washers through the access holes on both frame rails using the provided pull wires. Leave pull wires attached.
-
Trim Lower Fascia:
- Use a tape measure, marker, and utility knife to measure, mark, and trim the lower fascia as needed (see Figure 4 in the manual).
-
Install Hitch:
- Pull the lower fascia outward gently and raise the hitch into position, sliding it behind the fascia.
- Feed the pull wires through the bracket slots, then remove them.
- Loosely install conical washers (teeth side toward the hitch) and hex nuts onto the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16-14x1.75 GR5 fasteners to 50 ft-lbs (68 Nm).
-
Reinstall Screws:
- Reinstall the two screws on the sides of the lower fascia.
Hardware List:
- (4) Carriage Bolts 7/16"-14x1.75 GR5
- (4) Washers 0.88 x 2.00 x 0.109
- (4) Conical Washers 7/16"
- (4) Hex Nuts 7/16"-14 GR2
- (4) Pull Wires 7/16-14
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Check the hitch periodically to ensure it remains securely attached.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 5,000 lbs (2,268 kg) trailer weight, 750 lbs (340 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
