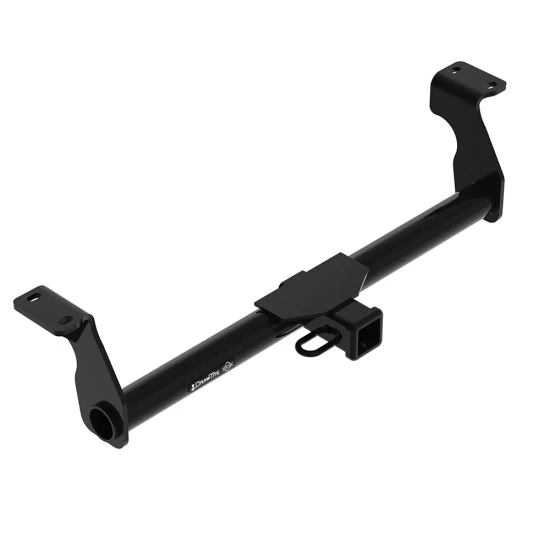

Installation Instructions for 2020-Current Ford Escape

Part Numbers:

• 76327
• 84327
• CQT76327

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• 1/2" Socket
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Die Grinder

Step-by-Step Instructions:

1. Lower Vehicle Exhaust:

   • Use an exhaust hanger removal tool to lower the muffler by removing the rearmost driver-side and passenger-side rubber hangers.
   • Ensure the exhaust is supported before removing the rubber hangers.
   • Spray lubricant or soapy water on the rubber hangers to make removal easier.

2. Enlarge Forward Slot:

   • Open up the access hole using a die grinder on both the driver and passenger sides to fit the head of the 1/2" carriage bolt.

3. Install Hitch:

   • Using the supplied pull wires, insert carriage bolts and spacers into the vehicle frame through the access hole. Leave the pull wires attached.
   • Raise the hitch into position and align the holes in the hitch bracket with the carriage bolts.
   • Guide the pull wire ends through the hitch bracket holes, then remove the pull wires.
   • Install conical washers (teeth side toward the hitch) and hex nuts.

4. Tighten Fasteners:

   • Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 Nm).

5. Reinstall Exhaust:

   • Raise the exhaust back into position.

Hardware List:

• (4) Carriage Bolt 1/2"-13 x 1 3/4" GR5
• (4) Spacer 1/4" x 1" x 3" (PN: 3022)
• (4) Conical Washer 1/2" (PN: 01292008)
• (4) Hex Nut 1/2"-13 GR5
• (4) Pull Wire 1/2"-13 (PN: 5482)

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Check hitch frequently to ensure all fasteners and the ball are properly tightened.
• Replace damaged hitches or balls immediately.
• Do not cut access or attachment holes with a torch.
• Observe all safety precautions when working under the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 5,000 lbs (2,267 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Installation Instructions for Vehicle Models (2020-Present)

Part Numbers:

• 76327
• 84327
• CQT76327

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• 1/2" Socket
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Die Grinder

Step-by-Step Instructions:

1. Lower Vehicle Exhaust:

   • Use an exhaust hanger removal tool to lower the muffler by removing the rearmost driver-side and passenger-side rubber hangers.
   • Ensure the exhaust is supported before removing the rubber hangers.
   • Spray lubricant or soapy water on the rubber hangers to make removal easier.

2. Enlarge Forward Slot:

   • Open up the access hole using a die grinder on both the driver and passenger sides to fit the head of the 1/2" carriage bolt.

3. Install Hitch:

   • Using the supplied pull wires, insert carriage bolts and spacers into the vehicle frame through the access hole. Leave the pull wires attached.
   • Raise the hitch into position and align the holes in the hitch bracket with the carriage bolts.
   • Guide the pull wire ends through the hitch bracket holes, then remove the pull wires.
   • Install conical washers (teeth side toward the hitch) and hex nuts.

4. Tighten Fasteners:

   • Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 Nm).

5. Reinstall Exhaust:

   • Raise the exhaust back into position.

Hardware List:

• (4) Carriage Bolt 1/2"-13 x 1 3/4" GR5
• (4) Spacer 1/4" x 1" x 3" (PN: 3022)
• (4) Conical Washer 1/2" (PN: 01292008)
• (4) Hex Nut 1/2"-13 GR5
• (4) Pull Wire 1/2"-13 (PN: 5482)

Safety Notes:

• Always wear safety glasses when installing the hitch.
• Check hitch frequently to ensure all fasteners and the ball are properly tightened.
• Replace damaged hitches or balls immediately.
• Do not cut access or attachment holes with a torch.
• Observe all safety precautions when working under the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: 5,000 lbs (2,267 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-One® T-Connector for Ford Escape

Part Numbers:

• 118816

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• 7mm Socket & Ratchet or 7mm Wrench
• Torx 25 Driver
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Hatch:

   • Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
   • Open the rear door and fold the rear seats forward.

2. Remove Interior Trim Panels:

   • Partially remove the rear interior trim panels on both the driver and passenger sides.
   • Remove the necessary trim panel fasteners and carefully set aside all items to avoid damage.

3. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
   • Ensure the connectors are fully inserted with locking tabs securely in place.

5. Route the Passenger-Side T-Connector:

   • Route the green wire connector down the threshold to the passenger side of the vehicle.
   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors and lock it in place.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean dirt and rustproofing from the grounding area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury.

7. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or melt the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings printed on the vehicle’s battery.

9. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

10. Mount the T-One® Black Box:

    • Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.

11. Secure the Harness:

    • Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.

12. Reassemble the Vehicle:

    • Replace all panels, threshold covers, and storage items removed during installation.

13. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.
    • When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118816

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• 7mm Socket & Ratchet or 7mm Wrench
• Torx 25 Driver
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Hatch:

   • Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
   • Open the rear door and fold the rear seats forward.

2. Remove Interior Trim Panels:

   • Partially remove the rear interior trim panels on both the driver and passenger sides.
   • Remove the necessary trim panel fasteners and carefully set aside all items to avoid damage.

3. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

4. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
   • Ensure the connectors are fully inserted with locking tabs securely in place.

5. Route the Passenger-Side T-Connector:

   • Route the green wire connector down the threshold to the passenger side of the vehicle.
   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors and lock it in place.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean dirt and rustproofing from the grounding area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury.

7. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or melt the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder (provided).
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings printed on the vehicle’s battery.

9. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

10. Mount the T-One® Black Box:

    • Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.

11. Secure the Harness:

    • Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.

12. Reassemble the Vehicle:

    • Replace all panels, threshold covers, and storage items removed during installation.

13. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.
    • When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
