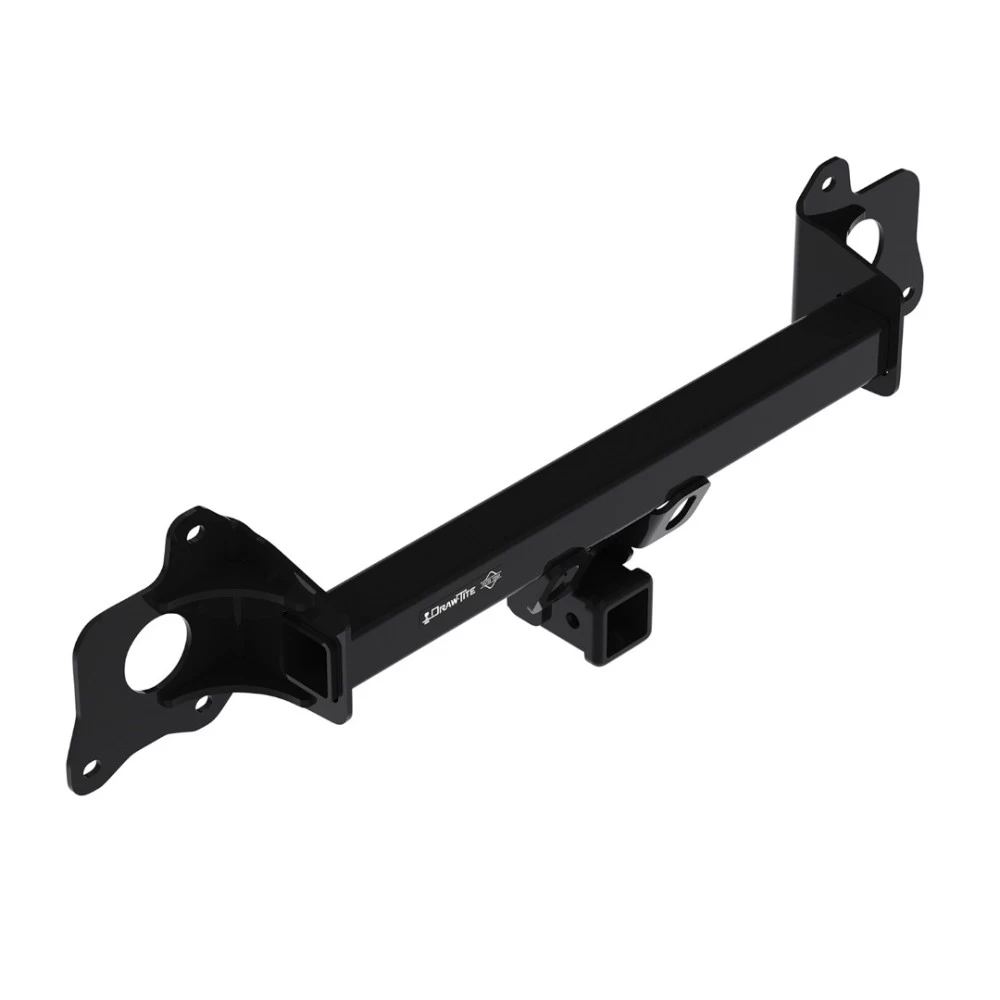

Installation Instructions for Tesla Model Y (2020-Present)

Part Numbers:

• 76430
• 84430
• CQT76430

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 8mm, 10mm, 15mm
• 6" Socket Extension
• Plastic Trim Tools
• Flat Head Screwdriver
• T25 Torx Bit

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 2 hours

Step-by-Step Instructions:

1. Remove Front Bottom Appearance Panel:

• Use a 10mm socket to remove (7) screws from the front of the panel and (2) screws from the intersection between the front and rear bottom panels.
• Use a flat head screwdriver to remove (4) push rivets from the bottom appearance panel and (8) from the bottom wheel well (4 per side).
• Use a T25 Torx bit to remove (2) screws from the rear bottom panel.
• Pull the rear bottom appearance panel downward and loosen it from the studs.

2. Loosen Wheel Well Liners:

• Locate the plastic trim piece inside the wheel well trim.
• Use a panel removal tool to remove (2) clips from the bottom and (4) clips from the side of the trim piece on each side.
• Remove (1) plastic washer from each liner by hand.
• Use a 10mm socket to remove (1) screw from the fascia connection point on each side.

3. Remove Trunk Panel and Taillights:

• Open the hatch and remove the interior carpet liner.
• Use plastic trim tools to loosen the weather stripping around the trunk panels.
• Detach the upper and lower trunk panels from (4) snap clips.
• Using an 8mm socket, remove (2) nuts from the taillights behind the panels on both sides.
• Use a 10mm socket to remove (1) bolt connecting the taillight to the fascia on both sides.

4. Remove Fascia:

• Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells.
• Disconnect the wiring harness on the passenger side if present.
• Set the fascia aside carefully for reinstallation.

5. Remove Sensor Bracket and Bumper Beam:

• Use a 10mm socket to remove (4) bolts from the sensor bracket.
• Use a 15mm socket to remove (6) factory flange nuts securing the bumper beam.
• Return the bumper beam to the vehicle owner.

6. Install Hitch:

• Raise the hitch into position and loosely tighten it to the studs.
• Torque all fasteners to 42 lb-ft (57 N·m).

7. Reinstall Components:

• Reinstall the wiring harness, fascia, fasteners, trunk panels, wheel well liners, and bottom appearance panel removed in Steps 1-5.

Safety Notes:

• Regularly inspect the hitch and all fasteners for secure attachment.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the vehicle manufacturer's weight rating or the hitch's maximum load rating, whichever is lower.

Installation Instructions for Tesla Model Y (2020-Present)

Part Numbers:

• 76430
• 84430
• CQT76430

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 8mm, 10mm, 15mm
• 6" Socket Extension
• Plastic Trim Tools
• Flat Head Screwdriver
• T25 Torx Bit

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 2 hours

Step-by-Step Instructions:

1. Remove Front Bottom Appearance Panel:

• Use a 10mm socket to remove (7) screws from the front of the panel and (2) screws from the intersection between the front and rear bottom panels.
• Use a flat head screwdriver to remove (4) push rivets from the bottom appearance panel and (8) from the bottom wheel well (4 per side).
• Use a T25 Torx bit to remove (2) screws from the rear bottom panel.
• Pull the rear bottom appearance panel downward and loosen it from the studs.

2. Loosen Wheel Well Liners:

• Locate the plastic trim piece inside the wheel well trim.
• Use a panel removal tool to remove (2) clips from the bottom and (4) clips from the side of the trim piece on each side.
• Remove (1) plastic washer from each liner by hand.
• Use a 10mm socket to remove (1) screw from the fascia connection point on each side.

3. Remove Trunk Panel and Taillights:

• Open the hatch and remove the interior carpet liner.
• Use plastic trim tools to loosen the weather stripping around the trunk panels.
• Detach the upper and lower trunk panels from (4) snap clips.
• Using an 8mm socket, remove (2) nuts from the taillights behind the panels on both sides.
• Use a 10mm socket to remove (1) bolt connecting the taillight to the fascia on both sides.

4. Remove Fascia:

• Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells.
• Disconnect the wiring harness on the passenger side if present.
• Set the fascia aside carefully for reinstallation.

5. Remove Sensor Bracket and Bumper Beam:

• Use a 10mm socket to remove (4) bolts from the sensor bracket.
• Use a 15mm socket to remove (6) factory flange nuts securing the bumper beam.
• Return the bumper beam to the vehicle owner.

6. Install Hitch:

• Raise the hitch into position and loosely tighten it to the studs.
• Torque all fasteners to 42 lb-ft (57 N·m).

7. Reinstall Components:

• Reinstall the wiring harness, fascia, fasteners, trunk panels, wheel well liners, and bottom appearance panel removed in Steps 1-5.

Safety Notes:

• Regularly inspect the hitch and all fasteners for secure attachment.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the vehicle manufacturer's weight rating or the hitch's maximum load rating, whichever is lower.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

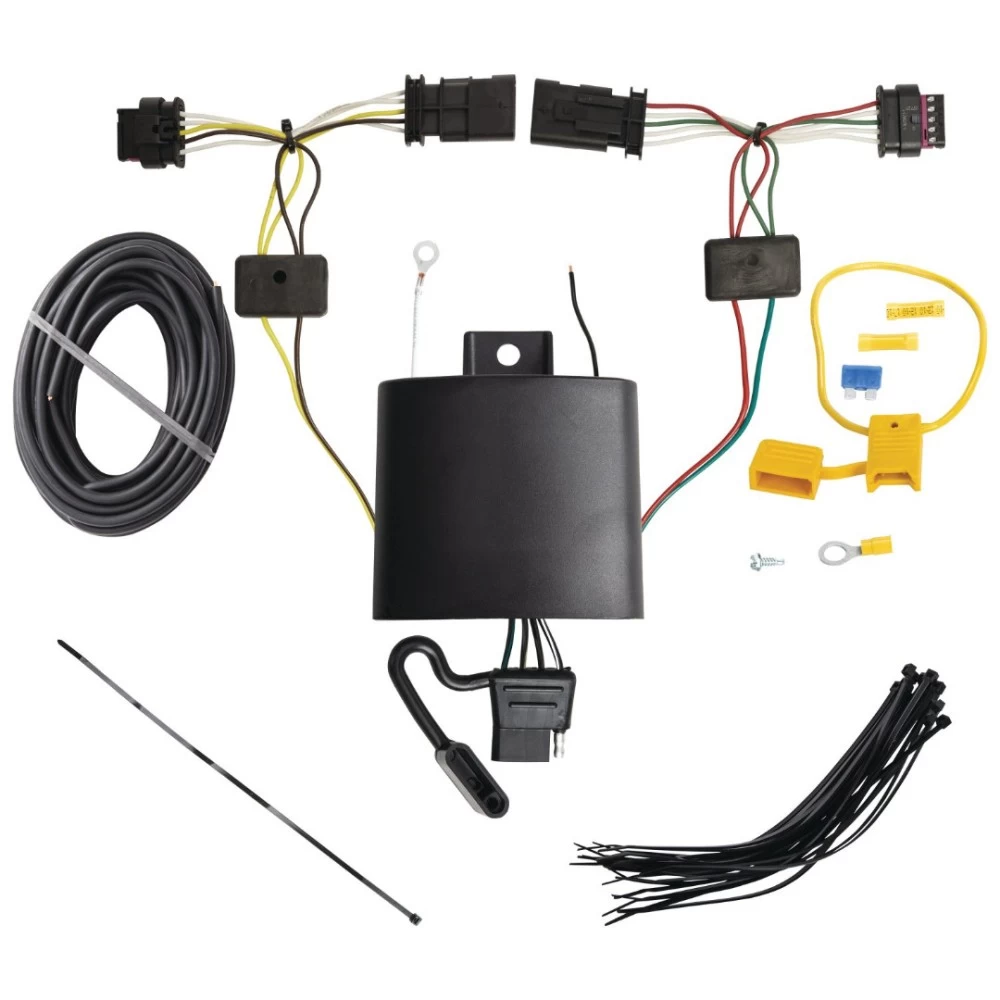

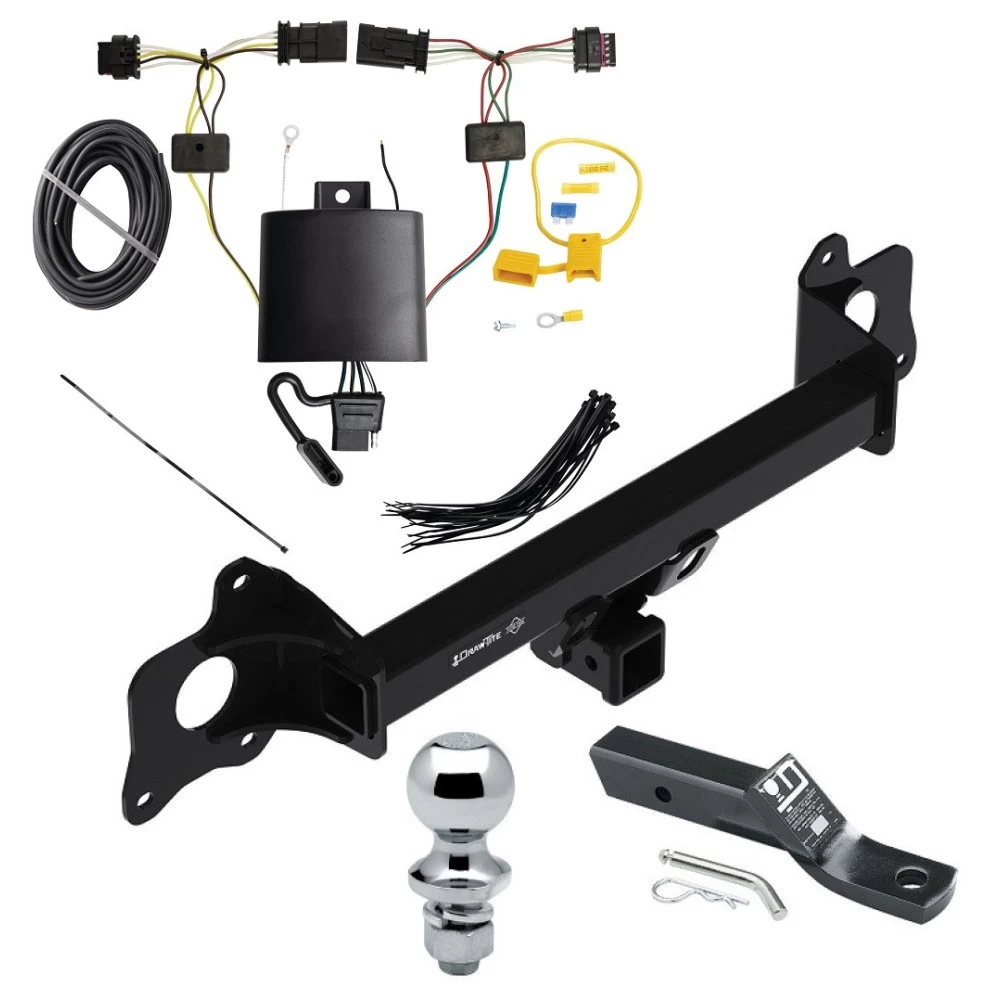

Installation Instructions for T-Connector Trailer Wiring Harness

Product Information:

• Part Number: N118831
• Application: Tesla Model Y

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill with 3/32” drill bit
• Wire Crimpers
• Wire Cutters
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Open the rear hatch.
   • Remove the plastic threshold cover, side panels, and cargo trays to expose the vehicle’s taillight wiring harness.

2. Install the Driver-Side T-Connector:

   • Locate the vehicle’s taillight wiring harness on the driver’s side.
   • Insert the T-Connector with the yellow wire between the vehicle wiring connectors.
   • Ensure the connectors are fully inserted, and the locking tabs engage securely.

3. Mount the Black Module Box:

   • Clean a flat surface near the driver’s side wiring harness using rubbing alcohol.
   • Mount the black converter box using the provided double-sided tape.
   • Use the provided cable ties to secure the T-Connector wiring to prevent rattling or pinching.

4. Ground the White Wire:

   • Locate a suitable grounding point near the black box (e.g., an existing ground stud).
   • Alternatively, drill a 3/32” hole into clean, bare metal.
   • Attach the white wire using the provided eyelet and screw.

   Caution: Verify what’s behind the surface before drilling.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire along the threshold to the passenger side.
   • Insert the T-Connector between the passenger-side wiring connectors.
   • Ensure all connections are secure and that locking tabs engage properly.

6. Prepare for Power Connection:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the provided yellow fuse holder.

7. Connect the Power Wire:

   • Attach the provided ring terminal to one end of the yellow fuse holder wire.
   • Secure the ring terminal to the positive (+) battery cable.
   • Use the yellow butt connector to attach the fuse holder to the provided black 12-gauge power wire.

8. Route the Power Wire:

   • Route the black power wire:
     • Through a grommet and along the exterior frame, or
     • Along the interior thresholds into the engine compartment.
   • Avoid areas where the wire could be pinched, cut, or exposed to heat sources.

9. Reconnect the Battery and Test:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Insert the 15-amp fuse into the yellow fuse holder.
   • Use a test light or connect a trailer to verify the functionality of:
     • Left Turn Signal
     • Right Turn Signal
     • Brake Lights
     • Running Lights

10. Secure and Reassemble Components:

    • Secure all loose wires using the provided cable ties.
    • Ensure wires are free from pinching, sharp edges, or moving components.
    • Reinstall the side panels, cargo trays, and threshold cover.

11. Store the 4-Flat Connector:

    • Route the 4-flat connector into the driver-side storage compartment and store it there when not in use.

Specifications:

• Stop/Turn Lights: 4.2 amps per circuit
• Taillights: 7.5 amps total

Safety Notes:

• Do not exceed the specified amperage ratings.
• Test all trailer light functions before towing.
• Inspect the wiring harness regularly for wear or damage.

Warnings:

• Avoid routing wires near sharp edges, moving parts, or hot surfaces.
• Overloading circuits can cause fires or electrical failures.
• Follow all vehicle safety guidelines when working near the battery.

Technical Support:
For assistance, contact the manufacturer’s support team.

Note: Store the 4-flat connector securely when not in use to prevent damage.

Installation Instructions for T-Connector Trailer Wiring Harness

Product Information:

• Part Number: N118831
• Application: Tesla Model Y

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill with 3/32” drill bit
• Wire Crimpers
• Wire Cutters
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Open the rear hatch.
   • Remove the plastic threshold cover, side panels, and cargo trays to expose the vehicle’s taillight wiring harness.

2. Install the Driver-Side T-Connector:

   • Locate the vehicle’s taillight wiring harness on the driver’s side.
   • Insert the T-Connector with the yellow wire between the vehicle wiring connectors.
   • Ensure the connectors are fully inserted, and the locking tabs engage securely.

3. Mount the Black Module Box:

   • Clean a flat surface near the driver’s side wiring harness using rubbing alcohol.
   • Mount the black converter box using the provided double-sided tape.
   • Use the provided cable ties to secure the T-Connector wiring to prevent rattling or pinching.

4. Ground the White Wire:

   • Locate a suitable grounding point near the black box (e.g., an existing ground stud).
   • Alternatively, drill a 3/32” hole into clean, bare metal.
   • Attach the white wire using the provided eyelet and screw.

   Caution: Verify what’s behind the surface before drilling.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire along the threshold to the passenger side.
   • Insert the T-Connector between the passenger-side wiring connectors.
   • Ensure all connections are secure and that locking tabs engage properly.

6. Prepare for Power Connection:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the provided yellow fuse holder.

7. Connect the Power Wire:

   • Attach the provided ring terminal to one end of the yellow fuse holder wire.
   • Secure the ring terminal to the positive (+) battery cable.
   • Use the yellow butt connector to attach the fuse holder to the provided black 12-gauge power wire.

8. Route the Power Wire:

   • Route the black power wire:
     • Through a grommet and along the exterior frame, or
     • Along the interior thresholds into the engine compartment.
   • Avoid areas where the wire could be pinched, cut, or exposed to heat sources.

9. Reconnect the Battery and Test:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Insert the 15-amp fuse into the yellow fuse holder.
   • Use a test light or connect a trailer to verify the functionality of:
     • Left Turn Signal
     • Right Turn Signal
     • Brake Lights
     • Running Lights

10. Secure and Reassemble Components:

    • Secure all loose wires using the provided cable ties.
    • Ensure wires are free from pinching, sharp edges, or moving components.
    • Reinstall the side panels, cargo trays, and threshold cover.

11. Store the 4-Flat Connector:

    • Route the 4-flat connector into the driver-side storage compartment and store it there when not in use.

Specifications:

• Stop/Turn Lights: 4.2 amps per circuit
• Taillights: 7.5 amps total

Safety Notes:

• Do not exceed the specified amperage ratings.
• Test all trailer light functions before towing.
• Inspect the wiring harness regularly for wear or damage.

Warnings:

• Avoid routing wires near sharp edges, moving parts, or hot surfaces.
• Overloading circuits can cause fires or electrical failures.
• Follow all vehicle safety guidelines when working near the battery.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Store the 4-flat connector securely when not in use to prevent damage.
