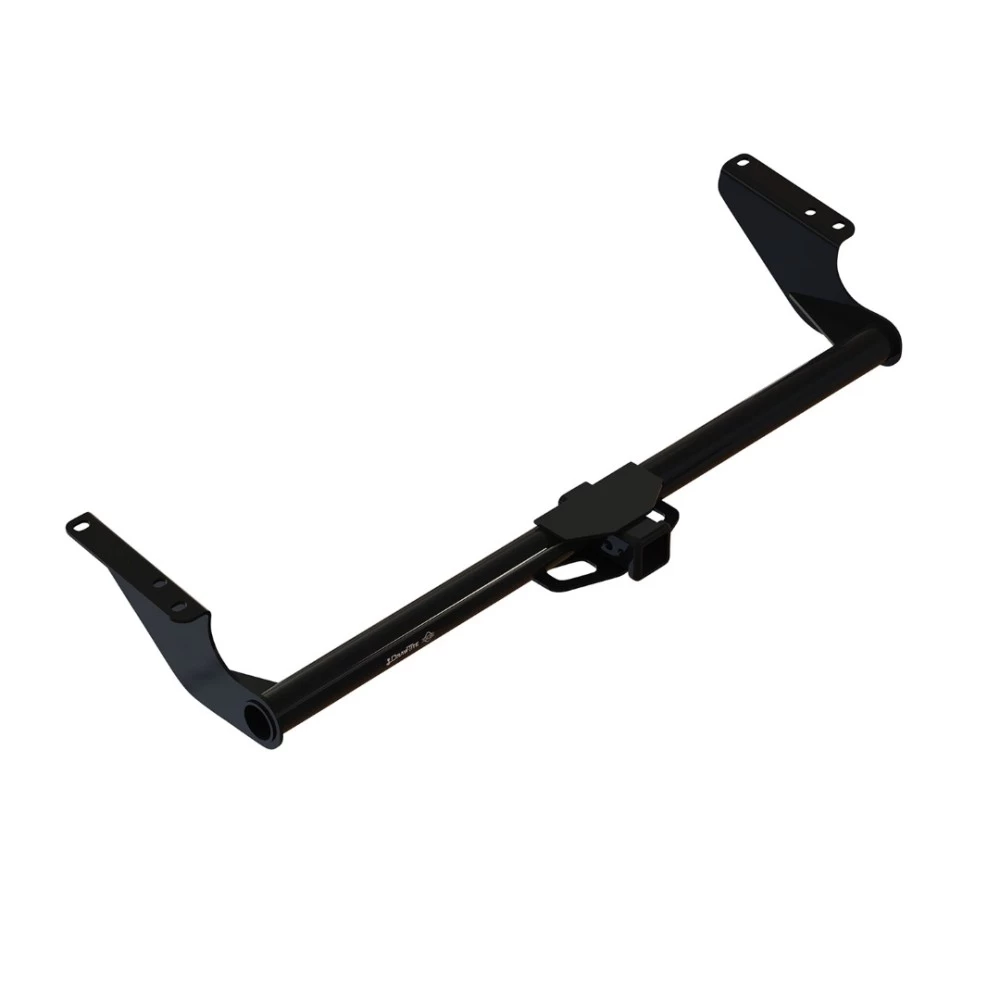

Trailer Tow Hitch For 21‑24 Toyota Sienna Class 3 2" Receiver
Model: 764382021 - 2024 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 76438 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 21 22 23 24 2021 2022 2023 2024
$187 78 $293.24 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$293.24 $187 78
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $46.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76438
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2021 - 2024 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 76438 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 21 22 23 24 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 21-24 Toyota Sienna Class 3 2" Receiver Install Notes
Installation Instructions for 2021-Current Toyota Sienna
Part Numbers:
- 76438
- 84438
- CQT76438
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Wire Brush
- Tape Measure
- Tape
- 6-inch Socket Extension
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a flat head screwdriver, remove three rivets from the passenger-side underbody panel.
- Use a Phillips screwdriver to remove two screws from the panel.
- Use a 10 mm socket to remove two bolts from the panel.
- Remove and set aside the underbody panel.
-
Clean Weldnuts:
- Use a flat head screwdriver to remove the plastic rivet covering on the weldnuts (three per side).
- Clean the weldnuts using a wire brush to remove debris or corrosion.
-
Install Hitch:
- Raise the hitch into position, aligning the mounting holes with the weldnut locations.
- Loosely install the following hardware:
- M12 bolts
- 1/2” conical washers (teeth side toward hitch)
- 1/2” lock washers
- 1/2” flat washers
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).
-
Trim Underbody Panel:
- Measure and mark the underbody panel as shown in Figure 2 of the manual.
- Use a utility knife to trim the panel accordingly.
-
Reinstall Underbody Panel:
- Reinstall the underbody panel using the fasteners removed in Step 1, except for the rearmost two fasteners due to trimming.

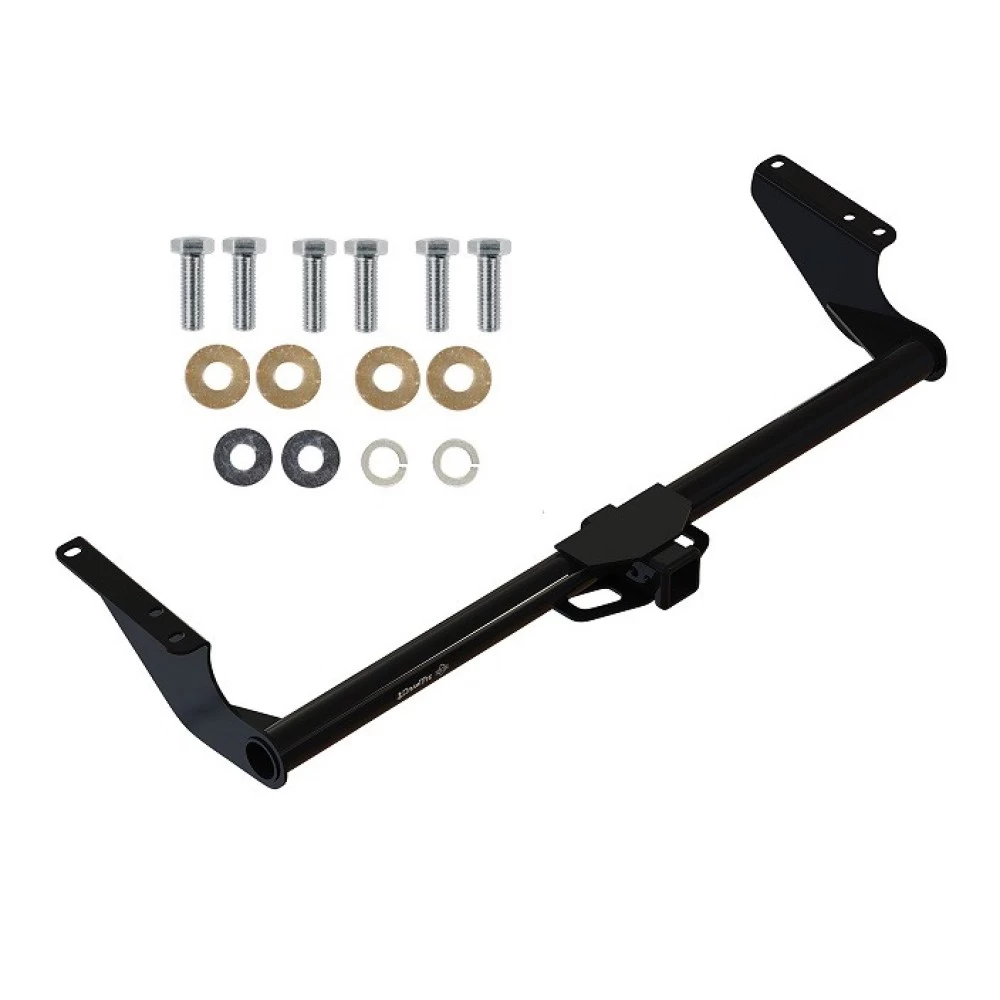

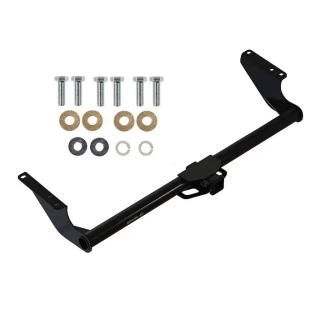

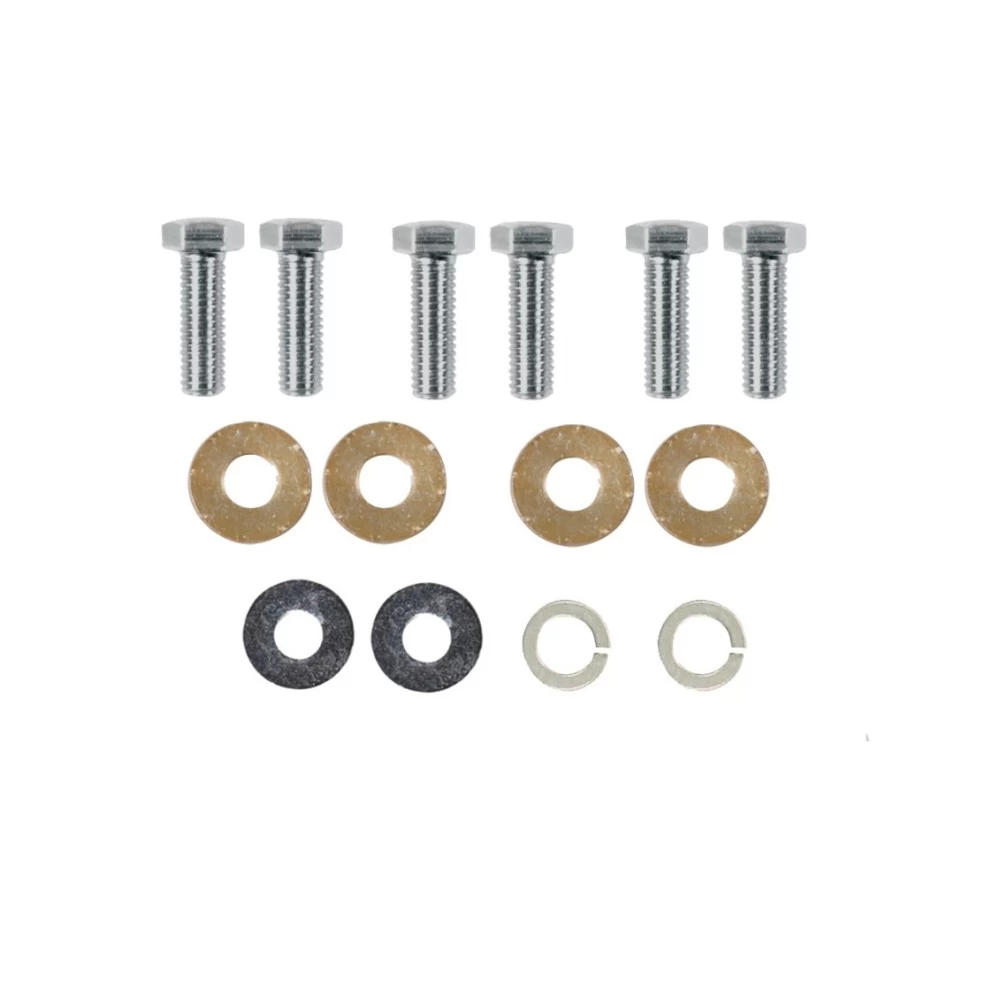

Hardware List:
- (6) M12x1.25x35 CL8.8 Bolts
- (4) 1/2” Conical Washers
- (2) 1/2” Lock Washers
- (2) 1/2” Flat Washers
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Regularly check the hitch to ensure it remains securely mounted.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 25 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
Installation Instructions for 2021-Current Toyota Sienna
Part Numbers:
- 76438
- 84438
- CQT76438
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Wire Brush
- Tape Measure
- Tape
- 6-inch Socket Extension
Step-by-Step Instructions:
1. Remove Underbody Panel:
- Using a flat head screwdriver, remove three rivets from the passenger-side underbody panel.
- Use a Phillips screwdriver to remove two screws from the panel.
- Use a 10 mm socket to remove two bolts from the panel.
- Remove and set aside the underbody panel.
2. Clean Weldnuts:
- Use a flat head screwdriver to remove the plastic rivet covering on the weldnuts (three per side).
- Clean the weldnuts using a wire brush to remove debris or corrosion.
3. Install Hitch:
- Raise the hitch into position, aligning the mounting holes with the weldnut locations.
- Loosely install the following hardware:
- M12 bolts
- 1/2” conical washers (teeth side toward hitch)
- 1/2” lock washers
- 1/2” flat washers
4. Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).
5. Trim Underbody Panel:
- Measure and mark the underbody panel as shown in Figure 2 of the manual.
- Use a utility knife to trim the panel accordingly.
6. Reinstall Underbody Panel:
- Reinstall the underbody panel using the fasteners removed in Step 1, except for the rearmost two fasteners due to trimming.
Hardware List:
- (6) M12x1.25x35 CL8.8 Bolts
- (4) 1/2” Conical Washers
- (2) 1/2” Lock Washers
- (2) 1/2” Flat Washers
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Regularly check the hitch to ensure it remains securely mounted.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
- Weight Distributing Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 25 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
