Trailer Tow Hitch For 95‑99 Toyota Avalon 99‑03 Solara Complete Package w/ Wiring Draw Bar and 1‑7/8" Ball

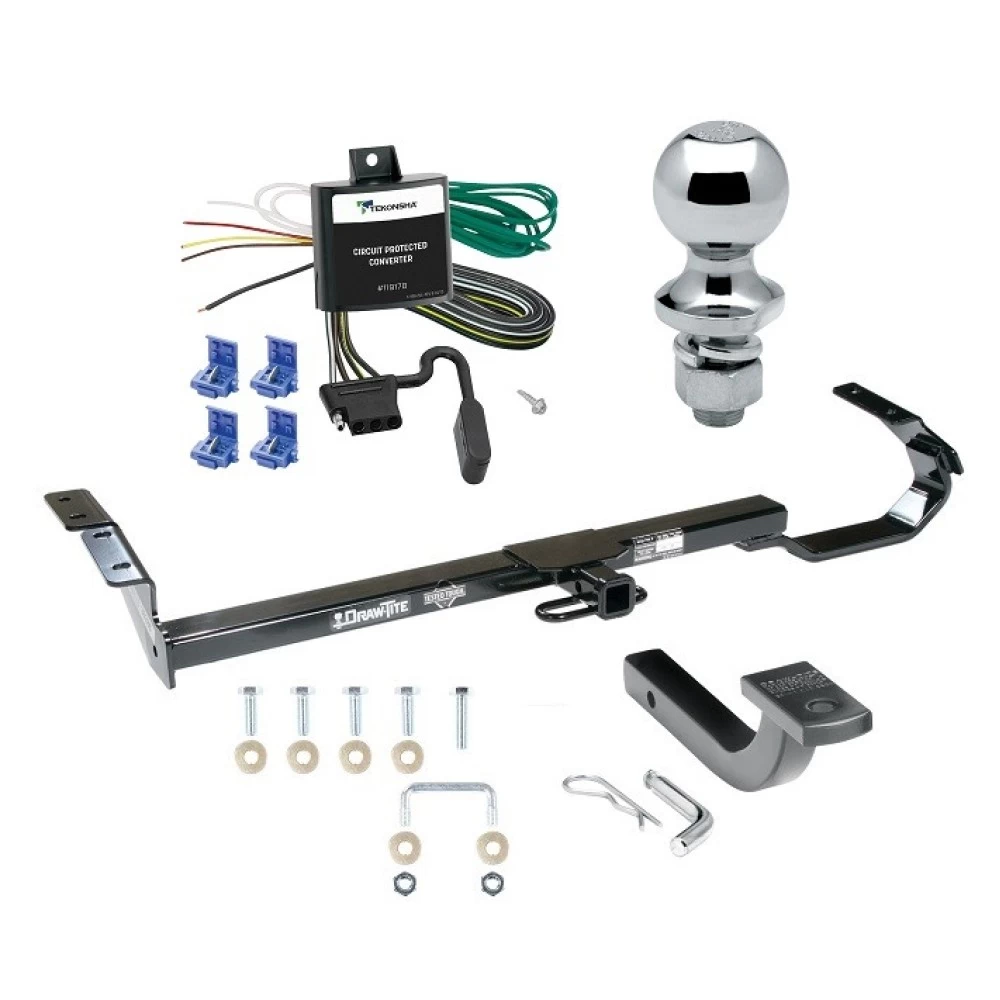

Model: 363360 119178 63810Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1995 - 1999 Toyota, Avalon, All Styles
1999 - 2003 Toyota, Solara, All Styles
Trailer Hitch Specs:
| Part Number | 363360 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Part Number | 119178 |
| Brand | Tekonsha |
| Warranty | 1 Year |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 1995 1996 1997 1998 1999 2000 2001 2002 2003
$283 34 $479.98 41% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$479.98 $283 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 363360 119178 63810
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 95-99 Toyota Avalon 99-03 Solara Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Toyota Avalon, Camry, Solara, Lexus ES300, and ES330
Part Numbers:
- 36336
- 90174
- 06326
- 39603
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 14mm, 17mm, 11/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove tie-down brackets and bolts from each side of the vehicle frame. Return to the vehicle owner.
- For vehicles with a muffler hanger bracket welded to the passenger-side tie-down bracket, reattach the tie-down/muffler hanger with the hitch in Step 3.
- For vehicles with a muffler hanger bracket bolted to the bottom of the frame rail on the passenger side, remove the bolts attaching the bracket to the frame.
-
Raise Hitch into Position:
- Raise the hitch into position and install (4) M10 bolts and conical toothed washers as shown in Figure 1.
- For Two-Bolt Exhaust Hanger Configuration: Install (2) M10 bolts and conical toothed washers supplied with the hitch.
- For Four-Bolt Exhaust Hanger Configuration: Install (2) existing M10 bolts (retained in Step 1) and (2) M10 bolts and conical toothed washers supplied with the hitch.
-
Optional Weldnut Fastener:
- If an existing weldnut is present, omit the U-bolt and use the weldnut with the optional fastener.
-
Drill Holes (if required):
- For vehicles without a weldnut, use the hitch as a template and drill (2) 1/2" holes in the vehicle frame as shown in Figure 1.
-
Install U-Bolt:
- Insert the U-bolt as shown in Figure 2 and secure it with conical toothed washers and 3/8" hex nuts.
-
Tighten Fasteners:
- Torque all M10 x 1.25 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Torque all 3/8"-16 U-bolt nuts to 25 lb-ft (34 N*m).
-
Reinstall Components:
- For twin-tip exhaust models, increase exhaust clearance by loosening the set screws on each chrome exhaust tip and removing the tips. Return tips to the customer for reinstallation upon hitch removal.
Hardware List:
- (1) U-Bolt, 3/8"-16
- (2) Hex Nuts, 3/8"-16
- (6) Conical Toothed Washers, 3/8"
- (5) Hex Bolts, M10 x 1.25 x 30mm CL8.8
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- Wear eye protection when working beneath the vehicle.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36336F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Toyota Avalon, Camry, Solara, Lexus ES300, and ES330
Part Numbers:
- 36336
- 90174
- 06326
- 39603
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 14mm, 17mm, 11/16"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove tie-down brackets and bolts from each side of the vehicle frame. Return to the vehicle owner.
- For vehicles with a muffler hanger bracket welded to the passenger-side tie-down bracket, reattach the tie-down/muffler hanger with the hitch in Step 3.
- For vehicles with a muffler hanger bracket bolted to the bottom of the frame rail on the passenger side, remove the bolts attaching the bracket to the frame.
-
Raise Hitch into Position:
- Raise the hitch into position and install (4) M10 bolts and conical toothed washers as shown in Figure 1.
- For Two-Bolt Exhaust Hanger Configuration: Install (2) M10 bolts and conical toothed washers supplied with the hitch.
- For Four-Bolt Exhaust Hanger Configuration: Install (2) existing M10 bolts (retained in Step 1) and (2) M10 bolts and conical toothed washers supplied with the hitch.
-
Optional Weldnut Fastener:
- If an existing weldnut is present, omit the U-bolt and use the weldnut with the optional fastener.
-
Drill Holes (if required):
- For vehicles without a weldnut, use the hitch as a template and drill (2) 1/2" holes in the vehicle frame as shown in Figure 1.
-
Install U-Bolt:
- Insert the U-bolt as shown in Figure 2 and secure it with conical toothed washers and 3/8" hex nuts.
-
Tighten Fasteners:
- Torque all M10 x 1.25 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Torque all 3/8"-16 U-bolt nuts to 25 lb-ft (34 N*m).
-
Reinstall Components:
- For twin-tip exhaust models, increase exhaust clearance by loosening the set screws on each chrome exhaust tip and removing the tips. Return tips to the customer for reinstallation upon hitch removal.
Hardware List:
- (1) U-Bolt, 3/8"-16
- (2) Hex Nuts, 3/8"-16
- (6) Conical Toothed Washers, 3/8"
- (5) Hex Bolts, M10 x 1.25 x 30mm CL8.8
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- Wear eye protection when working beneath the vehicle.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36336F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
