Trailer Wiring and Bracket For 02‑06 Toyota Camry 4 Dr. Sedan 4‑Flat Harness Plug Play

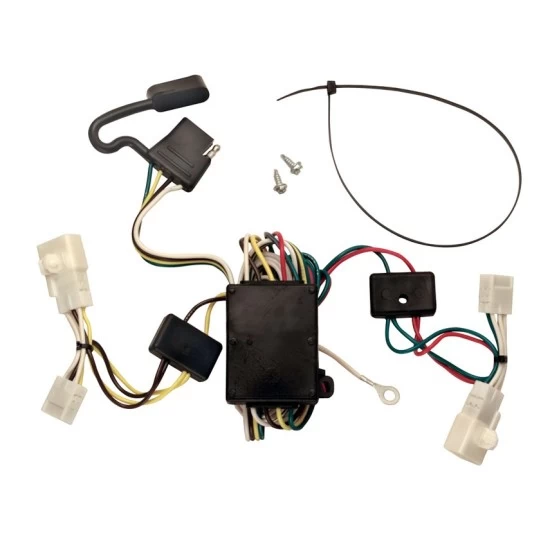

Model: 118308 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
This Hitch Fits The Following Vehicles:
2002 - 2006 Toyota, Camry, 4 Dr. Sedan
Direct Plug & Play Wiring Kit
Wiring Specs
| Part Number | 118308 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
02 03 04 05 06 2002 2003 2004 2005 2006
$56 61 $67.92 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$67.92 $56 61
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118308 118144

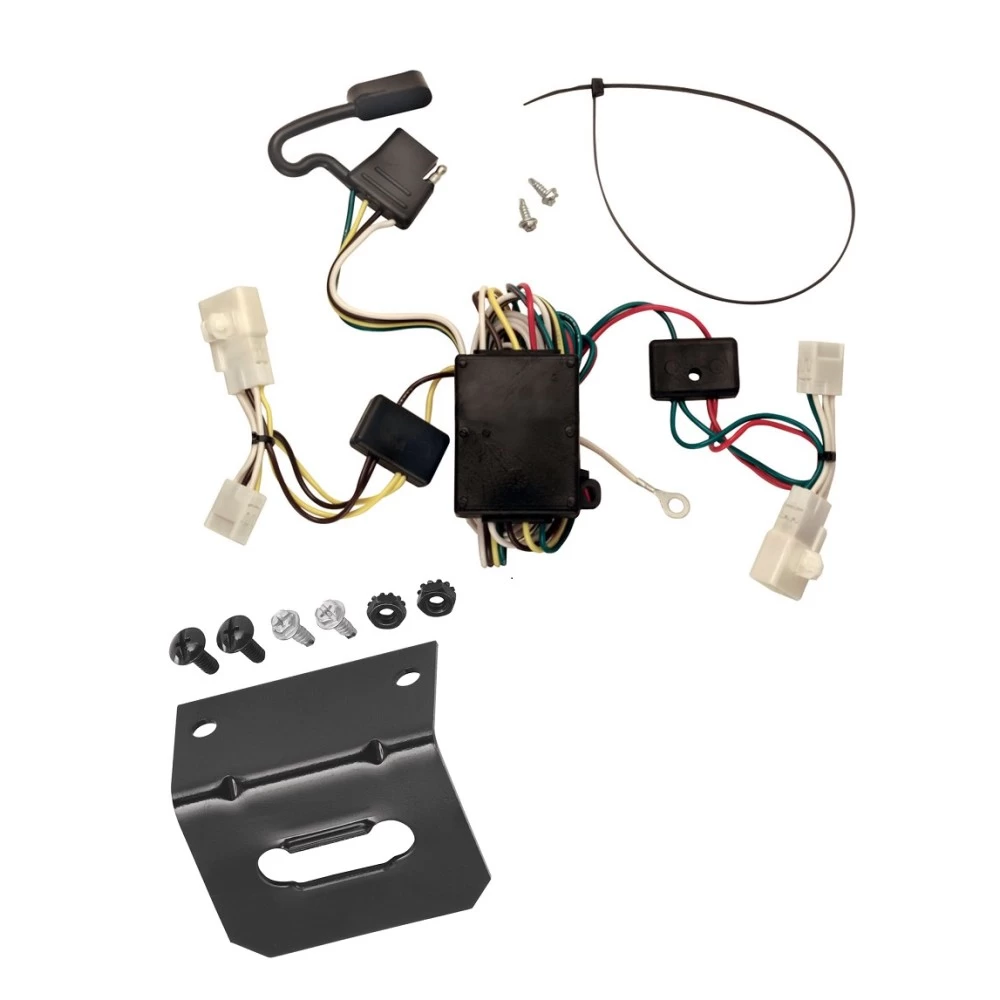

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
This Hitch Fits The Following Vehicles:
2002 - 2006 Toyota, Camry, 4 Dr. Sedan
Direct Plug & Play Wiring Kit
Wiring Specs
| Part Number | 118308 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
02 03 04 05 06 2002 2003 2004 2005 2006
Get Expert Help
Trailer Wiring and Bracket For 02-06 Toyota Camry 4 Dr. Sedan 4-Flat Harness Plug Play Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118308
Wiring Access Location:
- Inside the trunk, behind the plastic trim panels on both sides.
Tools Required:
- Drill with a 3/32" drill bit.
- Screwdriver or trim panel remover.
Step-by-Step Instructions:
-
Access Vehicle Wiring:
- Remove the plastic trim panels inside the trunk to locate the vehicle’s wiring harness. These harnesses will have connection points matching the T-Connector adapter.
-
Driver's Side Connection:
- Starting on the driver’s side, separate the vehicle’s wiring connectors carefully to avoid damaging the locking tabs.
- Attach the T-Connector containing the yellow wire between the separated vehicle wiring connectors. Ensure the locking tabs are fully engaged.
-
Passenger's Side Connection:
- Remove the rear threshold panel inside the trunk to route the T-Connector harness to the passenger side.
- Repeat the connection process on the passenger side using the T-Connector with the green wire.
-
Ground Connection:
- Locate a suitable grounding point near the adapter. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Mounting the Black Box:
- Secure the black converter box to the vehicle using the provided screw or cable tie.
- Ensure the converter box is mounted in a location that prevents movement or damage.
-
Testing and Reassembly:
- Test the installation with a test light or trailer to ensure all connections are functioning properly.
- Reattach all plastic trim panels, ensuring no wires are pinched or exposed.
Specifications:
- This unit is rated for 4 amps per circuit.
Hardware List:
- T-Connector adapter.
- Black converter box.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test the installation after completing all steps to verify proper functionality.
- Do not exceed the rated amperage to prevent damage or fire.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118308
Wiring Access Location:
- Inside the trunk, behind the plastic trim panels on both sides.
Tools Required:
- Drill with a 3/32" drill bit
- Screwdriver or trim panel remover
Step-by-Step Instructions:
-
Access Vehicle Wiring:
- Remove the plastic trim panels inside the trunk to locate the vehicle’s wiring harness. These harnesses will have connection points matching the T-Connector adapter.
-
Driver's Side Connection:
- Starting on the driver’s side, separate the vehicle’s wiring connectors carefully to avoid damaging the locking tabs.
- Attach the T-Connector containing the yellow wire between the separated vehicle wiring connectors. Ensure the locking tabs are fully engaged.
-
Passenger's Side Connection:
- Remove the rear threshold panel inside the trunk to route the T-Connector harness to the passenger side.
- Repeat the connection process on the passenger side using the T-Connector with the green wire.
-
Ground Connection:
- Locate a suitable grounding point near the adapter. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area to remove dirt and rustproofing.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Mounting the Black Box:
- Secure the black converter box to the vehicle using the provided screw or cable tie.
- Ensure the converter box is mounted in a location that prevents movement or damage.
-
Testing and Reassembly:
- Test the installation with a test light or trailer to ensure all connections are functioning properly.
- Reattach all plastic trim panels, ensuring no wires are pinched or exposed.
Specifications:
- Max. Circuit Rating: 4 amps per circuit
Hardware List:
- T-Connector adapter
- Black converter box
- Eyelet and screw
- Cable ties
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test the installation after completing all steps to verify proper functionality.
- Do not exceed the rated amperage to prevent damage or fire.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
