Trailer Tow Hitch Hardware Fastener Kit For 01‑05 Ford Explorer Sport Trac 2" Towing Receiver Class 3
Model: HWKIT3(75112F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2005 Ford, Explorer Sport Trac, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75112 44718 87008 78206
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75112F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2005 Ford, Explorer Sport Trac, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75112 44718 87008 78206
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 01-05 Ford Explorer Sport Trac 2" Towing Receiver Class 3 Install Notes
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 75112
- 44718
- 87008
- 78206 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
- Raise the receiver into position and attach it with the fasteners as shown.
- Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
- Tighten all 9/16"-12 GR5 fasteners with a torque wrench to 110 lb-ft (149 N·m).

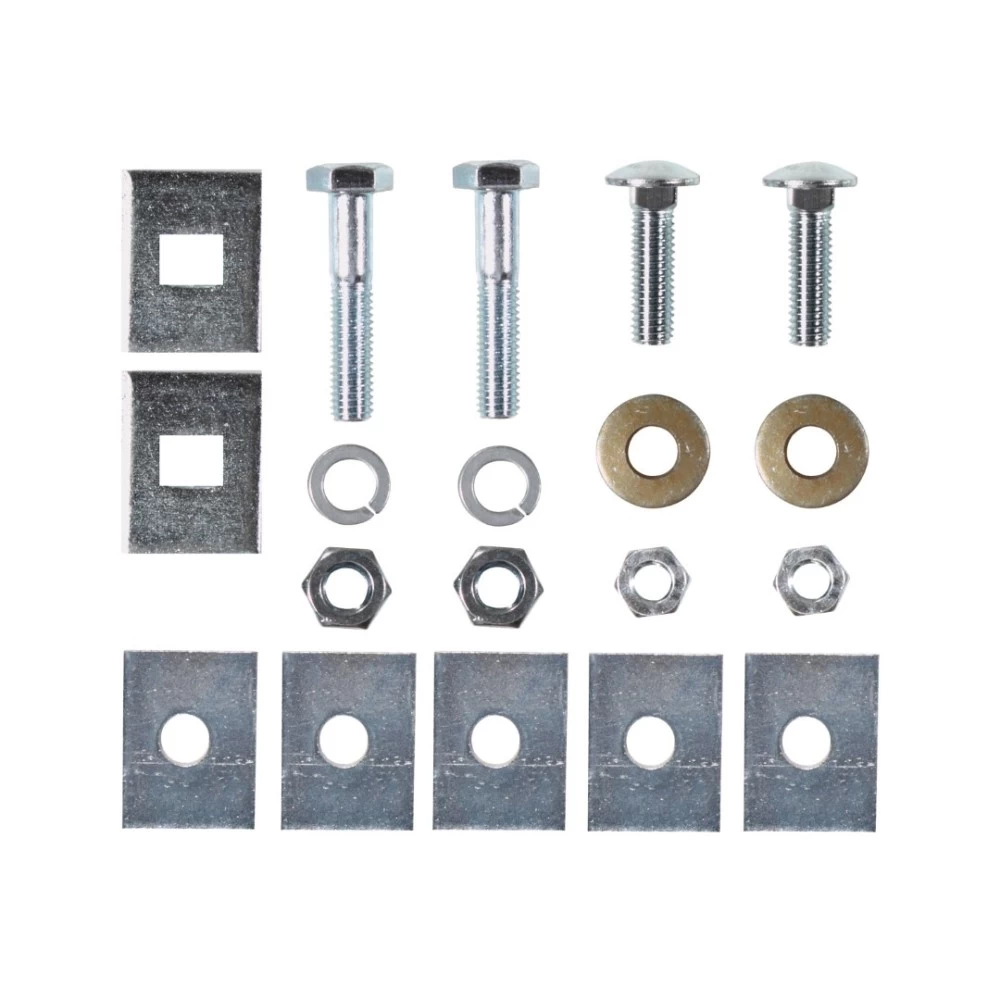

Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2" GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2"
- (2) Conical Toothed Washers
- (2) Lock Washers – 9/16"
- (2) Hex Nuts: 1/2"-13
- (2) Hex Nuts: 9/16"-12
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 75112
- 44718
- 87008
- 78206 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
- Raise the receiver into position and attach it with the fasteners as shown.
- Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
- Tighten all 9/16"-12 GR5 fasteners with a torque wrench to 110 lb-ft (149 N·m).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2" GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2"
- (2) Conical Toothed Washers
- (2) Lock Washers – 9/16"
- (2) Hex Nuts: 1/2"-13
- (2) Hex Nuts: 9/16"-12
Safety Notes:
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any hitch or ball that has been damaged.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Maximum Load Ratings:
- Weight Distributing:
- Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Tongue Weight: 600 lbs (272 kg)
- Weight Carrying (Ball Mount):
- Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always ensure compliance with the towing vehicle manufacturer’s weight rating or the hitch's maximum load rating, whichever is lower.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
