Trailer Tow Hitch Hardware Fastener Kit For 01‑10 Chevy Silverado GMC Sierra 2500HD 3500 3500HD
Model: HWKIT3(75550F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2001 - 2010 GMC, Sierra 2500 HD, All Styles
2001 - 2010 GMC, Sierra 3500, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2003 - 2007 GMC, Sierra 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75550 44577 87442
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75550F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2001 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2001 - 2010 GMC, Sierra 2500 HD, All Styles
2001 - 2010 GMC, Sierra 3500, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2003 - 2007 GMC, Sierra 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75550 44577 87442
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 01-10 Chevy Silverado GMC Sierra 2500HD 3500 3500HD Install Notes
Installation Instructions for GMC Sierra & Chevrolet Silverado 2500HD/3500/3500HD
(Classic & New Body Models - Requires Factory Bumper & Brackets)
Part Numbers:
- 75550
- 44577
- 87442
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each truck frame rail.
-
Position the Hitch:
- Lift the hitch into position, aligning the rearmost slots on the hitch with the existing weldnuts in the truck frame.
-
Install Spacers (if needed):
- If there are variations in bumper height, install 1–4 flat washers (9/16”) per side between the hitch and bumper attachment points as needed.
-
Secure M14 Bolts:
- Install the new M14 bolts through the hitch into the weldnuts in the truck frame and the step bumper.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the diagram.
-
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m).

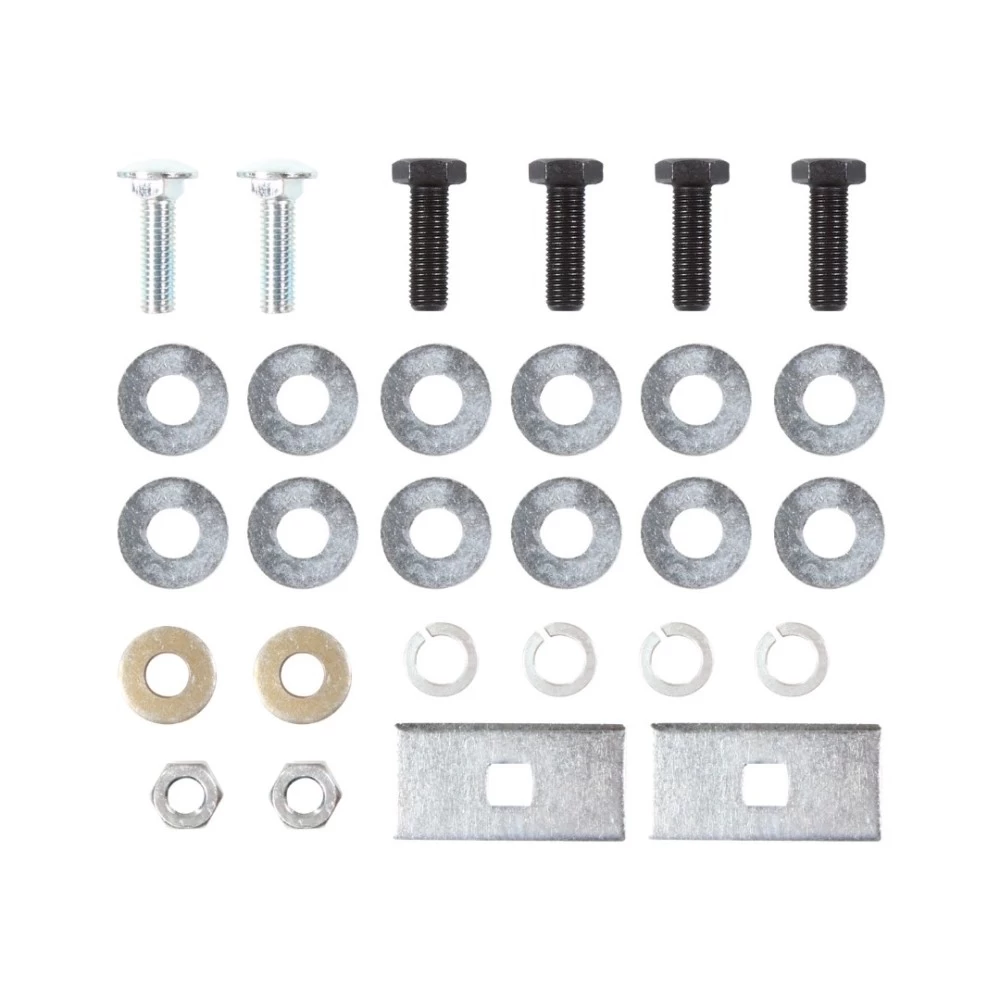

Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (2) 1/2"-13 x 1-3/4" Carriage Bolts
- (12) 9/16" Flat Washers
- (2) 1/2" Hex Nuts
- (2) 1/2" Conical Washers
- (2) 1/4” x 1-1/2” x 3” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 11,000 lbs (4,990 kg), Max Tongue Weight 1,100 lbs (499 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Factory-installed steel step bumper and bumper brackets must be used with this hitch.
Installation Instructions for Vehicles (Generic)
(Classic & New Body Models - Requires Factory Bumper & Brackets)
Part Numbers:
- 75550
- 44577
- 87442
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each truck frame rail.
-
Position the Hitch:
- Lift the hitch into position, aligning the rearmost slots on the hitch with the existing weldnuts in the truck frame.
-
Install Spacers (if needed):
- If there are variations in bumper height, install 1–4 flat washers (9/16”) per side between the hitch and bumper attachment points as needed.
-
Secure M14 Bolts:
- Install the new M14 bolts through the hitch into the weldnuts in the truck frame and the step bumper.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the diagram.
-
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (2) 1/2"-13 x 1-3/4" Carriage Bolts
- (12) 9/16" Flat Washers
- (2) 1/2" Hex Nuts
- (2) 1/2" Conical Washers
- (2) 1/4” x 1-1/2” x 3” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 11,000 lbs (4,990 kg), Max Tongue Weight 1,100 lbs (499 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
Factory-installed steel step bumper and bumper brackets must be used with this hitch.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
