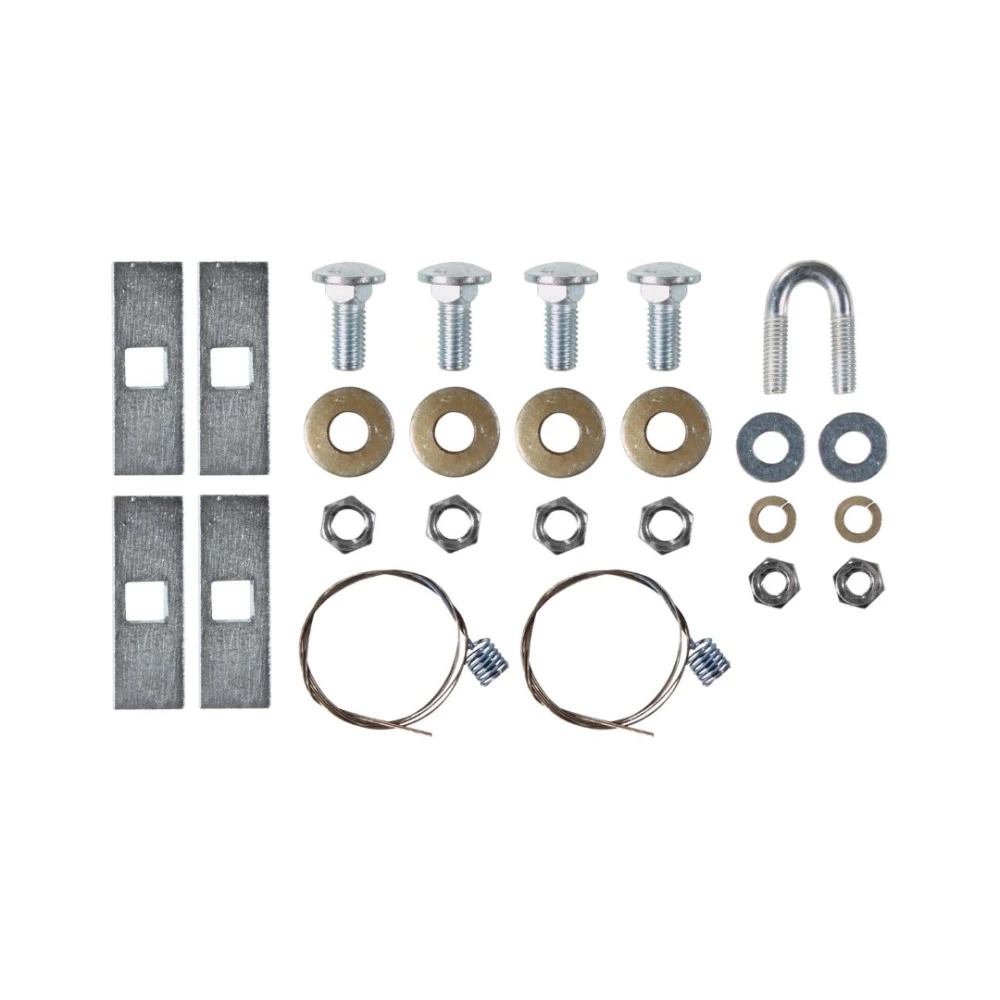

Trailer Tow Hitch Hardware Fastener Kit For 02‑06 Honda CR‑V 2" Towing Receiver
Model: HWKIT3(75690F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2002 - 2006 Honda, CR-V, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75690 44643 87578
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 2002 2003 2004 2005 2006
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75690F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2002 - 2006 Honda, CR-V, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75690 44643 87578
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 2002 2003 2004 2005 2006
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 02-06 Honda CR-V 2" Towing Receiver Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 44643
- 75690
- 87578
Tools Required:
- Wrenches: 11/16”, 7/8”
- Drill Bits: None
- Pull Wire (provided)
Wiring Access Location:
- SUV3
Step-by-Step Instructions:
-
Lower the Exhaust:
- Disconnect rubber exhaust hangers in two places behind the muffler and one place forward of the muffler near the rear axle.
- Bend the exhaust hanger pins to lower the exhaust by 1/2".
- Note: Attach the rubber exhaust hanger to the hanger rod welded to the vehicle frame before installing the hitch. The hitch side bracket will block access to the hanger rod after installation.
-
Enlarge Access Holes:
- If necessary, enlarge the forward access hole on each side to allow for fishwiring of carriage bolts and spacer blocks.
-
Fishwire Fasteners:
- Fishwire 1/2”-13 carriage bolts and spacer blocks through access holes and down through the rearward holes on both sides of the vehicle.
-
Repeat Fishwiring for Forward Attachment:
- Fishwire carriage bolts and spacer blocks through the same access hole, ensuring proper alignment.
-
Install the Hitch:
- Raise the hitch into position, taking care not to push fasteners back into the frame.
- Loosely install conical toothed washers and hex nuts.
-
Install U-Bolt:
- Center the hitch on the vehicle.
- Install the 3/8”-16 U-bolt as shown in Figure 1. Add flat washers, lock washers, and nuts.
-
Tighten Fasteners:
- Torque all 1/2”-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all 3/8”-16 Grade 5 fasteners to 30 lb-ft (41 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber exhaust
Installation Instructions
Part Numbers:
- 44643
- 75690
- 87578
Tools Required:
- Wrenches: 11/16”, 7/8”
- Drill Bits: None
- Pull Wire (provided)
Wiring Access Location:
- SUV3
Step-by-Step Instructions:
-
Lower the Exhaust:
- Disconnect rubber exhaust hangers in two places behind the muffler and one place forward of the muffler near the rear axle.
- Bend the exhaust hanger pins to lower the exhaust by 1/2".
- Note: Attach the rubber exhaust hanger to the hanger rod welded to the vehicle frame before installing the hitch. The hitch side bracket will block access to the hanger rod after installation.
-
Enlarge Access Holes:
- If necessary, enlarge the forward access hole on each side to allow for fishwiring of carriage bolts and spacer blocks.
-
Fishwire Fasteners:
- Fishwire 1/2”-13 carriage bolts and spacer blocks through access holes and down through the rearward holes on both sides of the vehicle.
-
Repeat Fishwiring for Forward Attachment:
- Fishwire carriage bolts and spacer blocks through the same access hole, ensuring proper alignment.
-
Install the Hitch:
- Raise the hitch into position, taking care not to push fasteners back into the frame.
- Loosely install conical toothed washers and hex nuts.
-
Install U-Bolt:
- Center the hitch on the vehicle.
- Install the 3/8”-16 U-bolt as shown in Figure 1. Add flat washers, lock washers, and nuts.
-
Tighten Fasteners:
- Torque all 1/2”-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all 3/8”-16 Grade 5 fasteners to 30 lb-ft (41 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber exhaust hangers.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
