Trailer Tow Hitch Hardware Fastener Kit For 10‑16 Cadillac SRX All Models Class 3 2" Towing Receiver
Model: HWKIT3(75682F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2016 Cadillac, SRX, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75682 87573 44638 78187
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75682F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2010 - 2016 Cadillac, SRX, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75682 87573 44638 78187
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 10-16 Cadillac SRX All Models Class 3 2" Towing Receiver Install Notes
Installation Instructions for Cadillac SRX
Part Numbers:
- 75682
- 87573
- 44638
- 78187 (U-Haul)
Tools Required:
- Wrenches: 19mm, 10mm (deep well socket)
- Small Flat Head Screwdriver
- Phillips Tip Screwdriver
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Fascia Door:
- Use a Phillips tip screwdriver to remove the fascia door from the bumper fascia (two screws).
- Remove the four (4) plastic rivets fastening the fascia tabs to the plastic spacer block.
- Note: Pull out the center post of each rivet first with a screwdriver, then push the rivet out by hand. Save the rivets for reinstallation.
-
Remove Plastic Spacer Block:
- Use a 10mm socket to remove the plastic spacer block that was attached to the bumper fascia. Save the block for reinstallation.
-
Move Electrical Wiring Harness:
- Carefully pull the electrical wiring harness located inside the driver’s side rail away from the rail during hitch installation.
-
Install the Hitch:
- Raise the hitch into position, lifting it over the fascia as needed.
- Secure the hitch to the impact bumper using M12 bolts and conical washers in the existing weld nuts.
- Install remaining fasteners as shown.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
-
Reinstall Components:
- Reattach the plastic spacer blocks and the four (4) plastic fascia rivets removed in Steps 1 and 2.

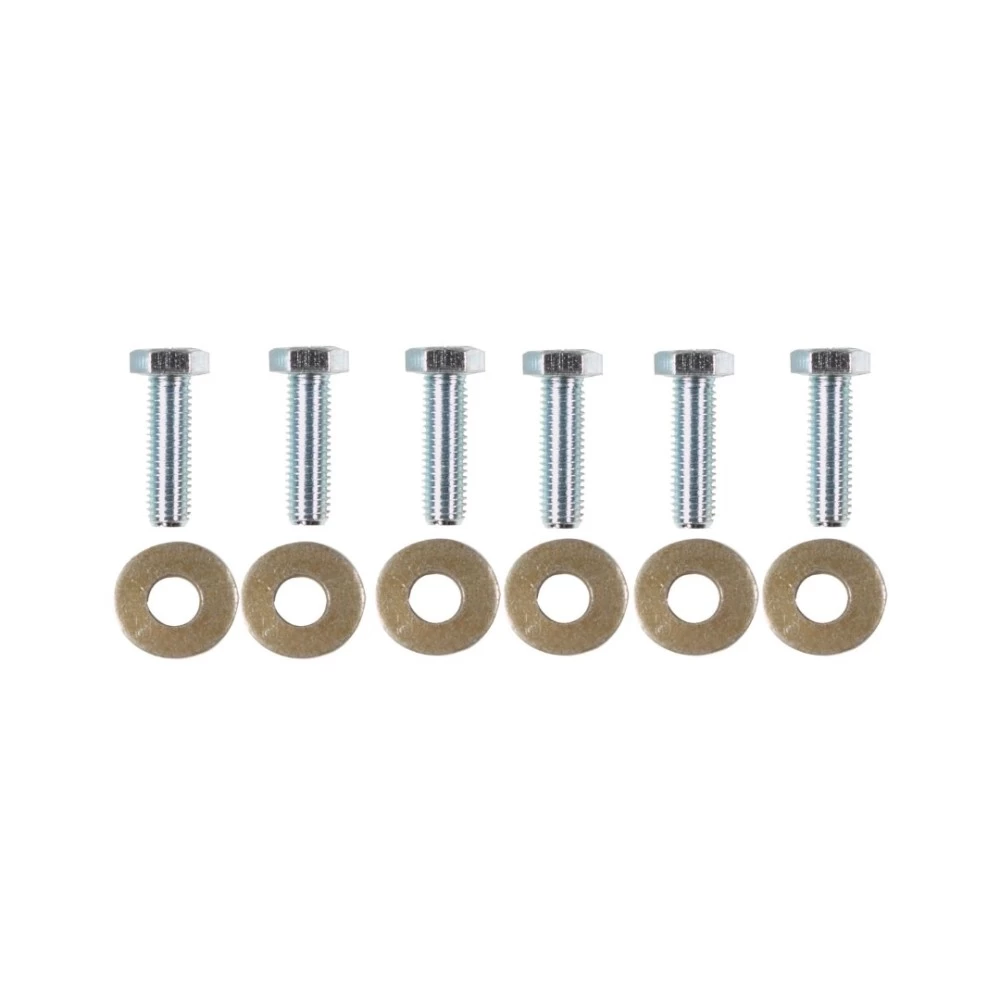

Hardware List:
- (6) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (6) Conical Washers 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Ensure proper reinstallation of all components and verify tightness of fasteners after installation.
