Trailer Tow Hitch Hardware Fastener Kit For 15‑22 Chevy Colorado GMC Canyon 2" Receiver Class lV
Model: HWKIT3(76004F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2015 - 2022 Chevrolet, Colorado, All Styles
2015 - 2022 GMC, Canyon, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76004 84999
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76004F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2015 - 2022 Chevrolet, Colorado, All Styles
2015 - 2022 GMC, Canyon, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76004 84999
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 15-22 Chevy Colorado GMC Canyon 2" Receiver Class lV Install Notes
Installation Instructions for Chevrolet Colorado and GMC Canyon (2015-Present)
Part Numbers:
- 76004
- 84999
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 21mm, 22mm
- Flat Head Screwdriver
- Socket Extension (6")
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Disconnect Electrical Connections:
- Disconnect electrical plugs and remove the wire retainer from the bumper support structure.
-
Remove Step Bumper:
- Remove the step bumper by taking out two (2) bolts on each side of the bumper brackets.
-
Remove Bumper Support:
- Remove the vehicle’s bumper support by removing four (4) bolts from the bottom of the frame and two (2) M8 bolts at the spare tire cradle.
- Retain the M8 bolts for reinstallation.
-
Install the Hitch:
- Raise the hitch into position.
- Secure using the provided M14 hex bolts, lock washers, and flat washers into the four (4) existing weldnuts in the frame.
-
Reinstall Spare Tire Cradle:
- Reattach the spare tire cradle using the original fasteners.
- Torque M8 bolts to 20 lb-ft (28 N·m).
-
Reinstall Step Bumper:
- Reinstall the step bumper using the original four (4) side fasteners.
- Ensure the plastic tube for the spare tire mechanism is aligned.
-
Reconnect Electrical Connections:
- Reconnect all electrical plugs.
-
Reposition Spare Tire:
- Raise the spare tire back into position, if required.
-
Return Parts to Owner:
- Return the vehicle’s bumper support and the bottom four (4) factory bolts to the owner.
-
Tighten Fasteners:
- Torque all M14 CL10.9 fasteners to 100 lb-ft (136 N·m).
Hardware List:

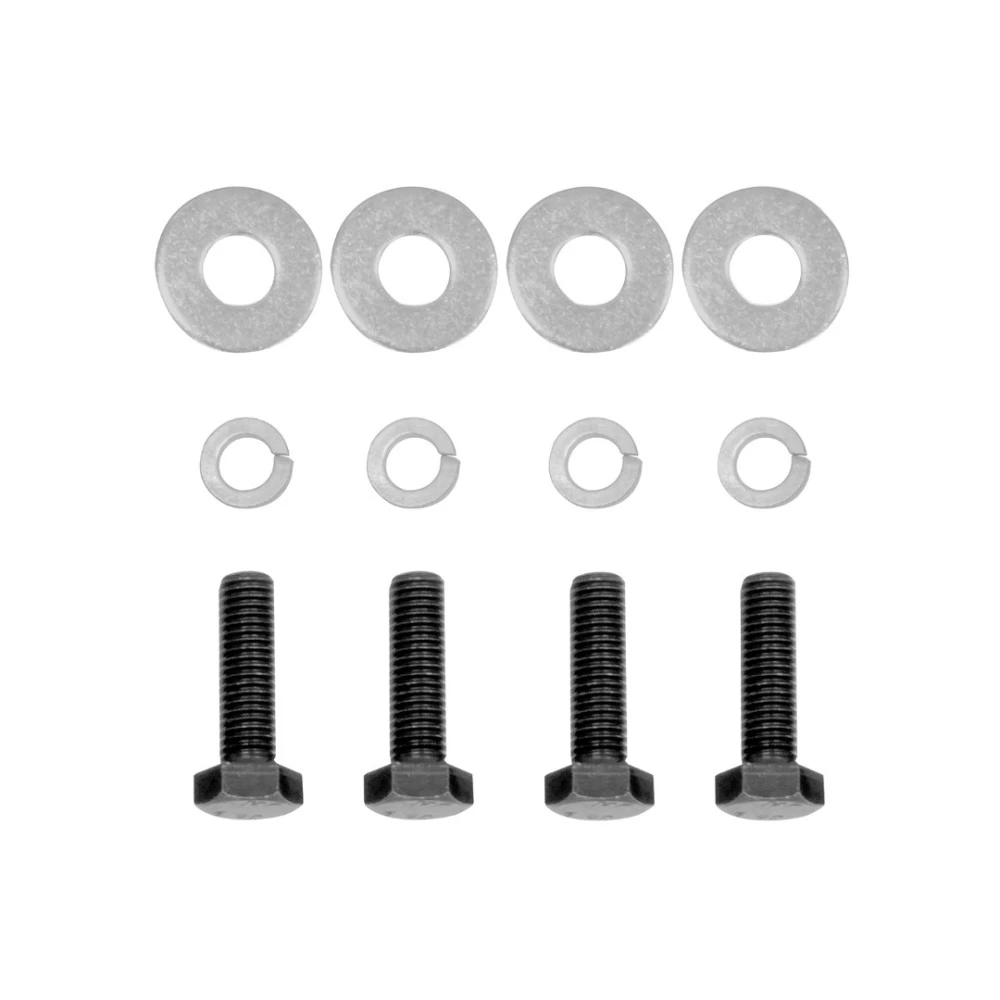

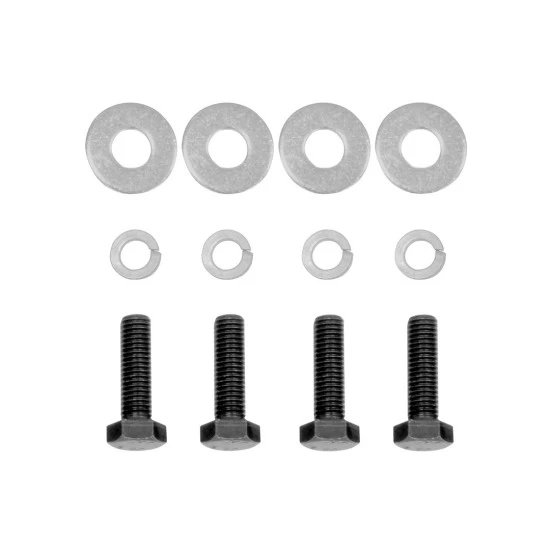

- (4) M14 x 2.00 x 45mm CL10.9 Bolts
- (4) 9/16" Flat Washers
- (4) 9/16" Lock Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,540 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 35 minutes for a professional installer.
- If you do not feel comfortable performing this installation, contact a professional installer.
Installation Instructions for Chevrolet Colorado and GMC Canyon (2015-Present)
Part Numbers:
- 76004
- 84999
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 21mm, 22mm
- Flat Head Screwdriver
- Socket Extension (6")
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Disconnect Electrical Connections:
- Disconnect electrical plugs and remove the wire retainer from the bumper support structure.
-
Remove Step Bumper:
- Remove the step bumper by taking out two (2) bolts on each side of the bumper brackets.
-
Remove Bumper Support:
- Remove the vehicle’s bumper support by removing four (4) bolts from the bottom of the frame and two (2) M8 bolts at the spare tire cradle.
- Retain the M8 bolts for reinstallation.
-
Install the Hitch:
- Raise the hitch into position.
- Secure using the provided M14 hex bolts, lock washers, and flat washers into the four (4) existing weldnuts in the frame.
-
Reinstall Spare Tire Cradle:
- Reattach the spare tire cradle using the original fasteners.
- Torque M8 bolts to 20 lb-ft (28 N·m).
-
Reinstall Step Bumper:
- Reinstall the step bumper using the original four (4) side fasteners.
- Ensure the plastic tube for the spare tire mechanism is aligned.
-
Reconnect Electrical Connections:
- Reconnect all electrical plugs.
-
Reposition Spare Tire:
- Raise the spare tire back into position, if required.
-
Return Parts to Owner:
- Return the vehicle’s bumper support and the bottom four (4) factory bolts to the owner.
-
Tighten Fasteners:
- Torque all M14 CL10.9 fasteners to 100 lb-ft (136 N·m).
Hardware List:
- (4) M14 x 2.00 x 45mm CL10.9 Bolts
- (4) 9/16" Flat Washers
- (4) 9/16" Lock Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Installation time is approximately 35 minutes for a professional installer.
- If you do not feel comfortable performing this installation, contact a professional installer.
