Trailer Tow Hitch Hardware Fastener Kit For 16‑24 BMW X1 All Styles 2" Towing Receiver
Model: HWKIT3(76018F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2016 - 2024 BMW, X1, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76018 84018 76018
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 23 24 2016 2017 2018 2019 2020 2021 2022 2023 2024
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(76018F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2016 - 2024 BMW, X1, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 76018 84018 76018
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 23 24 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 16-24 BMW X1 All Styles 2" Towing Receiver Install Notes
Installation Instructions for BMW X1 (2016-Current)
Part Numbers:
- 76018
- 84018
- CQT76018
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 18mm, 3/4”
- Flat Head Screwdriver
- Tin Snips
- Tape Measure
- Marker
- Drill with 1” Holesaw
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- Not Applicable
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
- Gently unclip and pull the fascia off, then set it aside for reinstallation later.
-
Lower Exhaust:
- Use a 10mm socket to remove the nuts from both rear exhaust hangers.
- Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.
-
Remove Heat Shield:
- Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.
-
Trim Heat Shield:
- Measure and draw two lines on the heat shield:
- From the lower portion, measure 1/2” inward from the outermost screw holes.
- From the upper portion, draw a line 1/2” from the top.
- Use tin snips to cut along the lines.
- Measure and draw two lines on the heat shield:
-
Remove Nuts from Lower Bumper Studs:
- Use an 18mm socket to remove one nut from the lower bumper stud on each side.
-
Loosen Sensor Bar:
- Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.
-
Drill Holes:
- Raise the hitch into position and onto the lower bumper studs.
- Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
- Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.
-
Fishwire Bolts:
- Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position over the lower bumper studs.
- Guide the pull wire ends through the forward attachment holes.
- Install (2) nuts onto the lower bumper studs and remove the pull wires.
- Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.
-
Tighten Fasteners:
- Torque all hitch fasteners to 75 lb-ft (102 N·m).
-
Reinstall Components:
- Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.

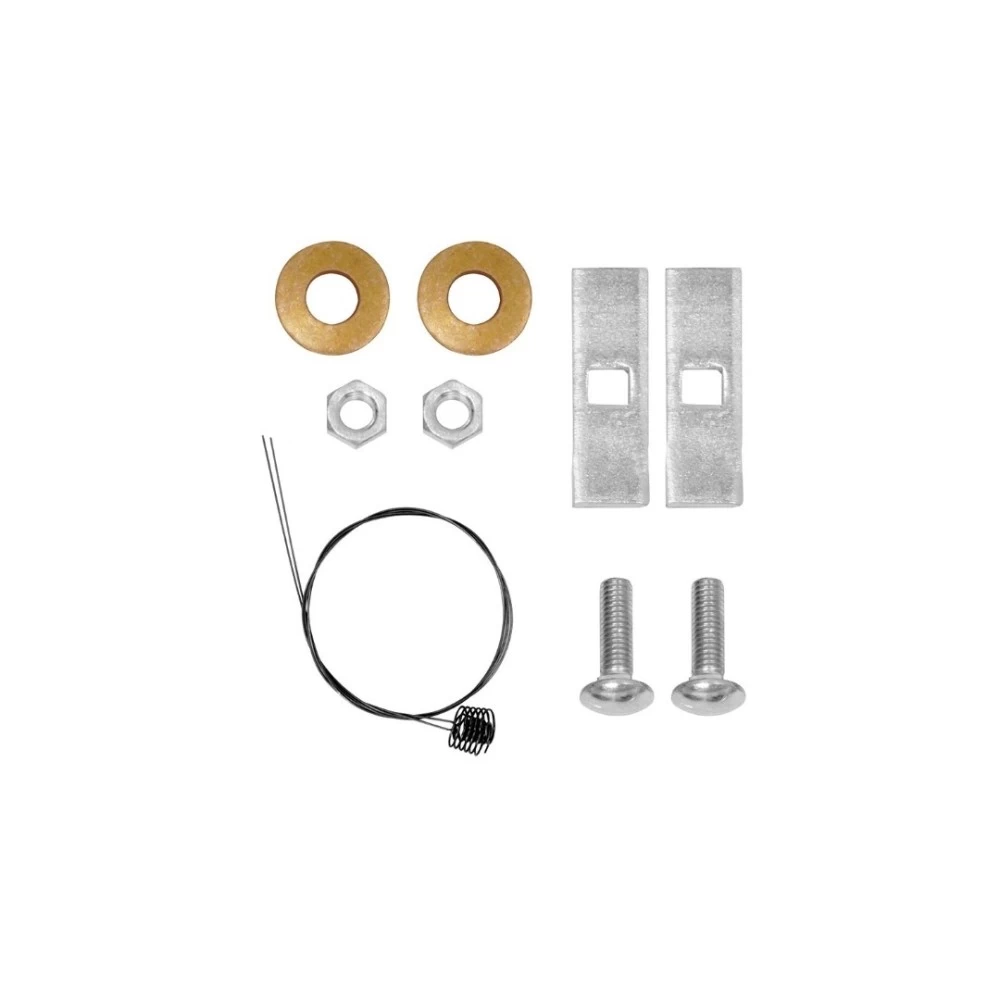

Hardware List:
- (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (2) 1/2” Conical Washers
- (2) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2”-13 Grade 5 Hex Nuts
- (2) 1/2” Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for Vehicle (2016-Current)
Part Numbers:
- 76018
- 84018
- CQT76018
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 18mm, 3/4”
- Flat Head Screwdriver
- Tin Snips
- Tape Measure
- Marker
- Drill with 1” Holesaw
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- Not Applicable
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
- Gently unclip and pull the fascia off, then set it aside for reinstallation later.
-
Lower Exhaust:
- Use a 10mm socket to remove the nuts from both rear exhaust hangers.
- Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.
-
Remove Heat Shield:
- Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.
-
Trim Heat Shield:
- Measure and draw two lines on the heat shield:
- From the lower portion, measure 1/2” inward from the outermost screw holes.
- From the upper portion, draw a line 1/2” from the top.
- Use tin snips to cut along the lines.
- Measure and draw two lines on the heat shield:
-
Remove Nuts from Lower Bumper Studs:
- Use an 18mm socket to remove one nut from the lower bumper stud on each side.
-
Loosen Sensor Bar:
- Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.
-
Drill Holes:
- Raise the hitch into position and onto the lower bumper studs.
- Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
- Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.
-
Fishwire Bolts:
- Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position over the lower bumper studs.
- Guide the pull wire ends through the forward attachment holes.
- Install (2) nuts onto the lower bumper studs and remove the pull wires.
- Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.
-
Tighten Fasteners:
- Torque all hitch fasteners to 75 lb-ft (102 N·m).
-
Reinstall Components:
- Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.
Hardware List:
- (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (2) 1/2” Conical Washers
- (2) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2”-13 Grade 5 Hex Nuts
- (2) 1/2” Pull Wires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
