Installation Instructions for Chevrolet/GMC Full-Size Pickups (All Models)

Part Numbers:

• 75099
• 87184
• 44105

Wiring Access Location:

• PU3

Tools Required:

• Wrenches: 7/8", 13mm, 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Lower Spare Tire:

   • If present, lower the spare tire to provide access to the hitch attachment points.

2. Remove Existing Components:

   • Remove and discard the M12 hex bolts from the ends of each frame rail, if present.
   • Remove and relocate the ground wire and ground wire bolt on the driver's side frame rail, if applicable.

3. Position Receiver:

   • Lift the receiver into position, aligning the slots in the receiver with the weld nuts in the vehicle frame.

4. Install Fasteners:

   • Attach the M12 hex bolts and conical washers to the weld nuts in the vehicle frame.

5. Install Additional Fasteners:

   • Secure the hitch using the provided fasteners, including carriage bolts, lock washers, and nuts, as shown in the diagram.
   • Use the 1/4" x 1-1/2" x 2" block at the forward-most attachment on the driver's side for 6' bed models.

6. Reinstall Ground Wire:

   • Reinstall the ground wire and ground wire bolt into the side bracket.

7. Raise Spare Tire:

   • Reinstall the spare tire, ensuring proper clearance between the hitch and spare tire.

8. Tighten Fasteners:

   • Tighten all fasteners to the specified torque values:
     • M12 CL10.9: 75 lb-ft (102 N·m)
     • 1/2"-13 GR5: 75 lb-ft (102 N·m)

Torque Specifications:

• M12 CL10.9: 75 lb-ft (102 N·m)
• 1/2"-13 GR5: 75 lb-ft (102 N·m)

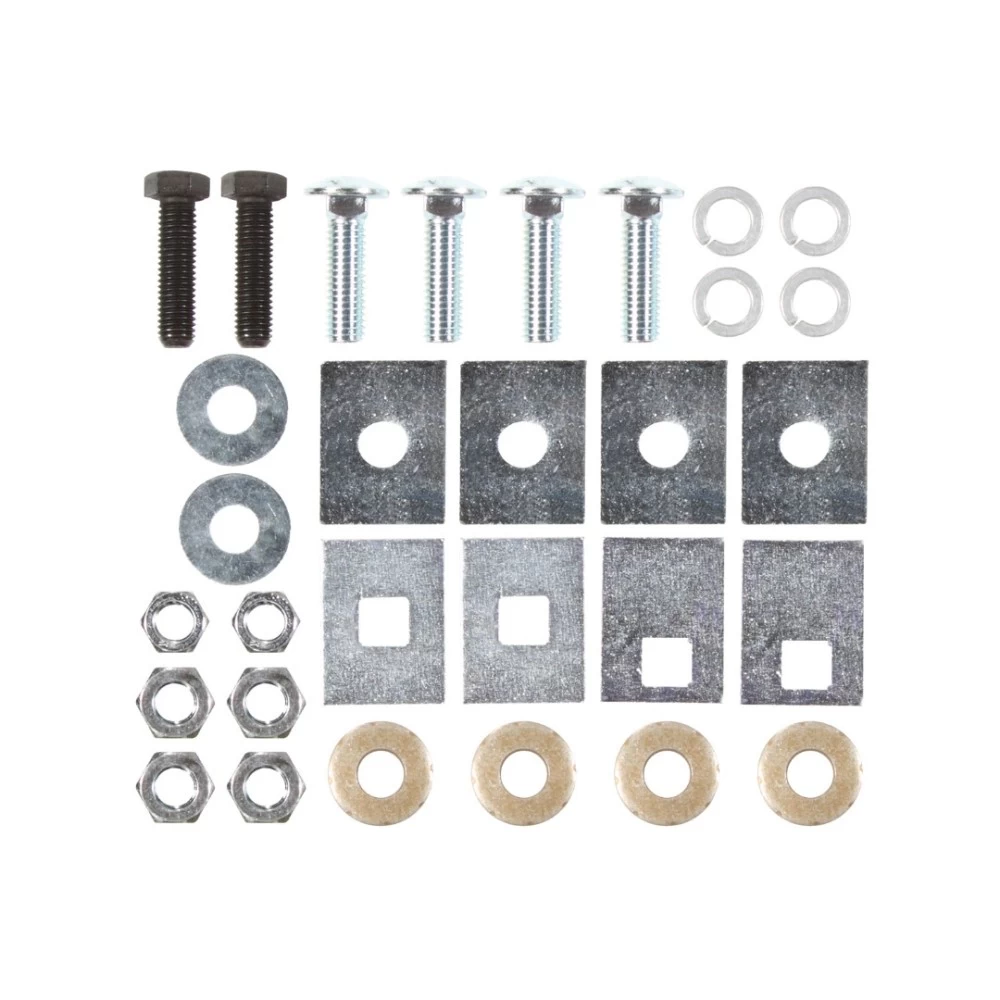

Hardware List:

• (2) M12 x 1.75 x 45mm CL10.9 Hex Bolts
• (2) Conical Toothed Washers
• (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
• (4) Lock Washers
• (4) Hex Nuts
• (4) 1/4" x 1-1/2" x 2" Blocks

Safety Notes:

• Check hitch frequently to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug any holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
• Always observe safety precautions when working beneath the vehicle, including wearing eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lb (2,270 kg)
  • Max Tongue Weight: 500 lb (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 8,000 lb (3,629 kg)
  • Max Tongue Weight: 800 lb (363 kg)

Additional Notes:

• This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
• Ensure all fasteners are properly torqued before towing.

Installation Instructions for Chevrolet/GMC Full-Size Pickups (All Models)

Part Numbers:

• 75099
• 87184
• 44105

Wiring Access Location:

• PU3

Tools Required:

• Wrenches: 7/8", 13mm, 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Lower Spare Tire

   • If present, lower the spare tire to provide access to the hitch attachment points.

2. Remove Existing Components

   • Remove and discard the M12 hex bolts from the ends of each frame rail, if present.
   • Remove and relocate the ground wire and ground wire bolt on the driver-side frame rail, if applicable.

3. Position Receiver

   • Lift the receiver into position, aligning the slots in the receiver with the weld nuts in the vehicle frame.

4. Install Fasteners

   • Attach the M12 hex bolts and conical washers to the weld nuts in the vehicle frame.

5. Install Additional Fasteners

   • Secure the hitch using the provided fasteners, including carriage bolts, lock washers, and nuts.
   • Use the 1/4" x 1-1/2" x 2" block at the forward-most attachment on the driver-side for 6' bed models.

6. Reinstall Ground Wire

   • Reinstall the ground wire and ground wire bolt into the side bracket.

7. Raise Spare Tire

   • Reinstall the spare tire, ensuring proper clearance between the hitch and spare tire.

8. Tighten Fasteners

   • Tighten all fasteners to the specified torque values:
     • M12 CL10.9: 75 lb-ft (102 N·m)
     • 1/2"-13 GR5: 75 lb-ft (102 N·m)

Torque Specifications:

• M12 CL10.9: 75 lb-ft (102 N·m)
• 1/2"-13 GR5: 75 lb-ft (102 N·m)

Hardware List:

• (2) M12 x 1.75 x 45mm CL10.9 Hex Bolts
• (2) Conical Toothed Washers
• (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
• (4) Lock Washers
• (4) Hex Nuts
• (4) 1/4" x 1-1/2" x 2" Blocks

Safety Notes:

• Regularly check the hitch to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug any holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
• Always observe safety precautions when working beneath the vehicle, including wearing eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lb (2,270 kg)
  • Max Tongue Weight: 500 lb (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 8,000 lb (3,629 kg)
  • Max Tongue Weight: 800 lb (363 kg)

General Notes:

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.

Warranty Information:

For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

End of Instructions
