Trailer Tow Hitch Hardware Fastener Kit For 96‑04 Chevy S10 GMC Sonoma Isuzu Hombre 2" Receiver
Model: HWKIT3(75085F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1996 - 1997 Chevrolet, S10, w/Sportside Bed & Non-Towing Bumper
1998 - 2004 Chevrolet, S10, All Styles
1996 - 1997 GMC, Sonoma, w/Sportside Bed & Non-Towing Bumper
1998 - 2004 GMC, Sonoma, All Styles
1998 - 2000 Isuzu, Hombre, w/Step Bumper
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75085 87464
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 1996 1997 1998 1999 2000 2001 2002 2003 2004
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75085F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1996 - 1997 Chevrolet, S10, w/Sportside Bed & Non-Towing Bumper
1998 - 2004 Chevrolet, S10, All Styles
1996 - 1997 GMC, Sonoma, w/Sportside Bed & Non-Towing Bumper
1998 - 2004 GMC, Sonoma, All Styles
1998 - 2000 Isuzu, Hombre, w/Step Bumper
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75085 87464
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 1996 1997 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 96-04 Chevy S10 GMC Sonoma Isuzu Hombre 2" Receiver Install Notes
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:

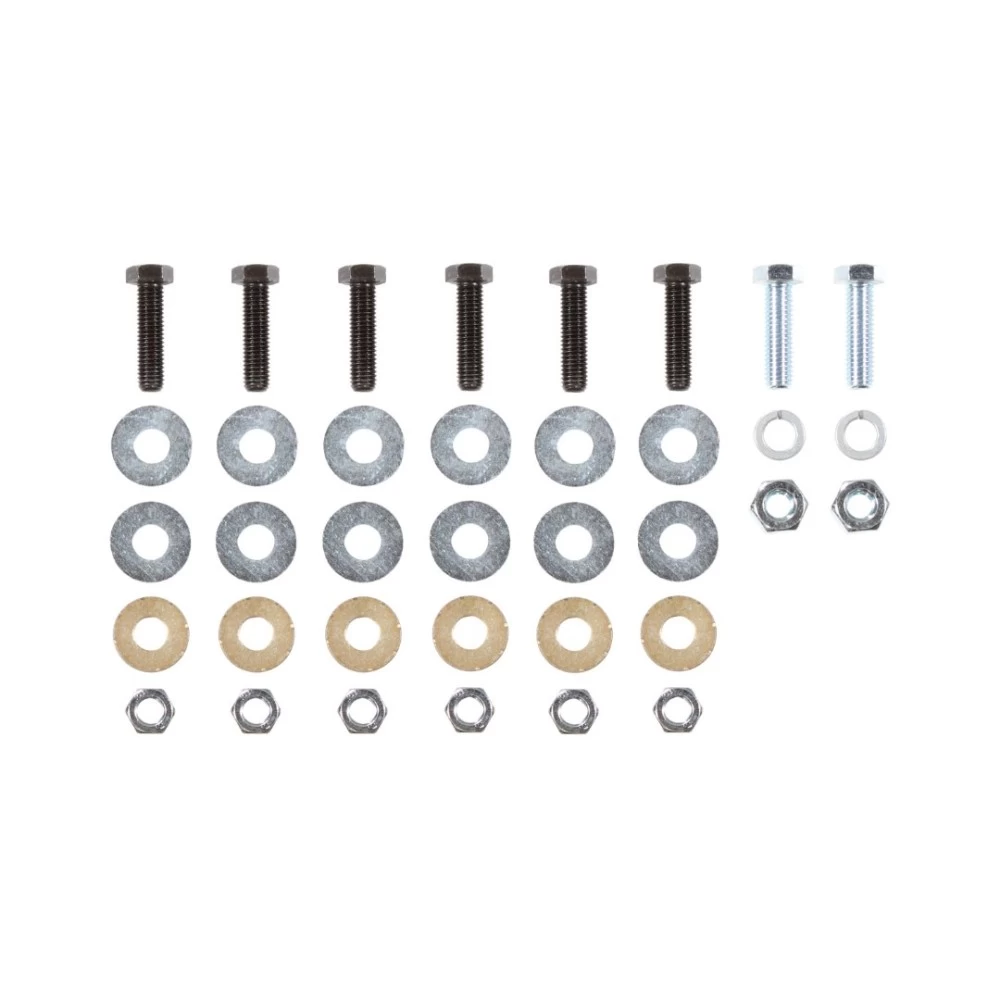

- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) Hex Nuts, M12
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) M12 Hex Nuts
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
