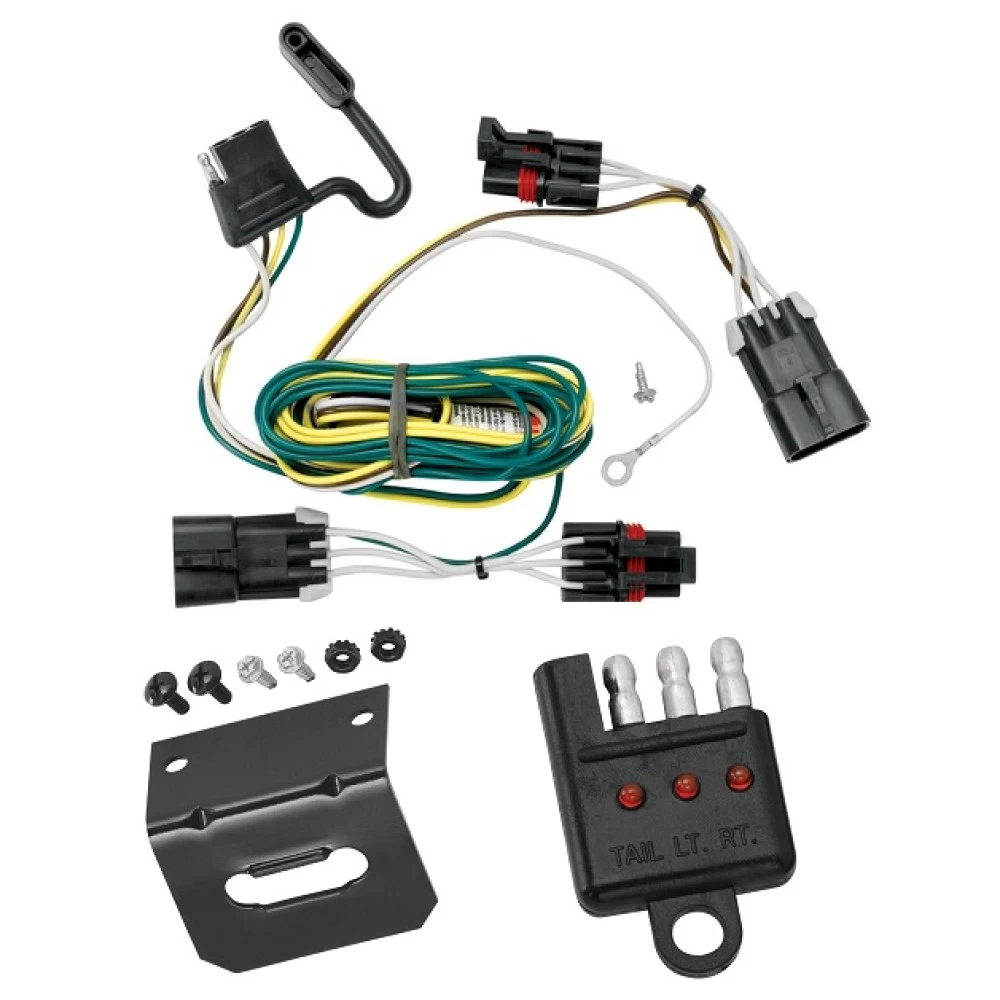

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118407

Tools Required:

• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Trim Panel Remover

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Locate the vehicle wiring inside the rear cargo area by removing the wiring access panels on both sides.
   • Carefully remove the foam insulation padding on each side to access the taillight connection points.
   • Note: Use the top set of connection points for the T-Connector.

2. Driver’s Side Connection:

   • Beginning on the driver’s side, disconnect the vehicle’s wiring connectors carefully to avoid breaking the locking tabs.
   • Connect the T-Connector containing the yellow wire between the separated connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are secure.

3. Passenger’s Side Connection:

   • Remove the cargo floor panel and the cargo tray by unscrewing the spare tire hold-down nut. Set the cargo tray aside.
   • Route the T-Connector containing the green wire behind and under the trim panel along the vehicle floor near the spare tire.
   • Continue routing the wire across the vehicle, behind the trim panel, and up to the wiring access area on the passenger’s side.
   • Repeat Step 2 for the passenger’s side using the T-Connector containing the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the T-Connector. Do not drill into the vehicle floor or bed.
   • Clean the area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury.

5. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

6. Reassemble the Vehicle:

   • Replace the foam insulation padding, wiring access panels, cargo tray, spare tire hold-down nut, and cargo floor panel removed during installation.
   • Store the 4-flat connector in the rear cargo area when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: 7.5 amps per side
   • Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.

Manufacturer Notes:

• Follow all warnings and installation instructions provided.
• Store the 4-flat connector in the rear cargo area when not in use.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118407

Tools Required:

• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Trim Panel Remover

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Locate the vehicle wiring inside the rear cargo area by removing the wiring access panels on both sides.
   • Carefully remove the foam insulation padding on each side to access the taillight connection points.
   • Note: Use the top set of connection points for the T-Connector.

2. Driver’s Side Connection:

   • Beginning on the driver’s side, disconnect the vehicle’s wiring connectors carefully to avoid breaking the locking tabs.
   • Connect the T-Connector containing the yellow wire between the separated connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are secure.

3. Passenger’s Side Connection:

   • Remove the cargo floor panel and the cargo tray by unscrewing the spare tire hold-down nut. Set the cargo tray aside.
   • Route the T-Connector containing the green wire behind and under the trim panel along the vehicle floor near the spare tire.
   • Continue routing the wire across the vehicle, behind the trim panel, and up to the wiring access area on the passenger’s side.
   • Repeat Step 2 for the passenger’s side using the T-Connector containing the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the T-Connector. Do not drill into the vehicle floor or bed.
   • Clean the area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury.

5. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

6. Reassemble the Vehicle:

   • Replace the foam insulation padding, wiring access panels, cargo tray, spare tire hold-down nut, and cargo floor panel removed during installation.
   • Store the 4-flat connector in the rear cargo area when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

Specifications:

• Max. Stop/Turn Light: 7.5 amps per side
• Max. Tail Lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
