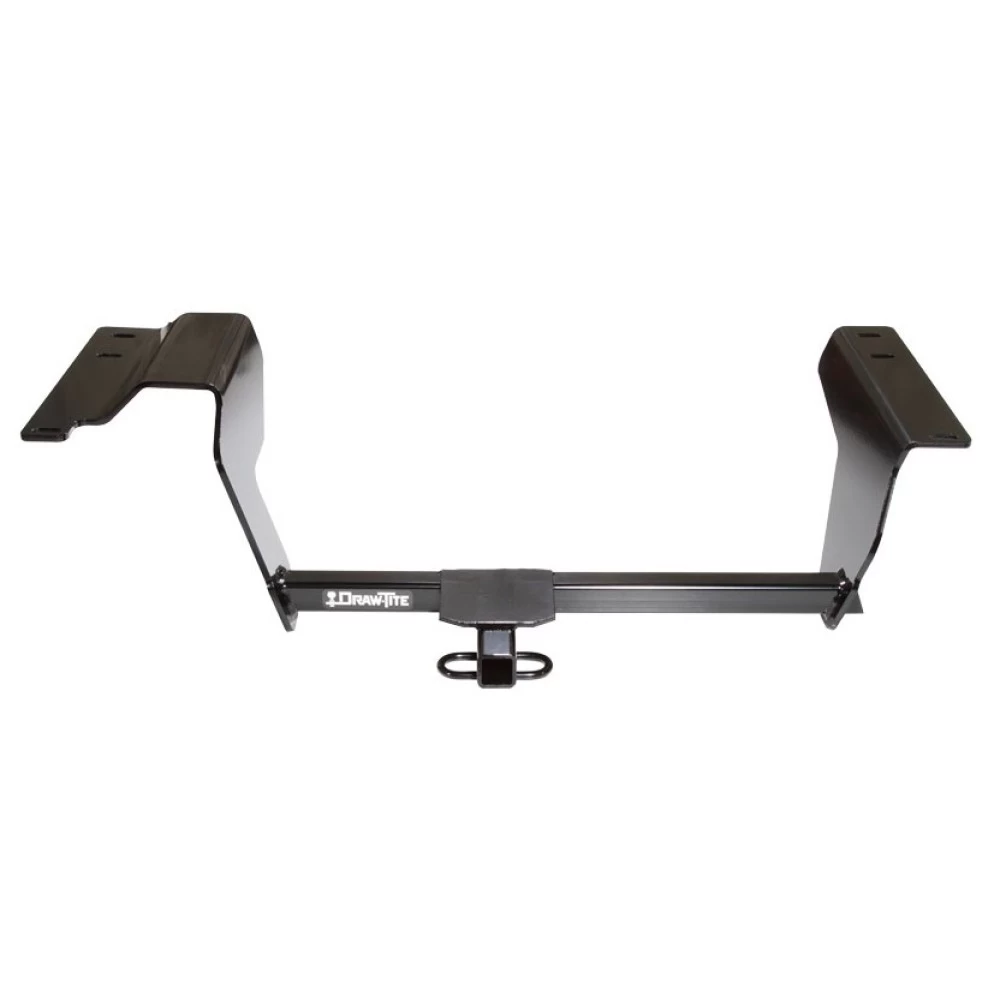

Installation Instructions for Acura TL

Part Numbers:

• 77131
• 24755
• 60814

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 10mm
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Remove the spare tire from the trunk before beginning installation.

2. Remove Plastic Cover:

   • Remove the plastic cover under the trunk by detaching four plastic rivets that secure it to the fascia and two hex flange nuts that secure it to the trunk bottom.
   • Reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.

3. Attach Hitch to Tow Hook:

   • Attach the hitch to the tow hook as shown in Figure 1. Orient spacers with respect to the tow hook as shown in Figures 2 and 3.

4. Drill Holes:

   • Using the hitch as a template, drill two 1/2” holes in the trunk pan.

5. Install Fasteners:

   • Install the hitch to the trunk pan using the provided carriage bolts, spacers, lock washers, and nuts as illustrated in Figure 1.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Place the spare tire back into the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

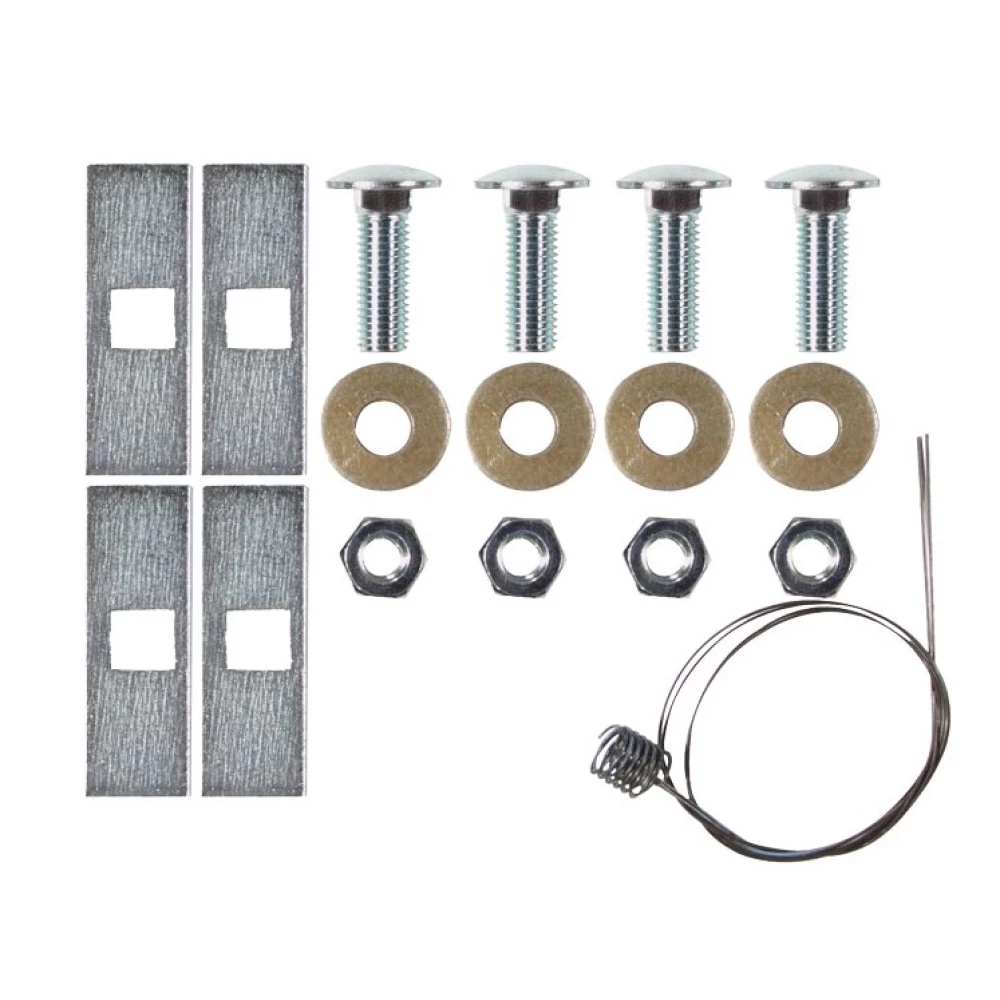

Hardware List:

• (1) Hex Bolt: 1/2”-13 x 2-1/2”
• (3) Hex Nuts: 1/2”
• (3) Spacers: 1/4” x 1-1/2” x 2”
• (2) Carriage Bolts: 1/2”-13 x 1-3/4”
• (3) Lock Washers: 1/2”
• (2) Spacers: 1/4” x 1” x 2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Acura TL

Part Numbers:

• 77131
• 24755
• 60814

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 10mm
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Remove the spare tire from the trunk before beginning installation.

2. Remove Plastic Cover:

   • Remove the plastic cover under the trunk by detaching four plastic rivets that secure it to the fascia and two hex flange nuts that secure it to the trunk bottom.
   • Reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.

3. Attach Hitch to Tow Hook:

   • Attach the hitch to the tow hook as shown in Figure 1. Orient spacers with respect to the tow hook as shown in Figures 2 and 3.

4. Drill Holes:

   • Using the hitch as a template, drill two 1/2” holes in the trunk pan.

5. Install Fasteners:

   • Install the hitch to the trunk pan using the provided carriage bolts, spacers, lock washers, and nuts as illustrated in Figure 1.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Place the spare tire back into the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (1) Hex Bolt: 1/2”-13 x 2-1/2”
• (3) Hex Nuts: 1/2”
• (3) Spacers: 1/4” x 1-1/2” x 2”
• (2) Carriage Bolts: 1/2”-13 x 1-3/4”
• (3) Lock Washers: 1/2”
• (2) Spacers: 1/4” x 1” x 2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24755 Rev. A 6/25/2014
