Trailer Tow Hitch Hardware Fastener Kit For 05‑10 Chevy Cobalt 07‑09 Pontiac G5 05‑06 Pursuit
Model: HWKIT1(24745F)2005 - 2010 Chevrolet, Cobalt, 2 Dr., Except SS
2005 - 2010 Chevrolet, Cobalt, 4 Dr., Except SS
2005 - 2006 Pontiac, Pursuit, 2 Dr. (Canada Only)
2005 - 2006 Pontiac, Pursuit, 4 Dr. (Canada Only)
2007 - 2009 Pontiac, G5, Except GT
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24745 77122 60808
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$44.64 $39 59
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24745F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
2005 - 2010 Chevrolet, Cobalt, 2 Dr., Except SS
2005 - 2010 Chevrolet, Cobalt, 4 Dr., Except SS
2005 - 2006 Pontiac, Pursuit, 2 Dr. (Canada Only)
2005 - 2006 Pontiac, Pursuit, 4 Dr. (Canada Only)
2007 - 2009 Pontiac, G5, Except GT
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24745 77122 60808
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 05-10 Chevy Cobalt 07-09 Pontiac G5 05-06 Pursuit Install Notes
Installation Instructions for Chevrolet Cobalt, Pontiac G5, and Pontiac Pursuit (Canada Only)
Part Numbers:
- 77122
- 24745
- 60808
Wiring Access Location:
- PC1, PC2
Tools Required:
- Drill
- Pull Wire (Provided)
- Wrenches: 3/4"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the rubber isolator to create space for installation.
-
Drill Frame Rail and Reinforcement Bracket:
- Locate the 3/8” hole in the frame reinforcement bracket welded to the frame rail.
- Center punch and drill a 1/2” hole in the frame rail, enlarging the 3/8” hole in the frame reinforcement bracket to 1/2”. Repeat on both sides.
-
Fishwire Carriage Bolt and Spacer:
- Use the fishwire to guide the spacer and carriage bolt through the access slot in the frame rail and down through the drilled hole. Create a kink in the pull wire for tight areas (as shown in Figure 3). Repeat for both sides.
-
Position Hitch:
- Raise the hitch into position, taking care not to push the carriage bolts back into the frame.
- Secure the hitch using conical washers and nuts.
-
Drill Holes in Impact Bar:
- Ensure the hitch is centered on the vehicle.
- Using the hitch as a template, drill two (2) 1/2” holes into the vehicle’s impact bar.
-
Install Carriage Bolts in Impact Bar:
- On the driver’s side, install the carriage bolt and spacer from the open face of the impact bar and down through the hole drilled in Step 5. Secure with a lock washer and nut.
- On the passenger’s side, fishwire the carriage bolt and spacer through the end of the impact bar and down through the hole drilled in Step 5. Secure with a lock washer and nut.
-
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) using a torque wrench.
-
Reattach Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
Hardware List:

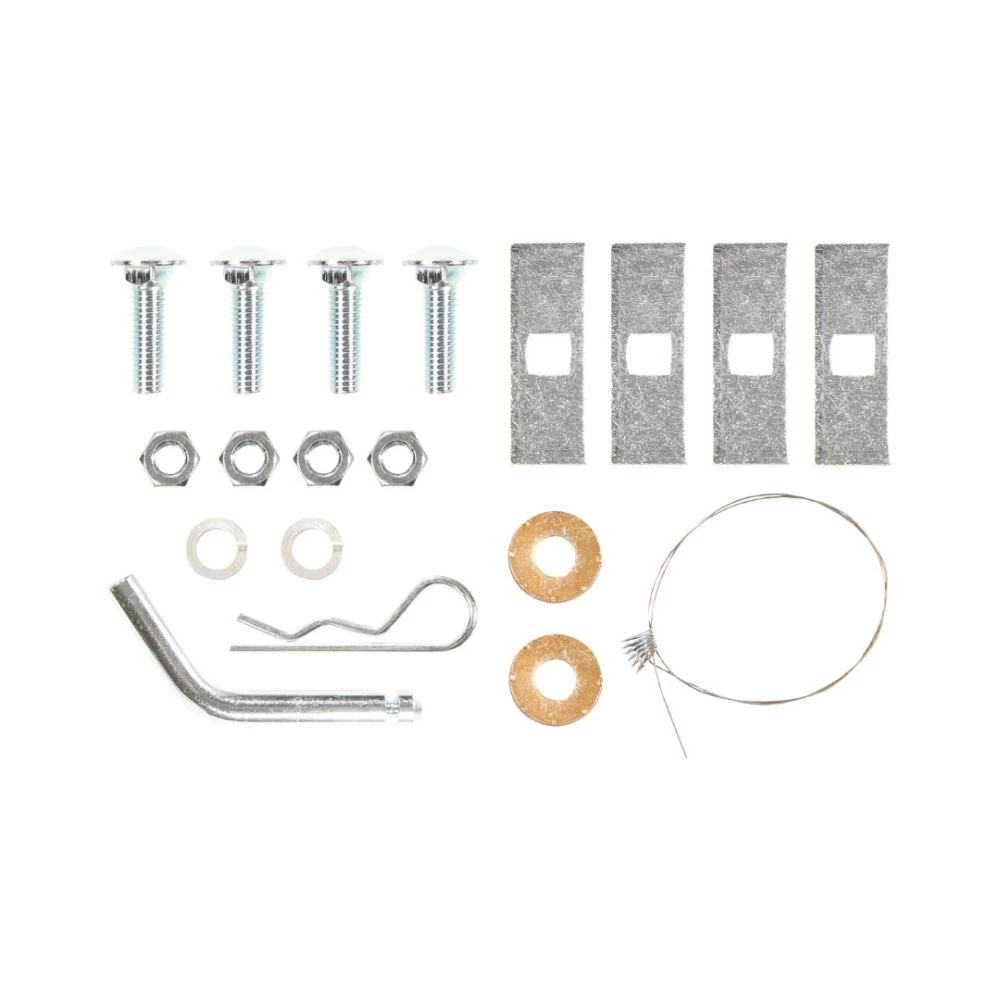

- (4) Carriage Bolts: 1/2”-13 x 1.75”
- (4) Spacers: 1/4” x 1” x 3”
- (2) Conical Washers: 1/2”
- (4) Hex Nuts: 1/2”-13
- (2) Lock Washers: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Does not fit Chevrolet Cobalt SS Coupe, Pontiac Pursuit GT, or Pontiac G5 GT models.
Installation Instructions for Chevrolet Cobalt, Pontiac G5, and Pontiac Pursuit (Canada Only)
Part Numbers:
- 77122
- 24745
- 60808
Wiring Access Location:
- PC1, PC2
Tools Required:
- Drill
- Pull Wire (Provided)
- Wrenches: 3/4"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust from the rubber isolator to create space for installation.
-
Drill Frame Rail and Reinforcement Bracket:
- Locate the 3/8” hole in the frame reinforcement bracket welded to the frame rail.
- Center punch and drill a 1/2” hole in the frame rail, enlarging the 3/8” hole in the frame reinforcement bracket to 1/2”. Repeat on both sides.
-
Fishwire Carriage Bolt and Spacer:
- Use the fishwire to guide the spacer and carriage bolt through the access slot in the frame rail and down through the drilled hole. Create a kink in the pull wire for tight areas (as shown in Figure 3). Repeat for both sides.
-
Position Hitch:
- Raise the hitch into position, taking care not to push the carriage bolts back into the frame.
- Secure the hitch using conical washers and nuts.
-
Drill Holes in Impact Bar:
- Ensure the hitch is centered on the vehicle.
- Using the hitch as a template, drill two (2) 1/2” holes into the vehicle’s impact bar.
-
Install Carriage Bolts in Impact Bar:
- On the driver’s side, install the carriage bolt and spacer from the open face of the impact bar and down through the hole drilled in Step 5. Secure with a lock washer and nut.
- On the passenger’s side, fishwire the carriage bolt and spacer through the end of the impact bar and down through the hole drilled in Step 5. Secure with a lock washer and nut.
-
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) using a torque wrench.
-
Reattach Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
Hardware List:
- (4) Carriage Bolts: 1/2”-13 x 1.75”
- (4) Spacers: 1/4” x 1” x 3”
- (2) Conical Washers: 1/2”
- (4) Hex Nuts: 1/2”-13
- (2) Lock Washers: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Does not fit Chevrolet Cobalt SS Coupe, Pontiac Pursuit GT, or Pontiac G5 GT models.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24745 Rev. A 6/25/2014
