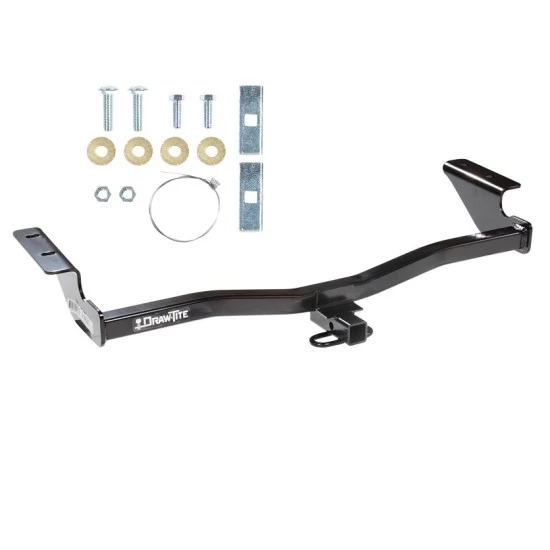

Trailer Tow Hitch For 05‑10 Scion tC 1‑1/4" Towing Receiver Class 1
Model: 248272005 - 2010 Scion, tC, All Styles
Trailer Hitch Specs:
| Part Number | 24827 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
$135 41 $189.21 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$189.21 $135 41
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $33.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24827
- UPC: 742512248272
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2005 - 2010 Scion, tC, All Styles
Trailer Hitch Specs:
| Part Number | 24827 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
Get Expert Help
Trailer Tow Hitch For 05-10 Scion tC 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Scion tC
Part Numbers:
- 24827
- 60213
- 77199
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 11/16”
- Drill Bits: 3/8”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Tie-Down Brackets (if present):
- Detach the tie-down brackets from the vehicle frame rail.
- Return the brackets and bolts to the vehicle owner.
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle.
- Use a screwdriver to remove the center of each rivet.
-
Enlarge Access Holes:
- Enlarge the access holes in the passenger-side frame rail only to accommodate the spacer. Refer to Figure 2 for guidance.
-
Fishwire Carriage Bolts and Spacers:
- Insert the pull wire through the enlarged hole, attach a spacer and carriage bolt, and feed them one at a time into the frame rail. Leave the pull wire attached.
-
Paint Exposed Metal:
- Apply paint to any exposed metal surfaces to prevent corrosion.
-
Position Hitch:
- Raise the hitch into position.
- Feed the pull wires through the adjacent holes in the hitch, remove the pull wires, and install conical washers and nuts finger-tight only.
- Ensure fasteners are not pushed back into the frame rail.
-
Center and Secure Hitch:
- Verify the hitch is centered on the vehicle.
- Torque all fasteners to the specified values:
- M10 CL8.8 bolts: 59 Lb.-Ft. (80 N*M)
- 7/16”-14 GR5 bolts: 50 Lb.-Ft. (68 N*M)
-
Reinstall Plastic Rivets:
- Replace the plastic rivets removed from the fascia tabs in Step 2.
Hardware List:
- (2) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (2) Hex Nuts: 7/16”-14
- (2) Spacers
- (2) Hex Bolts: M10 x 1.25 x 30mm CL8.8
- (4) Conical Washers: 7/16”
- (2) Pull Wires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Do not exceed the manufacturer’s recommended towing capacity.
