Trailer Tow Hitch For 10‑15 Chevy Camaro 1‑1/4" Towing Receiver Class 1
Model: 248502010 - 2015 Chevrolet, Camaro, Except Convertible & w/Dealer Installed Ground Effects
Trailer Hitch Specs:
| Part Number | 24850 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
$215 92 $327.59 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.59 $215 92
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24850
- UPC: 742512248500
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2010 - 2015 Chevrolet, Camaro, Except Convertible & w/Dealer Installed Ground Effects
Trailer Hitch Specs:
| Part Number | 24850 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
Get Expert Help
Trailer Tow Hitch For 10-15 Chevy Camaro 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Chevrolet Camaro (Excluding Convertible Models)
Note: Not compatible with vehicles equipped with an optional dealer-installed ground effects package.
Part Numbers:
- 24850
- 60266
- 77223
- 24893 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 13mm, 9/16”
- Drill Bits: None
- Round File (as needed)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Position the Hitch:
- Turn the hitch sideways under the vehicle, carefully raising one end between the muffler and plastic bumper fascia.
- Raise the other end into place, ensuring not to scratch the plastic bumper fascia.
-
Hang Hitch Brackets:
- Position the hitch clearance holes over existing 8mm stud weldnuts located near the rear of the mufflers on both sides of the vehicle.
- Ensure the 3/4” diameter clearance holes sit flat against the vehicle’s sheet metal and do not rest on the weldnuts.
-
Install Rear Fasteners:
- Slide a 7/16” flat washer over an 8mm stud and against the hitch bracket. Secure with an 8mm flanged locknut. Repeat for the other side.
- Tighten the locknuts just enough to hold the hitch in place.
-
Align Forward Hitch Attachment:
- Raise the forward hitch attachment and align it with the existing slot in the suspension crossbeam bracket.
- If necessary, remove two rubber exhaust isolators to access this area.
-
Fill Gaps and Install Forward Fasteners:
- Stack heavy flat washers to fill the gap between the hitch bracket and vehicle bracket.
- Install the 3/8” bolt and ensure it is the correct length to avoid bottoming out against the aluminum transaxle. Use flat washers under the bolt head if needed.
-
Tighten All Fasteners:
- Torque all 3/8”-16 GR5 bolts to 30 Lb.-Ft. (41 N*M).
- Torque all 8mm locknuts to 27 Lb.-Ft. (37 N*M).
-
Reinstall Exhaust:
- Reattach the rubber isolators to the exhaust hangers if removed.

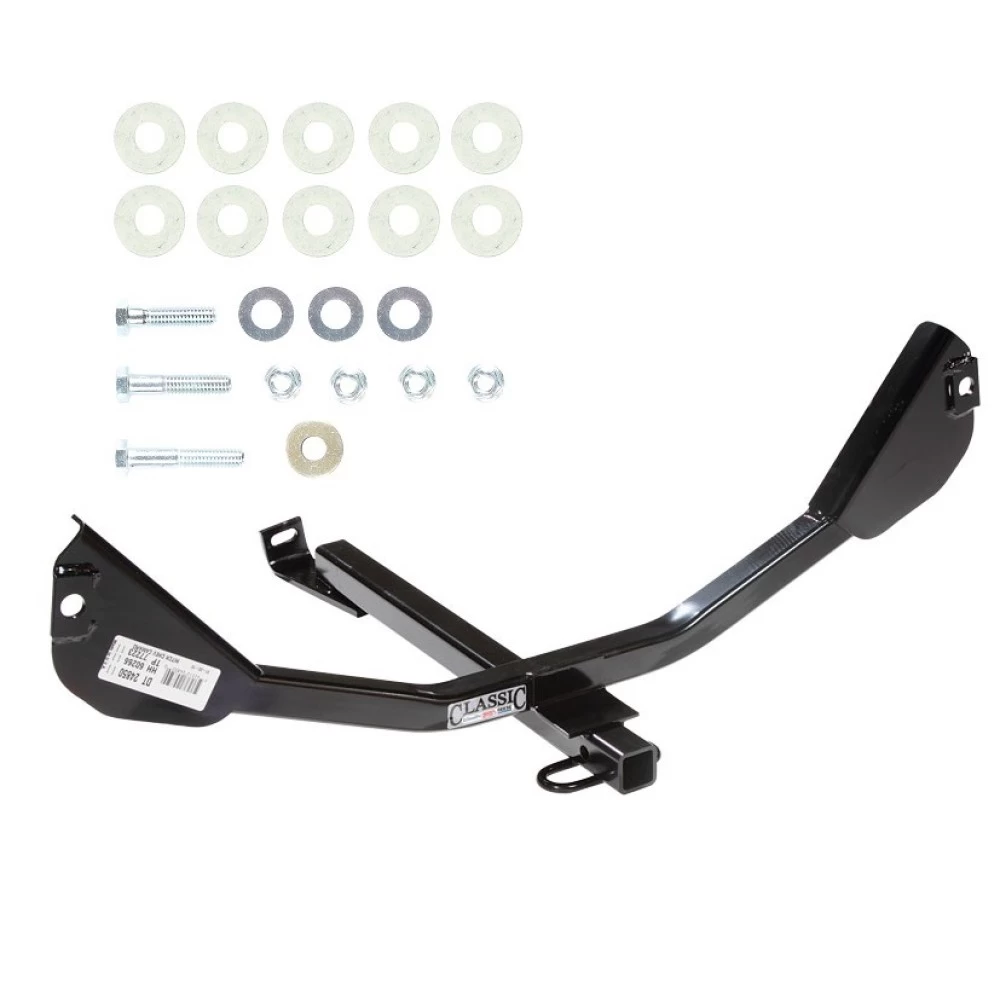

Hardware List:
- (3) Flanged Locknuts: 8mm-1.25 CL10
- (1) Hex Bolt: 3/8”-16 x 2” GR5 (as needed)
- (3) Flat Washers: 7/16” (15/16” O.D.)
- (1) Conical Toothed Washer: 3/8”
- (1) Hex Bolt: 3/8”-16 x 1-1/2” GR5 (as needed)
- (1) Hex Bolt: 3/8”-16 x 1-3/4” GR5 (as needed)
- (10) Heavy Flat Washers: 7/16” (1-1/4” O.D., use as needed)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Ensure all fasteners are checked regularly for tightness.
- For some vehicles, it may be necessary to enlarge hitch clearance holes with a round file for proper fit.
Installation Instructions
Note: Not compatible with vehicles equipped with an optional dealer-installed ground effects package.
Part Numbers:
- 24850
- 60266
- 77223
- 24893 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 13mm, 9/16”
- Drill Bits: None
- Round File (as needed)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Position the Hitch:
- Turn the hitch sideways under the vehicle, carefully raising one end between the muffler and plastic bumper fascia.
- Raise the other end into place, ensuring not to scratch the plastic bumper fascia.
-
Hang Hitch Brackets:
- Position the hitch clearance holes over existing 8mm stud weldnuts located near the rear of the mufflers on both sides of the vehicle.
- Ensure the 3/4” diameter clearance holes sit flat against the vehicle’s sheet metal and do not rest on the weldnuts.
-
Install Rear Fasteners:
- Slide a 7/16” flat washer over an 8mm stud and against the hitch bracket. Secure with an 8mm flanged locknut. Repeat for the other side.
- Tighten the locknuts just enough to hold the hitch in place.
-
Align Forward Hitch Attachment:
- Raise the forward hitch attachment and align it with the existing slot in the suspension crossbeam bracket.
- If necessary, remove two rubber exhaust isolators to access this area.
-
Fill Gaps and Install Forward Fasteners:
- Stack heavy flat washers to fill the gap between the hitch bracket and vehicle bracket.
- Install the 3/8” bolt and ensure it is the correct length to avoid bottoming out against the aluminum transaxle. Use flat washers under the bolt head if needed.
-
Tighten All Fasteners:
- Torque all 3/8”-16 GR5 bolts to 30 Lb.-Ft. (41 N*M).
- Torque all 8mm locknuts to 27 Lb.-Ft. (37 N*M).
-
Reinstall Exhaust:
- Reattach the rubber isolators to the exhaust hangers if removed.
Hardware List:
- (3) Flanged Locknuts: 8mm-1.25 CL10
- (1) Hex Bolt: 3/8”-16 x 2” GR5 (as needed)
- (3) Flat Washers: 7/16” (15/16” O.D.)
- (1) Conical Toothed Washer: 3/8”
- (1) Hex Bolt: 3/8”-16 x 1-1/2” GR5 (as needed)
- (1) Hex Bolt: 3/8”-16 x 1-3/4” GR5 (as needed)
- (10) Heavy Flat Washers: 7/16” (1-1/4” O.D., use as needed)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Ensure all fasteners are checked regularly for tightness.
- For some vehicles, it may be necessary to enlarge hitch clearance holes with a round file for proper fit.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
