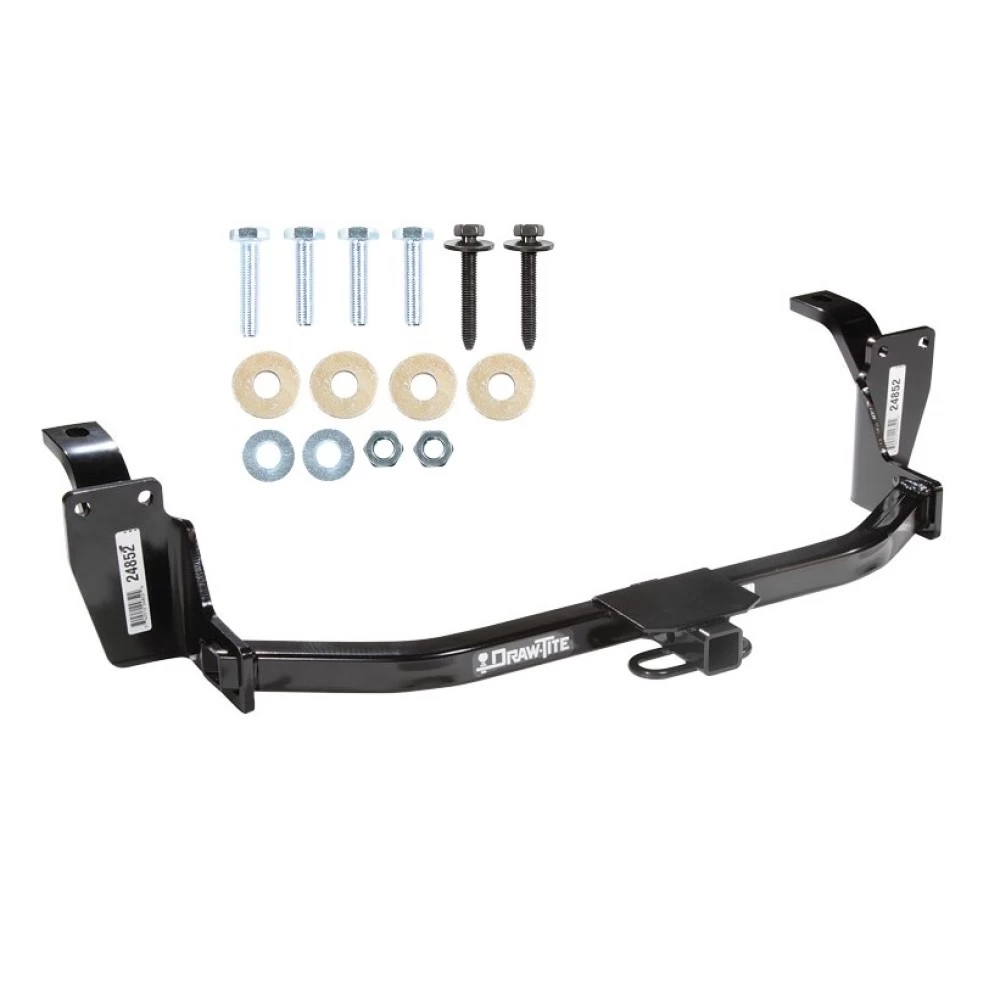

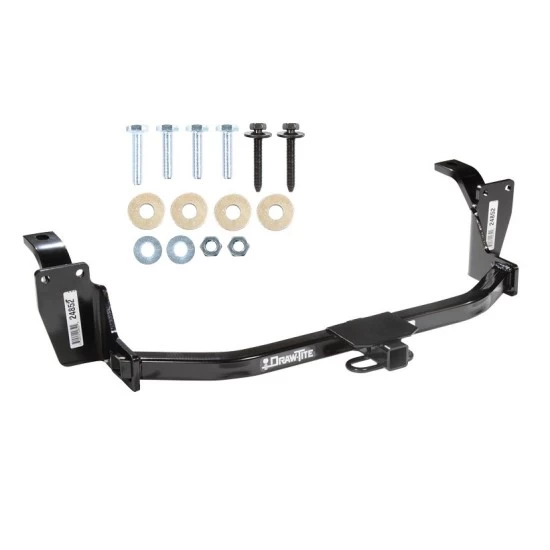

Trailer Tow Hitch For 10‑15 Honda Accord Crosstour 1‑1/4" Towing Receiver Class 1
Model: 248522010 - 2011 Honda, Accord Crosstour, All Styles
2012 - 2015 Honda, Crosstour, All Styles
Trailer Hitch Specs:
| Part Number | 24852 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
$220 01 $334.61 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$334.61 $220 01
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24852
- UPC: 742512248524
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2010 - 2011 Honda, Accord Crosstour, All Styles
2012 - 2015 Honda, Crosstour, All Styles
Trailer Hitch Specs:
| Part Number | 24852 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
Get Expert Help
Trailer Tow Hitch For 10-15 Honda Accord Crosstour 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Honda Accord Crosstour (All Models, Including EX-2WD, EXL-2WD, and EXL-AWD)
Part Numbers:
- 24852
- 60268
- 77224
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 13mm, 17mm
- Spray Lubricant
- Metal Shears
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the rubber isolator hangers from the metal pegs behind and in front of the mufflers on both sides of the vehicle.
- Also, lower the rubber isolator hangers supporting the exhaust near the rear axle.
- Spray lubricant on the rubber isolators for easier removal.
-
Remove Existing Bolts:
- Remove the 8mm bolts from the frame end panels on both sides of the vehicle and return them to the owner, as they will be replaced.
-
Remove Plastic Push Rivets:
- Detach the plastic push rivets securing the plastic bumper cover on both sides of the bumper bottom. Save them for reinstallation.
-
Remove and Trim Heat Shields:
- Detach both muffler heat shields (secured with three bolts each) from the frame bottom.
- Trim approximately a 4-1/4” x 4-1/4” corner from both heat shields. See the diagram for specific details.
- Reinstall the trimmed heat shields before installing the hitch.
-
Position and Secure Hitch:
- Raise the hitch into place.
- Use the supplied M8-1.25 bolts and washers to attach the hitch to the weldnuts where the 8mm bolts were removed in Step 2.
-
Install Additional Bolts:
- Insert the supplied M10-1.25 bolts with flat washers through the hitch and existing holes in the frame end panels. Secure with conical toothed washers and M10 hex nuts.
- Install the supplied M10-1.25 bolts and conical toothed washers through the hitch side arms into the existing frame weldnuts.
-
Tighten Fasteners:
- Torque all 8mm-1.25 Gr. 9.8 bolts to 25 Lb.-Ft. (34 N*M).
- Torque all 10mm-1.25 Gr. 8.8 bolts to 42 Lb.-Ft. (57 N*M).
-
Reattach Exhaust System:
- Reinstall all rubber exhaust hangers, including those near the axle.
Hardware List:
- (2) M8-1.25 x 55mm Gr. 9.8 Bolts
- (4) M10-1.25 x 40mm Gr. 8.8 Hex Bolts
- (4) Conical Toothed Washers (7/16”)
- (2) Hex Nuts (M10-1.25)
- (2) Flat Washers (3/8”)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, exhaust and other vehicle components may not be shown in the diagrams.
Installation Instructions
Part Numbers:
- 24852
- 60268
- 77224
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 13mm, 17mm
- Spray Lubricant
- Metal Shears
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the rubber isolator hangers from the metal pegs behind and in front of the mufflers on both sides of the vehicle.
- Also, lower the rubber isolator hangers supporting the exhaust near the rear axle.
- Spray lubricant on the rubber isolators for easier removal.
-
Remove Existing Bolts:
- Remove the 8mm bolts from the frame end panels on both sides of the vehicle and return them to the owner, as they will be replaced.
-
Remove Plastic Push Rivets:
- Detach the plastic push rivets securing the plastic bumper cover on both sides of the bumper bottom. Save them for reinstallation.
-
Remove and Trim Heat Shields:
- Detach both muffler heat shields (secured with three bolts each) from the frame bottom.
- Trim approximately a 4-1/4” x 4-1/4” corner from both heat shields. See the diagram for specific details.
- Reinstall the trimmed heat shields before installing the hitch.
-
Position and Secure Hitch:
- Raise the hitch into place.
- Use the supplied M8-1.25 bolts and washers to attach the hitch to the weldnuts where the 8mm bolts were removed in Step 2.
-
Install Additional Bolts:
- Insert the supplied M10-1.25 bolts with flat washers through the hitch and existing holes in the frame end panels. Secure with conical toothed washers and M10 hex nuts.
- Install the supplied M10-1.25 bolts and conical toothed washers through the hitch side arms into the existing frame weldnuts.
-
Tighten Fasteners:
- Torque all 8mm-1.25 Gr. 9.8 bolts to 25 Lb.-Ft. (34 N*M).
- Torque all 10mm-1.25 Gr. 8.8 bolts to 42 Lb.-Ft. (57 N*M).
-
Reattach Exhaust System:
- Reinstall all rubber exhaust hangers, including those near the axle.
Hardware List:
- (2) M8-1.25 x 55mm Gr. 9.8 Bolts
- (4) M10-1.25 x 40mm Gr. 8.8 Hex Bolts
- (4) Conical Toothed Washers (7/16”)
- (2) Hex Nuts (M10-1.25)
- (2) Flat Washers (3/8”)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, exhaust and other vehicle components may not be shown in the diagrams.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
