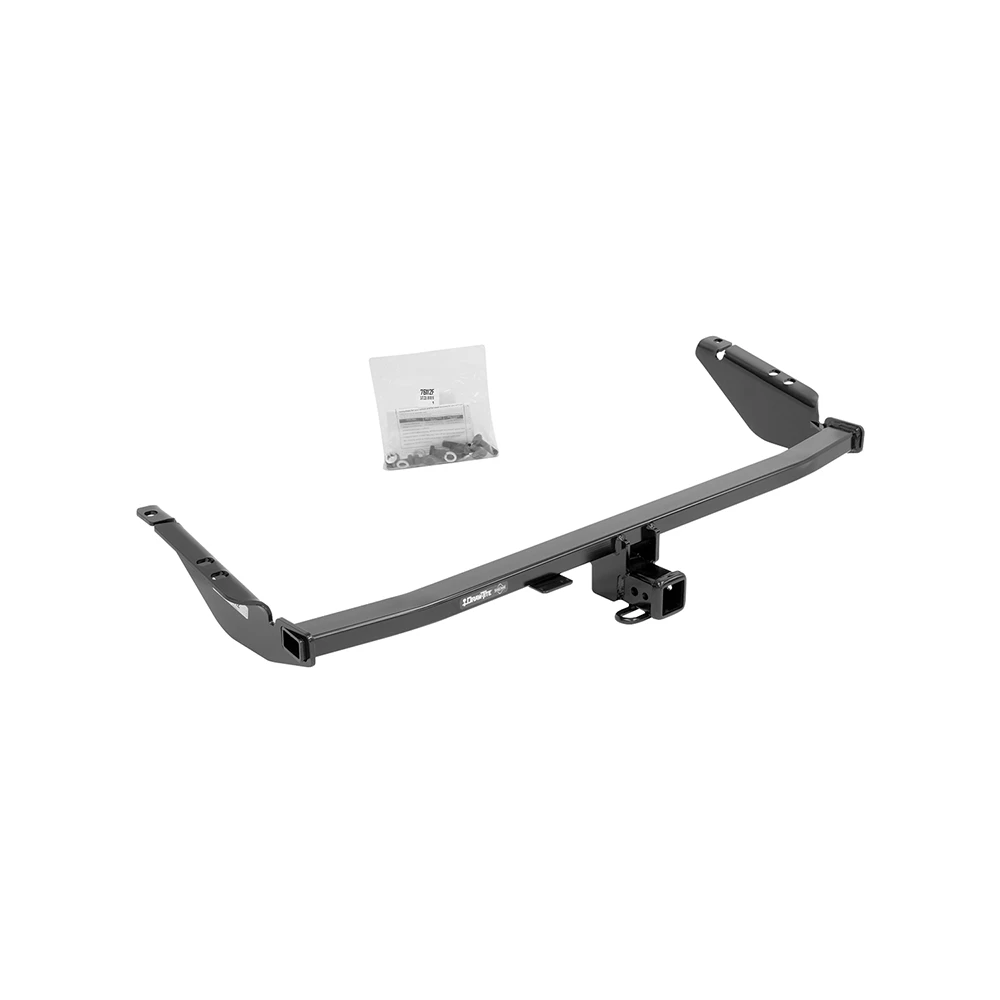

Trailer Tow Hitch For 11‑20 Toyota Sienna All Styles 2" Towing Receiver
Model: 761122011 - 2020 Toyota, Sienna, All Styles, Including SE
Trailer Hitch Specs:
| Part Number | 76112 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
$205 38 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $205 38
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76112
- UPC: 016118039542
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
2011 - 2020 Toyota, Sienna, All Styles, Including SE
Trailer Hitch Specs:
| Part Number | 76112 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 525/525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 11-20 Toyota Sienna All Styles 2" Towing Receiver Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76112
- 84112
- CQT76112
Applications:
- Years: 2011-Current
- Make and Models: Toyota Sienna
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- Flat Head Screwdriver
- Utility Knife
- Marker or Tape
- Lubricant or Soapy Water
- Exhaust Removal Pliers or Pry Bar
- 6" Socket Extension
- Small Phillips Screwdriver
Step-by-Step Instructions:
1. Mark Centerline on Appearance Panel:
- Use a marker or tape to mark the centerline of the appearance panel.
2. Remove Appearance Panel:
- Remove (5) Phillips screws, (9) plastic rivets, and (4) plastic screws with a flat head screwdriver.
- Tip: Pull on the panel to ease removal.
3. Lower Exhaust:
- Detach the exhaust from the rubber isolators to lower it.
- Spray lubricant or soapy water on the metal hanger rods and isolators to facilitate removal.
4. Remove Plugs and Tape:
- Remove (1) rubber plug from each side of the frame and any tape covering the weld nuts (3 per side).
- Run bolts from the fastener kit into the weld nuts to confirm no interference.
5. Open Rear Hatch:
- Remove (2) plastic rivets (1 per side) and (2) small bolts (1 per side) from the rear hatch area.
6. Remove Wheel Well Screws:
- Remove (1) Phillips screw per side from the lower attaching points between the rear fascia and rear side panel.
7. Remove Lower Rear Fascia:
- Gently pull up from the rear wheel well panels to unclip tabs inside and work toward the rear.
- Disconnect any wiring harnesses from the fascia, if present, and set the fascia aside.
8. Install the Hitch:
- Raise the hitch into position and align it with the existing weld nuts on the frame.
- Secure using (6) hex bolts, (6) lock washers, and (6) flat washers.
- Push the hitch toward the driver’s side before tightening fasteners.
9. Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 75 lb-ft (102 N·m).
10. Reattach Exhaust:
- Reinstall the exhaust back onto the rubber isolators.
11. Reinstall Fascia:
- Reinstall the rear fascia starting from the center and working outward.
- Reattach all fasteners and any wiring harnesses in reverse order of removal.
12. Trim or Reinstall Appearance Panel:
- If necessary, trim the appearance panel as shown in the instructions.
- Obtain the owner’s permission before trimming.
- Reinstall the panel if it has been trimmed.
Hardware List:
- 6 × Hex Bolts (M12 × 1.25 × 40 mm, CL10.9)
- 6 × Lock Washers (1/2")
- 6 × Flat Washers (1/2")
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 525 lbs (239 kg)
- Installation Time: Approximately 60 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
