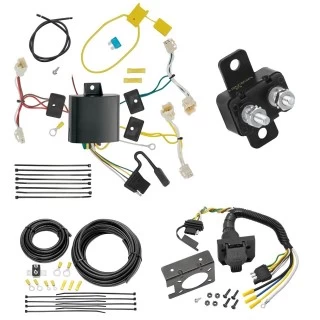

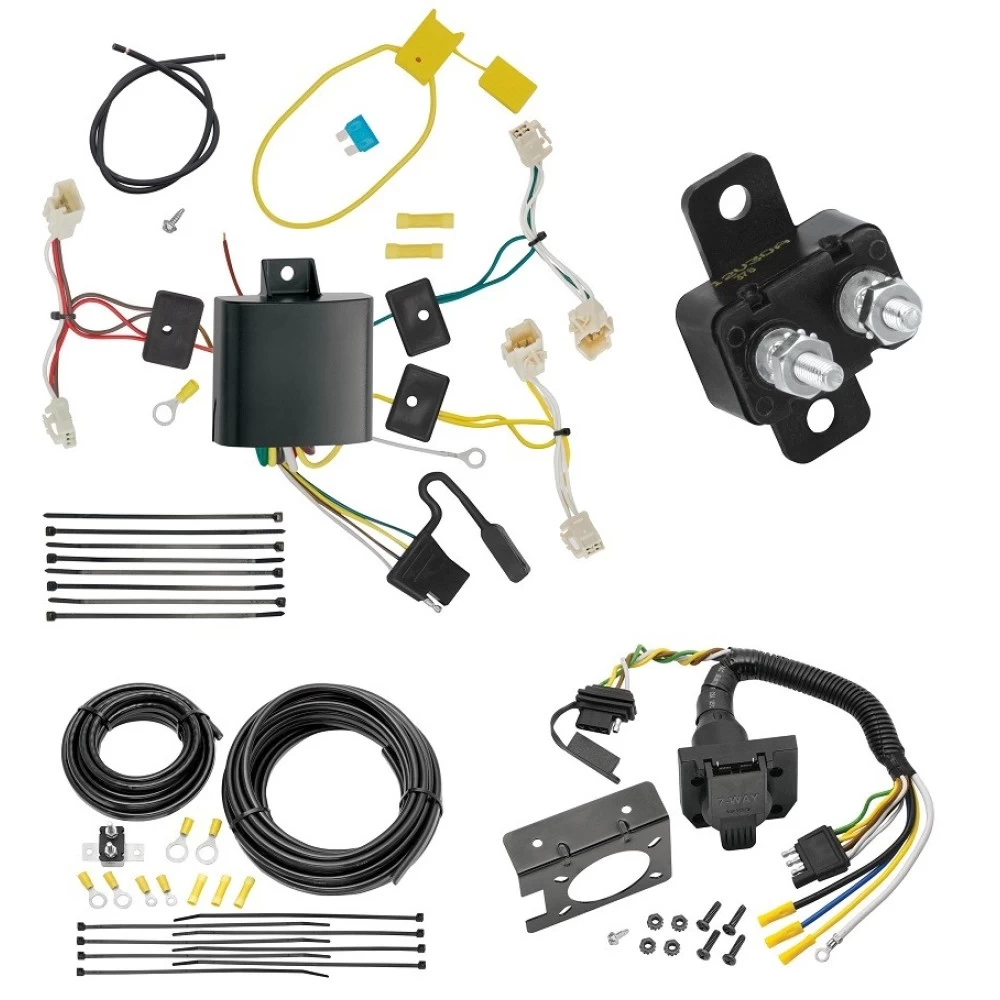

Installation Instructions for T-One® T-Connector for Toyota Sienna

Part Numbers:

• 118648

Tools Required:

• 10mm Socket & Ratchet or 10mm Wrench
• 12mm Socket & Ratchet or 12mm Wrench
• Phillips Head Screwdriver
• Test Probe
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Trim Panel Remover

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights.
   • Remove the bolts and carefully pull the taillights rearward, being careful not to damage the alignment tabs.
   • Repeat for the passenger side.

2. Disconnect the Wiring Harness:

   • On both sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to damage the locking tabs.
   • Clean the connector surfaces to ensure proper connection.

3. Remove Interior Components:

   • Temporarily remove the threshold plate by taking out the cargo clips.
   • Remove the jack storage compartment door on the passenger side.
   • Use a trim panel removal tool to carefully pull back the interior trim panels on both sides.

4. Mount the T-One® Connector Black Box:

   • On the passenger side, mount the black box using the provided double-sided tape.

5. Connect the Passenger-Side T-Connector:

   • Attach the T-One® Connector ends (green wires and brown/red wires) between the vehicle’s taillight wiring harness connectors on the passenger side.

6. Route the Driver-Side T-Connector:

   • Route the yellow wire T-Connector across the threshold to the driver’s side.
   • Insert the yellow wire connector into the vehicle’s taillight wiring connector and lock it into place.

7. Ground the White Wire:

   • Ground the white wire by placing the ring terminal under an existing screw or by drilling a 3/32” hole and securing it with a self-tapping screw.

   Caution: Ensure all other ground connections are secure when removing and reattaching the ground stud.

8. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the vehicle’s positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

9. Route the Power Wire:

   • Route the black wire through a grommet and along the exterior frame or existing wiring into the engine compartment, avoiding areas that could pinch or damage the wire.

10. Connect the Power Wire to the Black Box:

    • Connect the black wire to the black power wire on the T-One® Connector black box using the yellow butt connector.

11. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation with a test light or trailer.

    Note: Reset the vehicle electrical system by temporarily removing the key from the ignition.

12. Secure the Wiring:

    • Use the provided cable ties to secure all loose wires.
    • Ensure no wires are pinched or cut during reassembly.

13. Reassemble the Vehicle:

    • Reinstall the taillight assemblies, threshold, and other items removed during installation.
    • Store the 4-flat connector in the jack storage compartment when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s ratings or the specified product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Toyota Sienna

Part Numbers:

• 118648

Tools Required:

• 10mm Socket & Ratchet or 10mm Wrench
• 12mm Socket & Ratchet or 12mm Wrench
• Phillips Head Screwdriver
• Test Probe
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Trim Panel Remover

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights.
   • Remove the bolts and carefully pull the taillights rearward, being careful not to damage the alignment tabs.
   • Repeat for the passenger side.

2. Disconnect the Wiring Harness:

   • On both sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to damage the locking tabs.
   • Clean the connector surfaces to ensure proper connection.

3. Remove Interior Components:

   • Temporarily remove the threshold plate by taking out the cargo clips.
   • Remove the jack storage compartment door on the passenger side.
   • Use a trim panel removal tool to carefully pull back the interior trim panels on both sides.

4. Mount the T-One® Connector Black Box:

   • On the passenger side, mount the black box using the provided double-sided tape.

5. Connect the Passenger-Side T-Connector:

   • Attach the T-One® Connector ends (green wires and brown/red wires) between the vehicle’s taillight wiring harness connectors on the passenger side.

6. Route the Driver-Side T-Connector:

   • Route the yellow wire T-Connector across the threshold to the driver’s side.
   • Insert the yellow wire connector into the vehicle’s taillight wiring connector and lock it into place.

7. Ground the White Wire:

   • Ground the white wire by placing the ring terminal under an existing screw or by drilling a 3/32” hole and securing it with a self-tapping screw.

   Caution: Ensure all other ground connections are secure when removing and reattaching the ground stud.

8. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the vehicle’s positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

9. Route the Power Wire:

   • Route the black wire through a grommet and along the exterior frame or existing wiring into the engine compartment, avoiding areas that could pinch or damage the wire.

10. Connect the Power Wire to the Black Box:

    • Connect the black wire to the black power wire on the T-One® Connector black box using the yellow butt connector.

11. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder.
    • Test the installation with a test light or trailer.

    Note: Reset the vehicle electrical system by temporarily removing the key from the ignition.

12. Secure the Wiring:

    • Use the provided cable ties to secure all loose wires.
    • Ensure no wires are pinched or cut during reassembly.

13. Reassemble the Vehicle:

    • Reinstall the taillight assemblies, threshold, and other items removed during installation.
    • Store the 4-flat connector in the jack storage compartment when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s ratings or the specified product ratings.
• Always wear safety glasses and follow all safety precautions during installation.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
