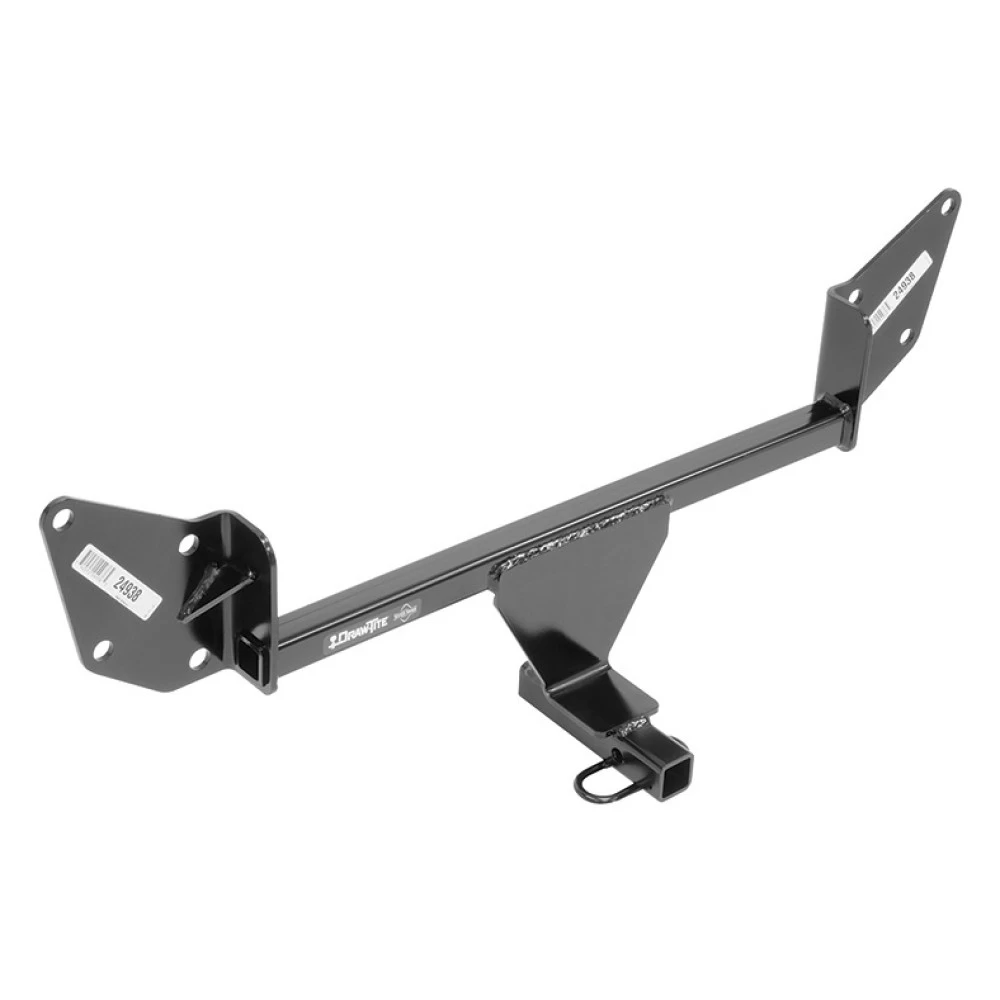

Installation Instructions for Chevrolet Camaro (2016-Present)

Part Numbers:

• 24938
• 77326
• CQT24938

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 50 minutes

Step-by-Step Instructions:

1. Remove Fascia:

• Use a 7mm socket and T15 Torx driver to remove 10 bolts and 4 screws. One bolt on each side is hidden behind the wheel well liner.
• Carefully remove the fascia and unplug the wiring. Set the bumper fascia aside.

2. Remove Bumper Beam:

• Use a 15mm socket to remove 8 flange nuts securing the bumper to the end panel.
• Slide the exhaust bracket off the two lower studs and then remove the bumper beam.

3. Install Hitch:

• Raise the hitch and align its attachment holes with the studs on the end panel.
• Reinstall the bumper beam, sandwiching the hitch between the beam and the end panel.
• Re-align the exhaust bracket with the two lower studs and reuse the flange nuts to loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Reinstall Components:

• Reconnect wiring, fasteners, and fascia following the reverse order of Steps 1 and 2.
• If necessary, trim the center inside lower edge of the fascia to fit around the hitch. The hitch is intentionally designed to sit close to the fascia.

Safety Notes:

• Regularly check all fasteners and ensure the hitch is securely mounted.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Chevrolet Camaro (2016-Present)

Part Numbers:

• 24938
• 77326
• CQT24938

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 50 minutes

Step-by-Step Instructions:

1. Remove Fascia:

• Use a 7mm socket and T15 Torx driver to remove 10 bolts and 4 screws. One bolt on each side is hidden behind the wheel well liner.
• Carefully remove the fascia and unplug the wiring. Set the bumper fascia aside.

2. Remove Bumper Beam:

• Use a 15mm socket to remove 8 flange nuts securing the bumper to the end panel.
• Slide the exhaust bracket off the two lower studs and then remove the bumper beam.

3. Install Hitch:

• Raise the hitch and align its attachment holes with the studs on the end panel.
• Reinstall the bumper beam, sandwiching the hitch between the beam and the end panel.
• Re-align the exhaust bracket with the two lower studs and reuse the flange nuts to loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Reinstall Components:

• Reconnect wiring, fasteners, and fascia following the reverse order of Steps 1 and 2.
• If necessary, trim the center inside lower edge of the fascia to fit around the hitch. The hitch is intentionally designed to sit close to the fascia.

Safety Notes:

• Regularly check all fasteners and ensure the hitch is securely mounted.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
