For 2020‑2024 Buick Encore GX Trailer Hitch Tow PKG + Interlock Tactical Starter Kit w/ 3‑1/4" Drop & 2" Ball By Draw‑Tite
Model: 76585 7092500This Bundle Fits The Following Vehicles:
2020-2024 Buick, Encore GX, All Styles

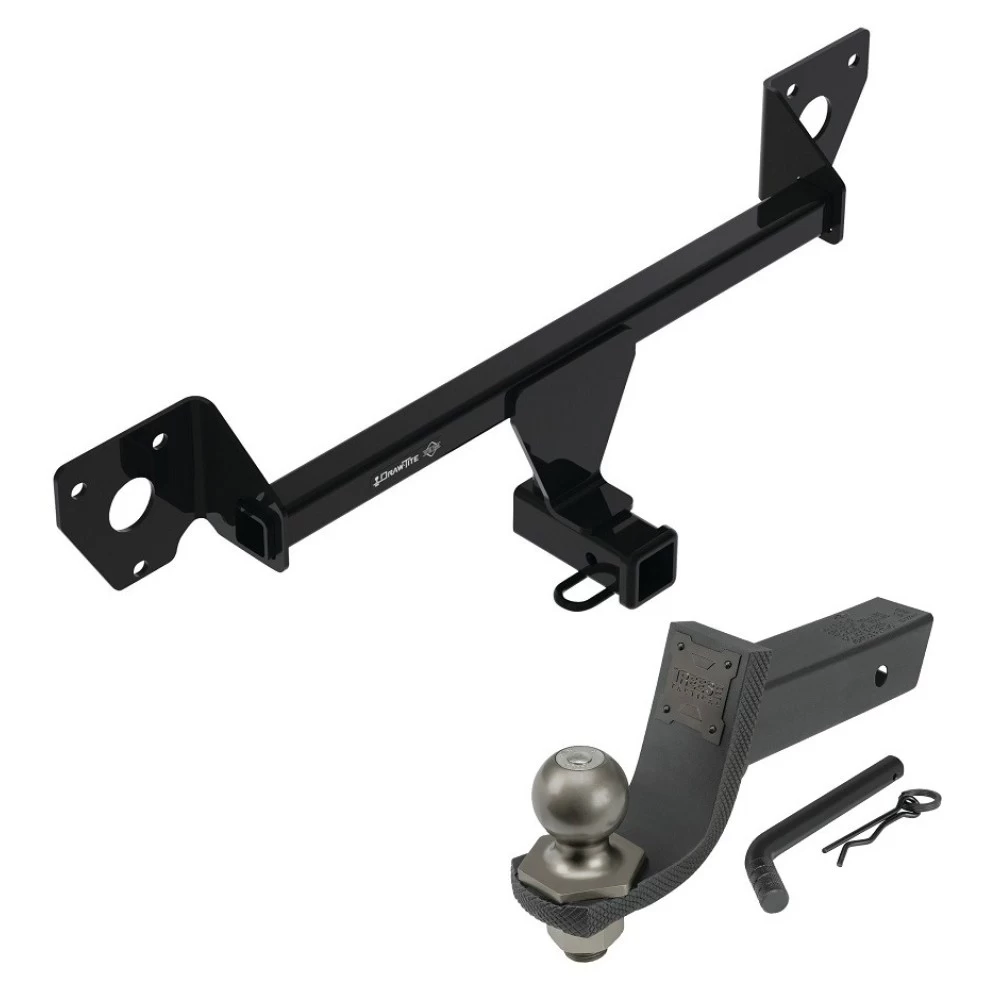

This Bundle Includes the Following Parts:
Trailer Hitch
Interlock Tactical Starter Kit w/ 3-1/4 inch Drop & 2 inch Ball
List of fitment years: 2020, 2021, 2022, 2023, 2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 3,500 lbs gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Buick Encore GX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 3,500 lbs GTW and up to 525 lbs. TW. Also suitable for use with Weight Distribution systems of up to N/A WD and N/A WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Buick Encore GX, Chevrolet Trailblazer
• EXCLUSIONS: This Draw-Tite Class III hitch does NOT fit the following: Except w/LED Taillights
Interlock® Tactical™ Trailer Hitch Ball Mount Starter Kit, Fits 2 in. Receiver, 3.25 in. Drop, 5,000 lbs. Capacity, Includes 2 in. Trailer Ball and Receiver Lock, Black Manufactured by: Reese
New to towing and not sure what you need? Worry no more! REESE® starter kits provide you with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball, and a pin and clip. Once you determine the appropriate drop or rise for your trailer, simply insert the ball mount into your receive hitch tube opening, secure it with the pin and clip, and voila! You’re ready to hook up your trailer and hit the road. Get your REESE starter kit today and make the journey as enjoyable as the destination.
• Fits 2 in. Receiver Tube Openings
• Includes Ball Mount, Hitch Ball, Pin and Clip
• 5,000 lbs. Capacity
• 3.25 in. Drop Ball Mount
• 2 in. dia. Hitch Ball
• REESE Tactical Matte Black FInish
$266 00 $461.95 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$461.95 $266 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $66.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76585 7092500
- Includes: Class 3 Trailer Tow Hitch, Interlock Tactical Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2020-2024 Buick Encore GX Trailer Hitch Tow PKG + Interlock Tactical Starter Kit w/ 3-1/4" Drop & 2" Ball By Draw-Tite Install Notes
Installation Instructions for Chevrolet Trailblazer (2020-Present) and Buick Encore GX (2020-Present)
Part Numbers:
- 76585
- 84585
- CQT76585
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape Measure
- Utility Knife
- Marker
- Sockets: 7mm, 15mm
- T15 and T20 Star Drivers
- Flat Head Screwdriver
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Taillights:
- Open the tailgate.
- Remove the plastic cover near the taillight using a T15 star driver. Remove (2) screws holding the cover to the taillight housing on both sides.
- Gently pull the taillights rearward to remove them.
- Disconnect the wiring harness and set the taillights aside.
2. Remove Fascia:
- Push-Pin Rivets: Use a flat head screwdriver to remove plastic push-pin rivets from the underside of the rear bumper fascia on both sides.
- Wheel Well Screws: Remove (1) screw at the outer bottom edge of the rear bumper fascia near the wheel well on both sides using a T15 star driver.
- Wheel Well Liner: Inside the rear wheel well, use a T15 star driver to remove (3) screws on both sides.
- Taillight Screws: Use a T20 star driver to remove (1) screw below each taillight.
- Partially Detach Fascia: Using a plastic trim tool, partially remove the fascia starting at the wheel wells. Do not remove the top portion of the wheel well trim, as it will not reinstall properly.
- Hidden Screws: Use a 7mm socket to remove (2) screws hidden behind the wheel well trim on both sides.
- If equipped, disconnect all wiring harnesses from the fascia and set it aside.
3. Remove Bumper Beam:
- Remove caulking around the bumper beam mounting surface.
- Use a 15mm socket with a 6” extension to remove (6) M10 flange hex nuts securing the bumper beam.
- Set the bumper beam aside. Retain the M10 hex flange nuts for hitch installation.
4. Install Hitch and Bumper Beam:
- Apply silicone sealant around the openings on the end panels on both sides.
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panels.
- Loosely reinstall the (6) existing M10 hex flange nuts removed earlier.
- Tighten all M10-1.25 CL8.8 fasteners to 42 lb-ft (57 N·m).
5. Trim Fascia:
- Locate the center of the fascia. Use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia.
- Chevy Trailblazer: Refer to the diagram for a 4” by 3-5/8” cut.
- Buick Encore GX: Refer to the diagram for a 4” square cut.
- Ensure the area is clear of electrical wiring before trimming.
6. Additional Steps for Buick Encore GX:
- Use pliers to flatten a 1” tab on the end panel on the driver’s side of the vehicle.
- Remove the plastic panel behind the bumper fascia by detaching (2) screws, (4) tabs, and (3) push clips. Return the plastic panel to the owner.
7. Reinstall Components:
- Reconnect all wiring harnesses before reinstalling the fascia.
- Reinstall the fascia using the original hardware removed earlier.
- Reinstall the taillights and taillight covers.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure proper attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Chevrolet Trailblazer (2020-Present) and Buick Encore GX (2020-Present)
Part Numbers:
- 76585
- 84585
- CQT76585
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape Measure
- Utility Knife
- Marker
- Sockets: 7mm, 15mm
- T15 and T20 Star Drivers
- Flat Head Screwdriver
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Taillights:
- Open the tailgate.
- Remove the plastic cover near the taillight using a T15 star driver. Remove (2) screws holding the cover to the taillight housing on both sides.
- Gently pull the taillights rearward to remove them.
- Disconnect the wiring harness and set the taillights aside.
2. Remove Fascia:
- Push-Pin Rivets: Use a flat head screwdriver to remove plastic push-pin rivets from the underside of the rear bumper fascia on both sides.
- Wheel Well Screws: Remove (1) screw at the outer bottom edge of the rear bumper fascia near the wheel well on both sides using a T15 star driver.
- Wheel Well Liner: Inside the rear wheel well, use a T15 star driver to remove (3) screws on both sides.
- Taillight Screws: Use a T20 star driver to remove (1) screw below each taillight.
- Partially Detach Fascia: Using a plastic trim tool, partially remove the fascia starting at the wheel wells. Do not remove the top portion of the wheel well trim, as it will not reinstall properly.
- Hidden Screws: Use a 7mm socket to remove (2) screws hidden behind the wheel well trim on both sides.
- If equipped, disconnect all wiring harnesses from the fascia and set it aside.
3. Remove Bumper Beam:
- Remove caulking around the bumper beam mounting surface.
- Use a 15mm socket with a 6” extension to remove (6) M10 flange hex nuts securing the bumper beam.
- Set the bumper beam aside. Retain the M10 hex flange nuts for hitch installation.
4. Install Hitch and Bumper Beam:
- Apply silicone sealant around the openings on the end panels on both sides.
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panels.
- Loosely reinstall the (6) existing M10 hex flange nuts removed earlier.
- Tighten all M10-1.25 CL8.8 fasteners to 42 lb-ft (57 N·m).
5. Trim Fascia:
- Locate the center of the fascia. Use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia.
- Chevy Trailblazer: Refer to the diagram for a 4” by 3-5/8” cut.
- Buick Encore GX: Refer to the diagram for a 4” square cut.
- Ensure the area is clear of electrical wiring before trimming.
6. Additional Steps for Buick Encore GX:
- Use pliers to flatten a 1” tab on the end panel on the driver’s side of the vehicle.
- Remove the plastic panel behind the bumper fascia by detaching (2) screws, (4) tabs, and (3) push clips. Return the plastic panel to the owner.
7. Reinstall Components:
- Reconnect all wiring harnesses before reinstalling the fascia.
- Reinstall the fascia using the original hardware removed earlier.
- Reinstall the taillights and taillight covers.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure proper attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.
