For 2020‑2024 Buick Encore GX Trailer Hitch Tow PKG + Triple Ball Tactical Ball Mount 1‑7/8" & 2" & 2‑5/16" Balls w/ Tow Hook + Tactical Dogbone Lock By Draw‑Tite
Model: 76585 7095620 7096500This Bundle Fits The Following Vehicles:
2020-2024 Buick, Encore GX, All Styles

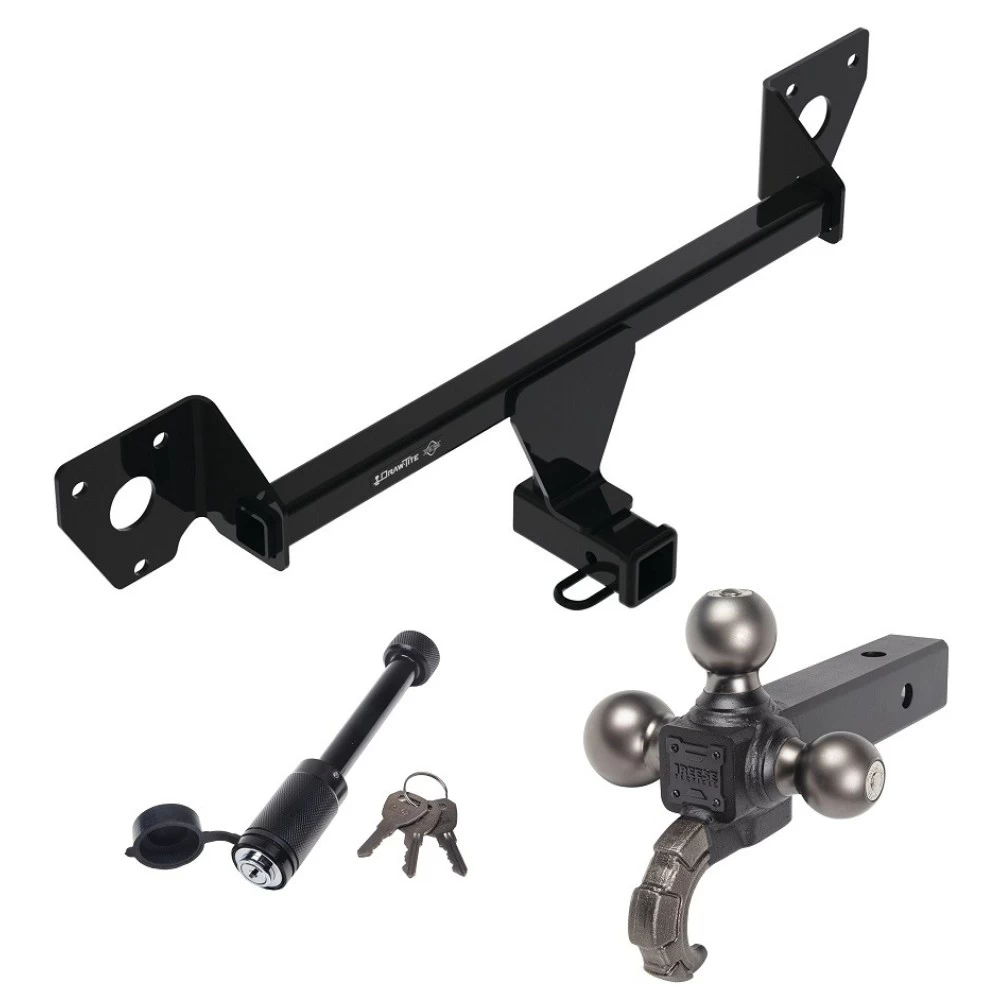

This Bundle Includes the Following Parts:
Trailer Hitch
Triple Ball Tactical Ball Mount 1-7/8 inch & 2 inch & 2-5/16 inch Balls w/ Tow Hook
Tactical Dogbone Lock
List of fitment years: 2020, 2021, 2022, 2023, 2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 3,500 lbs gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Buick Encore GX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 3,500 lbs GTW and up to 525 lbs. TW. Also suitable for use with Weight Distribution systems of up to N/A WD and N/A WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Buick Encore GX, Chevrolet Trailblazer
• EXCLUSIONS: This Draw-Tite Class III hitch does NOT fit the following: Except w/LED Taillights
Tri-Ball Trailer Hitch Ball Mount, (1-7/8 in. 2 in., 2-5/16 in.Trailer Balls), Fits 2 in. Receiver, 10,000 lbs. Capacity, Black Manufactured by: Reese
When a traditional ball mount just won’t do, turn to a REESE® specialty ball mount. REESE’s extensive line of specialty ball mounts are made to handle the tough towing jobs, with offerings ranging from high-capacity tri-ball mounts, to tow hooks, recovery rings, and everything in between. This group of ball mounts allow you to tackle heavier, bulkier, unique towing needs with shanks that still fit a 2-inch receiver tube, so you can use the hitch you already have. REESE specialty ball mounts come in a variety of styles and weight capacities so you can be sure to find the one that’s right for your job. With so many options and easy-to-understand instructions, it’s no wonder REESE has been the leader in heavy-duty towing for nearly 70 years!
• Fits 2 in. Receiver Tube Opening
• 10,000 lbs. Capacity
• Hitch Ball Capacity: 1-7/8 in. = 2,000 lbs., 2 in. = 6,000 lbs., 2-5/16 in= 10,000 lbs.
• Black Matte Finish
Tactical™ Dogbone Lock, Black Manufactured by: Reese
REESE Towpower barrel or dog bone style receiver lock is designed to provide excellent protection for trailers. It features a push-button key lock mechanism, and a rubber cover to keep out dirt and debris.
• Popular dogbone shaped receiver lock
• 5/8 In. diameter
• Push button lock
• Knurled barrel
• Rubber dust cap
• Two keys
• 1 year limited warranty
$313 50 $543.20 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$543.20 $313 50
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $78.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76585 7095620 7096500
- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount, Tactical Trailer Tow Hitch Lock
Compatibility Chart
Description
Get Expert Help
For 2020-2024 Buick Encore GX Trailer Hitch Tow PKG + Triple Ball Tactical Ball Mount 1-7/8" & 2" & 2-5/16" Balls w/ Tow Hook + Tactical Dogbone Lock By Draw-Tite Install Notes
Installation Instructions for Chevrolet Trailblazer (2020-Present) and Buick Encore GX (2020-Present)
Part Numbers:
- 76585
- 84585
- CQT76585
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape Measure
- Utility Knife
- Marker
- Sockets: 7mm, 15mm
- T15 and T20 Star Drivers
- Flat Head Screwdriver
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Taillights:
- Open the tailgate.
- Remove the plastic cover near the taillight using a T15 star driver. Remove (2) screws holding the cover to the taillight housing on both sides.
- Gently pull the taillights rearward to remove them.
- Disconnect the wiring harness and set the taillights aside.
2. Remove Fascia:
- Push-Pin Rivets: Use a flat head screwdriver to remove plastic push-pin rivets from the underside of the rear bumper fascia on both sides.
- Wheel Well Screws: Remove (1) screw at the outer bottom edge of the rear bumper fascia near the wheel well on both sides using a T15 star driver.
- Wheel Well Liner: Inside the rear wheel well, use a T15 star driver to remove (3) screws on both sides.
- Taillight Screws: Use a T20 star driver to remove (1) screw below each taillight.
- Partially Detach Fascia: Using a plastic trim tool, partially remove the fascia starting at the wheel wells. Do not remove the top portion of the wheel well trim, as it will not reinstall properly.
- Hidden Screws: Use a 7mm socket to remove (2) screws hidden behind the wheel well trim on both sides.
- If equipped, disconnect all wiring harnesses from the fascia and set it aside.
3. Remove Bumper Beam:
- Remove caulking around the bumper beam mounting surface.
- Use a 15mm socket with a 6” extension to remove (6) M10 flange hex nuts securing the bumper beam.
- Set the bumper beam aside. Retain the M10 hex flange nuts for hitch installation.
4. Install Hitch and Bumper Beam:
- Apply silicone sealant around the openings on the end panels on both sides.
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panels.
- Loosely reinstall the (6) existing M10 hex flange nuts removed earlier.
- Tighten all M10-1.25 CL8.8 fasteners to 42 lb-ft (57 N·m).
5. Trim Fascia:
- Locate the center of the fascia. Use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia.
- Chevy Trailblazer: Refer to the diagram for a 4” by 3-5/8” cut.
- Buick Encore GX: Refer to the diagram for a 4” square cut.
- Ensure the area is clear of electrical wiring before trimming.
6. Additional Steps for Buick Encore GX:
- Use pliers to flatten a 1” tab on the end panel on the driver’s side of the vehicle.
- Remove the plastic panel behind the bumper fascia by detaching (2) screws, (4) tabs, and (3) push clips. Return the plastic panel to the owner.
7. Reinstall Components:
- Reconnect all wiring harnesses before reinstalling the fascia.
- Reinstall the fascia using the original hardware removed earlier.
- Reinstall the taillights and taillight covers.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure proper attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Chevrolet Trailblazer (2020-Present) and Buick Encore GX (2020-Present)
Part Numbers:
- 76585
- 84585
- CQT76585
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape Measure
- Utility Knife
- Marker
- Sockets: 7mm, 15mm
- T15 and T20 Star Drivers
- Flat Head Screwdriver
- Silicone Sealant
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 60 minutes
Step-by-Step Instructions:
1. Remove Taillights:
- Open the tailgate.
- Remove the plastic cover near the taillight using a T15 star driver. Remove (2) screws holding the cover to the taillight housing on both sides.
- Gently pull the taillights rearward to remove them.
- Disconnect the wiring harness and set the taillights aside.
2. Remove Fascia:
- Push-Pin Rivets: Use a flat head screwdriver to remove plastic push-pin rivets from the underside of the rear bumper fascia on both sides.
- Wheel Well Screws: Remove (1) screw at the outer bottom edge of the rear bumper fascia near the wheel well on both sides using a T15 star driver.
- Wheel Well Liner: Inside the rear wheel well, use a T15 star driver to remove (3) screws on both sides.
- Taillight Screws: Use a T20 star driver to remove (1) screw below each taillight.
- Partially Detach Fascia: Using a plastic trim tool, partially remove the fascia starting at the wheel wells. Do not remove the top portion of the wheel well trim, as it will not reinstall properly.
- Hidden Screws: Use a 7mm socket to remove (2) screws hidden behind the wheel well trim on both sides.
- If equipped, disconnect all wiring harnesses from the fascia and set it aside.
3. Remove Bumper Beam:
- Remove caulking around the bumper beam mounting surface.
- Use a 15mm socket with a 6” extension to remove (6) M10 flange hex nuts securing the bumper beam.
- Set the bumper beam aside. Retain the M10 hex flange nuts for hitch installation.
4. Install Hitch and Bumper Beam:
- Apply silicone sealant around the openings on the end panels on both sides.
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panels.
- Loosely reinstall the (6) existing M10 hex flange nuts removed earlier.
- Tighten all M10-1.25 CL8.8 fasteners to 42 lb-ft (57 N·m).
5. Trim Fascia:
- Locate the center of the fascia. Use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia.
- Chevy Trailblazer: Refer to the diagram for a 4” by 3-5/8” cut.
- Buick Encore GX: Refer to the diagram for a 4” square cut.
- Ensure the area is clear of electrical wiring before trimming.
6. Additional Steps for Buick Encore GX:
- Use pliers to flatten a 1” tab on the end panel on the driver’s side of the vehicle.
- Remove the plastic panel behind the bumper fascia by detaching (2) screws, (4) tabs, and (3) push clips. Return the plastic panel to the owner.
7. Reinstall Components:
- Reconnect all wiring harnesses before reinstalling the fascia.
- Reinstall the fascia using the original hardware removed earlier.
- Reinstall the taillights and taillight covers.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure proper attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.
