Class 5 11K Trailer Hitch Tow Package w/ 7-Way RV Wiring For 11-18 RAM 1500 19-23 (Classic) w/ 2-5/16" Ball 2" Drop Mount Ultra Frame 2" Receiver All Models

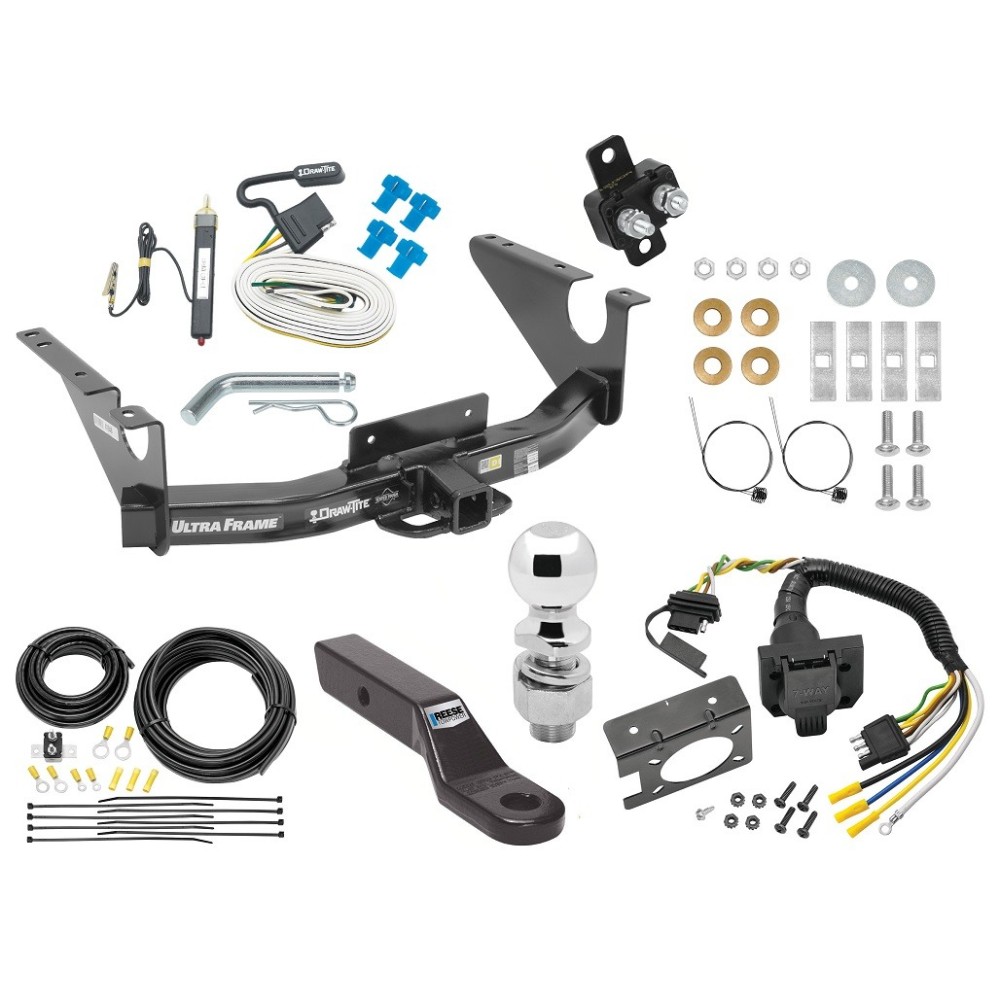

Model: 41948 85343 20506 7012a 20252 21330 63836 63240Includes Everything Pictured:

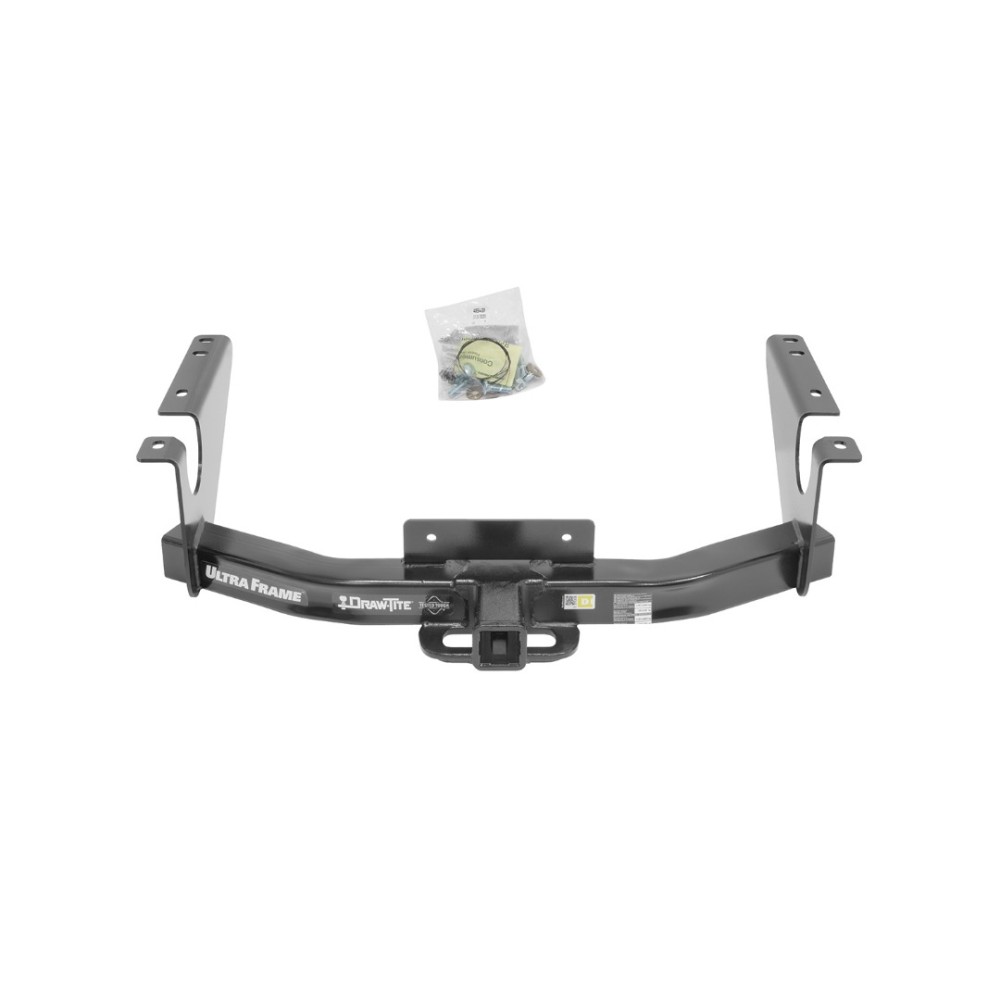

Custom Fit Trailer Hitch
Wiring Harness (Requires splicing)
2" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Trailer Connector Adapter
Brake Control Wiring Kit
Circuit Breaker
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2018 RAM, 1500, All Styles
2019 - 2023 RAM, 1500, (Classic)
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 20252 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
REESE Towpower heavy duty forged ball mounts are designed and manufactured as a solid weld free solution for heavy duty applications where high gross towing weight capacity is required.
Ball Mount Specs:
| Part Number | 21330 |
| Brand |
Reese Towpower |
| Class | 5 |
| Finish | Black powder coat |
| Towing Capacity |
16000 lbs |
| Fits | 2" Reciever |
| Drop |
2" |
| Rise | 4" |
| Ball Hole Size | 1-1/4" |
| Shank Length | 8-1/2" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 22 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
$444 19 $738.52 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$738.52 $444 19
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41948 85343 20506 7012a 20252 21330 63836 63240
- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Wiring Connector, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Pin & Clip
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
| Default | |
| Brand | Draw-Tite |
| Connector Function | Multi-Function Adapter |
| Gross Towing Weight | 12,000 LB |
| Part Type | Undercar Wires for Brake Control |
| Includes | 2 30 Amp Circuit Breakers |
| Maximum Drop | 2 Inch |
| Trailer Hitch Receiver Size | 2 Inch |
| Trailer Wiring Output Type | Dual 4-Flat+7-Way Round |
| Ball Size | 2-5/16"Ball |
| Connector Design | Plug and Lead |
| Hitch Class | 5 |
| Maximum Ball Mount Rating Capacity | 16000 LB |
| Maximum Rise | 1 Inch |
| Trailer Wiring Install Style | Hardwire |
| Drilling Required | No |
| Number of Balls | Single Ball |
| Tongue Weight Capacity | 1,500 LB |
| Gross Towing Weight w/ Weight Distribution Kit | 15,000 LB |
| Maximum Tongue Weight w/ Weight Distribution Kit | 1,500 LB |
| Hitch Visibility | Exposed |
| Cross-Tube Type | Square Tube |
