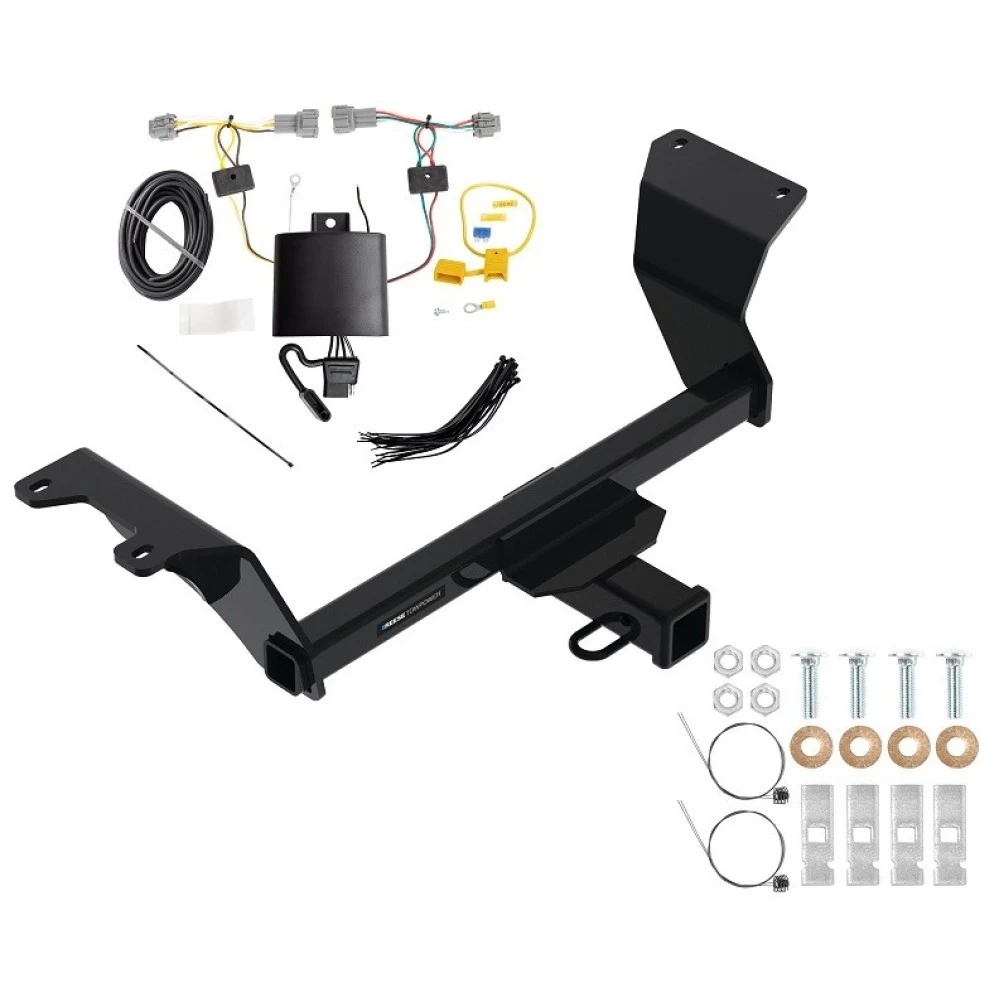

Installation Instructions for 2018-Current Nissan Kicks

Part Numbers:

• 76518
• 84518
• CQT76518

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 11/16”, 15/16”
• Exhaust Removal Pliers
• Tape Measure
• Marker
• Die Grinder
• 6-inch Socket Extension
• Tin Snips

Step-by-Step Instructions:

1. Lower Muffler:

   • Using exhaust removal pliers, remove the two rearmost rubber exhaust hangers.
   • Spray lubricant on the hangers to ease removal.
   • Ensure the exhaust is properly supported before removing it from the hangers to prevent damage.

2. Remove Heat Shield:

   • Use a 15/16” socket to remove the four metal fasteners holding the heat shield in place.
   • Remove the heat shield and trim it as indicated in Figure 2 of the manual.
   • Note: Dimensions are approximate; confirm fit before trimming.

3. Lower Carbon Canister:

   • Remove the rearmost M8 bolt from the carbon canister on the driver side using a 10 mm socket. Allow the canister to hang.
   • If present, remove the frame rail plug to access the rear mounting point on the driver side.

4. Enlarge Attachment Holes:

   • Using a die grinder, enlarge the forward attachment holes on the driver and passenger side frame rails to insert the carriage block and bolt (see Figure 3).

5. Install Carriage Bolts and Spacers:

   • Use pull wires to install spacer blocks and carriage bolts into the rearward and forward attachment holes through the enlarged holes on both sides (see Figures 4 and 5).
   • Leave the pull wires attached for alignment during hitch installation.

6. Reinstall Heat Shield:

   • Reinstall the trimmed heat shield using the original fasteners.

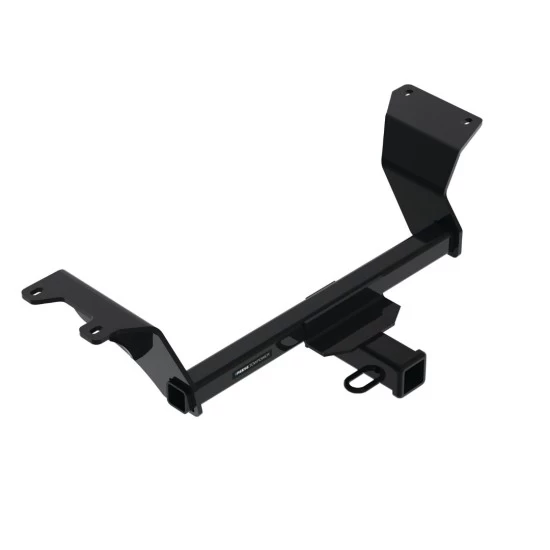

7. Install Hitch:

   • Raise the hitch into position and align the slots with the attachment holes.
   • Install conical washers (teeth side toward hitch) and hex nuts onto the bolts and hand-tighten them.

8. Center Hitch:

   • Center the hitch on the vehicle as close as possible.

9. Tighten Fasteners:

   • Using a torque wrench, tighten all 7/16”-14 fasteners to 50 ft-lbs (68 N*m).

10. Reinstall Carbon Canister:

    • Reinstall the black carbon canister removed in Step 3 using the original M8 bolt.

11. Reinstall Exhaust:

    • Reattach the exhaust to the rubber hangers in its original position.

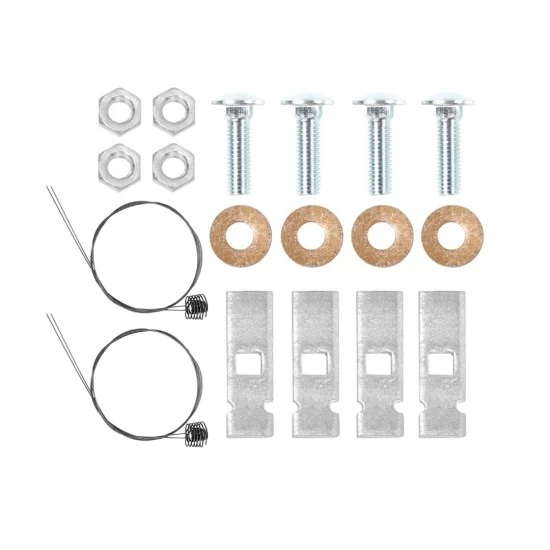

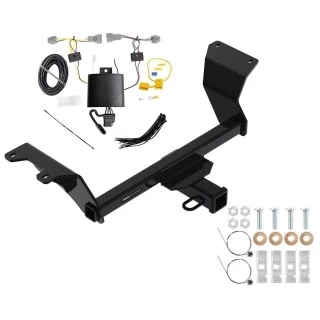

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.50” GR5
• (4) Spacer 0.25” x 0.875” x 3.00”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2018-Current Nissan Kicks

Part Numbers:

• 76518
• 84518
• CQT76518

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm, 11/16”, 15/16”
• Exhaust Removal Pliers
• Tape Measure
• Marker
• Die Grinder
• 6-inch Socket Extension
• Tin Snips

Step-by-Step Instructions:

1. Lower Muffler:

• Using exhaust removal pliers, remove the two rearmost rubber exhaust hangers.
• Spray lubricant on the hangers to ease removal.
• Ensure the exhaust is properly supported before removing it from the hangers to prevent damage.

2. Remove Heat Shield:

• Use a 15/16” socket to remove the four metal fasteners holding the heat shield in place.
• Remove the heat shield and trim it as indicated in Figure 2 of the manual.
• Note: Dimensions are approximate; confirm fit before trimming.

3. Lower Carbon Canister:

• Remove the rearmost M8 bolt from the carbon canister on the driver side using a 10 mm socket. Allow the canister to hang.
• If present, remove the frame rail plug to access the rear mounting point on the driver side.

4. Enlarge Attachment Holes:

• Using a die grinder, enlarge the forward attachment holes on the driver and passenger side frame rails to insert the carriage block and bolt (see Figure 3).

5. Install Carriage Bolts and Spacers:

• Use pull wires to install spacer blocks and carriage bolts into the rearward and forward attachment holes through the enlarged holes on both sides (see Figures 4 and 5).
• Leave the pull wires attached for alignment during hitch installation.

6. Reinstall Heat Shield:

• Reinstall the trimmed heat shield using the original fasteners.

7. Install Hitch:

• Raise the hitch into position and align the slots with the attachment holes.
• Install conical washers (teeth side toward hitch) and hex nuts onto the bolts and hand-tighten them.

8. Center Hitch:

• Center the hitch on the vehicle as close as possible.

9. Tighten Fasteners:

• Using a torque wrench, tighten all 7/16”-14 fasteners to 50 ft-lbs (68 N*m).

10. Reinstall Carbon Canister:

• Reinstall the black carbon canister removed in Step 3 using the original M8 bolt.

11. Reinstall Exhaust:

• Reattach the exhaust to the rubber hangers in its original position.

Hardware List:

• (4) Carriage Bolt 7/16”-14 x 1.50” GR5
• (4) Spacer 0.25” x 0.875” x 3.00”
• (4) Conical Washer 7/16”
• (4) Hex Nut 7/16”-14 GR2
• (4) Pull Wire 7/16”

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

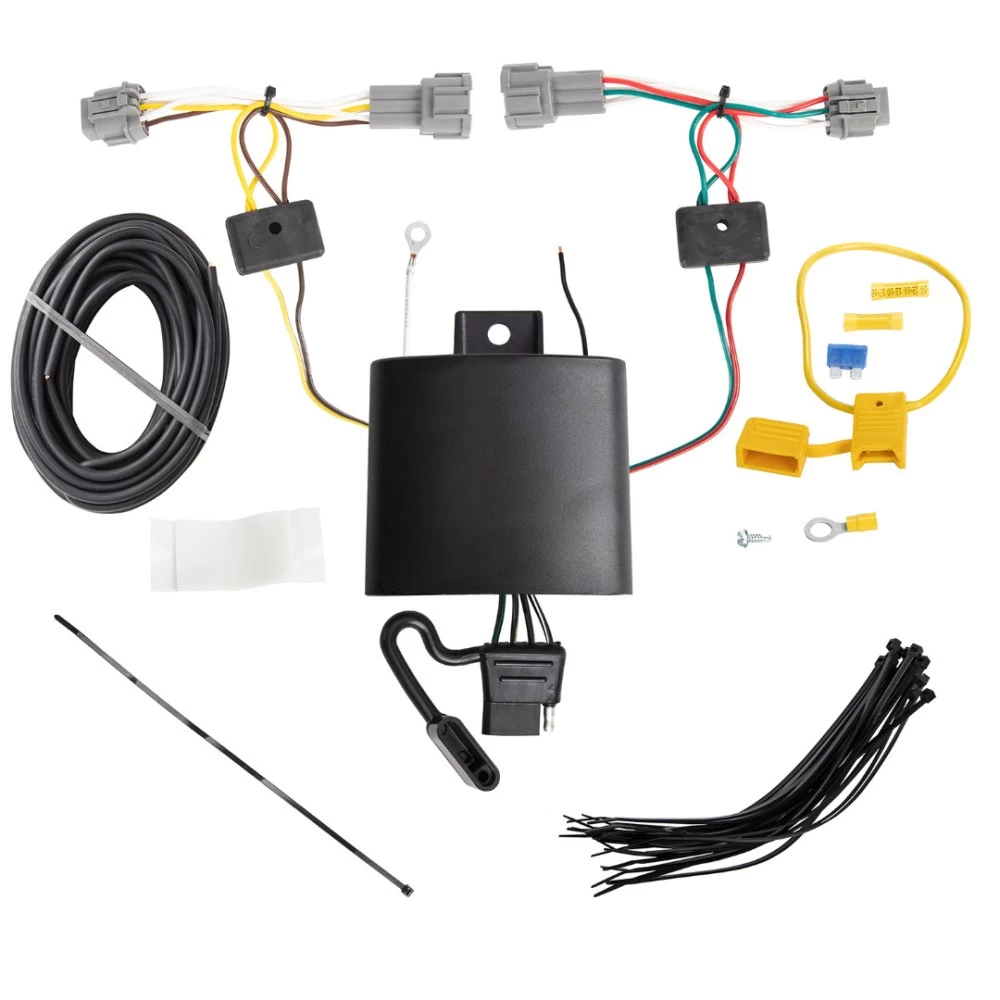

Installation Instructions for T-One® T-Connector for Nissan Kicks

Part Numbers:

• 118794

Tools Required:

• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights.
   • On both the driver and passenger sides, remove the two 10mm screws.
   • Carefully pull the taillights away from the vehicle, being cautious not to damage the alignment pins.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Mount the T-Connector Black Box:

   • Underneath the vehicle, determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
   • Mount the black box using the provided double-sided tape.

   Warning: Ensure the module is in a protected area to avoid damage from road debris or objects driven over.

   Warning: Mount the module with the epoxy side facing downward to prevent water accumulation.

4. Connect the Driver-Side T-Connector:

   • Fish the T-Connector end with the yellow wire up between the bumper and the vehicle body into the driver’s side taillight pocket.
   • Insert the yellow wire end between the driver-side taillight socket and the vehicle wiring harness.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side.
   • Route the 4-flat connector underneath the bumper and up through the opening on the passenger side.
   • Avoid hot pipes, heat shields, fuel tanks, or any other points that may pinch or break the wire.

6. Connect the Passenger-Side T-Connector:

   • Insert the green wire end between the passenger-side taillight socket and the vehicle wiring harness.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

8. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the exterior frame to the engine compartment.
   • Avoid hot pipes, heat shields, fuel tanks, or any other areas that may damage the wire.

9. Connect to the Vehicle Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

10. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

12. Store the 4-Flat Connector:

    • Route the 4-flat harness underneath the vehicle to the center and mount it in an accessible location using a bracket or electrical box (not included).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118794

Tools Required:

• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights.
   • On both the driver and passenger sides, remove the two 10mm screws.
   • Carefully pull the taillights away from the vehicle, being cautious not to damage the alignment pins.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Mount the T-Connector Black Box:

   • Underneath the vehicle, determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
   • Mount the black box using the provided double-sided tape.

   Warning: Ensure the module is in a protected area to avoid damage from road debris or objects driven over.

   Warning: Mount the module with the epoxy side facing downward to prevent water accumulation.

4. Connect the Driver-Side T-Connector:

   • Fish the T-Connector end with the yellow wire up between the bumper and the vehicle body into the driver’s side taillight pocket.
   • Insert the yellow wire end between the driver-side taillight socket and the vehicle wiring harness.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side.
   • Route the 4-flat connector underneath the bumper and up through the opening on the passenger side.
   • Avoid hot pipes, heat shields, fuel tanks, or any other points that may pinch or break the wire.

6. Connect the Passenger-Side T-Connector:

   • Insert the green wire end between the passenger-side taillight socket and the vehicle wiring harness.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

8. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the exterior frame to the engine compartment.
   • Avoid hot pipes, heat shields, fuel tanks, or any other areas that may damage the wire.

9. Connect to the Vehicle Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

10. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

12. Store the 4-Flat Connector:

    • Route the 4-flat harness underneath the vehicle to the center and mount it in an accessible location using a bracket or electrical box (not included).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
