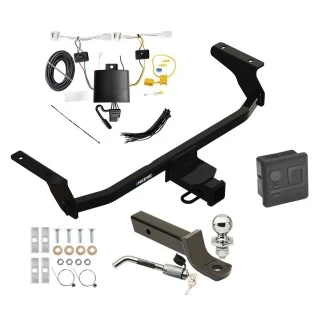

Installation Instructions for 2020-Current Mazda CX-30

Part Numbers:

• 76603
• 84603
• CQT76603

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 11/16"
• Flat Head Screwdriver
• Exhaust Removal Pliers
• Die Grinder
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Remove Bottom Bracket Attachment:

   • Use a 10 mm socket to remove 1 bolt from the bottom bracket attachment on each side.
   • Use a flat head screwdriver to remove 3 rivets from the attachment.
   • Press the bracket inward to release it from the plastic tab attached to the frame rails.
   • Return the bracket attachment and hardware to the vehicle owner.

2. Lower Exhaust:

   • Using exhaust removal pliers, lower the exhaust by removing 4 rubber hangers (2 on each end of the muffler).
   • Ensure the exhaust is supported before removing the hangers.
   • Apply spray lubricant or soapy water to the rubber hangers for easier removal.

3. Enlarge Vehicle Frame Access Holes:

   • Peel off the sticker on the access hole if present.
   • Use a die grinder to enlarge the access hole to a 1-inch diameter on each side.

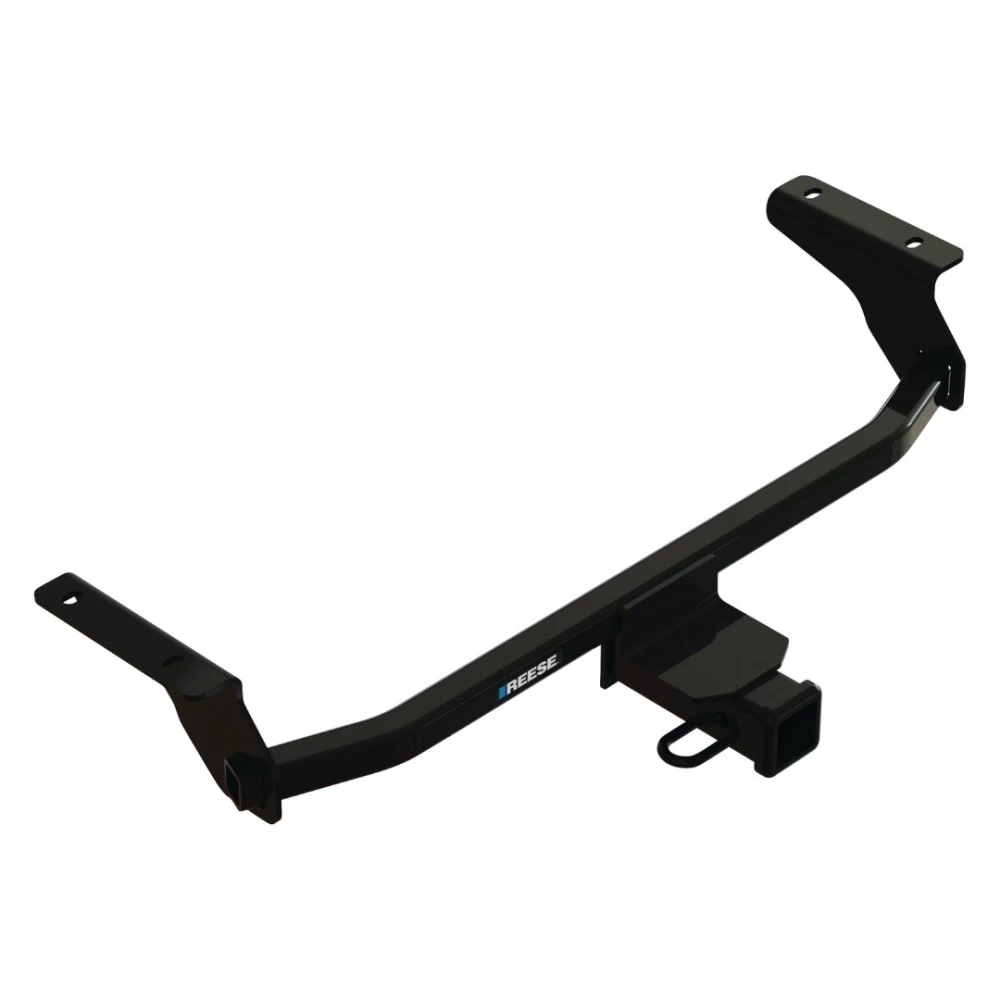

4. Install Hitch:

   • Feed the carriage bolts and spacers through the access holes using pull wires, leaving the pull wires attached.
   • Raise the hitch into position and feed the pull wires through the hitch bracket slot.
   • Remove the pull wires and loosely install the conical washers (teeth side toward the hitch) and hex nuts onto the hitch.

5. Tighten Fasteners:

   • Using a torque wrench, tighten all 7/16" fasteners to 50 ft-lbs (68 N*m).

6. Reinstall Exhaust:

   • Reattach the exhaust using the rubber hangers removed earlier.

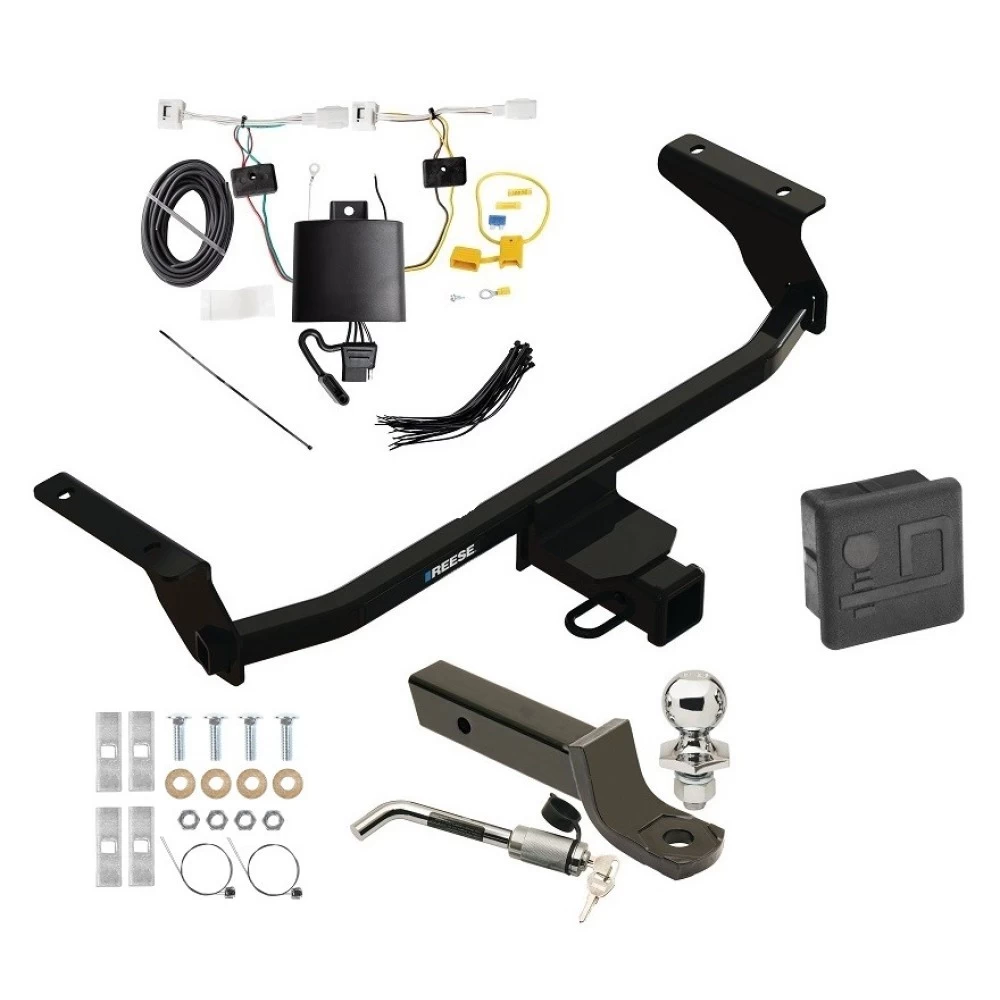

Hardware List:

• (4) Carriage Bolt 7/16"-14 x 1.75" GR5
• (4) Spacer 0.875" x 2.00" x 0.109"
• (4) Conical Washer 7/16"
• (4) Hex Nut 7/16"-14 GR2
• (4) Pull Wire 7/16"

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check that all fasteners and the hitch ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

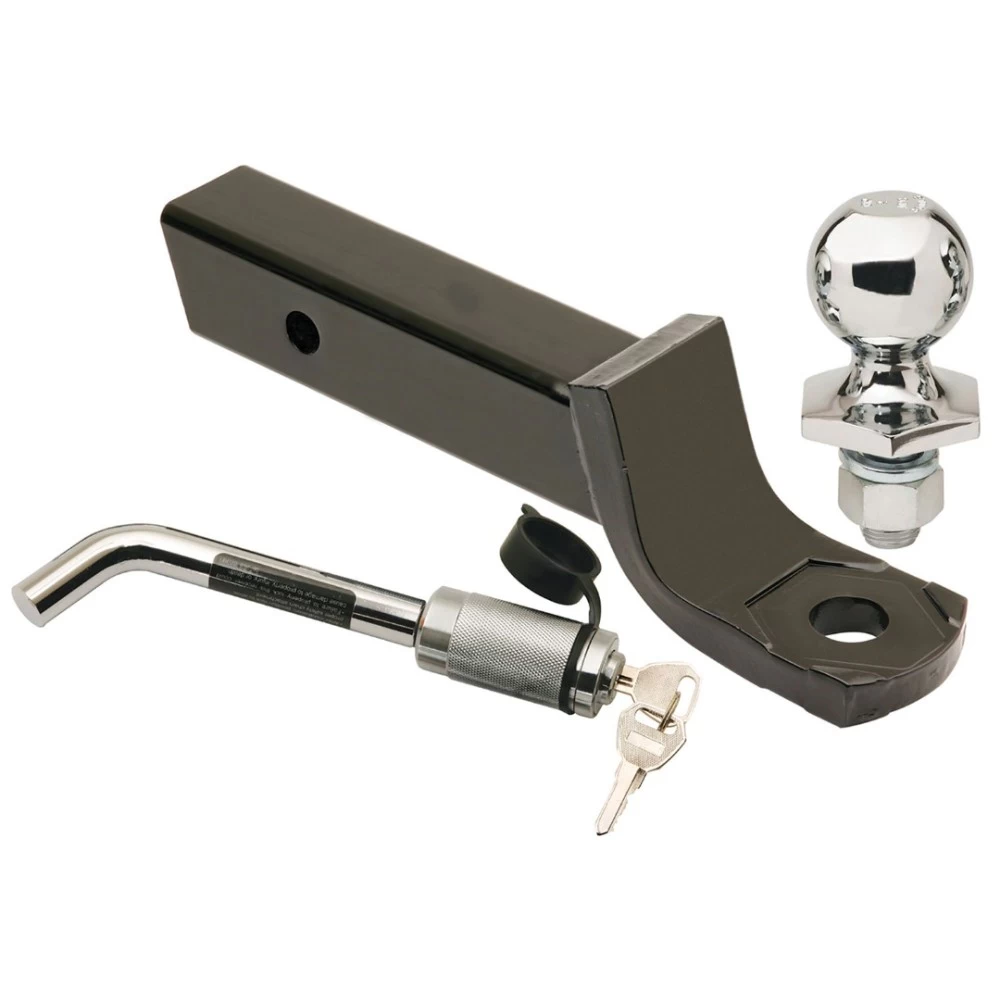

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2020-Current Mazda CX‑30

Part Numbers:

• 76603
• 84603
• CQT76603

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 11/16"
• Flat Head Screwdriver
• Exhaust Removal Pliers
• Die Grinder
• 6‑inch Socket Extension

Step-by-Step Instructions:

1. Remove Bottom Bracket Attachment:

• Use a 10 mm socket to remove 1 bolt from the bottom bracket attachment on each side.
• Use a flat head screwdriver to remove 3 rivets from the attachment.
• Press the bracket inward to release it from the plastic tab attached to the frame rails.
• Return the bracket attachment and hardware to the vehicle owner.

2. Lower Exhaust:

• Using exhaust removal pliers, lower the exhaust by removing 4 rubber hangers (2 on each end of the muffler).
• Ensure the exhaust is supported before removing the hangers.
• Apply spray lubricant or soapy water to the rubber hangers for easier removal.

3. Enlarge Vehicle Frame Access Holes:

• Peel off the sticker on the access hole if present.
• Use a die grinder to enlarge the access hole to a 1‑inch diameter on each side.

4. Install Hitch:

• Feed the carriage bolts and spacers through the access holes using pull wires, leaving the pull wires attached.
• Raise the hitch into position and feed the pull wires through the hitch bracket slot.
• Remove the pull wires and loosely install the conical washers (teeth side toward the hitch) and hex nuts onto the hitch.

5. Tighten Fasteners:

• Using a torque wrench, tighten all 7/16" fasteners to 50 ft‑lbs (68 N*m).

6. Reinstall Exhaust:

• Reattach the exhaust using the rubber hangers removed earlier.

Hardware List:

• (4) Carriage Bolt 7/16"-14 x 1.75" GR5
• (4) Spacer 0.875" x 2.00" x 0.109"
• (4) Conical Washer 7/16"
• (4) Hex Nut 7/16"-14 GR2
• (4) Pull Wire 7/16"

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check that all fasteners and the hitch are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (907 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Installation time for professional installers is approximately 45 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.

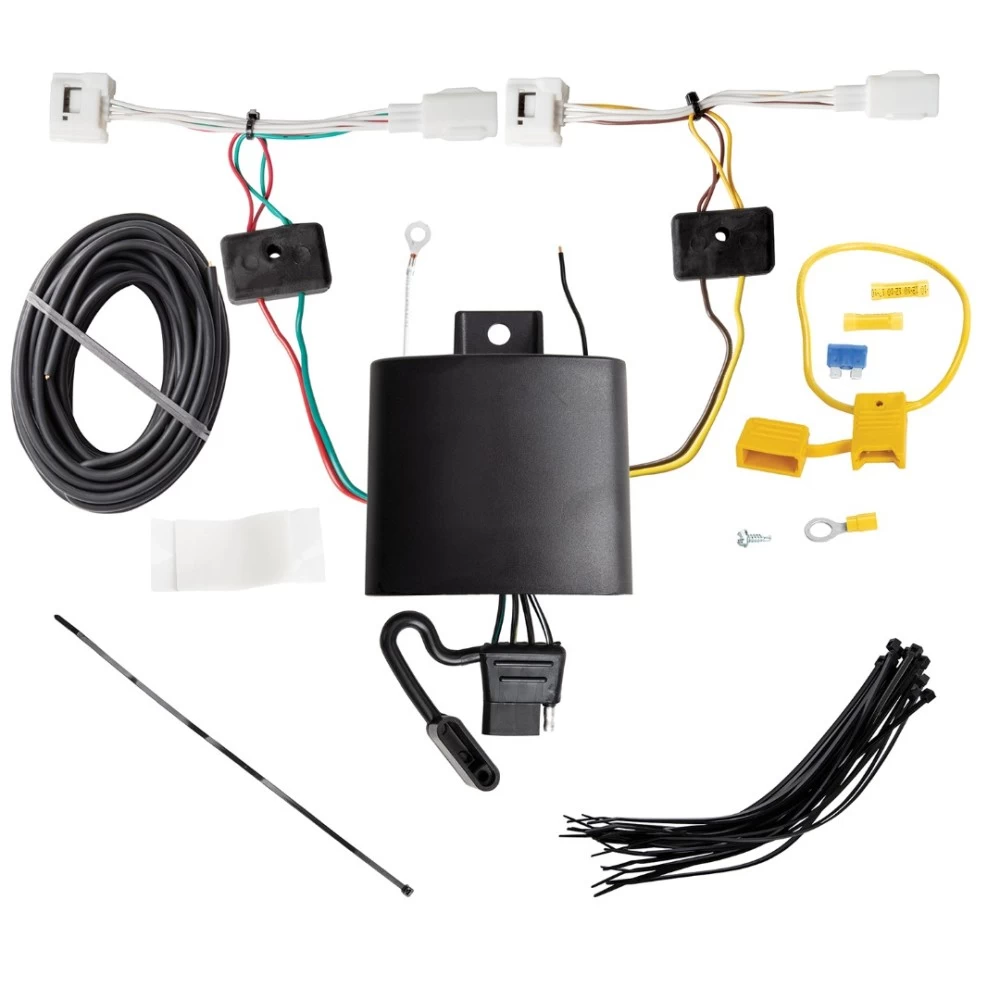

Installation Instructions for T-One® T-Connector for Mazda CX-30

Part Numbers:

• 118822

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Access the Taillight Wiring Connectors:

   • On both the driver’s and passenger’s sides, remove the bracket’s front mounting clip and slide the bracket forward to unlock.
   • Pull the bracket back to access the vehicle’s taillight wiring connectors.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are securely engaged.

4. Mount the Black Box:

   • Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
   • Secure the remaining harness with the provided cable ties, avoiding areas that could pinch, cut, or damage the wires.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.
   • Clean the grounding area of dirt and rustproofing before securing.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Route the Passenger-Side T-Connector:

   • Route the connector with the green wire along the threshold to the passenger side, behind the panels.

7. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
   • Ensure the connectors are fully inserted and locked securely into place.

8. Route the Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge power wire along the frame rail to the rear of the vehicle.
   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

9. Connect the Power Wire:

   • Connect the black power wire to the black wire on the T-One® Connector black box using the provided yellow butt connector.

10. Connect to the Vehicle Battery:

    • Disconnect the vehicle’s Negative (-) battery cable.
    • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable and secure it.
    • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

11. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

12. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

13. Store the 4-Flat Connector:

    • Route the 4-flat connector through the driver’s side trim panel into the storage compartment on the threshold and store it when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.
• Never exceed the lower of the towing manufacturer rating or the specific amperage ratings stated on the product.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118822

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.

2. Access the Taillight Wiring Connectors:

   • On both the driver’s and passenger’s sides, remove the bracket’s front mounting clip and slide the bracket forward to unlock.
   • Pull the bracket back to access the vehicle’s taillight wiring connectors.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are securely engaged.

4. Mount the Black Box:

   • Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
   • Secure the remaining harness with the provided cable ties, avoiding areas that could pinch, cut, or damage the wires.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.
   • Clean the grounding area of dirt and rustproofing before securing.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Route the Passenger-Side T-Connector:

   • Route the connector with the green wire along the threshold to the passenger side, behind the panels.

7. Connect the Passenger-Side T-Connector:

   • Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
   • Ensure the connectors are fully inserted and locked securely into place.

8. Route the Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge power wire along the frame rail to the rear of the vehicle.
   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

9. Connect the Power Wire:

   • Connect the black power wire to the black wire on the T-One® Connector black box using the provided yellow butt connector.

10. Connect to the Vehicle Battery:

    • Disconnect the vehicle’s Negative (-) battery cable.
    • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable and secure it.
    • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

11. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

12. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.

13. Store the 4-Flat Connector:

    • Route the 4-flat connector through the driver’s side trim panel into the storage compartment on the threshold and store it when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
