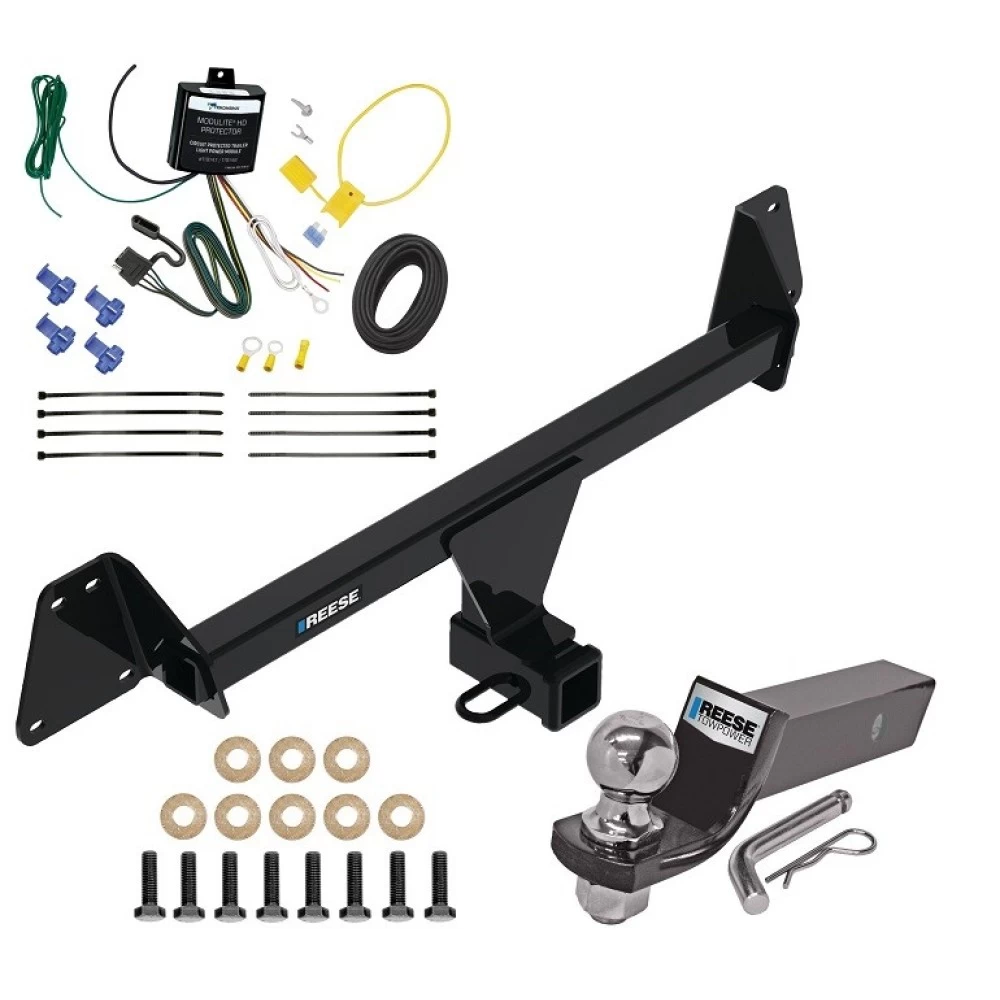

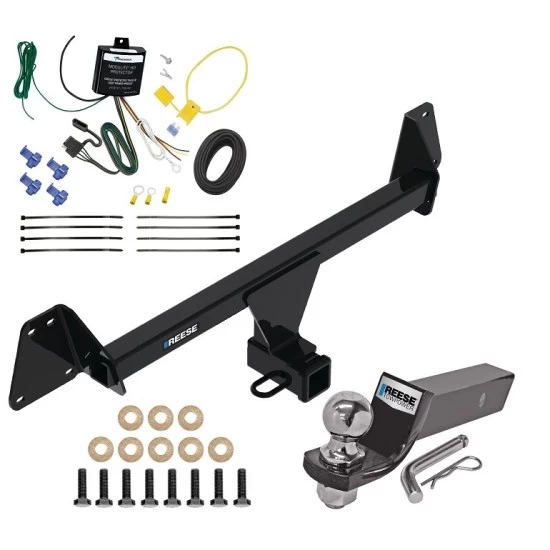

Installation Instructions for 2022-Current Toyota Corolla Cross

Part Numbers:

• 76553
• 84553
• CQT76553

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm
• Flat Head Screwdriver
• Phillips Screwdriver
• Plastic Trim Tools
• Utility Knife
• Tape Measure
• Marker
• Masking Tape

Step-by-Step Instructions:

1. Remove Taillights:

   • Open the liftgate and remove two screws from each taillight using a 10 mm socket.
   • Gently slide the taillights rearward to remove them, unplug the connectors, and set aside.

2. Remove Screws from Liftgate Area:

   • Use a 10 mm socket to remove four screws from the fascia in the liftgate area.
   • Use a Phillips screwdriver to remove two additional screws from the same area.

3. Remove Splash Guards (if present):

   • Use a 10 mm socket to remove four screws from each splash guard.
   • Remove two plastic push rivets located at the bottom of the fascia near the muffler.

4. Partially Remove Wheel Well Trim:

   • Remove four plastic push rivets from each side of the wheel well area.
   • Use a plastic trim tool to gently pry the wheel well trim away from the fascia.
   • Tip: Pull the wheel well liner out of the way and reach inside to release the tabs securing the trim.

5. Remove Fascia:

   • Remove one plastic push rivet located behind the wheel well trim on each side.
   • Starting from the wheel well area, gently pull the fascia away from the vehicle using a plastic trim tool.
   • Disconnect any electrical connectors.

6. Remove Bumper Beam:

   • Use a 13 mm socket to remove eight M8 bolts (four per side) attaching the bumper beam to the end panel.
   • Return the bumper beam and bolts to the vehicle owner.

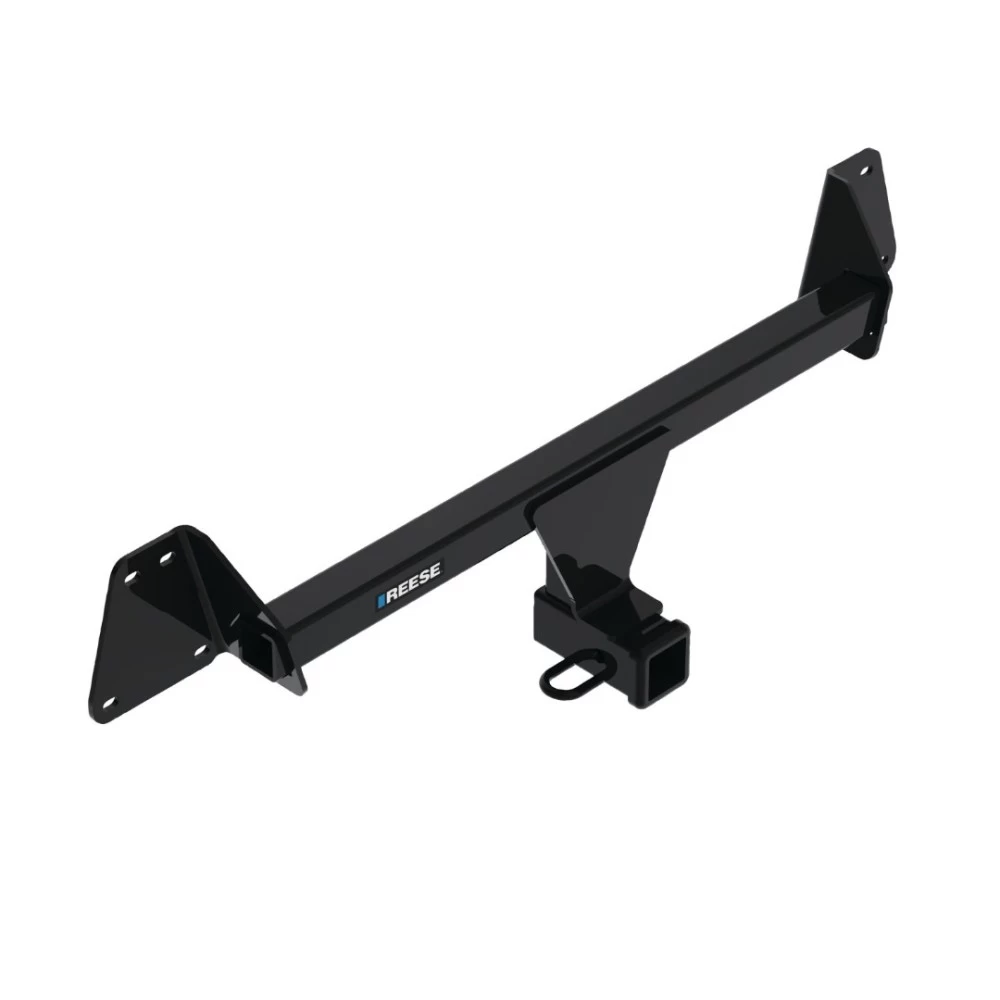

7. Install Hitch:

   • Raise the hitch into position, aligning its attachment holes with the weldnuts in the end panel.
   • Loosely install the supplied M8 bolts and conical washers (teeth side toward hitch) into the weldnuts (four per side).

8. Tighten Fasteners:

   • Use a torque wrench to tighten all M8 fasteners to 20 ft-lbs (27 N*m).

9. Trim Fascia:

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the fascia in the center area to accommodate the hitch.
   • Ensure there are no wires or sensors in the area before cutting.
   • Note: Dimensions are approximate.

10. Reinstall Fascia:

    • Reinstall the fascia in reverse order of removal.
    • Reconnect any electrical connectors removed earlier.

11. Reinstall Splash Guards and Taillights:

    • Reinstall the splash guards and taillights using the fasteners removed earlier.
    • Ensure all electrical connectors are reconnected.

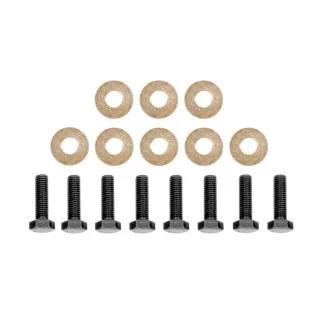

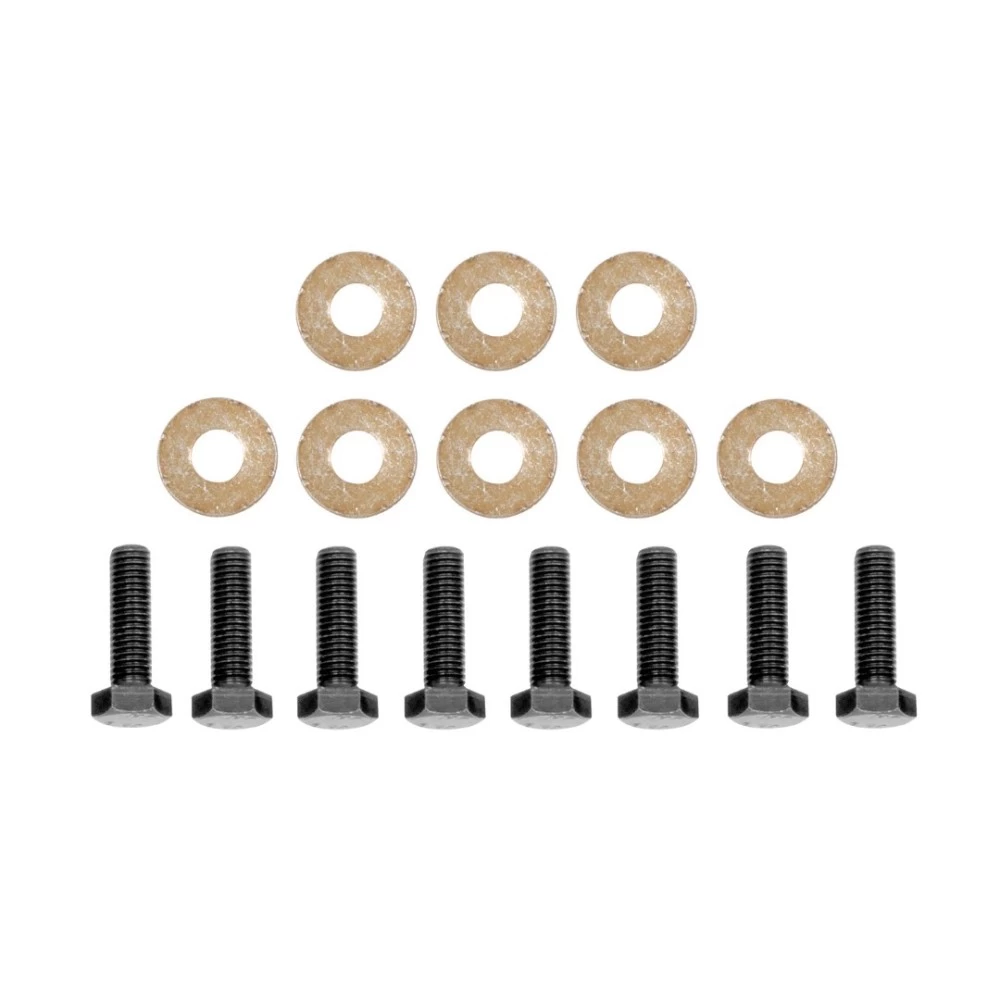

Hardware List:

• (8) Hex Bolt M8 x 1.25 x 40 CL10.9
• (8) Conical Washer 3/8"

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 75 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for 2022-Current Toyota Corolla Cross

Part Numbers:

• 76553
• 84553
• CQT76553

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm
• Flat Head Screwdriver
• Phillips Screwdriver
• Plastic Trim Tools
• Utility Knife
• Tape Measure
• Marker
• Masking Tape

Step-by-Step Instructions:

1. Remove Taillights:

   • Open the liftgate and remove two screws from each taillight using a 10 mm socket.
   • Gently slide the taillights rearward to remove them, unplug the connectors, and set aside.

2. Remove Screws from Liftgate Area:

   • Use a 10 mm socket to remove four screws from the fascia in the liftgate area.
   • Use a Phillips screwdriver to remove two additional screws from the same area.

3. Remove Splash Guards (if present):

   • Use a 10 mm socket to remove four screws from each splash guard.
   • Remove two plastic push rivets located at the bottom of the fascia near the muffler.

4. Partially Remove Wheel Well Trim:

   • Remove four plastic push rivets from each side of the wheel well area.
   • Use a plastic trim tool to gently pry the wheel well trim away from the fascia.
   • Tip: Pull the wheel well liner out of the way and reach inside to release the tabs securing the trim.

5. Remove Fascia:

   • Remove one plastic push rivet located behind the wheel well trim on each side.
   • Starting from the wheel well area, gently pull the fascia away from the vehicle using a plastic trim tool.
   • Disconnect any electrical connectors.

6. Remove Bumper Beam:

   • Use a 13 mm socket to remove eight M8 bolts (four per side) attaching the bumper beam to the end panel.
   • Return the bumper beam and bolts to the vehicle owner.

7. Install Hitch:

   • Raise the hitch into position, aligning its attachment holes with the weldnuts in the end panel.
   • Loosely install the supplied M8 bolts and conical washers (teeth side toward hitch) into the weldnuts (four per side).

8. Tighten Fasteners:

   • Use a torque wrench to tighten all M8 fasteners to 20 ft-lbs (27 N*m).

9. Trim Fascia:

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the fascia in the center area to accommodate the hitch.
   • Ensure there are no wires or sensors in the area before cutting.
   • Note: Dimensions are approximate.

10. Reinstall Fascia:

    • Reinstall the fascia in reverse order of removal.
    • Reconnect any electrical connectors removed earlier.

11. Reinstall Splash Guards and Taillights:# Installation Instructions for Vehicle (2022-Current)

Part Numbers:

• 76553
• 84553
• CQT76553

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 13 mm
• Flat Head Screwdriver
• Phillips Screwdriver
• Plastic Trim Tools
• Utility Knife
• Tape Measure
• Marker
• Masking Tape

Step-by-Step Instructions:

1. Remove Taillights:

   • Open the liftgate and remove two screws from each taillight using a 10 mm socket.
   • Gently slide the taillights rearward to remove them, unplug the connectors, and set aside.

2. Remove Screws from Liftgate Area:

   • Use a 10 mm socket to remove four screws from the fascia in the liftgate area.
   • Use a Phillips screwdriver to remove two additional screws from the same area.

3. Remove Splash Guards (if present):

   • Use a 10 mm socket to remove four screws from each splash guard.
   • Remove two plastic push rivets located at the bottom of the fascia near the muffler.

4. Partially Remove Wheel Well Trim:

   • Remove four plastic push rivets from each side of the wheel well area.
   • Use a plastic trim tool to gently pry the wheel well trim away from the fascia.
   • Tip: Pull the wheel well liner out of the way and reach inside to release the tabs securing the trim.

5. Remove Fascia:

   • Remove one plastic push rivet located behind the wheel well trim on each side.
   • Starting from the wheel well area, gently pull the fascia away from the vehicle using a plastic trim tool.
   • Disconnect any electrical connectors.

6. Remove Bumper Beam:

   • Use a 13 mm socket to remove eight M8 bolts (four per side) attaching the bumper beam to the end panel.
   • Return the bumper beam and bolts to the vehicle owner.

7. Install Hitch:

   • Raise the hitch into position, aligning its attachment holes with the weldnuts in the end panel.
   • Loosely install the supplied M8 bolts and conical washers (teeth side toward hitch) into the weldnuts (four per side).

8. Tighten Fasteners:

   • Use a torque wrench to tighten all M8 fasteners to 20 ft-lbs (27 N*m).

9. Trim Fascia:

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the fascia in the center area to accommodate the hitch.
   • Ensure there are no wires or sensors in the area before cutting.
   • Note: Dimensions are approximate.

10. Reinstall Fascia:

    • Reinstall the fascia in reverse order of removal.
    • Reconnect any electrical connectors removed earlier.

11. Reinstall Splash Guards and Taillights:

    • Reinstall the splash guards and taillights using the fasteners removed earlier.
    • Ensure all electrical connectors are reconnected.

Hardware List:

• (8) Hex Bolt M8 x 1.25 x 40 CL10.9
• (8) Conical Washer 3/8"

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product comes with a standard warranty period of [X] years.
• Coverage includes [details on coverage].
• For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

• Reinstall the splash guards and taillights using the fasteners removed earlier.
• Ensure all electrical connectors are reconnected.

Hardware List:

• (8) Hex Bolt M8 x 1.25 x 40 CL10.9
• (8) Conical Washer 3/8"

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 75 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
