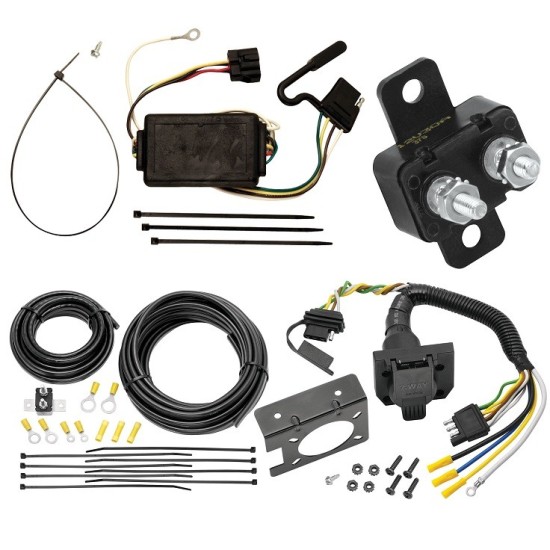

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118401

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit

Step-by-Step Instructions:

1. Locate the Tow-Plug Harness:

   • Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
   • Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

2. Connect the T-Connector:

   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.

3. Route the T-Connector Harness:

   • Route the T-Connector harness rearward along the fascia of the bumper.
   • Continue routing it along the inside of the bumper toward the center of the vehicle.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
   • Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.

5. Mount the Black Box:

   • Mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.

6. Test the Installation:

   • Verify the T-Connector installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps).
   • Max. tail lights: (5 amps).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions provided.

Manufacturer Notes:

• Read the vehicle owner’s manual and instruction sheet for additional information.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118401

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit

Step-by-Step Instructions:

1. Locate the Tow-Plug Harness:

   • Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
   • Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

2. Connect the T-Connector:

   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.

3. Route the T-Connector Harness:

   • Route the T-Connector harness rearward along the fascia of the bumper.
   • Continue routing it along the inside of the bumper toward the center of the vehicle.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
   • Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.

5. Mount the Black Box:

   • Mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.

6. Test the Installation:

   • Verify the T-Connector installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: (5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions provided.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
