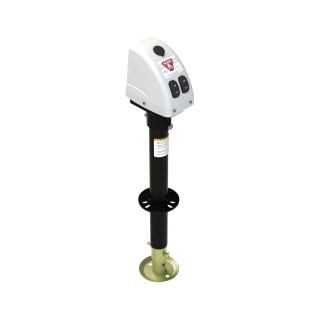

Bulldog A-Frame Powered Drive Trailer Jack 3,500 lbs - 14" Lift - Drop Leg - White Cover

Bulldog A-Frame Powered Drive Trailer Jack 3,500 lbs - 14" Lift - Drop Leg - White Cover

Model: 500188

Tough & Trusted BULLDOG presents a Powered Jack with all the capacity and features you want.

Positions quickly with 22" of total travel
3,500 lbs. lift capacity
Integrated gearbox and motor
Drop leg
Deploys and hooks up easily at night with onboard LED courtesy light, angled to illuminate coupler
Works in case of power loss with emergency manual override capability, easily accessible from the top, crank included
Lasts for years with industry-leading BULLDOG performance, known worldwide for unmatched strength, durability, and side load capacity
Retains like-new appearance with corrosion-resistant surfaces
Limited 5-year warranty

Specifications:
- Lift Capacity: 3,500 lbs.
- Total Travel: 22" (14" Lift & 8" Drop Leg Travel)
- Retracted Bracket Height: 9.75"
- Extended Bracket Height: 31.50"
- Clearance: 20.50"
- Inner Tube Diameter: 2"
- Outer Tube Diameter: 2-1/4"
- White Cover

See Full Description

$373 ⁹⁹ $456.25 18% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Estimate

Add to Wish List

$456.25 $373 ⁹⁹

Pay in 4 interest-free installments of with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Bulldog
Model: 500188
UPC: 016118112078
Includes: Powered A-Frame Jack

Description

Tough & Trusted BULLDOG presents a Powered Jack with all the capacity and features you want.

Positions quickly with 22" of total travel
3,500 lbs. lift capacity
Integrated gearbox and motor
Drop leg
Deploys and hooks up easily at night with onboard LED courtesy light, angled to illuminate coupler
Works in case of power loss with emergency manual override capability, easily accessible from the top, crank included
Lasts for years with industry-leading BULLDOG performance, known worldwide for unmatched strength, durability, and side load capacity
Retains like-new appearance with corrosion-resistant surfaces
Limited 5-year warranty

Specifications:
- Lift Capacity: 3,500 lbs.
- Total Travel: 22" (14" Lift & 8" Drop Leg Travel)
- Retracted Bracket Height: 9.75"
- Extended Bracket Height: 31.50"
- Clearance: 20.50"
- Inner Tube Diameter: 2"
- Outer Tube Diameter: 2-1/4"
- White Cover

Specifications

Default
Brand	Bulldog
Jack Mounting Style	A-Frame Triangular Center Mount
Jack Style	A-Frame
Lift Mechanism	Electric Lift
Jack Travel Range	14 Inch Lift
Jack Finish	Black Zinc Plated
Jack Static Load Capacity	3500 LB Static Capacity
Jack Lifting Load Capacity	3500 LB Lift Capacity
Jack Foot Type	Footplate
Jack Leg Style	Drop Leg Non Spring Return
Jack Swivel Type	Non Swivel
Jack Outer Tube Diameter	2.25 Inch Outer Tube
Jack Shape	Round Jack
Approx Bracket-to-Bottom Clearance (Retracted)	10 Inch Bracket-to-Bottom Retracted
Approx Bracket-to-Bottom Clearance (Extended)	32 Inch Bracket-to-Bottom Extended
Approx Bracket-to-Top Clearance	21 Inch Bracket-to-Top Clearance
Electric Lift	3500 LB Electric Lift
Custom Bundle	No
Exact Bracket-to-Bottom Clearance (Retracted)	9.75 Inch
Exact Bracket-to-Bottom Clearance (Extended)	31.50 Inch
Exact Bracket-to-Top Clearance	20.50 Inch
Inner Tubing Diameter	2 Inch Inner Tube
