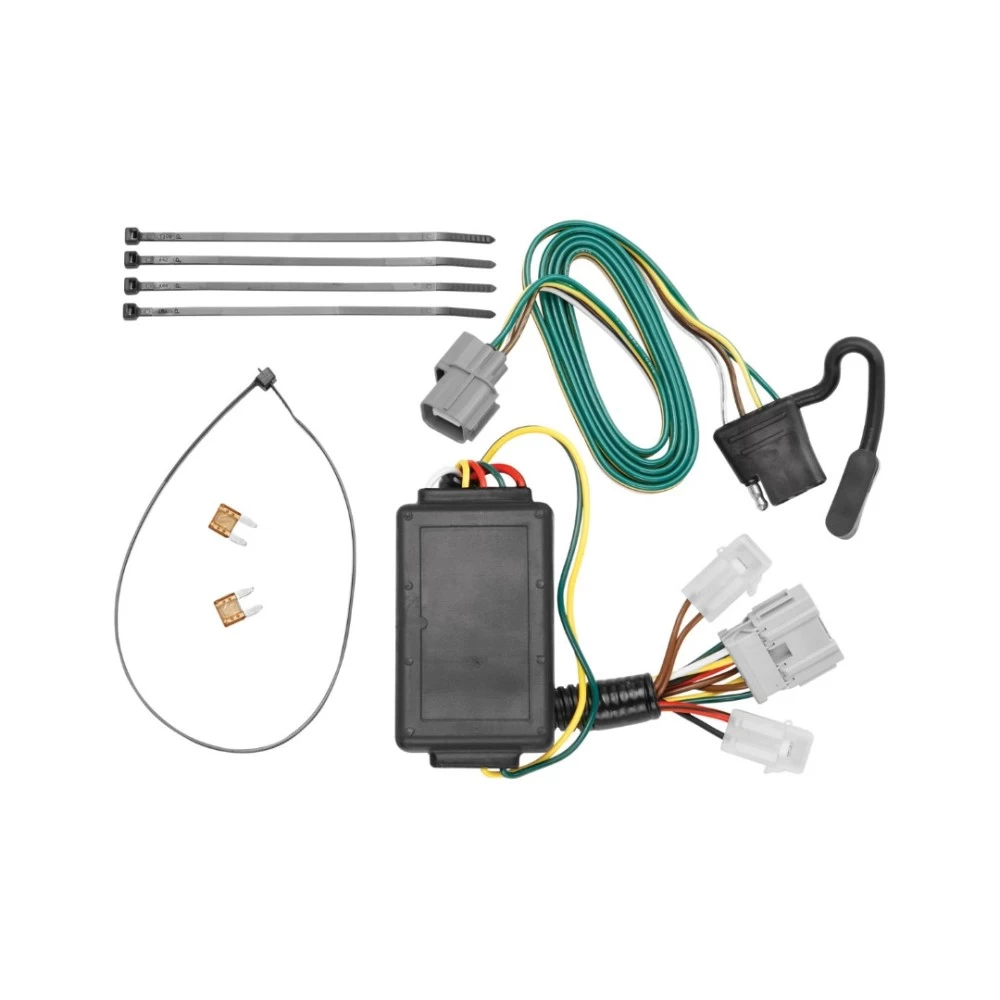

Installation Instructions for T-Connector Adapter for Honda Element

Part Numbers:

• 118465

Tools Required:

• None

Step-by-Step Instructions:

1. Locate the 10-Pin Tow Plug Adapter:

   • Remove the access panel underneath the steering wheel by turning the locking knobs 90 degrees counterclockwise.
   • Locate the gray 10-pin housing underneath the dash to the left of the steering column. It is taped to another harness with blue tape.

2. Prepare the Fuse Holders:

   • If not already done, remove the fuses from the supplied fuse holders on the wires going from the T-Connector’s 10-pin Tow Plug Adapter to the T-Connector’s black converter box.

3. Connect the Tow Plug Adapter:

   • Insert the 10-pin Tow Plug Adapter into the mating connector and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs engaged.

4. Mount the Black Converter Box:

   • Use the provided double-sided tape or the 14” cable tie to mount the T-Connector’s black converter box securely under the dash. Ensure the wires are not pinched or cut.

5. Access the Rear Cargo Area:

   • Open the rear tailgate and remove the cargo nets and cargo floor hatch to access the spare tire area.

6. Locate the Vehicle’s Factory Tow Harness:

   • On the driver’s side, locate the vehicle’s factory 4-pin tow harness connector mounted on the threshold. Ensure the mating surfaces of the vehicle harness connectors match the Tow Plug Adapter end. Clean all connector surfaces.

7. Connect the 4-Pin Tow Plug Adapter:

   • Insert the 4-pin Tow Plug Adapter into the mating connector and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs engaged.

8. Reassemble the Cargo Area:

   • Reposition the access panels, trays, and trunk floor panels. Reattach the threshold.
   • Replace the mini-fuses removed in Step 2.

9. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• All connections must be complete for the T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Store the 4-flat connector in the spare tire compartment when not in use.
• Follow all warnings and installation instructions carefully.
• Refer to the vehicle owner’s manual for additional information.

Installation Instructions for T-Connector Adapter for Honda Element

Part Numbers:

• 118465

Tools Required:

• None

Step-by-Step Instructions:

1. Locate the 10-Pin Tow Plug Adapter:

   • Remove the access panel underneath the steering wheel by turning the locking knobs 90 degrees counterclockwise.
   • Locate the gray 10-pin housing underneath the dash to the left of the steering column. It is taped to another harness with blue tape.

2. Prepare the Fuse Holders:

   • If not already done, remove the fuses from the supplied fuse holders on the wires going from the T-Connector’s 10-pin Tow Plug Adapter to the T-Connector’s black converter box.

3. Connect the Tow Plug Adapter:

   • Insert the 10-pin Tow Plug Adapter into the mating connector and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs engaged.

4. Mount the Black Converter Box:

   • Use the provided double-sided tape or the 14” cable tie to mount the T-Connector’s black converter box securely under the dash. Ensure the wires are not pinched or cut.

5. Access the Rear Cargo Area:

   • Open the rear tailgate and remove the cargo nets and cargo floor hatch to access the spare tire area.

6. Locate the Vehicle’s Factory Tow Harness:

   • On the driver’s side, locate the vehicle’s factory 4-pin tow harness connector mounted on the threshold. Ensure the mating surfaces of the vehicle harness connectors match the Tow Plug Adapter end. Clean all connector surfaces.

7. Connect the 4-Pin Tow Plug Adapter:

   • Insert the 4-pin Tow Plug Adapter into the mating connector and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs engaged.

8. Reassemble the Cargo Area:

   • Reposition the access panels, trays, and trunk floor panels. Reattach the threshold.
   • Replace the mini-fuses removed in Step 2.

9. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• All connections must be complete for the T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Store the 4-flat connector in the spare tire compartment when not in use.
• Follow all warnings and installation instructions carefully.
• Refer to the vehicle owner’s manual for additional information.

Warranty Information:

• This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
• For complete warranty instructions, please download the full installation PDF.

For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

TrailerJacks.com - Trailer Jacks, Hitches, Auto Parts & Accessories www.trailerjacks.com

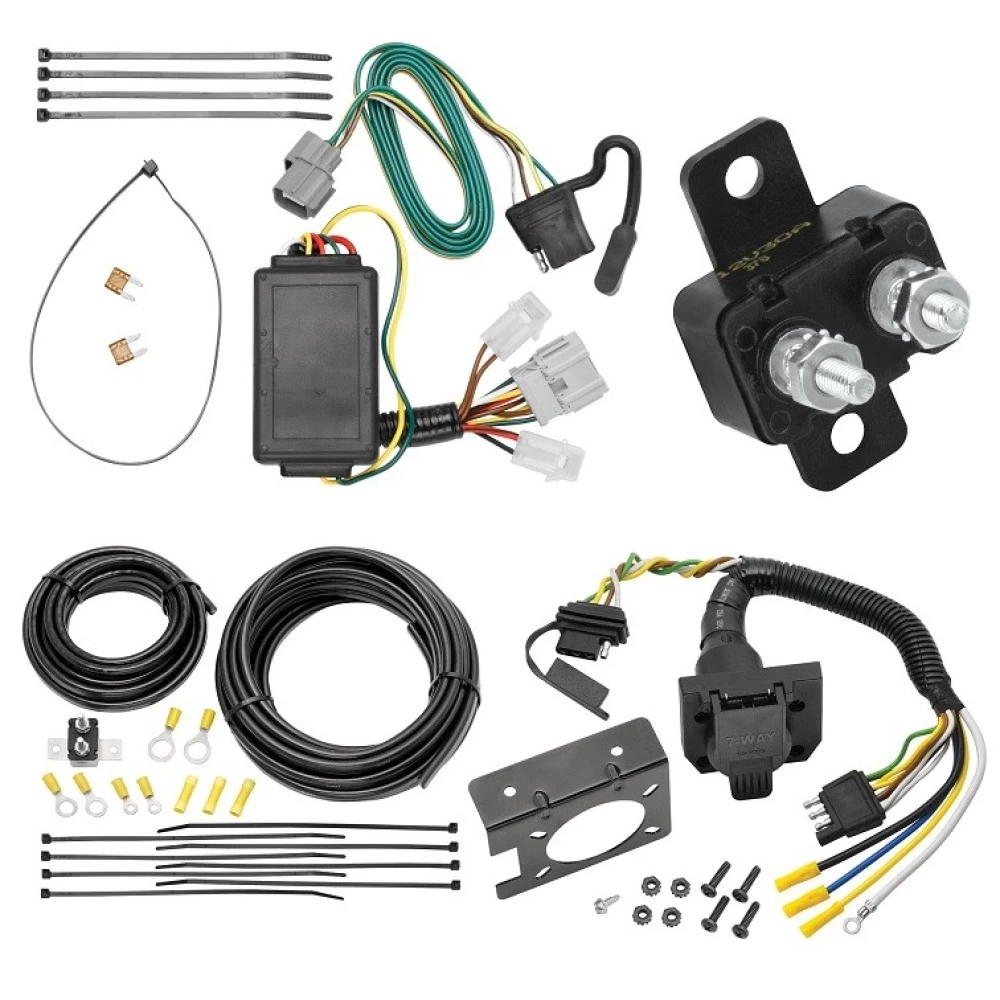

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
