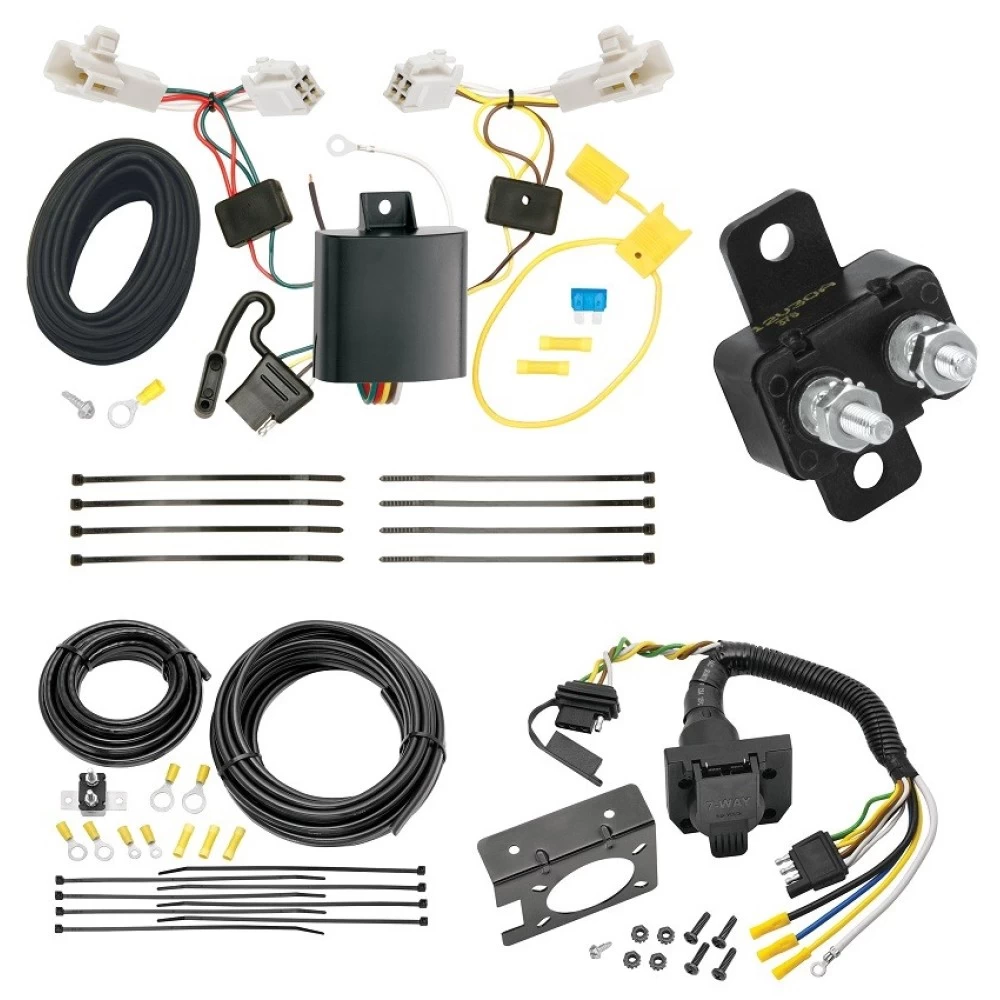

Installation Instructions for T-Connector Adapter for Toyota RAV-4 and Toyota Avalon

Part Numbers:

• 118578

Tools Required:

• Trim Panel Remover
• 10mm & 14mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • For Toyota RAV-4:
     • Open the rear hatch and temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
     • Open the rear door and fold the rear seat forward.
   • For Toyota Avalon:
     • Open the trunk and temporarily remove the rear threshold plate.
     • Partially remove the felt trunk liner behind the taillights.

2. Remove Interior Trim Panels:

   • Partially remove the rear interior trim panels on both driver and passenger sides to expose the taillight wiring.
   • Remove the fasteners carefully to avoid damage to the clips or panels.

3. Locate the Taillight Wiring Harness:

   • On both driver and passenger sides, locate the vehicle's taillight wiring harness.
   • Disconnect the harness carefully, ensuring not to damage the locking tabs.
   • Clean the connectors to ensure proper contact.

4. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver-side taillight wiring connectors.
   • Ensure the connectors are fully inserted and secured with locking tabs.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire along the rear threshold to the passenger side.
   • Repeat Step 4 to connect the green wire to the passenger-side taillight connectors.

6. Mount the T-Connector Black Box:

   • Locate a flat surface near the driver-side taillight wiring.
   • Mount the black converter box using the provided double-sided tape.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector or drill a 3/32” hole.
   • Secure the white wire with the provided eyelet and screw.

   Caution:

   • Avoid drilling into the vehicle floor or any exposed surfaces. Verify what lies beneath the surface before drilling.

8. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire using the supplied yellow butt connector.

9. Route the Power Wire:

   • Route the black power wire through a grommet and along the exterior frame or existing wiring to the vehicle's engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas that may damage the wire.

10. Connect to the Vehicle Battery:

    • Disconnect the negative (-) battery cable.
    • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
    • Connect the black wire to the fuse holder using the yellow butt connector.
    • Insert the 15-amp fuse into the fuse holder.

11. Reconnect the Battery:

    • Reconnect the negative (-) battery cable and test the system with a test light or trailer.

    Warning:

    • All connections must be complete for the T-Connector to function properly.

12. Secure the Wiring:

    • Secure the remaining harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.

13. Reassemble the Vehicle:

    • Replace all removed components, including trim panels, threshold, cargo trays, and taillights.

14. Store the 4-Flat Connector:

    • Route the 4-flat connector into the driver’s side storage compartment and store it when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the stated ratings or vehicle manufacturer's specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter for Toyota RAV-4 and Toyota Avalon

Part Numbers:

• 118578

Tools Required:

• Trim Panel Remover
• 10mm & 14mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • For Toyota RAV-4:
     • Open the rear hatch and temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
     • Open the rear door and fold the rear seat forward.
   • For Toyota Avalon:
     • Open the trunk and temporarily remove the rear threshold plate.
     • Partially remove the felt trunk liner behind the taillights.

2. Remove Interior Trim Panels:

   • Partially remove the rear interior trim panels on both driver and passenger sides to expose the taillight wiring.
   • Remove the fasteners carefully to avoid damage to the clips or panels.

3. Locate the Taillight Wiring Harness:

   • On both driver and passenger sides, locate the vehicle's taillight wiring harness.
   • Disconnect the harness carefully, ensuring not to damage the locking tabs.
   • Clean the connectors to ensure proper contact.

4. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver-side taillight wiring connectors.
   • Ensure the connectors are fully inserted and secured with locking tabs.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire along the rear threshold to the passenger side.
   • Repeat Step 4 to connect the green wire to the passenger-side taillight connectors.

6. Mount the T-Connector Black Box:

   • Locate a flat surface near the driver-side taillight wiring.
   • Mount the black converter box using the provided double-sided tape.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector or drill a 3/32” hole.
   • Secure the white wire with the provided eyelet and screw.

   Caution:

   • Avoid drilling into the vehicle floor or any exposed surfaces. Verify what lies beneath the surface before drilling.

8. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire using the supplied yellow butt connector.

9. Route the Power Wire:

   • Route the black power wire through a grommet and along the exterior frame or existing wiring to the vehicle's engine compartment.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or areas that may damage the wire.

10. Connect to the Vehicle Battery:

    • Disconnect the negative (-) battery cable.
    • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
    • Connect the black wire to the fuse holder using the yellow butt connector.
    • Insert the 15-amp fuse into the fuse holder.

11. Reconnect the Battery:

    • Reconnect the negative (-) battery cable and test the system with a test light or trailer.

    Warning:

    • All connections must be complete for the T-Connector to function properly.

12. Secure the Wiring:

    • Secure the remaining harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wires.

13. Reassemble the Vehicle:

    • Replace all removed components, including trim panels, threshold, cargo trays, and taillights.

14. Store the 4-Flat Connector:

    • Route the 4-flat connector into the driver’s side storage compartment and store it when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the stated ratings or vehicle manufacturer's specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
