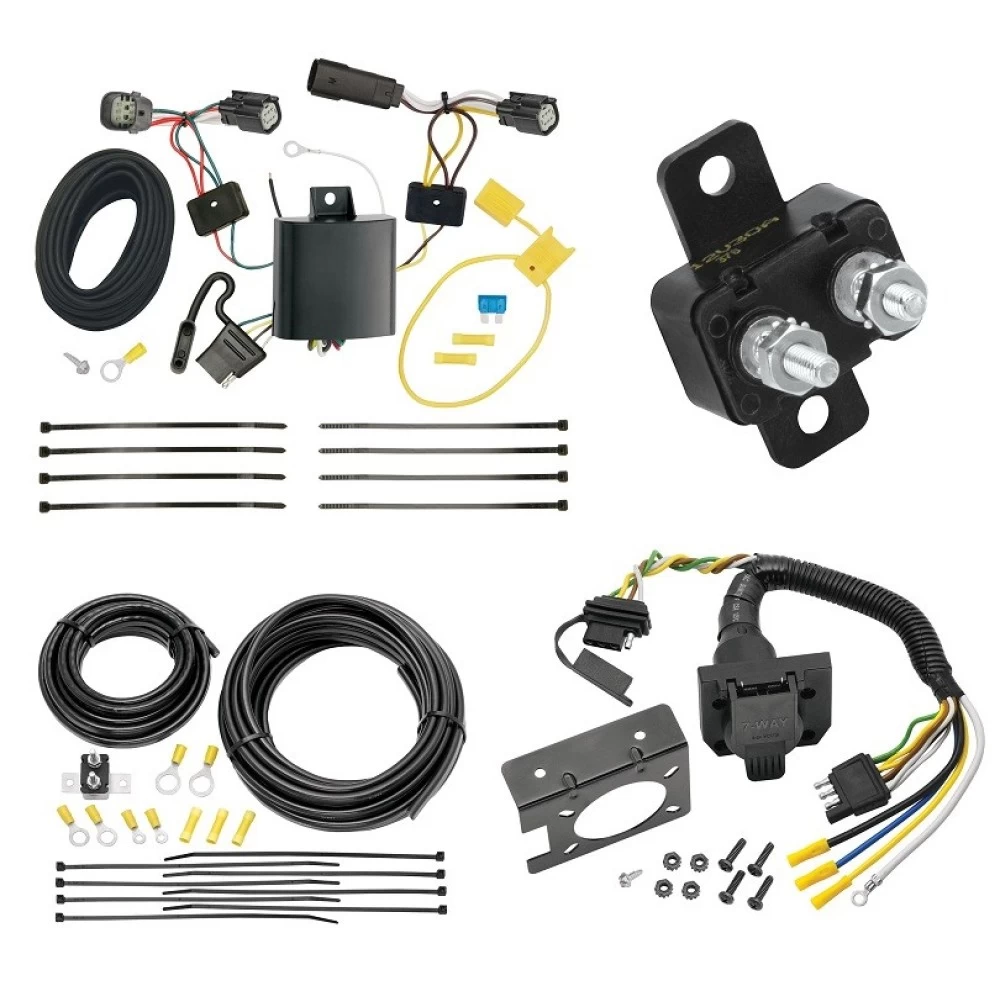

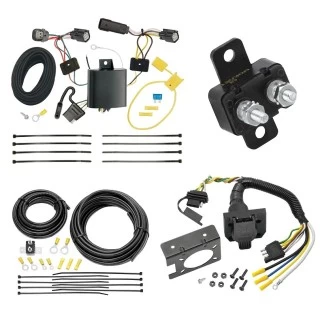

Installation Instructions for T-One® T-Connector for Ford Edge Titanuim

Part Numbers:

• 118677

Tools Required:

• 2 Phillips Screwdriver

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight housing assemblies.
   • Using a trim panel remover, remove the square covers to expose the taillight screws.
   • After removing the screws, carefully pull the taillight away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Vehicle Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • On the driver’s side, route the T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Connect the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side and the 4-flat connector under the bumper.
   • Route the green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, or areas that could pinch or damage the wire.
   • Repeat Step 3 for the passenger side.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.

   Caution: Verify the area behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Route the Black Power Wire:

   • Begin at the front of the vehicle and route the black wire rearward along the frame rail.
   • Avoid hot pipes, heat shields, or areas that could pinch or damage the wire.

8. Attach the Black Wire:

   • Route the black wire to the rear driver’s side and through the opening between the vehicle rear bumper and body into the taillight area.
   • Connect the black wire to the black wire from the T-Connector black box using the yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

10. Mount the Black Box:

    • Locate a flat surface near the driver’s side and mount the T-Connector’s black converter box using the provided double-sided tape.

    Warning: Ensure the epoxy side of the module faces downward to prevent water accumulation.

11. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and vehicle body.
    • Secure the remaining T-Connector harness under the bumper with the provided cable ties.

12. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 4.2 amps per side
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Ford Edge Titanium

Part Numbers:

• 118677

Tools Required:

• 2 Phillips Screwdriver

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight housing assemblies.
   • Using a trim panel remover, remove the square covers to expose the taillight screws.
   • After removing the screws, carefully pull the taillight away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Vehicle Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • On the driver’s side, route the T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Connect the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side and the 4-flat connector under the bumper.
   • Route the green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, or areas that could pinch or damage the wire.
   • Repeat Step 3 for the passenger side.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.

   Caution: Verify the area behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Route the Black Power Wire:

   • Begin at the front of the vehicle and route the black wire rearward along the frame rail.
   • Avoid hot pipes, heat shields, or areas that could pinch or damage the wire.

8. Attach the Black Wire:

   • Route the black wire to the rear driver’s side and through the opening between the vehicle rear bumper and body into the taillight area.
   • Connect the black wire to the black wire from the T-Connector black box using the yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

10. Mount the Black Box:

    • Locate a flat surface near the driver’s side and mount the T-Connector’s black converter box using the provided double-sided tape.

    Warning: Ensure the epoxy side of the module faces downward to prevent water accumulation.

11. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and vehicle body.
    • Secure the remaining T-Connector harness under the bumper with the provided cable ties.

12. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 4.2 amps per side
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
